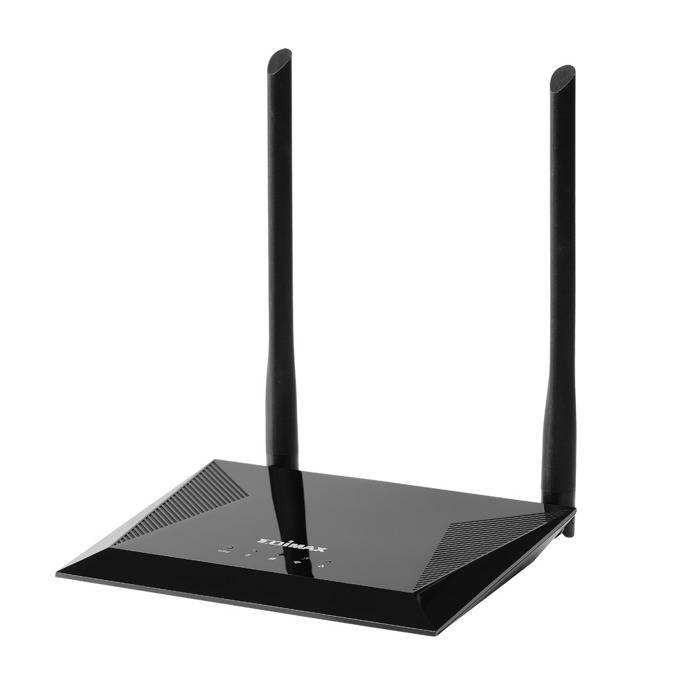

4-in-1 N300 Wi-Fi Router, Access Point, Range Extender, & WISP

BR-6428nS V5

4-in-1 Router, Access Point, Range Extender, and WISP
Smart Setup for smart, automatic and quick installation with no CD required
High Gain Antenna: Enhances wireless range and coverage
Guest network: Provides connectivity while isolating guests from your primary network
Easy One-Click Setup with Wi-Fi Protected Setup (WPS) button

4-in-1 Wi-Fi Router, Access Point, Range Extender, and WISP

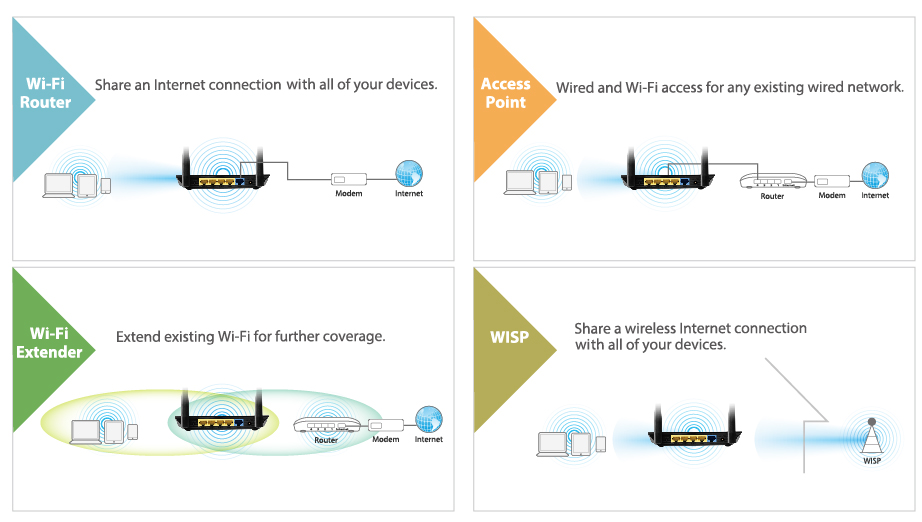

The BR-6428nS V5 can work as 4 major modes for wireless networking, including router, access point, range extender, and WISP modes. No matter you want to use it simply over a router for Internet sharing, as an access point for transferring wired connection into wireless network, extending the signals to be a range extender, or sharing a wireless Internet connection with all your devices, just switch it for your network environment by using the smart setup wizard.

SPECIFICATIONS

HARDWARE
Interface	1 x RJ-45 10/100Mbps WAN port, 4 x RJ-45 10/100Mbps LAN port
Button	WPS/Reset
LED Indicator	Power, Wireless , Internet, LNK/ACT for LAN, WPS
Antenna	2 x antennas
Memory	2 MB NOR Flash, 8 MB RAM
Power Adapter	DC 9V/0.4A
Dimensions / Weight	153.8(W)mm x 107(D)mm x 25(H)mm, 150g
WIRELESS
Standards	802.11 b/g/n/
Frequency	2.4GHz
Maximum Data Speed	2.4GHz: 300Mbps
Receive Sensitivity	2.4GHz: 11g (11Mbps): -79 ±2dBm, 11g (54Mbps): ‐68±2dBm 11n(20MHz, MCS7): ‐67±2dBm, 11n(40MHz, MCS7): ‐64±2dBm
Transmit Power	11n:16dBm ±1dBm, 11g:17dbm ±1dBm
Guest Network	2.4GHz guest network × 1
Security	WEP, WPA , WPA2, WPA-PSK & WPA2-PSK security Hardware & software WPS configuration
SOFTWARE FEATURES
Management	Multi-language user interface Remote management, access control System status and security log Firmware upgradable Smart Setup, no CD required
WAN	Protocol: Dynamic IP, Static IP, PPPoE Supports RJ-45 cable
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
DHCP	Server, Client, DHCP Client List, Address Reservation
Dynamic DNS	DynDns
Access Control	Bandwidth Control, Host List, Access Schedule
Firewall Security	SPI Firewall, IP and MAC Address Binding, Wireless MAC Filtering
Protocols	Supports IPv4
Guest Network	2.4GHz guest network x 1
Operation Mode	Wi-Fi Router , Access Point, Range Extender, WISP
OTHERS
Certification	CE, RoHS
Environmental Condition	Operating humidity: 10 - 90% (non-condensing) Operating temperature: 32 - 104°F (0 - 40°C)

Виж още Рутери Безжични Edimax
Виж всички Рутери Безжични в категорията

Документация

Технически характеристики

Безжична скорост:	300 Mbps
Wi-Fi Стандарт:	Wi-Fi 4 (802.11n)
Честота:	2.4 GHz
LAN портове:	4 x 100 Mbps
WAN портове:	1 x 100 Mbps
Антени:	2 Външни
USB портове:	Няма
3G/4G:	Не
Преносим:	Не
Други:	Няма
Жична скорост:	10/100 Mbps
