Захранване be quiet! PURE POWER L8, 700W, Active PFC, 80 Plus Bronze, 120mm вентилатор

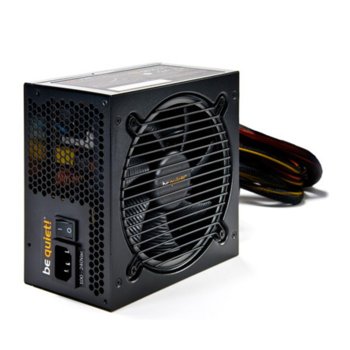

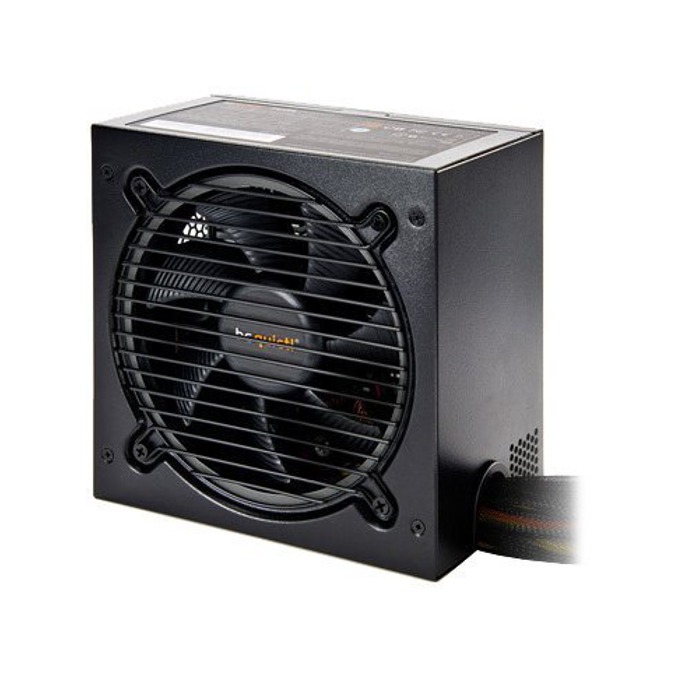

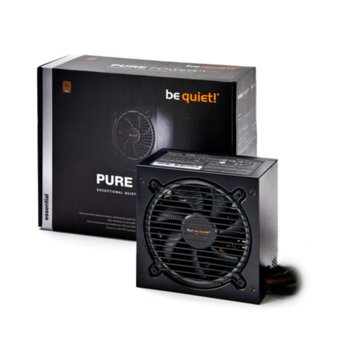

Be Quiet PURE POWER L8
(BN225)

Exceptional Quiet, Superior Reliability, Great Value

The Pure PowerTM L8 700W proves true affordability, means peerless dependability and best-in-class features — not cutting corners and settling for less. Pure Power L8 700W features rock-solid voltages, strong reliability, high efficiency and exceptional quiet—simply the best combination of features, performance and quality in the class — at a very popular price. Now THAT is value!

Exceptionally quiet operation achieved through an array of careful optimizations, including use of a silence-optimized 120mm be quiet! fan with durable Rifle-Bearing-Technology
700 Watts of continuous power and stronger +12V rails provide massive power reserves for those times your PC really needs it all
80PLUS Bronze certification and up to 88% power conversion efficiency let you do more work with the same power and reduce your power bills
Sleeved cable lengths for improved cooling and more attractive appearance
Extensive compatibility with latest specifications, including energy-saving requirements of Intel C6/C7, ErP 2014 and Energy Star 6.0 guidelines.
NVIDIA SLI Ready and AMD CrossFireX certification allow you to build powerful Multi-GPU systems with confidence
German product conception, design and quality control

Applications

Gaming with multi-GPU capability
Silent PC builds
Multimedia systems and Home Theater
Photo and Video editing desktops


Feature Details

Exceptionally Quiet Operation

Installed high-quality 120mm be quiet! fan with durable Rifle-Bearing-Technology is thermally controlled and optimally governed to strike the best balance between proper cooling and deep quiet
Flow-optimized fan blades reduce turbulence, allowing for best-of-class quiet functioning with excellent airflow
Cooler operating temperatures resulting from high efficiency design allow for quieter cooling than is possible with less energy efficient power supplies


Engineering

Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads, thus safeguarding your valuable components
Two independent +12V rails improve power signal stability


Energy Efficiency

80PLUS Bronze certification means class-leading very high operating efficiency (up to 88%)
High efficiency means money savings, reduced waste heat, and overall quieter operation
Standby drain of less than 0.25 Watts
Meets Energy Star 6.0 guidelines
Fulfills ErP 2014 guidelines
Zero Load design supports Intel’s Deep Power Down C6/C7 mode


Maximum Compatibility and Convenience

Sleeved cable lengths up to 90cm allow for convenient cable routing and connections
Cable harness features 16 total connectors for substantial system builds
Four PCI Express connectors for multi-GPU-system configurations (AMD CrossFireX, NVIDIA SLI Ready)
Clearly labeled plugs and clever accessories promote simple installation

General

ModelPURE POWER L8 700W

General Data

Continuous power (W)700
Peak power (W)750
Form factor ATX 12VATX 12V 2.4
Form factor EPS 12VEPS 12V 2.92
Modular cable management-
Topology-
Voltage (Vac)100 - 240
Frequency (Hz)50 - 60
Input current (A)10 / 5
PFC active
Power factor at 100% load>0.97
Compliant to Intel C6/C7✓
Compliant to Intel C6 mode✓
Power consumption in standby (W)<0.30
Average life time (h / 25°C)100.000
Operating temperature up to (°C)40

Output

12V rails (multi-rail operation)2
12V single rail operation-
Overclocking key-
+3.3V (A)25
+5V (A)20
+12V1 (A)35
+12V2 (A)30
+12V3 (A)-
+12V4 (A)-
+12V5 (A)-
+12V6 (A)-
-12V (A)0.30
+5Vsb (A)3.00
Max. combined power 12V (W)636
Max. combined power 3.3V + 5V (W)150
Hold-up time (ms @ 100%)16.0

Fan / Cooling technology

Fan type exclusive be quiet! fan
+Silen tWings-
Motor technology 4-pole fan motor
Bearing technology Rifle
Fan size (mm)120
Max. fan speed (rpm), temperature-dependent-
Temperature control for case fans-
dB(A) at 20% load13.8
dB(A) at 50% load18.0
dB(A) at 100% load30.8

Protection

OCP (over current protection)✓
OVP (over voltage protection)✓
UVP (under voltage protection)✓
SCP (short circuit protection)✓
OTP (over temperature protection)✓
OPP (over power protection)✓

Safety certification

CE✓
CB✓
TÜV✓
Nemko (N)-
Semko (S)✓
Fimko (FI)-
Demko (D)-
FCC✓
cRUus-
cTUVus✓
RCM (Australia)✓
BSMI-
CU (Russia)-

Eco / Efficiency

80 PLUS certification bronze
Efficiency (%) at 230V, 20% load84
Efficiency (%) at 230V, 50% load87
Efficiency (%) at 230V, 100% load84

Environmental directives

Cable management / Connectors

Modular cable management-
Sleeved cables✓
Flat Cables-
Cable length to mainboard (cm)50
Cable length to first connector (cm)45
Maximum cable length (cm)90
All-in-one cable (SATA/PATA/FDD)✓
No. of cables7
ATX-Mainboard (20+4 pin)1
P8 (CPU)-
P4+4 (CPU)1
P4 (CPU)-
PCI-E 6 pin (GPU)-
PCI-E 6+2 pin (GPU)4
PATA 4 pin4
SATA 15-pin (HDD, Drives)5
FDD (Floppy)1
Mainboard Connector (PATA 4 pin)-
External fan connectors-

GPU compatibility

Multi-GPU ready-
NVIDIA SLI readyTM certified✓
AMD CrossFireX certified✓

Casing

Dimensions without cable (L x W x D), (mm)150 x 150 x 86
Weight incl. fixed cables (kg)1.93
Color black
