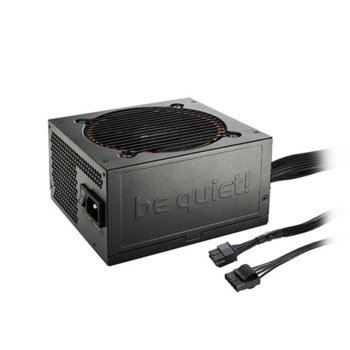

Захранване be quiet! Pure Power 9, PSU 600W, Active PFC, 80 Plus Silver, 120mm вентилатор

be quiet! PURE POWER 9 600W CM 80 Plus Silver 3Y warranty

General Data:

Continuous power (W): 600
Peak power (W): 650
Form factor ATX 12VVersion: 2.4
Form factor EPS 12VVersion: 2.92
Modular cable management: ✓
Topology: Active Clamp + SR
Voltage (Vac): 100 - 240
Frequency (Hz): 50 - 60
Input current (A): 8 / 5
PFC: active
Power factor at 100% load>0.99
Compliant to Intel C6/C7✓
Compliant to Intel C6 mode✓
Power consumption in standby (W): <0.09
Average life time: (h / 25°C)100.000
Operating temperature: up to (°C)40

Output

12V rails (multi-rail operation): 2
+3.3V (A): 25
+5V (A): 18
+12V1 (A): 32
+12V2 (A): 28
-12V (A): 0.3
+5Vsb (A): 3
Max. combined power 12V (W): 576
Max. combined power 3.3V + 5V (W): 140
Hold-up time (ms @ 100%): 24

Fan / Cooling technology:

Fan type: exclusive be quiet! fan
Motor technology: 4-pole fan motor
Bearing technology: Rifle
Fan size (mm): 120
Max. fan speed (rpm), temperature-dependent: 1,271
dB(A) at 20% load: 11.3
dB(A) at 50% load: 12.6
dB(A) at 100% load: 21.6

Protection:

OCP (over current protection)✓
OVP (over voltage protection)✓
UVP (under voltage protection)✓
SCP (short circuit protection)✓
OTP (over temperature protection)✓
OPP (over power protection)✓

Safety certification:

CE✓
CB✓
TÜV✓
FCC✓
cRUus-
cTUVus✓
RCM (Australia)✓
BSMI✓
CU (Russia)✓

Eco / Efficiency:

80PLUS certification: Silver
Efficiency (%) at 230V, 20% load: 89.6
Efficiency (%) at 230V, 50% load: 91.3
Efficiency (%) at 230V, 100% load: 88.5

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
