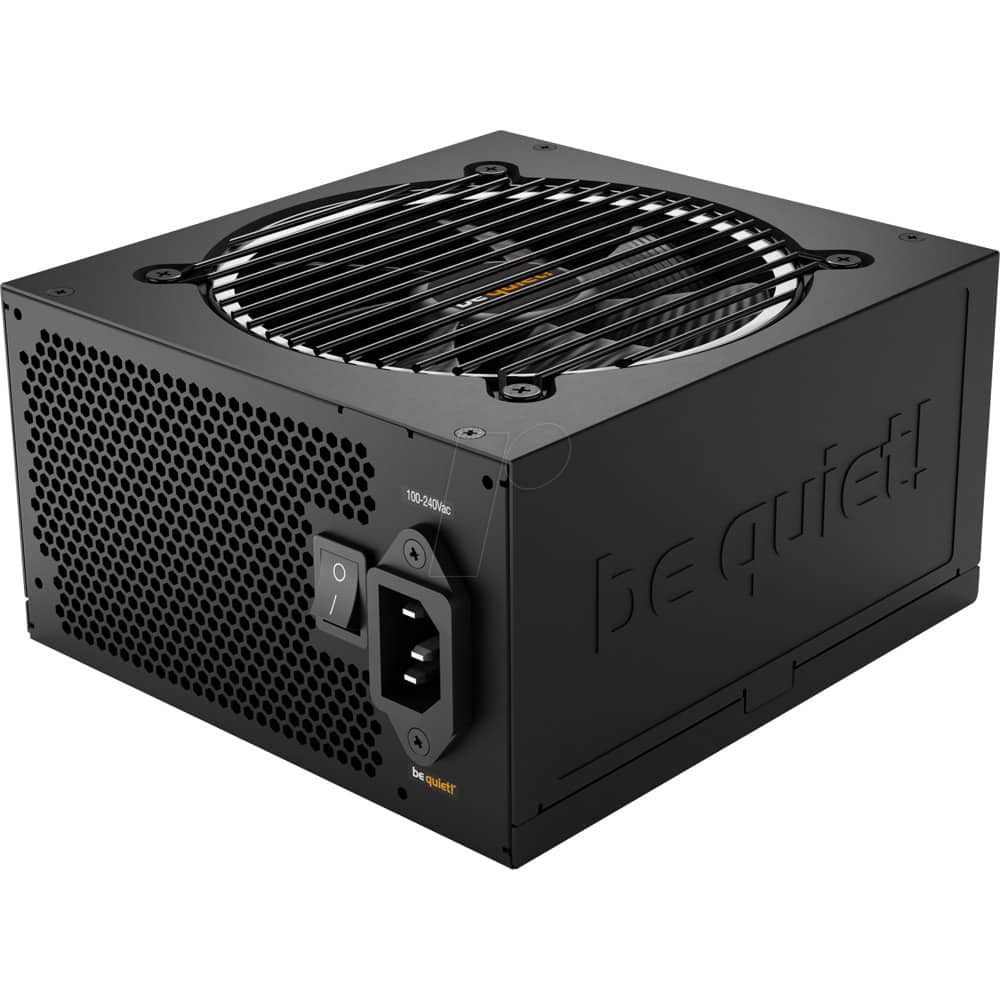

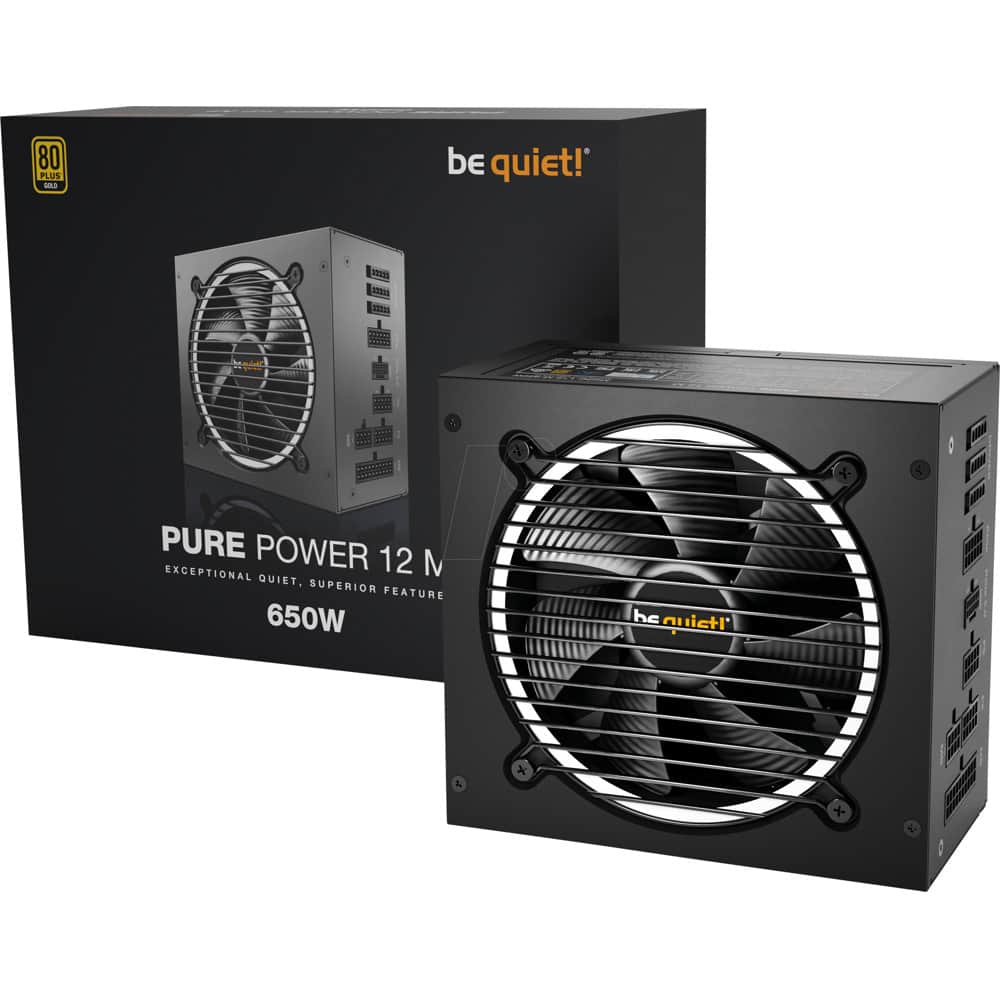

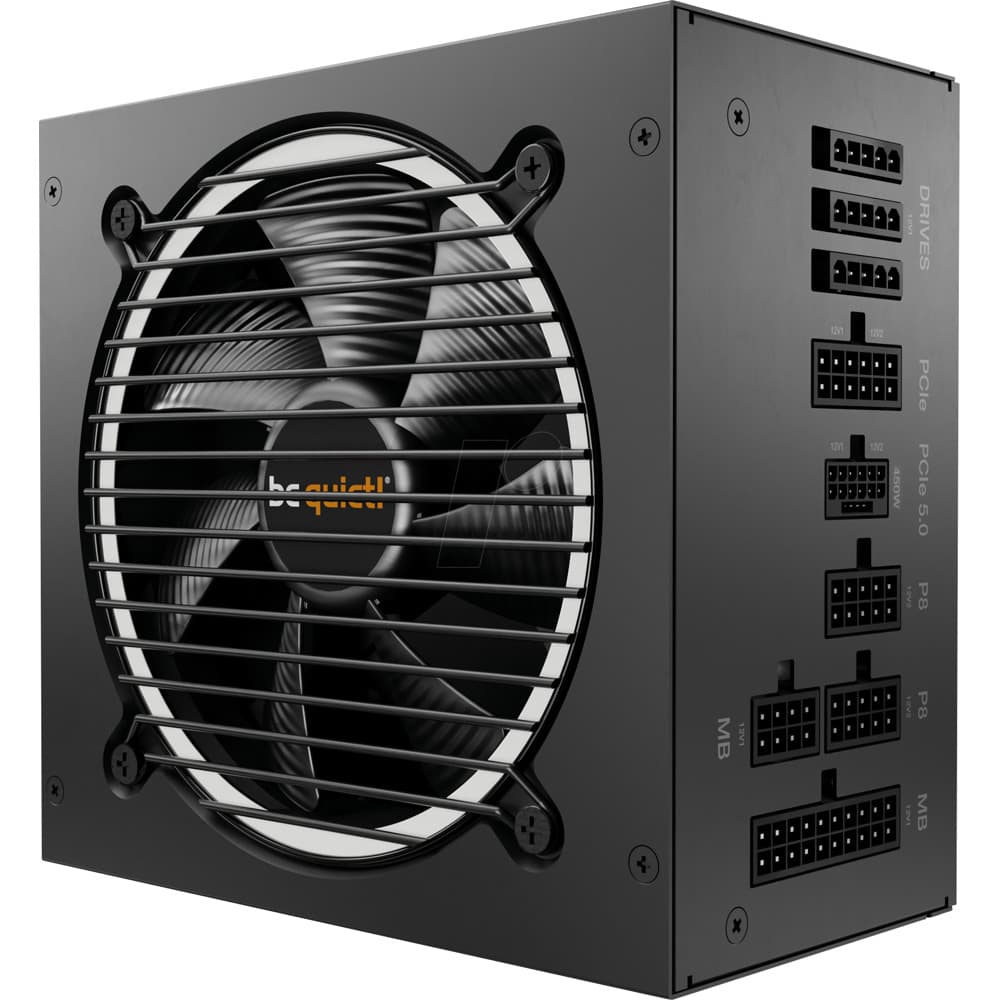

Name: Захранване Be Quiet! PURE POWER 12 M 650W (BN342), 650W, Active PFC, 80+ Gold, 120mm вентилатор
Brand: be quiet!
SKU: PWRPCBEQUIETBN342
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

FUTURE-PROOF YOUR SYSTEM Fulfills all ATX 3.0 specifications Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.


	THE NEW STANDARD OF POWER For massive transient loads Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards


UNPRECEDENTED SILENT OPERATION Achieved with a silence-optimized be quiet! fan The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.

Technical Data

GENERAL

Model	650W
Article no.	BN342
EAN code	4260052189474
Voltage (Vac) / Frequency (Hz)	100-240 / 50-60
Dimensions (L x W x H) (mm)	160 x 150 x 86
ATX 12V 3.0 / ATX 12V 2.x / EPS 12V 2.92	Y/Y/Y
Silence-optimized be quiet! fan (mm)	120
Noise level (dB(A)) at 10 / 20 / 50 / 100% load	8.1 / 8.2 / 9.1 / 19.9
12V rail (Multi-Rail) / 12V Single Rail	2 / -
Overclocking Key / Jumper	- / -
Power Good signal	100-150ms
PFC	active
Certification	80 PLUS ® Gold
Efficiency (%) at 230V, 2% / 10% / 20 % / 50% / 100% load	73.3 / 86.4 / 90 / 92.7 / 90.5
Energy Star 8.0 compatible	Y
ErP 2014 ready / Power in stand-by (W)	Y / <0.1
OCP, OVP, UVP, SCP, OPP, OTP	Y
Lifetime of PSU at 25°C (h)	>100,000

CABLES

No. of cables	7
Maximum cable length (cm)	95
Length of ATX-connection cable (cm)	55
Modular cable management	Y
Sleeved cables	20+4-Pin
Flat cables	P4+4, P4, PCIe, drives
