General data
| Model | Pure Power 12 M 1000W |
| Continuous power (W) | 1000 |
| Peak power (W) | 1050 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 12 / 6 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.1 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
-
Efficiency
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 75.9 |
| Efficiency (%) at 230V, 10% load | 88.4 |
| Efficiency (%) at 230V, 20% load | 92.3 |
| Efficiency (%) at 230V, 50% load | 93.1 |
| Efficiency (%) at 230V, 100% load | 90.8 |
-
Fan and cooling technology
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2000 |

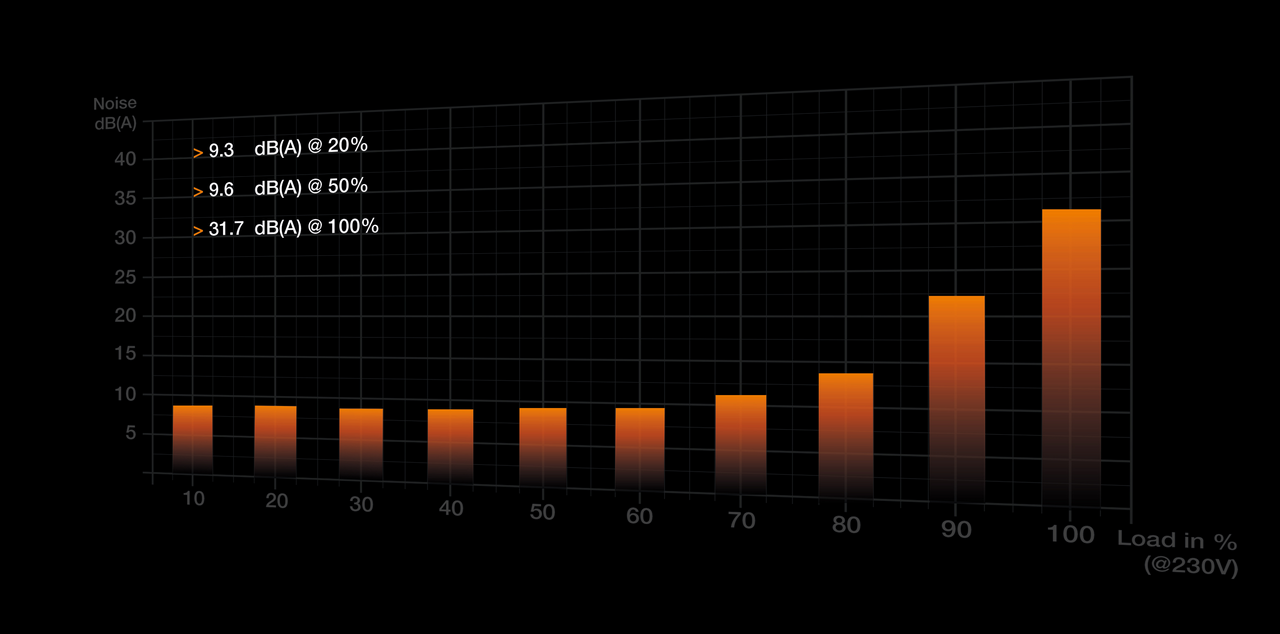

| dB(A) at 10% load | 9.3 |
| dB(A) at 20% load | 9.3 |
| dB(A) at 50% load | 9.6 |
| dB(A) at 100% load | 31.7 |
-
Output
| Multi-rail operation (12V rails) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 22 |
| +5V (A) | 22 |
| +12V1 (A) | 46 |
| +12V2 (A) | 42 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 1000 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 21.6 |
| Power good signal (ms) | 100 - 150 |
-

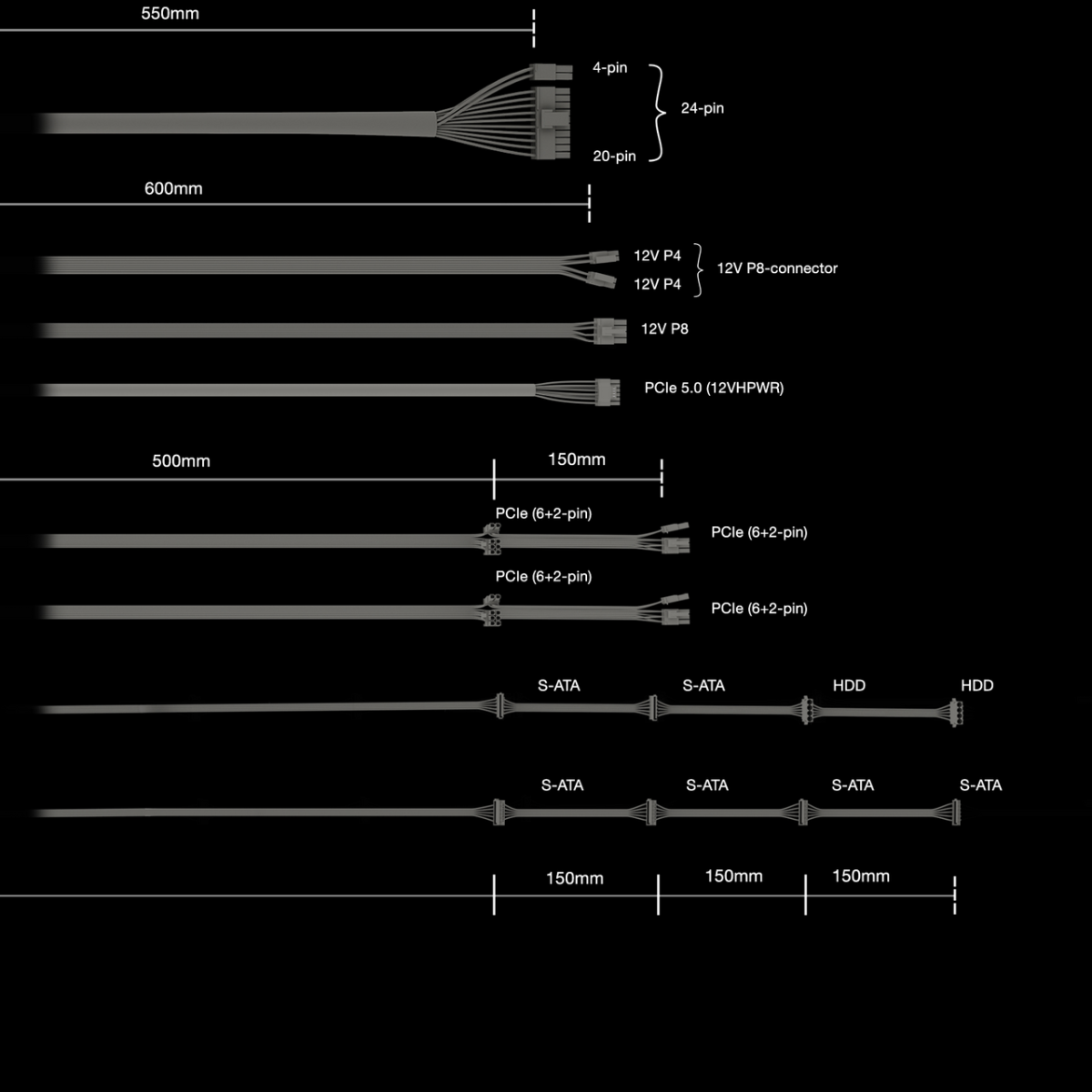

Cables and connectors
| Modular cables | ✓ |
| Sleeved cables | 20+4 pin |
| Flat cables | P4+4, P8, PCIe, drives |
| Maximum cable length (cm) | 95 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cable / W | 1 / 600 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 2 |
| FDD (Floppy) | - |
-
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush Protection) | ✓ |
-
Safety certification
| BSMI | ✓ |
| CB | ✓ |
| CCC | ✓ |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | ✓ |
-
Casing
| Dimensions without cable (L x W x D), (mm) | 160 x 150 x 86 |
| Weight (kg) | 1.91 |
| Color | Black |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри be quiet!
Виж всички Захранвания Настолни компютри в категорията
Документация
Pure Power 12 M ManualТехнически характеристики
| Изходна мощност: | 1000 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
