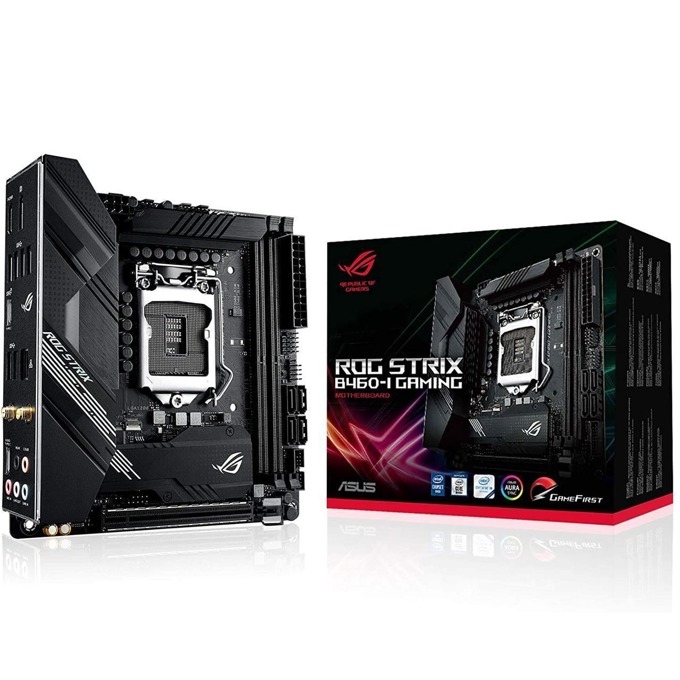

ROG Strix B460-I Gaming motherboard features solid power delivery and effective cooling designed to handle the latest 10th Generation Intel® Core™ processors. With its arresting futuristic aesthetic and intuitive ROG software, ROG Strix B460-I Gaming gives you a head start on your dream gaming build.
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
- Robust Power Solution: 6+2+1 Dr. MOS power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance
- Optimized Thermal Design: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
- High-performance Gaming Networking: On-board Intel WiFi 6 AX201 (802. 11 ax), Intel 1Gb Ethernet with ASUS LANGuard
- Play your own style: The cyberpunk-inspired aesthetics, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable header

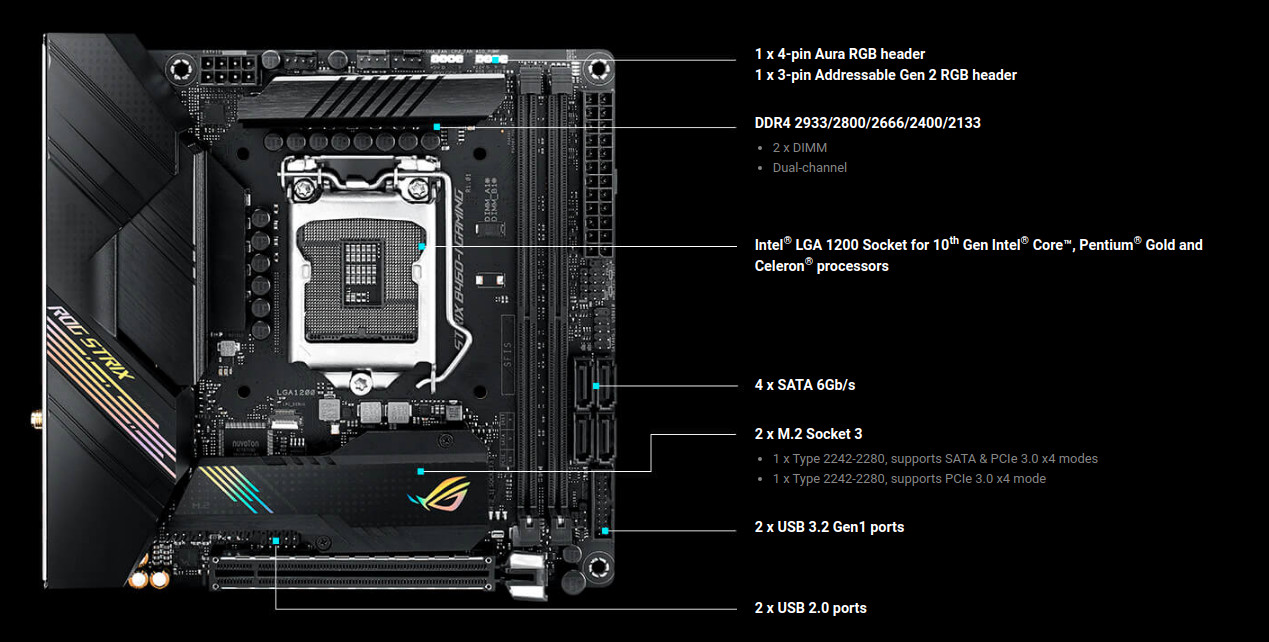

Specifications:
CPU
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14nm CPU
* Refer to www.asus.com for CPU support list
Chipset
Intel® B460
Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphic
1 x DisplayPort 1.4 **
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16
Storage
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN
Intel® I219-V 1Gb Ethernet
ASUS LANGuard
Wireless Data Network
Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Up to 2.4Gbps transfer speed
Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
- Rear audio USB Type-C® port
- Premium Japanese audio capacitors
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
- Sonic Radar III
- Sonic Studio III + Sonic Studio Virtual Mixer
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-CTM)
6 x USB 3.2 Gen 1 port(s)(4 x Type-A)
1 x USB 2.0 port(s)(1 x USB Type-C®)
Front USB Port ( Total 4 )
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Software Features
[ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector
Back I/O Ports
1 x USB 2.0 *3
1 x Intel® I219-V 1Gb Ethernet
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
6 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
Internal I/O Ports
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Aura RGB Strip Headers
2 x M.2 Socket 3
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Addressable Gen 2 header(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 with E key for Wi-Fi module
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
Accessories
1 M.2 SSD screw package(s)
1 ROG key chain
1 x Wi-Fi moving antenna
2 x SATA 6Gb/s cable(s)
1 x pack of cable tie
User´s manual
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Extension cable for Addressable LED
1 x ROG Thank you card
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
*when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled *3 1 x audio USB Type-C®
Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1200 |
|---|---|
| Чипсет: | B460 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Wi-Fi 6 (802.11ax) |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | Mini ATX |
