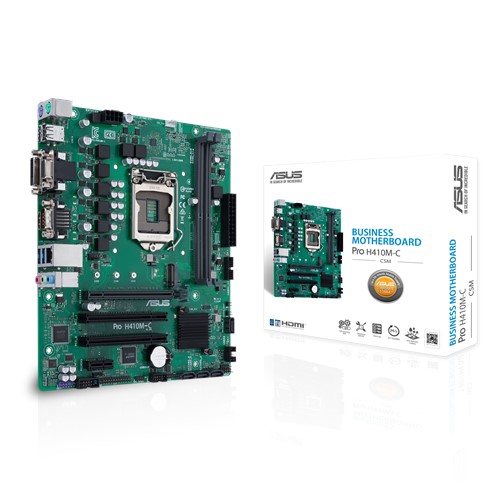

Дънна платка Asus PRO H410M-C/CSM, H410, LGA1200, DDR4, PCI-e 3.0, (HDMI&VGA&DVI-D), 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1, mATX

Micro-ATX H410 business motherboard with enhanced security, reliability and manageability

• ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
• Dedicated LPC header and debug card with LCD display for faster troubleshooting
• Event log for capturing and managing detailed system information
• Innovative moisture-resistant coating to protect the motherboard from harsh environments
• Commercial BIOS kit to make customization faster and more efficient
• ASUS Control Center Express(ACCE) to make IT endpoint management easier

SPECIFICATIONS

• CPU
  Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  Intel® H410
• Memory
  2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor *1
  1 x D-Sub
  1 x DVI-D
  1 x HDMI 1.4b
  *Graphics specifications may vary between CPU types.
• Expansion Slots
  16-Lane CPU-
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  Intel® H410 Chipset
  1 x PCIe 3.0/2.0 x1
  2 x PCI
• Storage
  Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel® B460 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
  4 x SATA 6Gb/s port(s)
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s)
  ASUS LANGuard
• Audio
  Realtek ALC887 7.1-Channel High Definition Audio CODEC *3
  - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• USB Ports
  Rear USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)
• Special Features
  Bespoke Motherboard Design & Business Focused Features :
  - Overcurrent Protection: Short circuit prevention, protects your system
  - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
  - ASUS Event Log: Record activities of system and provides information in BIOS
  - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
  - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
  - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
  Easy Assembly Design:
  - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  1 x COM port(s)
  3 x Audio jack(s)
• Internal I/O Ports
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  1 x SPI TPM header
  1 x LPT header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
  1 x LPC Debug header
• Accessories
  User's manual
  1 x ACC Express Activation Key Card
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS
  128Mb Flash ROM, UEFI AMI BIOS
• Manageability
  WOL by PME, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  mATX Form Factor
  9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
• Note
  *1 Supports up to 2 displays simultaneously
  *2 When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
  *3 A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
