Asus Pro-A520M-C-CSM
Икона в кампания
Asus Pro-A520M-C-CSMAsus Pro-A520M-C-CSMAsus Pro-A520M-C-CSMAsus Pro-A520M-C-CSM

Дънна платка Asus Pro A520M-C/CSM, A520, AM4, DDR4, PCI-E 3.0 (HDMI/DVI/VGA), 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen 1, Micro ATX

id 196130 Код: MBAASUSPROA520MCCSM
  • Модел: Pro-A520M-C-CSM
  • Марка: Asus
  • Код на продукта: Pro-A520M-C-CSM
  • Поддържана памет: DDR4
  • RAID: Да
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Видеокарта: Вградена
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

    Micro-ATX AMD A520 business motherboard with enhanced security, reliability and manageability

    • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
    • Dedicated LPC header and debug card with LCD display for faster troubleshooting
    • Event log for capturing and managing detailed system information
    • Innovative moisture-resistant coating to protect the motherboard from harsh environments
    • Commercial BIOS kit to make customization faster and more efficient
    • ASUS Control Center Express(ACCE) to make IT endpoint management easier

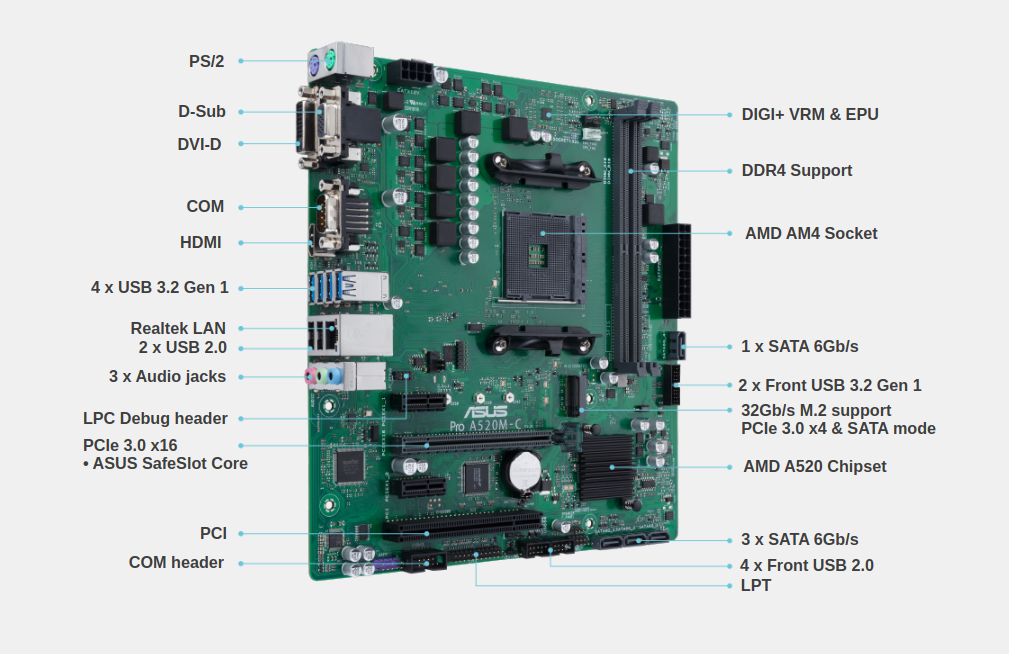

    Дънна платка Asus Pro A520M-C/CSM, A520, AM4, DDR4, PCI-E 3.0 (HDMI/DVI/VGA), 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen 1, Micro ATX - характеристика 1







    Specifications:

    • CPU

      Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *
      * Refer to www.asus.com for CPU support list

    • Chipset

      AMD A520

    • Memory

      2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
      Dual Channel Memory Architecture
      ECC Memory (ECC mode) support varies by CPU.
      * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
      * The maximum memory frequency supported varies by processor.

    • Graphic

      1 x D-Sub
      1 x DVI-D
      1 x HDMI 2.1(4K@60HZ)
      *Graphics specifications may vary between CPU types.

    • Expansion Slots

      3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
      1 x PCIe 3.0 x16 (x16 mode)
      AMD A520 Chipset
      2 x PCIe 3.0 x1
      1 x PCI

    • Storage

      Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
      3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
      1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
      AMD A520 Chipset :
      4 x SATA 6Gb/s port(s),
      Support Raid 0, 1, 10

    • LAN

      Realtek RTL8111H 1Gb Ethernet
      ASUS LANGuard

    • Audio

      Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
      - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
      * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

    • USB Ports

      Rear USB Port ( Total 6 )
      4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
      2 x USB 2.0 port(s)(2 x Type-A)
      Front USB Port ( Total 6 )
      2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
      4 x USB 2.0 port(s)(4 x Type-A)

    • Software Features

      ASUS Exclusive Software
      IT Management software supported
      - ASUS Control Center Express(ACCE)

    • ASUS Special Features

      ASUS Q-Design
      - ASUS Q-DIMM
      - ASUS Q-Slot
      ASUS Thermal Solution
      - Aluminum heatsink design
      ASUS EZ DIY
      - Box Headers
      Bespoke Motherboard Design & Business Focused Features
      - ASUS Self Recovering BIOS
      - ASUS Event Log
      - ASUS Commercial BIOS kit
      - Anti-Moisture Coating
      - 24/7 Reliability
      - Overcurrent Protection

    • Back I/O Ports

      1 x PS/2 keyboard (purple)
      1 x PS/2 mouse (green)
      1 x DVI-D
      1 x D-Sub
      1 x HDMI
      1 x LAN (RJ45) port(s)
      4 x USB 3.2 Gen 1 (blue) Type-A
      2 x USB 2.0
      1 x COM port(s)
      3 x Audio jack(s)

    • Internal I/O Ports

      1 x CPU Fan connector(s)
      2 x Chassis Fan connector(s)
      1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
      2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
      1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
      1 x SPI TPM header
      1 x LPT header
      4 x SATA 6Gb/s connector(s)
      1 x 24-pin EATX Power connector(s)
      1 x 8-pin EATX 12V Power connectors
      1 x Front panel audio connector(s) (AAFP)
      1 x Clear CMOS jumper(s)
      1 x System panel connector
      1 x COM port header
      1 x Chassis intrusion header
      1 x LPC Debug header
      1 x Speaker connector

    • Accessories

      User's manual
      1 x ACC Express Activation Key Card
      I/O Shield
      2 x SATA 6Gb/s cable(s)
      1 x Supporting DVD
      1 x M.2 SSD screw package(s)

    • BIOS

      256 Mb Flash ROM, UEFI AMI BIOS

    • Manageability

      WOL by PME, PXE

    • Operating System

      Windows® 10 64-bit

    • Form Factor

      mATX Form Factor
      9.6 inch x 9.0 inch ( 24.4 cm x 22.9 cm )





    Виж още Дънни платки за AMD процесори Asus
    Виж всички Дънни платки за AMD процесори в категорията
    Технически характеристики
    Процесор сокет:  AM4
    Чипсет:  A520
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  2
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  HDMI DVI VGA (D-Sub)
    Форм фактор:  Micro ATX
    Видеокарта:  Вградена
