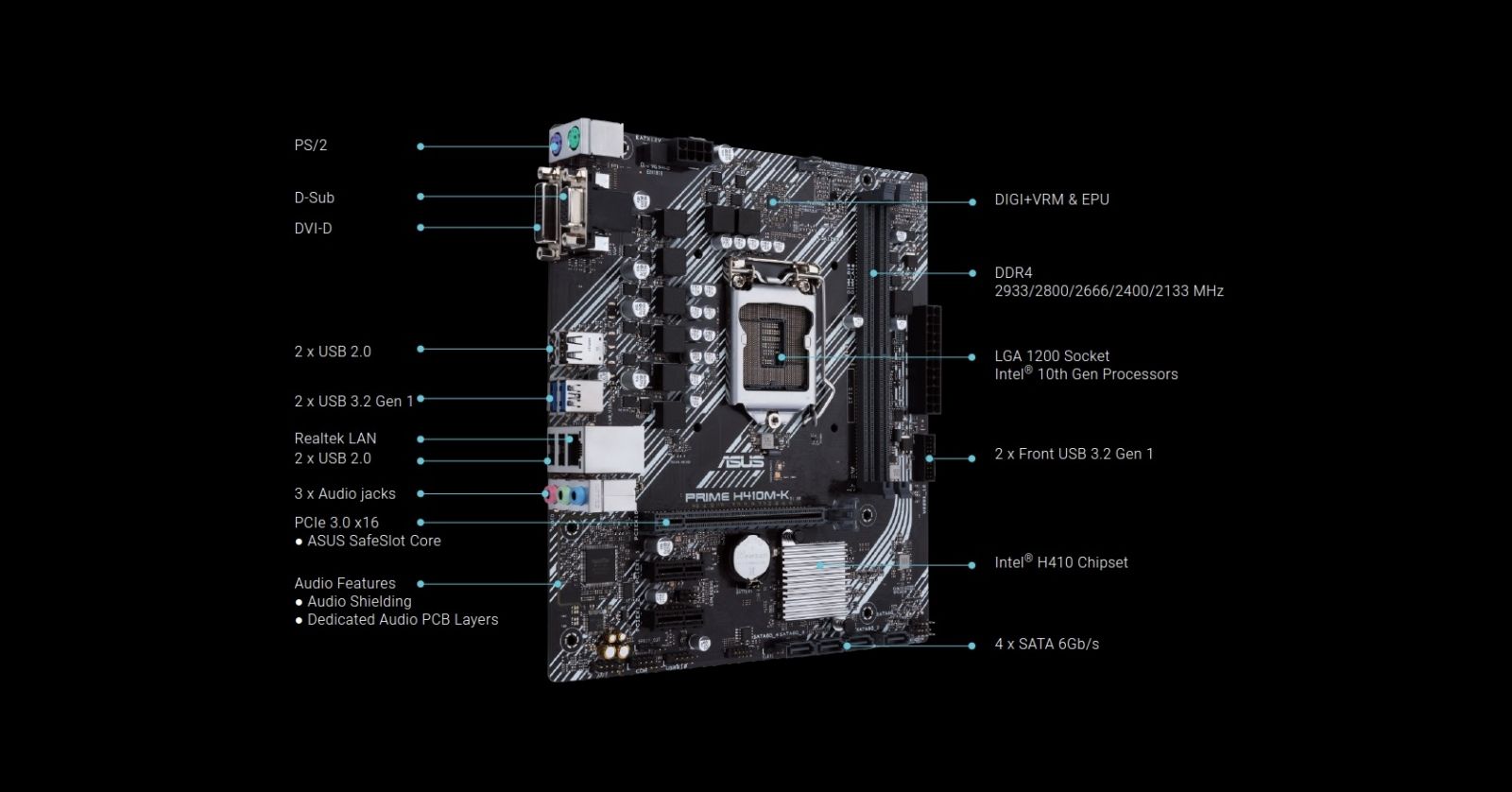

Дънна платка Asus PRIME H410M-K, H410, LGA1200, PCI-E 3.0 (VGA&DVI-D), 4x SATA3, 2x USB 3.2 Gen 1, mATX

Intel® H410 (LGA 1200) mic-ATX motherboard with DDR4 support, DVI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header

• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

• 5X Protection III: Multiple hardware safeguards for all-round protection

• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

• Ultrafast connectivity: 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

Specifications

CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® H410

Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem

Graphic
Integrated Graphics Processor *
1 x D-Sub
1 x DVI-D
*Graphics specifications may vary between CPU types.

Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
2 x PCIe 3.0 x1

Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :
4 x SATA 6Gb/s port(s)

LAN
Realtek® RTL8111H

Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors

USB Ports
Rear USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

Accessories
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
User manual

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows® 10 64-bit

Form Factor
mATX Form Factor
8.9 inch x 7.9 inch ( 22.6 cm x 20.3 cm )
