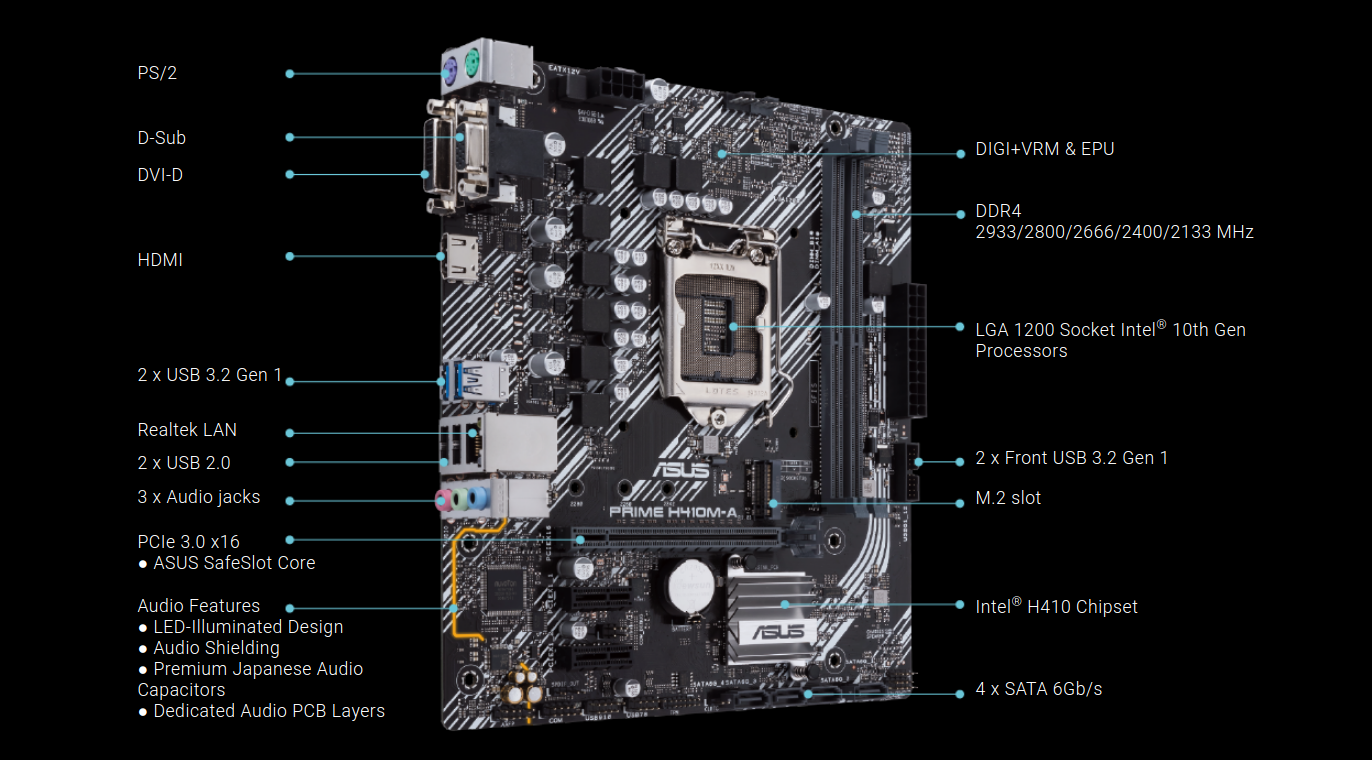

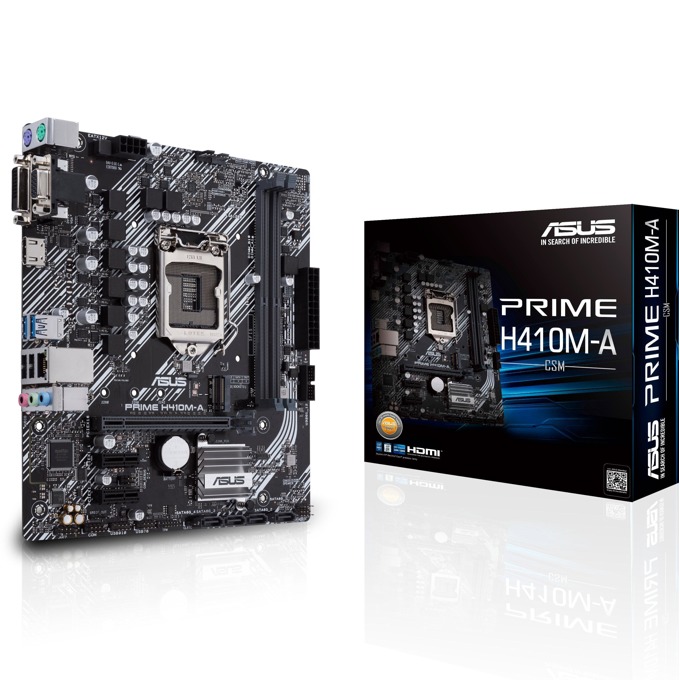

Дънна платка Asus PRIME H410M-A-CSM, H410, LGA1200, PCI-E 3.0 (HDMI&VGA&DVI-D), 4x SATA3, 1x M.2, 2x USB 3.2 Gen 1, Micro ATX

Intel® H410 (LGA 1200) mic-ATX motherboard with M.2 support, DDR4 2933MHz, HDMI, D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, TPM header

• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
• 5X Protection III: Multiple hardware safeguards for all-round protection
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Ultrafast connectivity: M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

SPECIFICATIONS

• CPU

  Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

  Intel® H410

• Memory

  2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• Graphic

  Integrated Graphics Processor *
  1 x D-Sub
  1 x DVI-D
  1 x HDMI 1.4b
  *Graphics specifications may vary between CPU types.

• Expansion Slots

  Intel® 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode)
  Intel® H410 Chipset
  2 x PCIe 3.0 x1

• Storage

  Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel® H410 Chipset :
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
  4 x SATA 6Gb/s port(s)

• LAN

  Realtek® RTL8111H

• Audio

  Realtek ALC887 7.1-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - LED-illuminated design
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors

• USB Ports

  Rear USB Port ( Total 4 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)

• Software Features

  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  - Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert 2+
  - EZ update
  ASUS CPU-Z
  AI Charger
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

• ASUS Special Features

  ASUS 5X PROTECTION III
  - ASUS DIGI+ VRM
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum heatsink design

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 1 Type-A
  2 x USB 2.0
  3 x Audio jack(s)

• Internal I/O Ports

  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x Speaker connector

• Accessories

  1 x ACC Express Activation Key Card
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Anchor
  1 x Supporting DVD
  User manual

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PME, PXE

• Operating System

  Windows® 10 64-bit

• Form Factor

  mATX Form Factor
  8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

• Note

  *1 When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
  *2 A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
