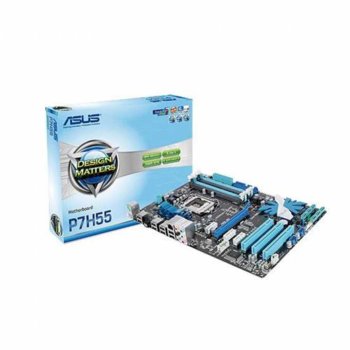

Дънна платка Asus P7H55, H55, LGA1156, DDR3, PCI-E, SB7.1, Lan1000, SATA, ATX

P7H55

* DDR3 2200(O.C.) Support
* TurboV
* Turbo Key
* MemOK
* EPU
* All Solid Capacitor

CPU

Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium® Processors
Supports Intel® Turbo Boost Technology
*The Intel® Turbo Boost Technology support depends on the CPU types.
*Refer to www.asus.com for the CPU support list

Chipset

Intel® H55 Express Chipset

Memory

4 x DIMM, Max. 16 GB, DDR3 2200(O.C.)*/2000(O.C.)/1866(O.C.)/1600(O.C.)/1333 ECC,Non-ECC Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lists).

Expansion Slots

1 x PCIe 2.0 x16
3 x PCIe 2.0 x1 (2.5GT/s, gray slots)
3 x PCI

Storage

Intel® H55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports
VIA VT6415 PATA controller
1 xUltraDMA 133/100 for up to 2 PATA devices

LAN

Realtek® 8112L Gigabit LAN controller featuring AI NET 2

Audio

VIA 1708S 8-Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Supports Jack-Detection, Multi-streaming

USB

12 USB 2.0/1.1 ports (4 ports at mid-board, 8 ports at back panel)

ASUS Unique Features

ASUS Exclusive Overclocking Features
- ASUS TurboV, ASUS Turbo Key
ASUS Exclusive Features
- Express Gate
- MemOK!
- ASUS EPU
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Stylish Heatsink Solution, MOS Heatsink
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS

Overclocking Features

Precision Tweaker
- vCore: Adjustable CPU voltage at 0.00625V increment
- vIMC: Adjustable IMC voltage at 0.05V increment
- vDRAM Bus: 11-step DRAM voltage control
- vPCH: 2-step chipset voltage control
- vCPU PLL: 4-step reference voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment
- Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

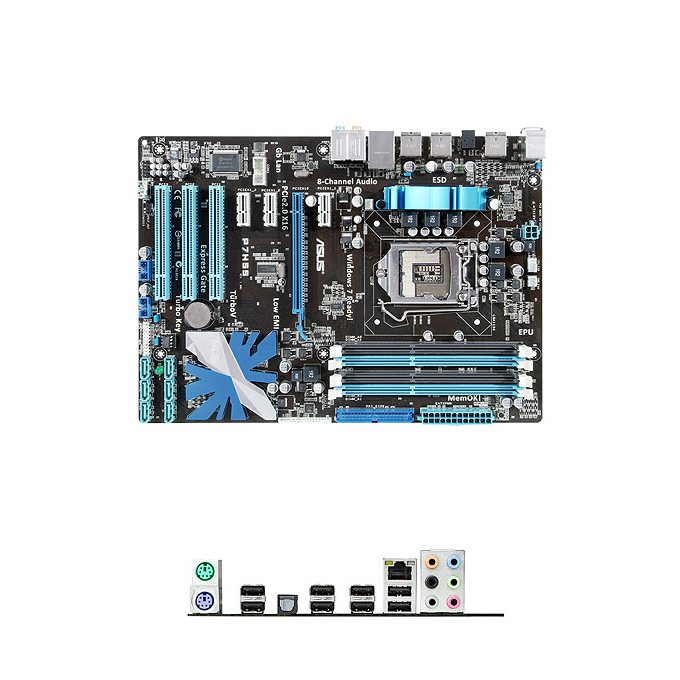

Back Panel I/O Ports

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
8 x USB 2.0/1.1
8 -Channel Audio I/O

Internal I/O Connectors

2 x USB connectors support additional 4 USB ports
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector (1x4-pin)
1 x Chassis Fan connectors (1x3-pin)
1 x Power Fan connector (1x3-pin)
1 x Front panel audio connector
1 x S/PDIF Out header
1 x CD audio in
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel
1 x MemOK! Button
1 x COM connector

BIOS

16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Accessories

User's manual
1 x UltraDMA 133/100/66 cable
1 x I/O Shield
2 x Serial ATA 3.0Gb/s cables

Support Disc

Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities

Form Factor

ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
