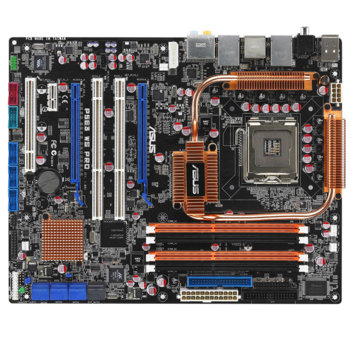

Дънна платка Asus P5E3 WS PRO, X38, LGA775, DDR3, 2xPCI-E, SB7.1, 2xLan1000, SATA RAID 0,1,5, 1394, ATX, 3г. Гаранция

ofile
Back Panel I/O Ports

1 x PS/2 Keyboard
1 x S/PDIF Out (Coaxial + Optical)
2 x External SATA
1 x IEEE1394a
2 x RJ45 port
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors

24-pin ATX Power connector
8-pin ATX 12V Power connector
Chassis intrusion
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
PWR fan
IDE connector
Floppy disk drive connector
CD audio in
6 x USB2.0
20-pin Panel connector
1 x IEEE 1394a port
1 x COM port
TPM header
Front panel audio connector
BIOS

16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Accessories

1 x 2-port USB2.0 / 1-port IEEE1394 module
1 x COM port module
Serial ATA signal cable for 8 devices
Serial ATA power cable for 8 devices
1 x Ultra DMA 133/100 cable
1 x Floppy disk driver cable
1 x Q-Shield
3 in 1 Q-connector
Support Disc

AI Booster
ASUS PC Probe II
Anti-Virus Sorfware
Adobe Acrobat Reader ver 7.0
Microsoft Direct X ver 9.0C
Form Factor

ATX Form Factor, 12"x 9.6" (30.5cm x 24.4cm)CPU

LGA775 socket for Intel Core2 Quad / Core2 Extreme / Core2 Duo / Pentium Extreme / Pentium D / Pentium 4 Processors
Compatible with Intel 05B/05A/06 processors
Supports Intel next generation 45nm Multi-Core CPU
Chipset

Intel X38 / ICH9R with Intel Fast Memory Access Technology
Front Side Bus

1600/1333 / 1066 / 800 MHz
Memory

4 x DIMM, max. 8GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066/800 MHz, un-buffered memory
Dual channel memory architecture
Expansion Slots

2 x PCIe 2.0 x16
1 x PCIe x 1
2 x PCI-X
1 x PCI
Storage

Southbridge
- 6 x SATA 3.0 Gb/s ports
- Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10
Ext PATA and SATA controller
- 1 x ATA
- 2 x External SATA 150/300 (RAID 0,1,10,5)
- 2 x SATA 150/300 (RAID 0,1,10,5)
LAN

2 x Marvell88E8056 Dual Gb LAN controller
Audio

ADI AD1988B 8-channel High Definition Audio CODEC
- Support Jack-Sensing, Enumeration, Multi-streaming
- Coaxial / Optical S/PDIF out ports at back I/O
- ASUS Noise Filter
USB

12 x USB 2.0/1.1 ports
Special Features

- AI Slot Detector
- Q-Shield
- Q-Connector
- Fanless Design: Heat-pipe solution
- Fanless Design: Stack Cool 2
- Noise Filter
- MyLogo 2
- CrashFree BIOS 3
- EZ Flash 2
- C.P.R.(CPU Parameter Recall)
- SFS (Stepless Frequency Selection)
- O.C. Pr
