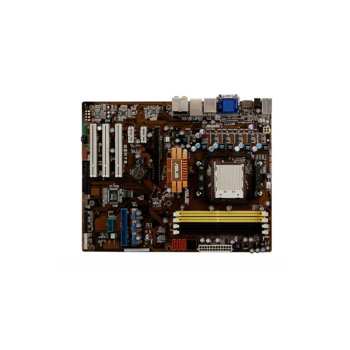

Дънна платка Asus M3N78, GeForce 8200, AM2+ (up to 140W), DDR1066, VGA+PCI-E, HDMI & DVI, SB7.1, Lan1000, SATA RAID 0,1,5, ATX, 3г. Гаранция

M3N78

* AMD® AM2+ Quad-Core CPU/AM2 CPU Support
* AMD 140W CPU Support
* NVIDIA GeForce 8200 Chipset
* Hybrid SLI Support
* HyperTransport 3.0 and PCIe 2.0 Ready
* HDMI/Full HD Support
* Smooth Blu-ray / HD DVD Playback
* Multi Displays Support

CPU

AMD Socket AM2+ / AM2 Processors
for AMD Phenom™ FX / Phenom / Athlon™ / Sempron™
AMD Cool'n'Quiet™ Technology
Support CPU up to 140W

Chipset

NVIDIA GeForce 8200

System Bus

Up to 5200 MT/s HyperTransport™ 3.0 interface for AM2+ CPU
2000 / 1600 MT/s for AM2 CPU

Memory

4 x DIMM, Max. 8 GB, DDR2 1066(O.C.)/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only. Please refer to www.asus.com or user manual for Memory QVL.
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe x16
2 x PCIe x1
3 x PCI 2.2

VGA

Integrated NVIDIA GeForce® 8 Series GPU
Hybrid SLI™ Support (support Windows® Vista only.)
Supports HDMI™ Technology with max. resolution up to 1920 x 1200 @ 70Hz
Supports DVI with max. resolution up to 1600 ? 1200 @ 85 MHz
Supports D-Sub with max. resolution up to 1920 ? 1440 @ 75 Hz
HDMI/DVI/RGB Support
Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0
Support PCIe 2.0 / 1.0 Architecture
Maximum shared memory of 256MB

Storage

Southbridge
1 xUltraDMA 133/100
5 xSATA 3 Gb/s ports
NVIDIA® MediaShield™ RAID Support RAID 0,1,0+1,5,JBOD

LAN

NVIDIA nForce built-in Gigabit MAC with external Realtek 8211CL-GR PHY

Audio

VT1708B 8 -Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Support Jack Detection and Multi-streaming

USB

12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features

ASUS Express Gate:
1. Access the Internet in 5-second* boot time without entering Windows
2. A built-in OS offers instant fun platform for Internet and Instant Messenger!
3. Friendly Picture Manager Interface
* The actual boot time is subject to hardware configurations and product models.
ASUS Quiet Thermal Solution:
- ASUS Q-Fan
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2

Overclocking Features

SFS (Stepless Frequency Selection)
- HT tuning from 200MHz up to 400MHz at 1MHz increment
- Memory tuning from 533MHz up to 1066MHz
- PCIe frequency tuning from 100MHz up to 200MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)

Special Features

ASUS AI NET 2
ASUS MyLogo 2

Back Panel I/O Ports

1 x PS/2 Keyboard/Mouse Combo port
1 x Optical S/PDIF Out
1 x HDMI
1 x DVI
1 x D-SUB
1 x External SATA (Does not support port multiplier)
1 x RJ45 port
6 x USB 2.0/1.1
8-Channel Audio I/O

Internal I/O Connectors

3 x USB connector (6 ports)
1 x Floppy disk drive connector
1 x Power Fan connector
1 x COM connector
5 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x Chassis Intrusion connector
1 x CD audio in connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX +12V Power connector
1 x System Panel connector

BIOS

8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2

Accessories

1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x SATA cable
1 x SATA power cable
User's manual

Support Disc

Drivers
Express Gate Driver
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)

Form Factor

ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
