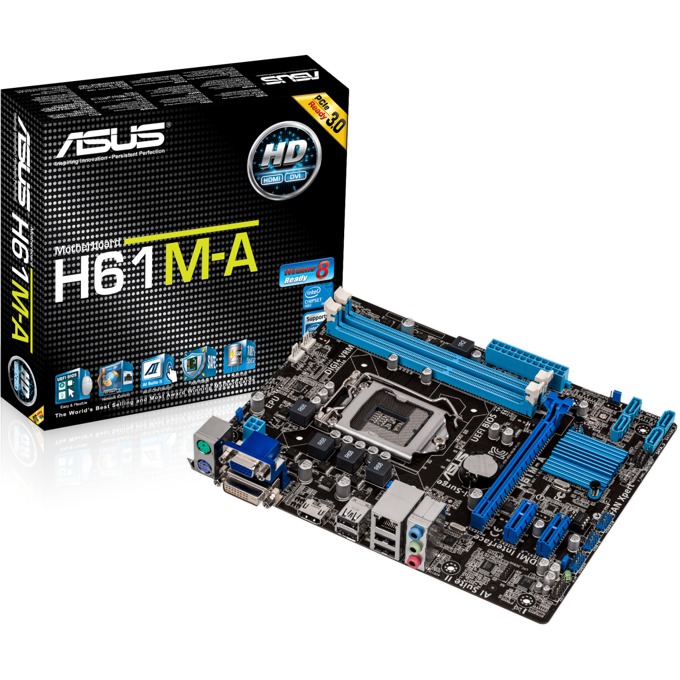

Дънна платка ASUS H61M-A, H61, LGA1155, DDR3 2200(OC), PCI-E 3.0 (HDMI&DVI), SB7.1, Lan1000, 4x SATA 3Gb/s, 4x USB 2.0, uATX

Precise Digital Power Design and High-definition Visual Enjoyment with Native HDMI/DVI outputs

- DIGI+ VRM Digital Power Design
- UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
- HDMI & DVI Outputs - High-definition Visual Enjoyment
- EPU - Energy Efficiency All Around
- Superior Components -100% All Solid Capacitors & Extra Durable Stainless Steel Back I/O
- Windows 8 Ready – Assured Compatibility

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® H61(B3)

Memory

2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB

Expansion Slots

1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1

Storage

Intel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue

LAN

Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *1

USB Ports

Intel® H61(B3) chipset :
10 x USB 2.0 port(s) (4 at back panel, , 6 at mid-board)

Special Features

ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 3 +1 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)

Accessories

User's manual

I/O Shield

2 x SATA 3Gb/s cable(s)

BIOS

64Mb Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0
Manageability
WOL, PXE, PME Wake Up

Support Disc

Drivers
ASUS Utilities
ASUS Update
Anti-Virus Software (OEM Version)

Form Factor

uATX Form Factor

8.9 inch x 7.1 inch ( 22.6 cm x 18 cm )
Note
*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
