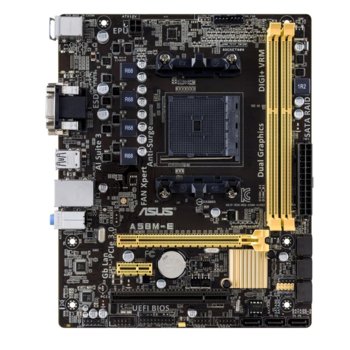

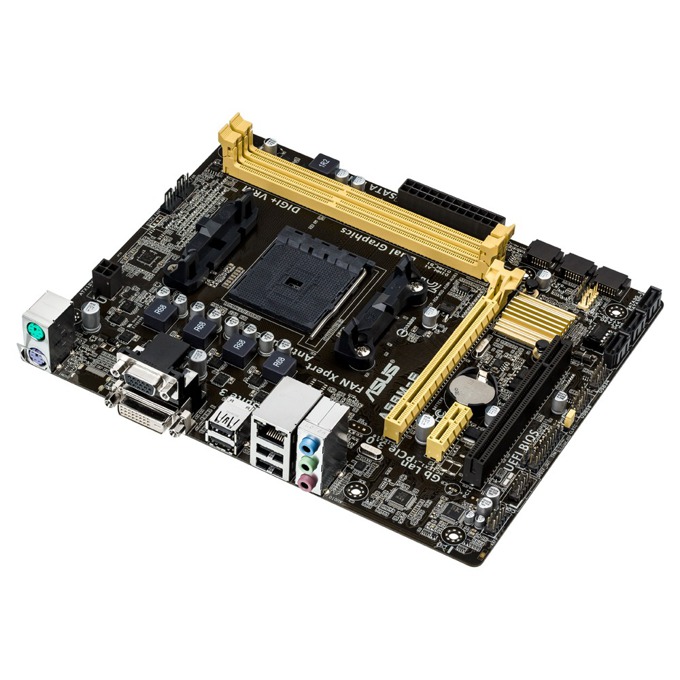

Дънна платка Asus A58M-E, A58, FM2+, DDR3 2400(OC), PCI-E 3.0 (DVI), SB7.1, Lan1000, 6x SATA2 RAID 0,1,10, mATX

Asus A58M-E

FM2+ socketed motherboard features high-endurance 5X Protection and new UEFI BIOS on the A58 chipset

- 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
- New UEFI BIOS - Friendlier, easier, and more intuitive with helpful info added
- AI Suite 3 - One-Stop Access to Innovative ASUS Features


• CPU
AMD Socket FM2+ Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list

• Chipset
AMD A58 FCH (Bolton D2)

• Memory
2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory

• Graphic
Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support

• Expansion Slots
1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x1
1 x PCI

• Storage
AMD A58 FCH (Bolton D2) chipset :
6 x SATA 3Gb/s port(s), dark brown
Support Raid 0, 1, 10, JBOD

• LAN
Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

• Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

• USB Ports
AMD A58 FCH (Bolton D2) chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

• Operating System Support
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® XP , 32bit

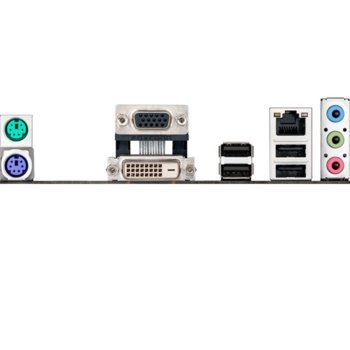

• Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)

• Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

• Accessories
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)

• BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

• Support Disc
Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)

• Form Factor
mATX Form Factor
8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
