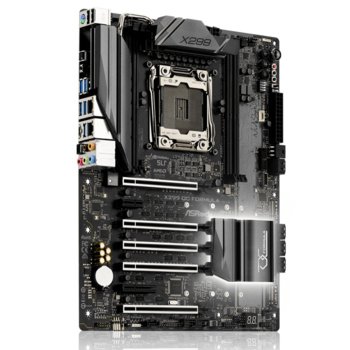

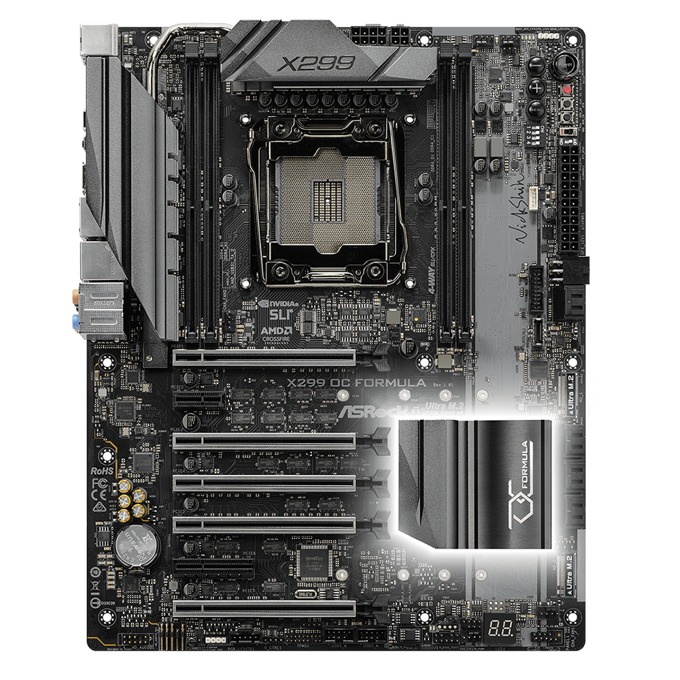

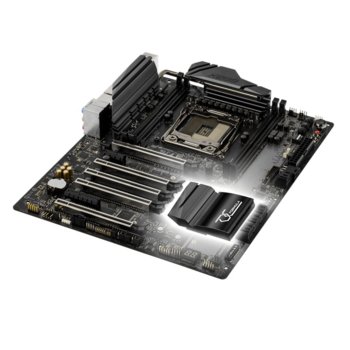

Дънна платка ASRock X299 OC Formula, X299, LGA2066, DDR4, PCI-E 3.0(CFX&SLI), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.1 Type C, 5x USB 3.1, ATX

ASRock X299 OC Formula

13 Phase CPU Power Design + 2 Phase Memory Power Design
Features sturdy components and completely smooth power delivery. Offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.

Quad Channel Memory Support
(One Dimm Per Channel)
A special 8-layper layout that allows OC Formula supports Quad-Channel memory. Ideally designed for extreme memory overclocking with huge potential and stability.

Ultra Cool XXL Aluminum Alloy Heatsink & Heatpipe Design
Supports up to 450W CPU with airflow. Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable.

Hyper BCLK Engine III
An additional external base clock generator that supports PCIe frequency overclocking. It provides a wider range of frequencies and more precise clock waveforms, allowing any user to get most from their CPU investment with precise, stable overclocking.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Supports 4-Way SLI / CrossFireX VGA Cards
This flagship motherboard is able to support 4-Way SLI or 4-Way CrossFireX effortlessly. Not only support gaming graphics card, it is also fully compatible with NVIDIA® Quadro® & AMD FireProTM professional desktop workstation graphics solutions.

RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!

Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

OC Formula Kit
OC Formula Power Kit
- 13 Phase CPU Power design + 2 Phase Memory Power design
- Digi Power (CPU and Memory)
- Dr. MOS
OC Formula Connector Kit
- Hi-Density Power Connector (24 pin for Motherboard, 8+4 pin for Motherboard, 6 pin for PCIe Slot)
- 15μ Gold Contact (memory sockets and PCIE x16 slots (PCIE1 and PCIE5))
OC Formula Cooling Kit
- 8 Layer PCB
- 2oz copper
- Heat Pipe Design
OC Formula Monitor Kit
- Multi Thermal Sensor

Unique Feature
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 60A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
- Supports Intel® Core™ X-Series Processor for the LGA 2066 Socket
- Digi Power design
- 13 Power Phase design
- Supports Intel® Turbo Boost Max Technology 3.0*
- Supports ASRock Hyper BCLK Engine III

*Please note that the 4-Core processors only support Intel® Turbo Boost Technology 2.0.

Chipset
- Intel® X299

Memory
- Quad Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 4600+(OC)* / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

*The maximum memory frequency supported may vary by processor type.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.1 Compliant wake up events
- SMBIOS 3.0 Support
- CPU, DRAM, VPPM, VTTM, PCH1.0, CPU PLL, CPU PLL2, VCCIO, VCC PLL, CLK VDD Voltage Multi-adjustment*

*The supported voltage multi-adjustment may vary by processor type.
Graphics
- n/a

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports DTS Connect

LAN
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

*Teaming is supported on Windows® 10 RS2, RS3 and RS4.

Slots
- 5 x PCI Express 3.0 x16 Slots*
- 1 x PCI Express 3.0 x4 Slot (PCIE6: x4 mode) (Flexible PCIe)**
- 1 x PCI Express 2.0 x1 Slot
- Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™***
- Supports NVIDIA® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™****
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE5)

*If you install CPU with 44 lanes, PCIE1/PCIE3/PCIE4/PCIE5/PCIE7 will run at x16/x0/x0/x16/x8 or x8/x8/x8/x8/x8.
If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE4/PCIE5/PCIE7 will run at x16/x0/x0/x8/x4 or x8/x8/x0/x8/x4.
If you install CPU with 16 lanes, PCIE1/PCIE3/PCIE4/PCIE5/PCIE7 will run at x16/x0/x0/x0/x4 or x8/x0/x0/x8/x4.
Please note that the 3-Way SLI™ configuration varies depending on processor type.
Supports NVMe SSD as boot disks

**If you install CPU with 28 lanes or 16 lanes, PCIE6 will be disabled.

***4-Way CrossFireX™ is only supported with CPU with 44 lanes or 28 lanes.

****3-Way SLI™ is only supported with CPU with 44 lanes or 28 lanes; 4-Way SLI™ is only supported with CPU with 44 lanes.

Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
If M2_2 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Connector
- 1 x Virtual RAID On CPU Header
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 1 x Voltage Control Header
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Right Angle Front Panel Audio Connector*****
- 1 x Thunderbolt™ AIC Connector (5-pin)******
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button
- 1 x Retry Button
- 1 x Safe Boot Button
- Rapid OC Buttons: +/- buttons to adjust OC frequency
- 1 x Menu Button
- 1 x PCIe ON/OFF Switch
- 1 x Post Status Checker (PSC)
- 1 x Slow Mode Switch
- 1 x LN2 Mode Switch
- 1 x BIOS B Select Jumper

*Supports in total up to 12V/3A, 36W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CPU_OPT/W_PUMP, CHA_FAN1, CHA_FAN2 and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

*****Connect the audio device to either one of the audio connectors.

******The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type).

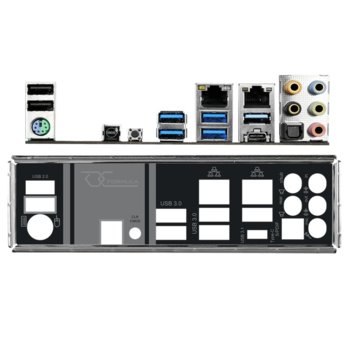

Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)*
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*Ultra USB Power is supported on USB3_34 ports.
ACPI wake-up function is not supported on USB3_34 ports.


Software and UEFI

Software
- ASRock Formula Drive
- ASRock RGB LED
- ASRock Timing Configurator
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock NickShih's OC Profile
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA

Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 2oz Copper PCB

OS
- Microsoft® Windows® 10 64-bit

Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
