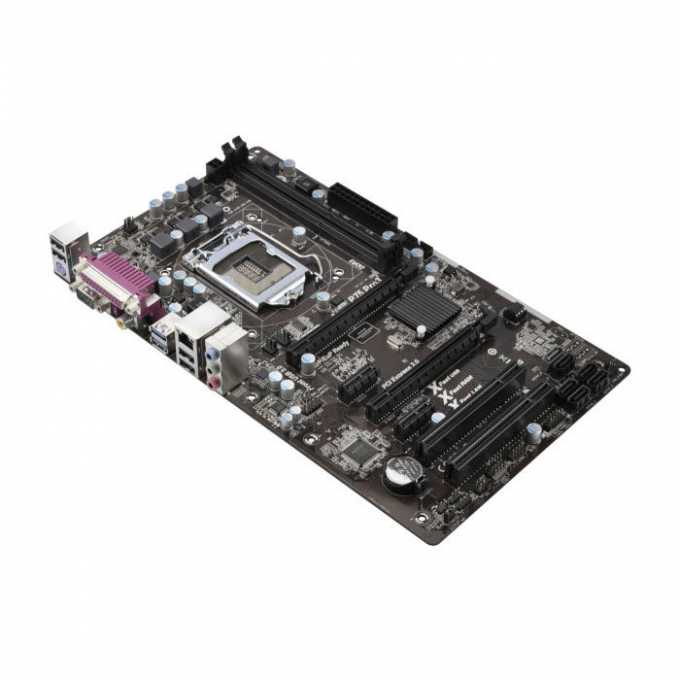

Дънна платка ASRock P75 Pro3, B75, LGA1155, DDR3, PCI-E 3.0, SB7.1, Lan1000, 1x SATA 6Gb/s, 2x USB3.0, ATX

P75 Pro3
Neatly designed B75 motherboard that will drum up business

- 100% All Solid Capacitor Design
- Supports Dual Channel DDR3 1600
- 1 x PCIe 3.0 x16 Slot, Supports AMD Quad CrossFireX™, CrossFireX™
- PCIE Gigabit LAN
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports ASRock XFast RAM, XFast LAN, XFast USB, Fast Boot, Dehumidifier, OMG, Internet Flash, UEFI System Browser
- Supports Intel® Smart Connect, Intel® Rapid Start, Intel® Small Business Advantage
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite Trial, Google Chrome Browser & Toolbar

CPU

- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Hyper-Threading Technology

Chipset

- Intel® B75
- Supports Intel® Small Business Advantage
- Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

Memory

- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.

BIOS

- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment

Audio, Video and Networking

Graphics

- n/a

Audio

- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
*To configure 7.1 CH audio, please use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity

Slots

- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.

SATA3

- 1 x SATA3 6.0 Gb/s connector, supports NCQ, AHCI and Hot Plug functions

USB 3.0

- 2 x Rear USB 3.0 ports, support USB 1.1/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s

Connector

- 5 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x SATA3 6.0 Gb/s connector
- 1 x IR header
- 1 x CIR header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- 1 x Chassis Intrusion header
- 1 x CPU Fan connector (4-pin)
- 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

Rear Panel I/O

I/O Panel
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x Coaxial SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature

- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock On/Off Play Technology
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock Dehumidifier Function
- ASRock Fast Boot
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - Trial, Google Chrome Browser and Toolbar

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- ATX Form Factor
- All Solid Capacitor design

OS

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.

Certifications

- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
