Дънна платка ASRock P4i945GC, 945GC, S478, DDR2, VGA+PCI-E, SB7.1, Lan1000, SATA, mATX

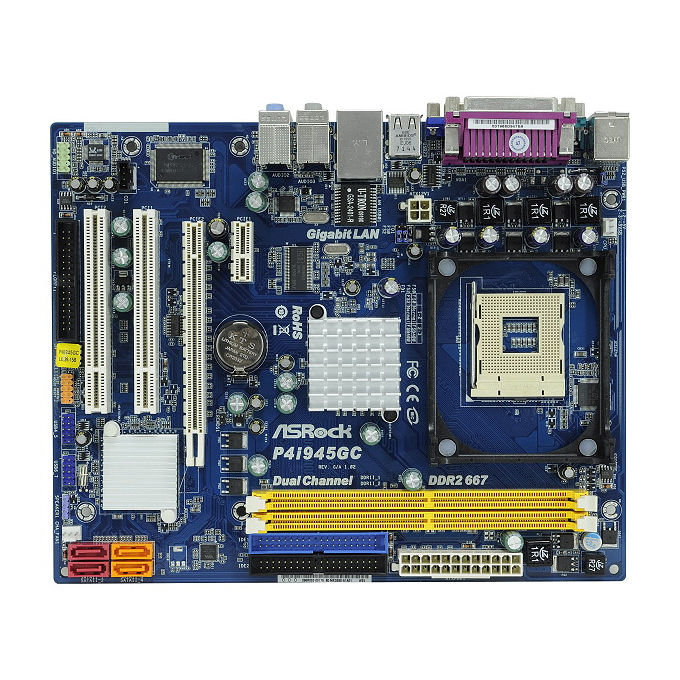

ASRock P4i945GC

CPU

- Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood) processors
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology

Chipset

- Northbridge: Intel® 945GC
- Southbridge: Intel® ICH7

Memory

- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 667/533/400 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports ""Plug and Play""
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports Smart BIOS

Audio, Video and Networking

Graphics

- Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

Audio

- 7.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC888 Audio Codec)

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN

Expansion / Connectivity

Slots

- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots

Connector

- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and ""Hot Plug"" functions)
- 1 x ATA100 IDE connector by Intel® ICH7 (supports 2 x IDE devices)
- 1 x ATA133 IDE connector by VIA® VT6415 (supports 2 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O
ASRock 8CH I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Features:

- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- ATA Cable (optional)
- 1 x SATA Data Cable (optional)

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- Micro ATX Form Factor: 9.6-in x 7.7-in, 24.4 cm x 19.6 cm

OS

- Microsoft® Windows® 2000 / XP / Vista™ compliant

Certifications

- FCC, CE, WHQL
