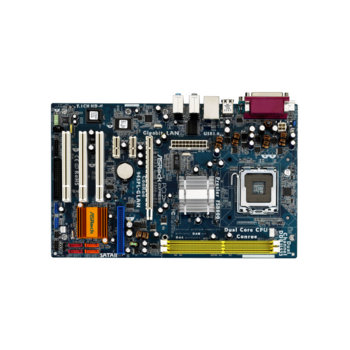

ASRock CONROE945PL-GLAN
Икона в кампания
ASRock CONROE945PL-GLAN

Дънна платка ASRock CONROE945PL-GLAN, S775, i945PL, DDR2, PCI-E, SB7.1, Lan1000, SATA, ATX, BULK, 2г. гаранция

id 13561 Код: MBASROCKCONROE945PLG
  • Модел: CONROE945PL-GLAN
  • Марка: ASRock
  • Код на продукта: CONROE945PL-GLAN
  • Гаранция: 24 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси
    ASRock CONROE945PL-GLAN

    CPU
    - LGA 775 for Intel® Core™ 2 Duo* / Pentium® D / Pentium® 4 / Celeron® D processors
    - FSB 800/533 MHz
    - Supports Hyper-Threading Technology
    - Supports Untied Overclocking Technology
    - Supports EM64T CPU

    *This motherboard supports FSB800-CPU. If you plan to adopt Core™ 2 Duo CPU on this motherboard, you can only adopt Conroe 800 E4XXX processors.

    Chipset
    - Northbridge: Intel® 945PL
    - Southbridge: Intel® ICH7

    Memory
    - Dual Channel DDR2 memory technology
    - 2 x DDR2 DIMM slots
    - Supports DDRII 533 non-ECC, un-buffered memory
    - Max. capacity of system memory: 2GB

    BIOS
    - 4Mb AMI BIOS
    - AMI Legal BIOS
    - Supports ""Plug and Play""
    - ACPI 1.1 Compliance Wake Up Events
    - Supports Jumperfree
    - SMBIOS 2.3.1 Support

    Audio, Video and Networking

    Graphics
    - n/a

    Audio
    - 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

    LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111B
    - Supports Wake-On-LAN

    Expansion / Connectivity

    Slots
    - 3 x PCI slots
    - 1 x PCI Express x16 slot
    - 2 x PCI Express x1 slots

    Connector
    - 4 x SATAII 3.0 Gb/s connectors
    (No support for RAID and ""Hot Plug"" functions)
    - 1 x ATA100 IDE connector (supports 2 x IDE devices)
    - 1 x Floppy connector
    - 1 x IR header
    - 1 x Game header
    - 1 x HDMI_SPDIF header
    - CPU/Chassis FAN connectors
    - 20 pin ATX power connector
    - 4 pin 12V power connector
    - CD in header
    - Front panel audio connector
    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)

    Rear Panel I/O
    HD 8CH I/O
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x COM Port
    - 1 x Parallel Port (ECP/EPP Support)
    - 4 x Ready-to-Use USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

    Other Features / Miscellaneous

    Hybrid Booster
    - CPU Frequency Stepless Control
    - ASRock U-COP
    - Boot Failure Guard (B.F.G.)

    Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version)

    Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - Floppy/ATA 100 Cables
    - 1 x SATA Data Cable (optional)
    - 1 x SATA 1 to 1 Power Cable (optional)
    - 1 x HDMI_SPDIF Cable (optional)

    Hardware Monitor
    - CPU Temperature Sensing
    - Chassis Temperature Sensing
    - CPU Fan Tachometer
    - Chassis Fan Tachometer
    - CPU Quiet Fan
    - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

    Form Factor
    - ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm

    OS
    - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

    Certifications
    - FCC, CE, WHQL



    Виж още Дънни платки за Intel процесори ASRock
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 775
