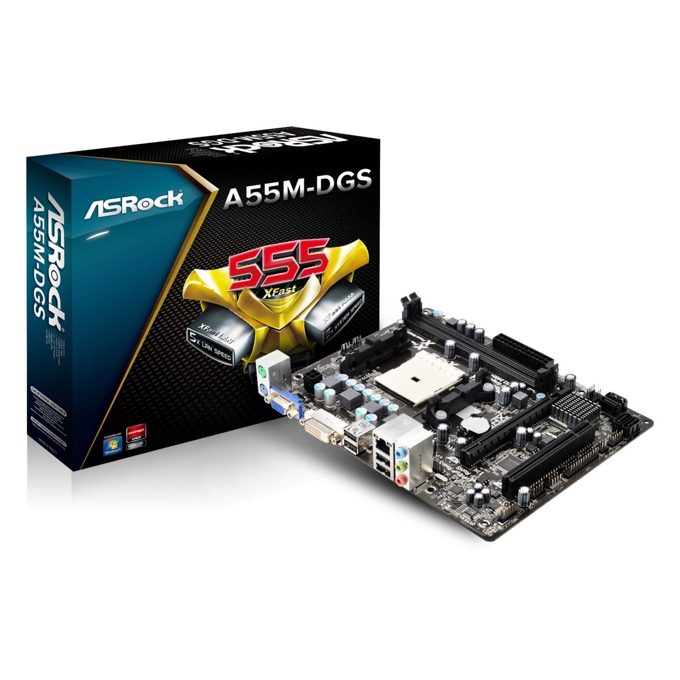

ASRock A55M-DGS
CPU
- Support for Socket FM1 100W processors
- Supports AMD's Cool 'n' Quiet Technology
- UMI-Link GEN2
Chipset
- AMD A55 FCH (Hudson-D2)
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, VDDP, SB Voltage Multi-adjustment
Audio, Video and Networking
Graphics
- Integrated AMD Radeon HD 65XX/64XX graphics in Llano APU
- DirectX 11, Pixel Shader 5.0
- Max. shared memory 512MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
- Supports AMD Steady Video™: New video post processing capability for automatic jutter reduction on home/online video
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports THX TruStudio™
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express 2.0 x16 slot
- 1 x PCI slot
- Supports AMD Dual Graphics
Connector
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
- 1 x IR header
- 1 x CIR header
- 1 x Print port header
- 1 x COM port header
- 1 x CPU Fan connector (4-pin)
- 1 x Chassis Fan connector (4-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- ASRock U-COP
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD Live! Explorer, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 8.8-in x 6.8-in, 22.4 cm x 17.3 cm
- Solid Capacitor for CPU power
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Виж още Дънни платки за AMD процесори ASRock
Виж всички Дънни платки за AMD процесори в категорията
CPU
- Support for Socket FM1 100W processors
- Supports AMD's Cool 'n' Quiet Technology
- UMI-Link GEN2
Chipset
- AMD A55 FCH (Hudson-D2)
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, VDDP, SB Voltage Multi-adjustment
Audio, Video and Networking
Graphics
- Integrated AMD Radeon HD 65XX/64XX graphics in Llano APU
- DirectX 11, Pixel Shader 5.0
- Max. shared memory 512MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
- Supports AMD Steady Video™: New video post processing capability for automatic jutter reduction on home/online video
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports THX TruStudio™
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express 2.0 x16 slot
- 1 x PCI slot
- Supports AMD Dual Graphics
Connector
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
- 1 x IR header
- 1 x CIR header
- 1 x Print port header
- 1 x COM port header
- 1 x CPU Fan connector (4-pin)
- 1 x Chassis Fan connector (4-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- ASRock U-COP
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD Live! Explorer, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 8.8-in x 6.8-in, 22.4 cm x 17.3 cm
- Solid Capacitor for CPU power
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Виж още Дънни платки за AMD процесори ASRock
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
| Процесор сокет: | FM1 |
|---|---|
| Чипсет: | A55 |
| Поддържана памет: | DDR3 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 3Gbit/s |
| RAID: | Да |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DVI |
| Форм фактор: | Micro ATX |
| Видеокарта: | Вградена |
