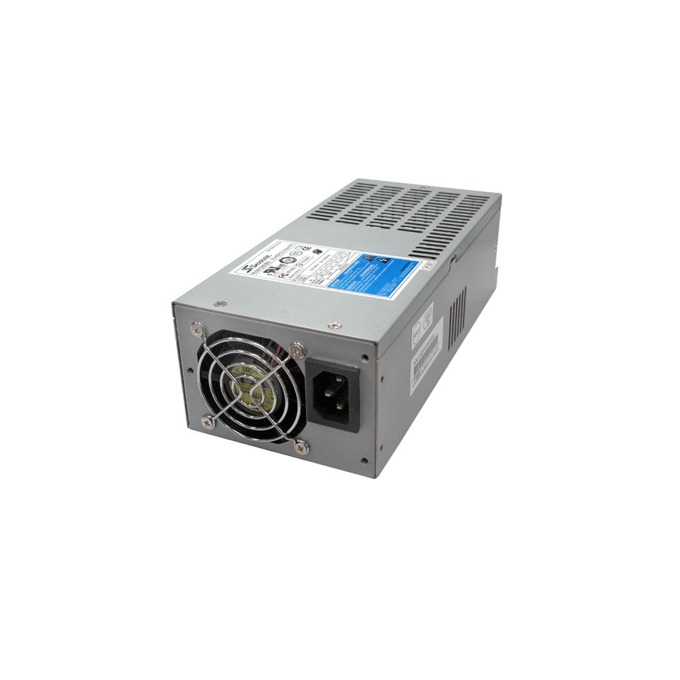

Name: Захранване 460W Seasonic SS-460H2U, 2U, Active PFC, 80+, P4, SSI
Brand: Seasonic
SKU: PWRPCSEASONICSS460H2U
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Seasonic SS-460H2U

DC Outputs
+3.3 V +5 V +12 V Combined -12 V +5 Vsb Total continuous power Input Type
20 A 21 A 32 A 0.8 A 3 A 460 W Full range
130 W (max.) 384 W
Specifications
Input frequency 50 / 60 Hz
Hold up time, full load 12 ms (typical)
Efficiency (220 V AC - 240 V AC, full load) 83 % (typical)
Efficiency (100 V AC - 120 V AC, full load) 80 % (typical)
Dielectric withstand, input to frame/ground 1800 VAC, 1 sec
Dielectric withstand, input to output 1800 VAC, 1 sec
Line regulation ± 1 % (typical)
Load regulation ± 5 % (typical)
Cross regulation ± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours
Active Power Factor Correction 99 % (typical)

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
