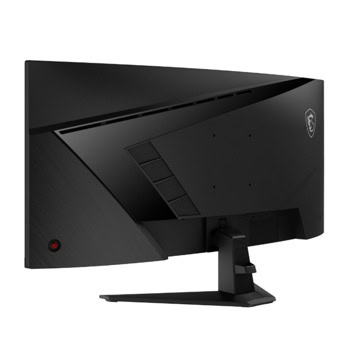

MSI MAG 346CQ

Smooth rapidity and accuracy

Equipped with a 180Hz refresh rate and 1ms (MPRT) response time which has the benefit in fast moving game genres such as first person shooters, fighters, racing sims, real-time strategy, and sports.

AI Vision

The new AI Vision technology can not only reveal details in dark areas but also enhance overall brightness and saturate colors, bringing brightness to your day.

The most vivid display

The MSI monitor equipped with HDR Ready, produces images with more detail, a wider range of colors, and appearance more similar to what the human eye perceives compared to traditional monitors. It guarantees a superior gaming and multimedia experience by vividly rendering every detail with vibrant colors and exceptional clarity.

Specifications

Panel Size: 34"
Active Display Area (mm): 797.22 (H) x 333.72 (V)
Curvature: Curve 1500R
Panel Type: VA
Panel Resolution: 3440 x 1440 (UWQHD)
Pixel Pitch (H x V): 0.23175 (H) x 0.23175 (V)
Aspect Ratio: 21:9
Brightness (nits) SDR: 300 cd/m²
Contrast Ratio: 4000:1
DCR: 100000000:1
Signal Frequency: 71.040~268.200 KHz (H) / 48~180 Hz (V)
ACTIVATED RANGE: 48~180Hz
Refresh Rate: 180Hz
Response time: 1ms (MPRT)
DYNAMIC REFRESH RATE TECHNOLOGY: AMD FreeSync Premium
HDR Support: HDR Ready
Video ports: 2x HDMI 2.0b (UWQHD@180Hz), 1x DisplayPort 1.4a (HBR3)
USB ports: N/A
Audio ports: 1x Headphone-out
Viewing Angle: 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB: 80% / 75% / 100% (CIE1976 Standard)
Surface Treatment: Anti-glare
Display Colors: 1.07b, 10 bits (8 bits + FRC)
SPEAKER: N/A
Console Mode
Supported Resolution & Refresh Rate:
1080p: 60Hz and 120Hz
1440p: 60Hz and 120Hz
HDMI CEC: Supported
VRR: PS5 and Xbox Supported
Frameless Design: Yes
Power Type: Internal Power Board
Power Input: 100~240V, 50/60Hz
Adjustment (Tilt): -5°~20°
Adjustment (Swivel): N/A
Adjustment (Pivot): N/A

Виж още Монитори MSI
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Не
USB Type-А:	Не
VGA (D-Sub):	Не

Гама:	Gaming
Екран размер:	34" (86.36 cm)
Разделителна способност (max):	3440 x 1440
Аспект изображение:	21:9
Тип матрица:	VA
Честота на опресняване:	180 Hz
Време за реакция:	1 ms
Яркост:	300 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	UltraWide
Извит:	Да
Преносим:	Не
