Интерактивен дисплей ViewSonic IFP7534, 75" (190.5 cm) 4K/UHD TFT мулти-тъч дисплей, DisplayPort, HDMI, VGA, USB, USB-C, RS232, LAN

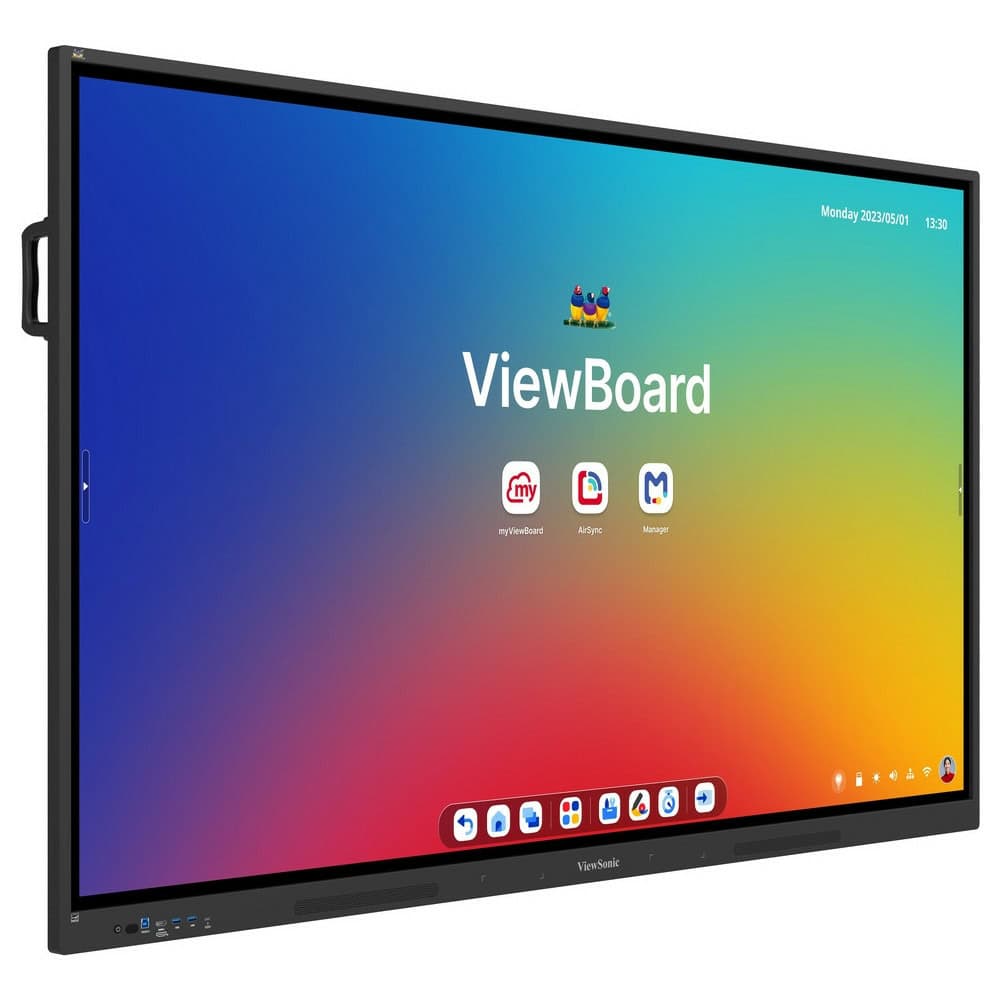

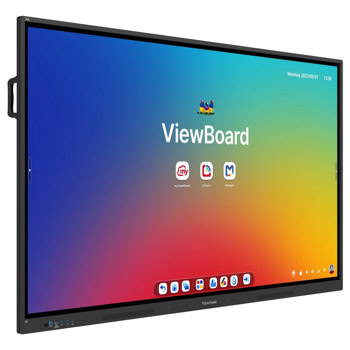

ViewSonic IFP7534

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display

• EPEAT Gold Certification with 20% better power efficiency than the previous generation.
• Integrated ViewSonic Education Software empowers teachers and boosts learning outcomes.
• EDLA-certified Android 14 unlocks Google Play Store access for a world of apps.
• Quad-core CPU and microSD port deliver fast performance with expandable storage.
• Dual USB-C ports power fast transfers, reliable charging, and effortless connectivity.

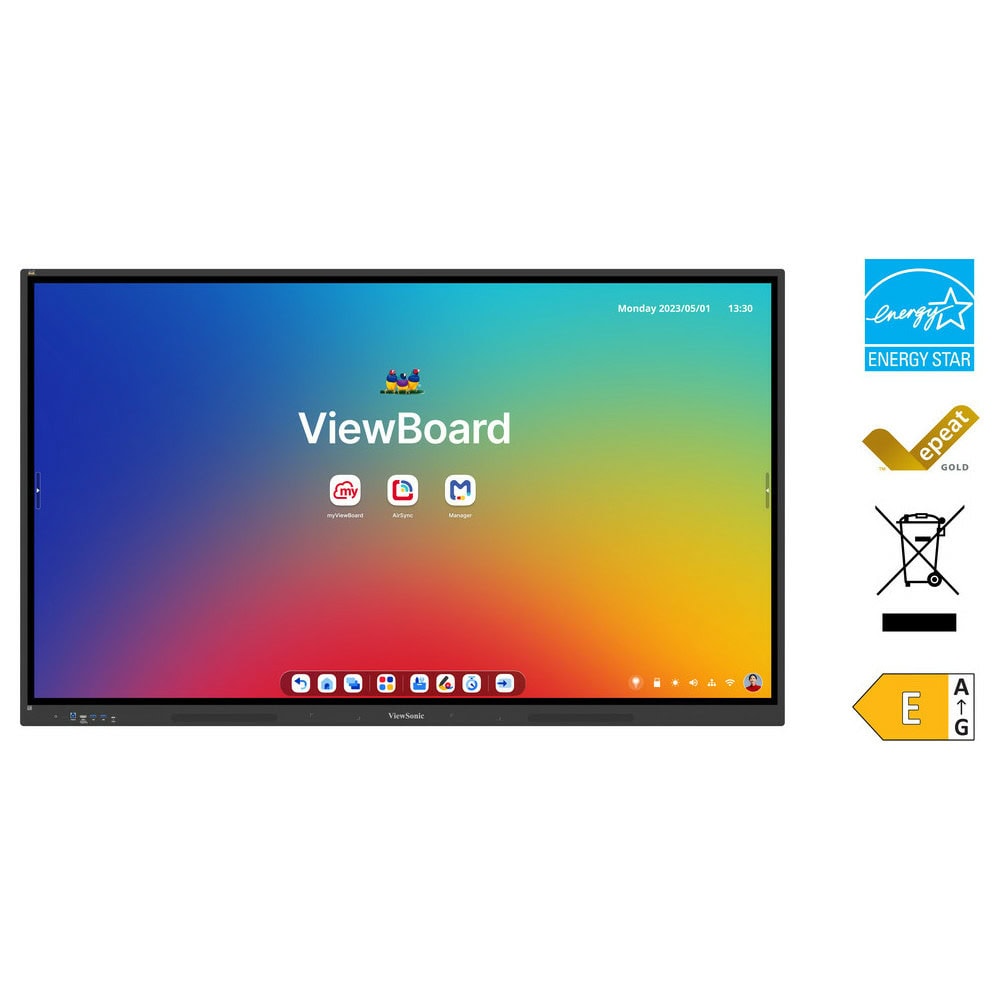

Drive Sustainability in Every Classroom

Lead the way in sustainable education with the ViewBoard IFP34 Series—crafted by the world’s first interactive display brand to achieve EPEAT Gold certification. ENERGY STAR 8.0 certified and featuring a competitive EEI rating, it uses 20% less energy than its predecessor, helping schools cut costs while supporting a more sustainable planet.

Do More, Store More​

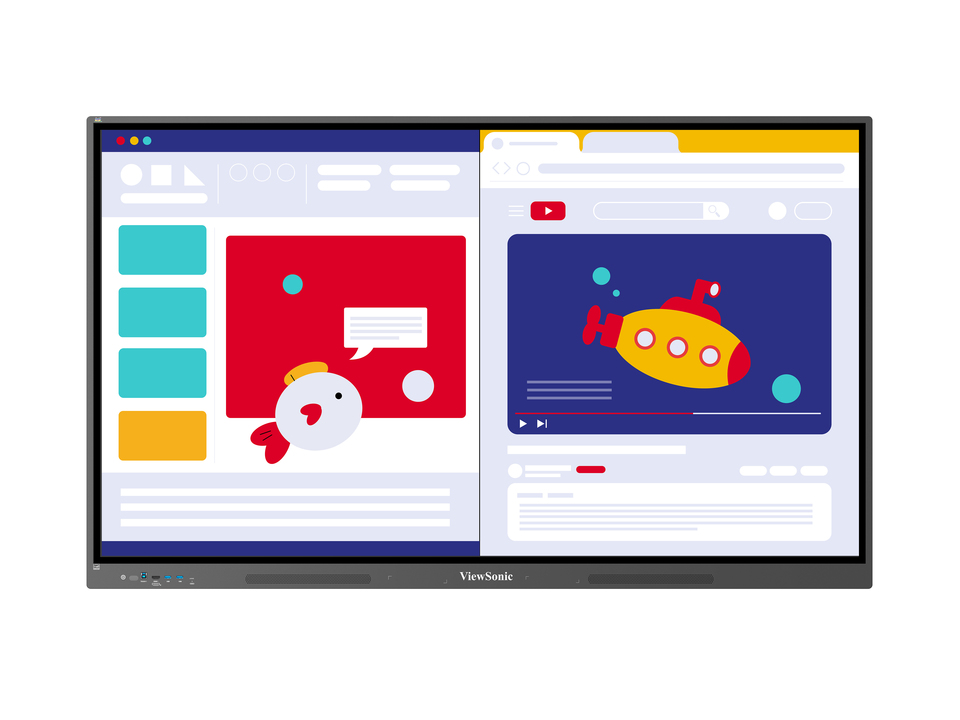

Boost productivity with the ViewBoard IFP34 Series, powered by a quad-core CPU delivering faster performance than its predecessor. Enjoy seamless split-screen and picture-in-picture multitasking, while the microSD port makes expanding storage effortless as your lesson resources grow.​

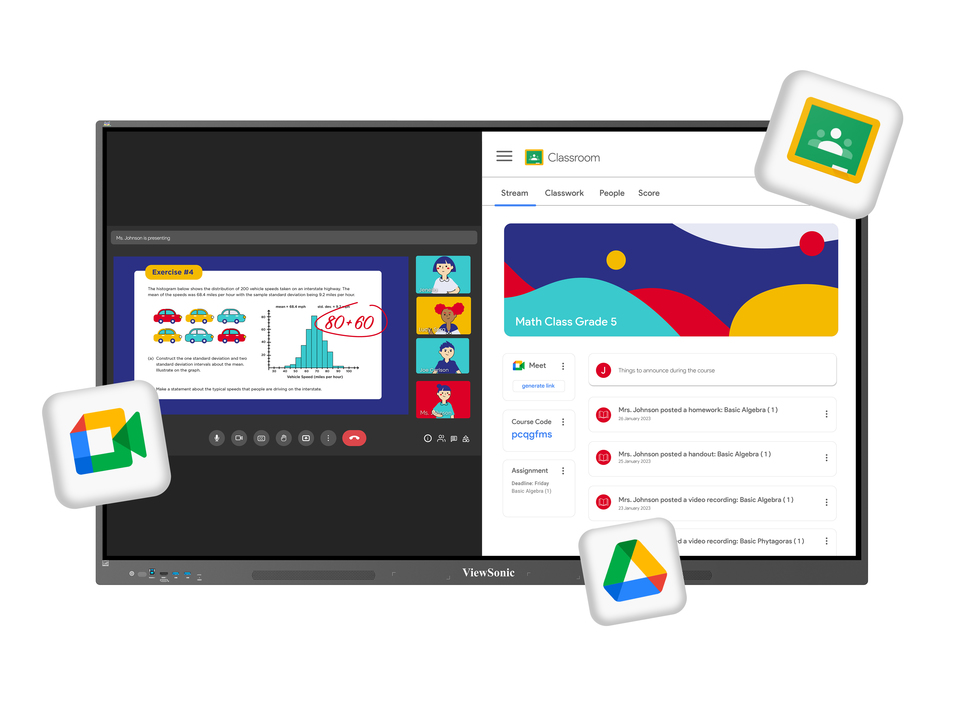

Enhance Productivity with Google Services

Streamline teaching, fuel collaboration, and keep learning on course with integrated Google services. From managing assignments in Google Classroom to hosting virtual lessons with Google Meet, these tools make classrooms more efficient and engaging.

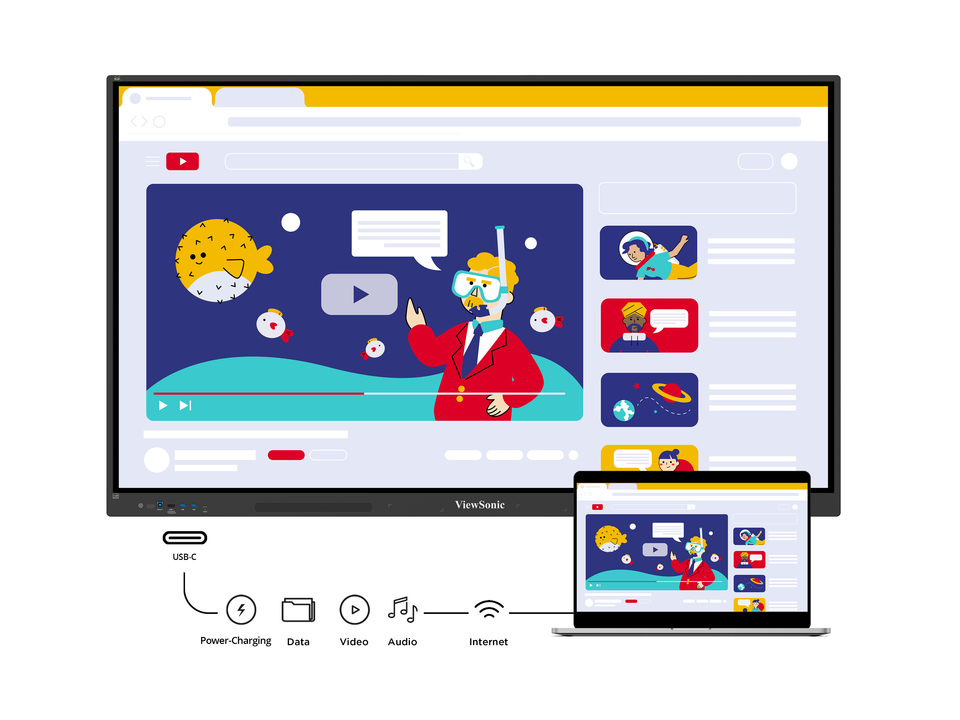

Keep It Simple with Dual USB-C Ports

Maximize classroom efficiency with the ViewBoard IFP34 Series' dual USB-C ports. Connect one port to a computer for lesson delivery, while using the other for peripherals like cameras. With fast data transfer and device charging, all your multimedia needs are met through a single cable, keeping your learning environment tidy and clutter-free.

SPECIFICATIONS


• Display

  Panel Size: 75"
  Panel Type: TFT LCD Module with DLED Backlight.
  Display Area (mm): 1650.24(H) x 942.01(V)
  Aspect Ratio: 16:9
  Resolution: UHD 3840x2160(Pixels)
  Colors: 1.07B colors
  Brightness: 450 nits
  Contrast Ratio: 5000:1 (max. with DCR enabled)
  Response Time: 8ms
  Viewing Angles: H=178, V=178
  Backlight Life: 50,000 Hours (8 hours of use per day)
  Surface Treatment: Hardness: 7H Anti-glare coating
  Orientation: Landscape


• Platform

  Processor: Quad-core
  RAM: 8GB DDR4
  Storage: 128 GB


• Touch

  Type/ Tech: Ultra Fine Touch Technology
  Touch Resolution: 32767 x 32767
  Touch Point: 40 points touch
  Palm Rejection: Yes


• INPUT

  HDMI: x3 (Front x1: HDMI2.0/HDCP 2.2/CEC; Rear x 2:HDMI2.0/HDCP 2.2/CEC/ARC for HDMI 2)
  RGB / VGA: x1
  DisplayPort: x1
  Audio: x1
  RS232: x1
  SD/SDHC: x1
  OPS: x1 (Optional Intel Standard OPS)
  WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)


• OUTPUT

  HDMI: HDMI 2.0 x1
  Audio: x1
  SPDIF: x1


• LAN

  RJ45: x2


• USB

  Type A: USB3.2 Gen 1 x 4 (Front x 2; Rear x 2 )
  USB 2.0x1 (Rear)
  Type B: USB 3.0 x2 (Rear x1 + Front x1)
  Type C: Front*1 (PD15W + DP1.2 + Data + 10M/100M sharing)
  Rear*1 [PD65W(15W with OPS, 65W without OPS) + DP1.2 + Data + 10M/100M sharing]


• SPEAKERS

  20W x 2


• Top Camera Plate

  Yes


• Embedded OS

  Android 14 EDLA


• Bundle Software

  Basic Annotation Software: myViewBoard
  Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
  Wireless Presentation: AirSync
  Device Management: Manager
  ViewSonic Launcher: Yes


• Special Features

  All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
  Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
  Light Sensor: Yes


• Power

  Voltage: 100-240V AC
  Consumption: On:89.24W ; Off: ≤ 0.5W


• ERGONOMICS

  Wall Mount (VESA® ): 800*400


• OPERATING CONDITIONS

  Temperature (º C): 0°C to 40°C
  Humidity: 20% ~ 80% RH non-condensing


• DIMENSIONS (W x H x D)

  Physical (inch / mm): 67.5 x 40.4 x 3.42 (in.) / 1716.5 x 1025.8 x 86.9 (mm)
  Packaging (inch / mm): 73.22 x 44.29 x 7.28 (in.) / 1860 x 1125 x 185 (mm)


• WEIGHT

  Net (lb / kg): 108.03 lb / 49 kg
  Gross (lb / kg): 133.38 lb /60.5 kg
