Захранване 750W DeepCool DQ750, Active PFC, 80+ Gold, 140mm Blue LED вентилатор

750W DeepCool DQ750

DesignDescription:

DQ 750 is certified with 80 plus gold with 87% to 90% electrical
efficiency enabling lower heat generation and lower operating cost.
Outstanding and stable performance makes it one of the greatest PSU of
Deepcool. DQ 750 is sure to be one of the most ideal equipment for
gamers.

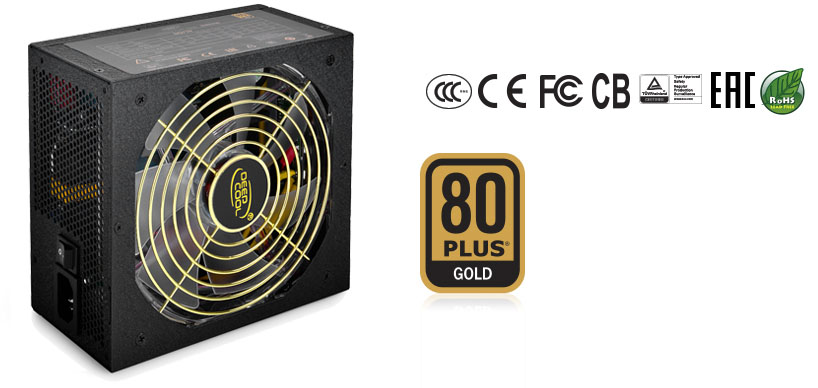

80PLUS GOLD
80PLUS Gold certified provide high energy efficiency up to 90%.

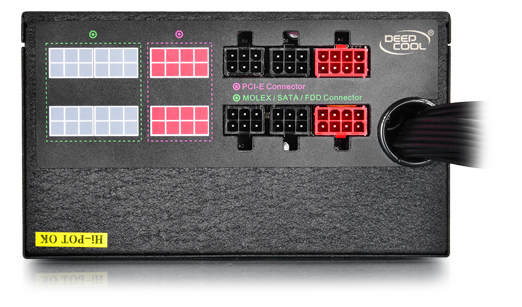

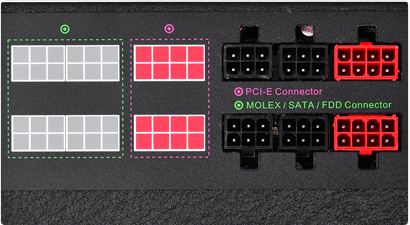

Modular Cable System

With modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

Features:

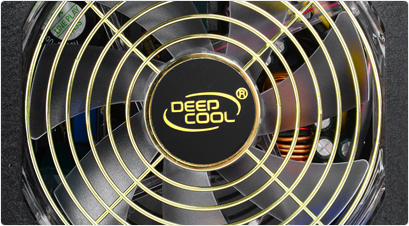

140mm LED Fan

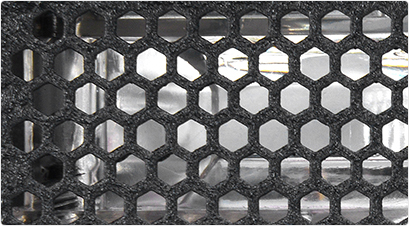

Honeycomb Ventilation Holes
Modular Cable Design

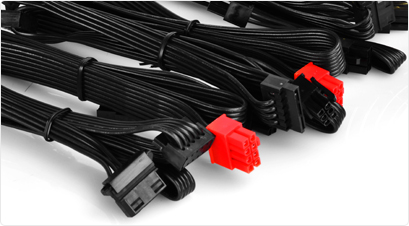

Flat Ribbon Cable Design

OutputAC INPUT:

VOLTAGE

CURRENT

FREQUENCY

100-240V
10.0A
47-63Hz

DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB

CURRENT(Max):

20A
20A
62A
0.8A
3A

OUTPUT(Max):

100W
744W
9.6W
15W

TOTAL OUTPUT:

750WCables

SpecFeatures:
80 PLUS® GOLD certified - Up to 87~90% efficient(20~100% loading);
Compliant Intel ATX12V 2.31 & SSI EPS 12V 2.92 standard;
90-264Vac wide voltage input,ensure smooth usage in any place of the world;
HIgh quality capacitors,ensure the stable output performance;
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise;
Energy saving design, consume<1W in its off-mode,compliant Erp standard;

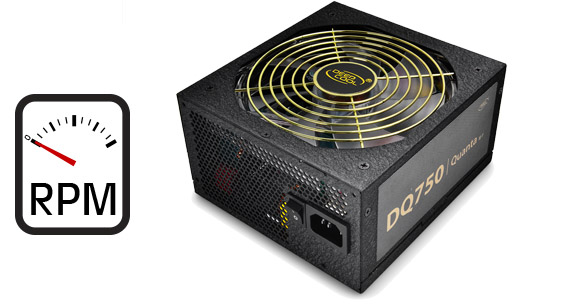

140mm silent fan with PWM funtion;
Modularized flat cabling design reduces the resistance of airflow by a
regular cable layout, and increases the cooling capability of system;
The longer cable design supports cable management perfectly;
High reliability with an MTBF of at least 120,000 hours of use;
CircuitShieldTM-Over Voltage Protection(OVP),Under Voltage Protection(UVP),Short Circuit Protection(SCP),Over Power Protection(OPP);

Technical Spec:

Model:
DQ750:
ATX 12V V2.31 & SSI EPS 12V 2.92

Certifications:
80PLUS Gold

Dimension (mm):
150;160;215;86(W x L x H)

Output Capacity:
750W

Input Voltage:
100~240V

Input Current:
10A

Input Frequency Range:
47~63Hz

Fan Size:
140mm Blue LED

PFC:
Active PFC (0.9)

Power Good Signal:
100-500ms

Hold Up Time:
16ms

Efficiency:
Up to 90% Under Typical Load

Protection:
OVP / SCP / OPP

Operation Temperature:
0~40°C

Regulatory:
CE / FCC / CCC / CB / EAC / TUV

MTBF:
120,000 Hours

Design

Description



DQ 750 is certified with 80 plus gold with 87% to 90% electrical
efficiency enabling lower heat generation and lower operating cost.
Outstanding and stable performance makes it one of the greatest PSU of
Deepcool. DQ 750 is sure to be one of the most ideal equipment for
gamers.

Modular Cable System

With modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

Features

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
	100-240V		10.0A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	20A	20A	62A	0.8A	3A
OUTPUT(Max)	100W		744W	9.6W	15W
TOTAL OUTPUT	750W

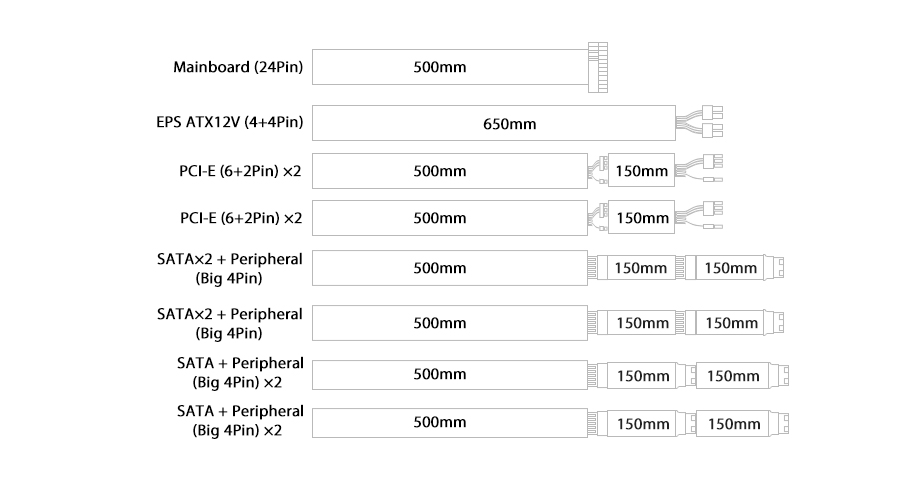

Cables









Spec









Design

Description



DQ 750 is certified with 80 plus gold with 87% to 90% electrical
efficiency enabling lower heat generation and lower operating cost.
Outstanding and stable performance makes it one of the greatest PSU of
Deepcool. DQ 750 is sure to be one of the most ideal equipment for
gamers.

Modular Cable System

With modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

Features

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
	100-240V		10.0A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	20A	20A	62A	0.8A	3A
OUTPUT(Max)	100W		744W	9.6W	15W
TOTAL OUTPUT	750W

Cables









Spec









Design

Description



DQ 750 is certified with 80 plus gold with 87% to 90% electrical
efficiency enabling lower heat generation and lower operating cost.
Outstanding and stable performance makes it one of the greatest PSU of
Deepcool. DQ 750 is sure to be one of the most ideal equipment for
gamers.

Modular Cable System

With modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

Features

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
	100-240V		10.0A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	20A	20A	62A	0.8A	3A
OUTPUT(Max)	100W		744W	9.6W	15W
TOTAL OUTPUT	750W

Cables









Spec
