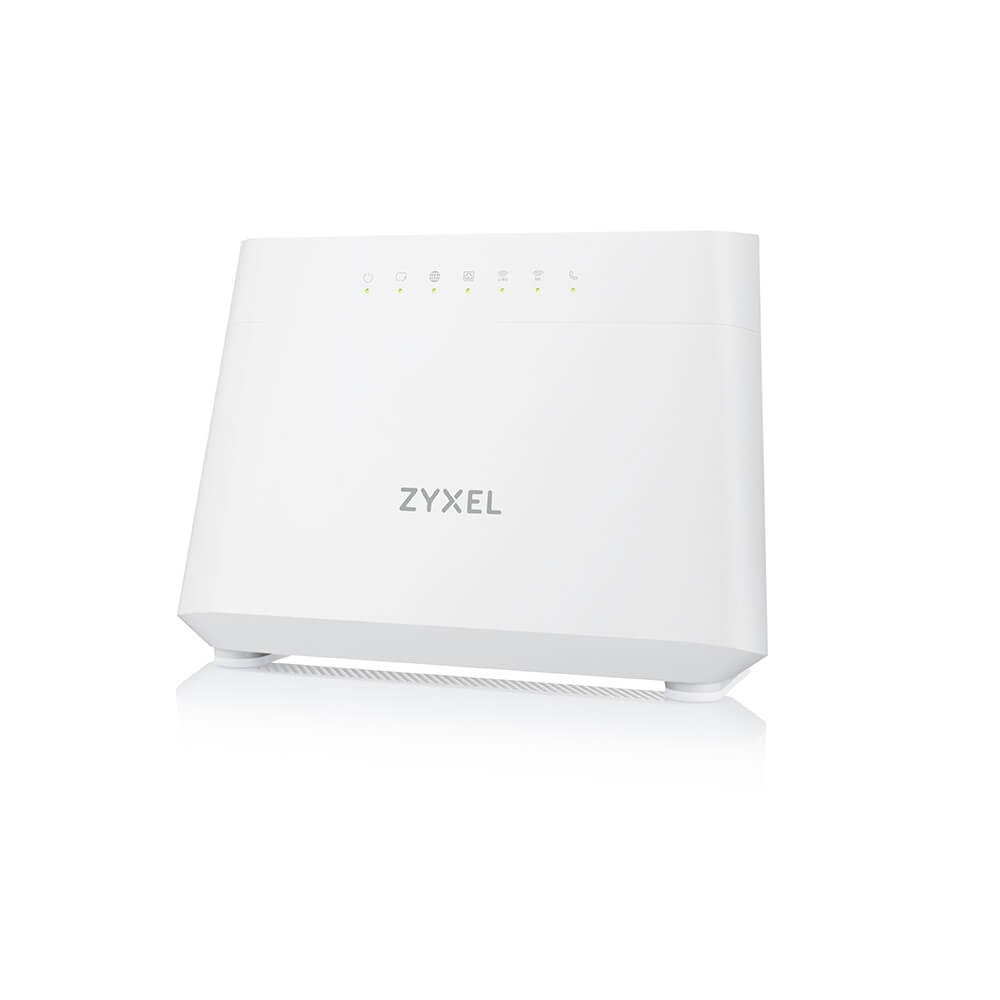

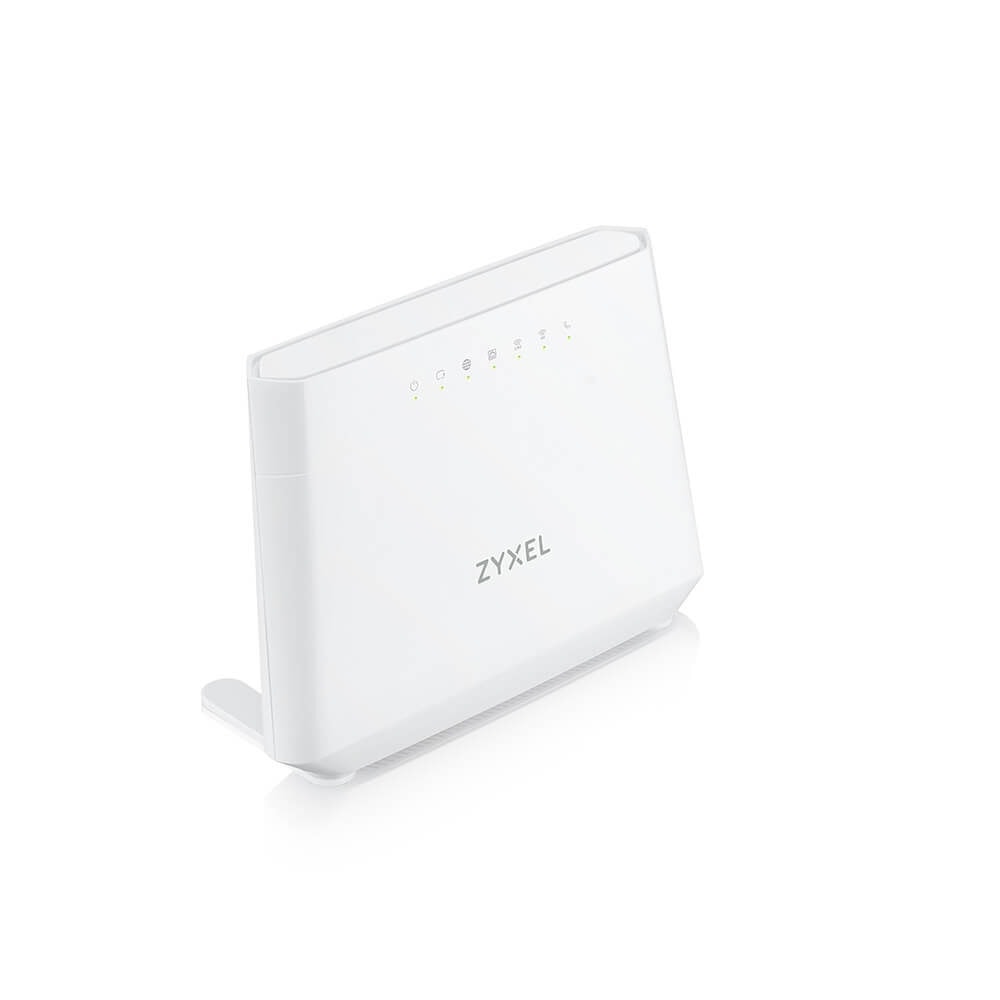

Мрежеста система ZyXEL DX3301-T0, 1800Mbps, 2.4GHz (574Mbps)/5GHz (1200Mbps), Wireless AX, 4x 10/100/1000Mbps LAN, 1x 10/100/1000Mbps WAN, 1x USB 2.0 Type-A, 2x RJ11

WiFi 6 technology for superior lag-free performance

Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.

*The maximum wireless data transfer rate is derived from IEEE standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Zyxel OPAL firmware achieves superior flexibility and faster time-to-market

Compliant with the same OPAL firmware trunk applied in all Zyxel CPEs,the Series inherits a rich, field-proven feature set for guaranteed unchanged user experience even after migrating to the new devices.

Quality of Service (QoS) support

With QoS features, service providers can freely design their QoS policies and prioritize mission-critical services such as IPTV and VoIP based on their service plan offerings. This improves network efficiency and productivity that enable service providers to offer a real multi-play solution to meet the residential user needs.

Technical data

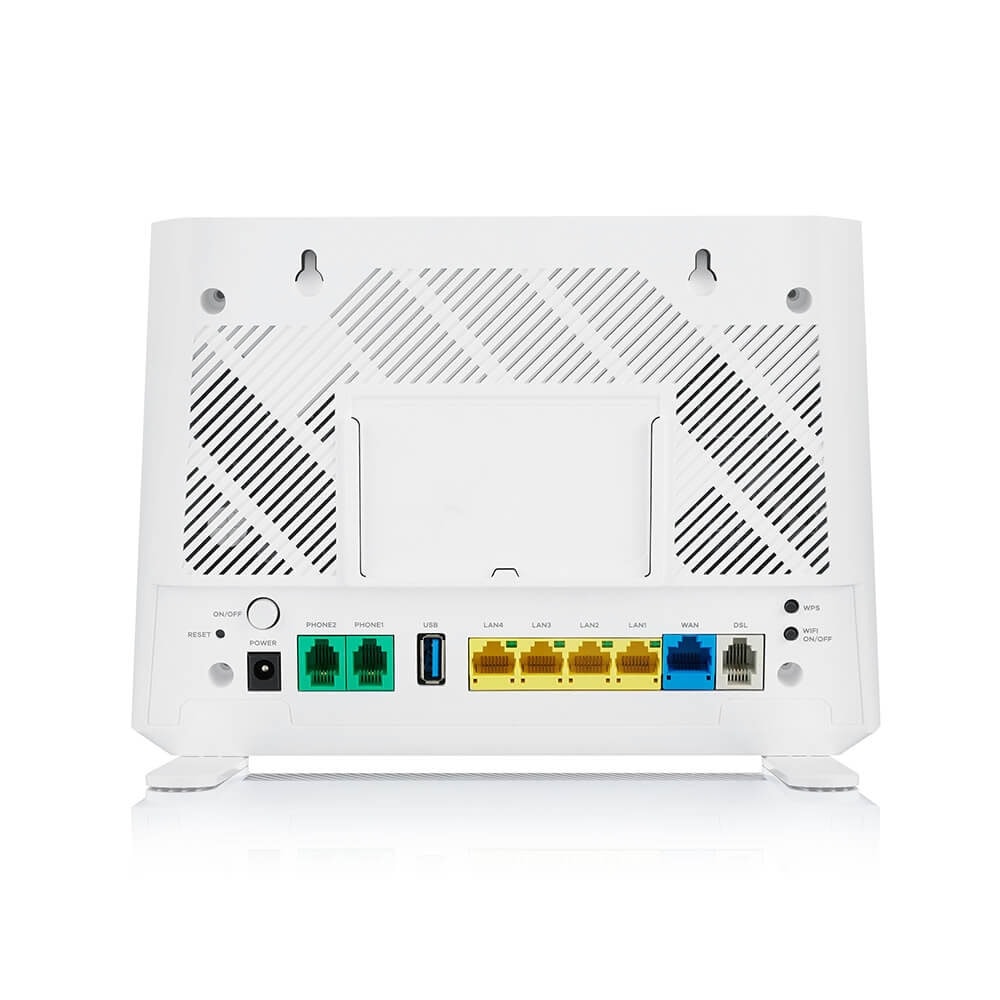

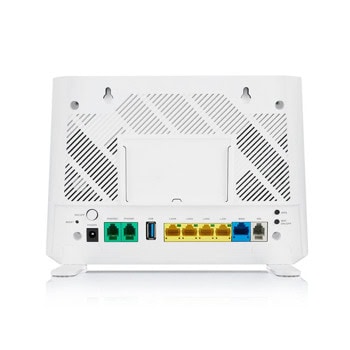

Hardware

WAN interface

• DSL RJ-11/RJ45/GbE

Ethernet port (10/100/1000)

• 5 (1 for Ethernet WAN)

POTS FXS port

• 2

USB port

• 1 (USB 2.0)

VDSL

• G.993.1 VDSL
• G.993.2 VDSL2, Band 997, 998, Over POTS
• VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
• G.vector

ADSL

• G.992.1 (G.dmt)
• G.992.2 (G.lite)
• ANSI T1.413 compliant
• G.992.3 (ADSL2)
• G.992.5 (ADSL2+)
• Supports G.INP

Router features

• IPv4/IPv6
• NAT
• Port forwarding
• WAN connection types: DHCP, PPPoE
• DHCP option 60/121/125
• DHCP server on LAN
• IGMP v1/v2
• IGMP proxy
• Dynamic DNS

Wireless

• Auto channel selection
• WiFi Multimedia (WMM)
• Wireless scheduling
• Wireless output power management
• Multiple SSID up to 4
• Wi-Fi Protected Setup (WPS)
• Intra-BSS traffic block
• MAC address filtering

VLAN

• 802.1q tag/tag based VLAN
• VLAN to ETH port mapping
• Bridged/routed VLAN

Voice

SIP v2 (RFC 3261)

• Yes

SIP account (URL type included)

• Yes

SDP (RFC 2327)

• Yes

RTP (RFC 1889)

• Yes

RTCP (RFC 1890)

• Yes

G.168 echo cancellation

• Yes

VAD/CNG

• Yes

CODEC

• G.711 a/u law /G.726/G.722/G.729

DTMF detection

• Yes

DTMF: In-band and out-of-band

• Yes

QoS (IP bandwidth management)

• Yes

ToS

• Yes

Phonebook

• Yes

FAX, modem detection and pass-through

• Yes

T.38 FAX

• Yes

IVR

• Yes

Call waiting

• Yes

Call hold/call retrieve

• Yes

Call transferring

• Yes

Call forwarding

• Yes

Caller ID

• Yes

Do not disturb

• Yes

Three way conference

• Yes

Flexible dial plan

• Yes

Dynamic jitter buffer

• Yes

On hook, off hook and flash detection

• Yes

DSL compliance

Standards/profile

• VDSL2 Vectoring (up to 35b)/ADSL2+

Wireless

WLAN

• 2.4 GHz 2x2 ax + 5 GHz 2x2 ax

MPro Mesh

Compatibility

• WX3100

Firewall

Stateful packet inspection

• Yes

Denial of service

• Yes

ICMP blocking

• Yes

VPN

IPSec (Pass thru)

• Yes

Network

TCP/IP

• Yes

PPPoE

• Yes

DHCP client/server/relay

• Yes

PPPoA

• Yes

DHCP server

• Yes

UPnP

• Yes

IP policy routing

• Yes

Multi-to-multi NAT

• Yes

Dynamic DNS (DDNS)

• Yes

IGMP

• Yes

Management

Web configurator

• Yes

TR-069/TR-181 i2

• Yes

Remote firmware upgrade

• Yes

SNMP

• Yes

Button

• Power on/off
• Wireless on/off
• WPS
• Reset

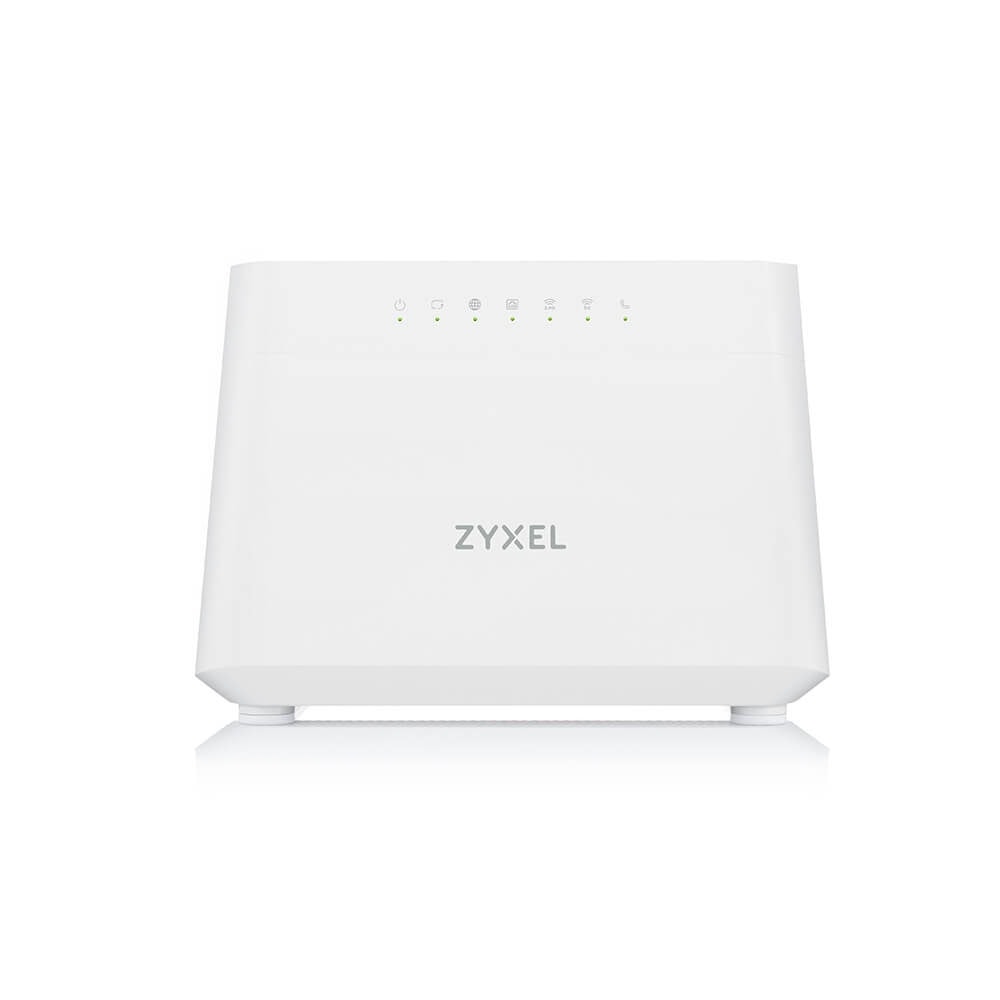

Status LEDs indicators

• Power
• WAN
• Internet
• LAN
• 2.4 GHz
• 5 GHz
• WPS
• Phone (DX3301-T0 and EX3301-T0)

Power consumption

• 12V DC, 2A

Physical specifications

Dimensions (WxDxH)(mm/in.)

• 220 x 35 x 153/8.66 x 1.38 x 6.02

Weight (g/lb.)

• 387/0.85

Environment specifications

Operating environment

• Temperature: 0°C to 40°C (32ºF to 104ºF)
• Humidity: 10% to 90% (Non-condensing)

Storage environment

• Temperature: -30°C to 70°C (-22ºF to 158ºF)
• Humidity: 10% to 95% (Non-condensing)
