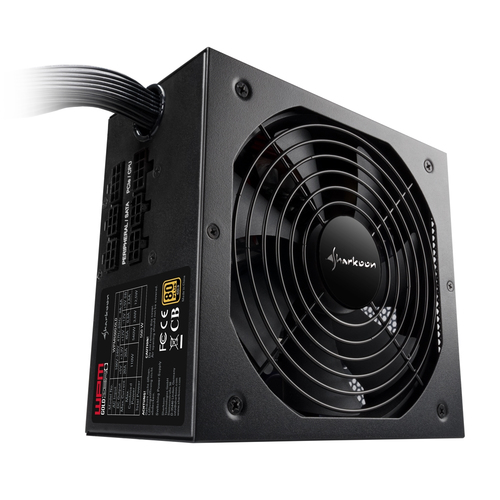

Name: Захранване Sharkoon WPM GOLD
Availability: OutOfStock

Design
Product colour	Black

Number of fans	1 fan(s)

Cooling type	Active

Fan diameter	14 cm
General Information
Marketing Information	The WPM Gold ZERO is a reliable power supply with modern LLC resonant converter technology. The power supply delivers optimal performance for gaming PCs and is certified as being energy efficient. In addition to this, low-noise operation is enhanced by the ZERO RPM function which suspends fan rotation when no active cooling power is needed. The semi-modular design also ensures a tidy installation and appearance. Excellently Energy Efficient. The WPM Gold ZERO is certified 80 PLUS Gold, achieving at least 90 % efficiency at 50 % load as well as 87 % efficiency at 20 % and 100 % load. Modern LLC Technology. The WPM Gold ZERO is equipped with state-of-the-art LLC resonant converter technology. This provides the power supply with a consistent and low-interference voltage. Noise and heat levels are minimized as far as possible. ZERO RPM. The ZERO RPM function disables the fan rotation of the power supply to provide a silent operation at low to medium loads. When the system again requires an active cooling, the fan rotation is automatically re-activated. RYZEN Ready and Semi-Modular. To keep the inside of the PC case neat and tidy, the cables can be installed according to individual requirements. Only the ATX cable and the 4+4-pin CPU cable, which are both always needed, are firmly attached to the power supply. Even power-hungry systems like RYZEN can be powered without an adapter thanks to the second 4+4-pin CPU cable. This uses one of the two PCIe / CPU sockets, which can also be used to power graphics cards.
Logistics data
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Other features
Screws included	Y
Packaging data
Manual	Y

Cable storage bag included	Y
Performance
Certification	CE, FCC, CB

Mean time between failures (MTBF)	100000 h

Purpose	PC

Bearing technology	Sleeve

80 PLUS certification	80 PLUS Gold

Power supply unit (PSU) form factor	ATX
Ports & interfaces
Floppy disk drive connector	Y

Motherboard power connector	24-pin ATX

Floppy drive power connector	1

Number of SATA power connectors	9

CPU power connector (4+4 pin)	Y

PCI Express power connectors (6+2 pin)	4

Cabling type	Semi-Modular

Motherboard power cable length	55 cm

CPU power cable length	55 cm

Peripheral (Molex) power cable length	550 mm

PCI Express power cable length	55 cm
Power
Input current	10 A

Power protection features	Over power, Over voltage, Short circuit

Power Factor Correction (PFC) type	Active

Combined power (+3.3V)	110 W

Max output current (+3.3V)	20 A

Max output current (+5V)	20 A

AC input frequency	47 - 63 Hz

AC input voltage	100 - 240 V

Power consumption (max)	0.3 W

Total power	650 W
Weight & dimensions
Weight	1.61 kg

Height	86 mm

Width	160 mm

Depth	150 mm
