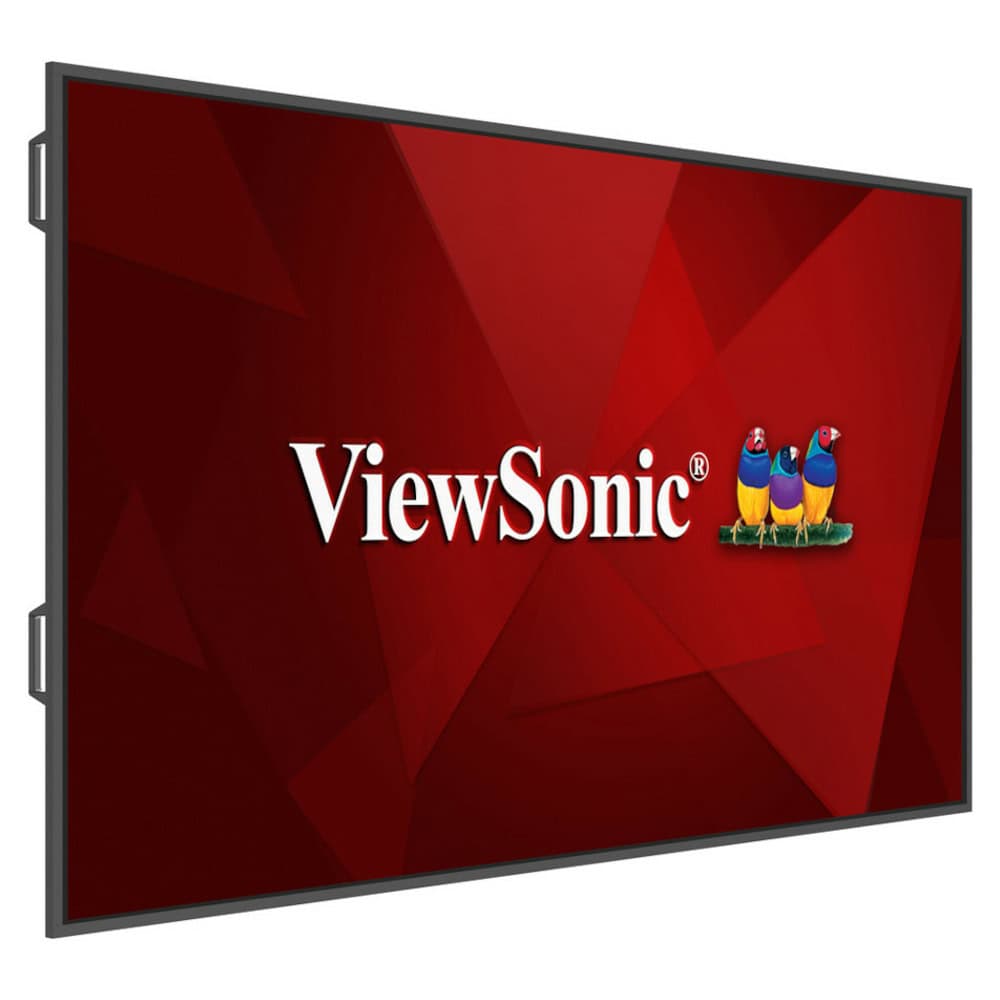

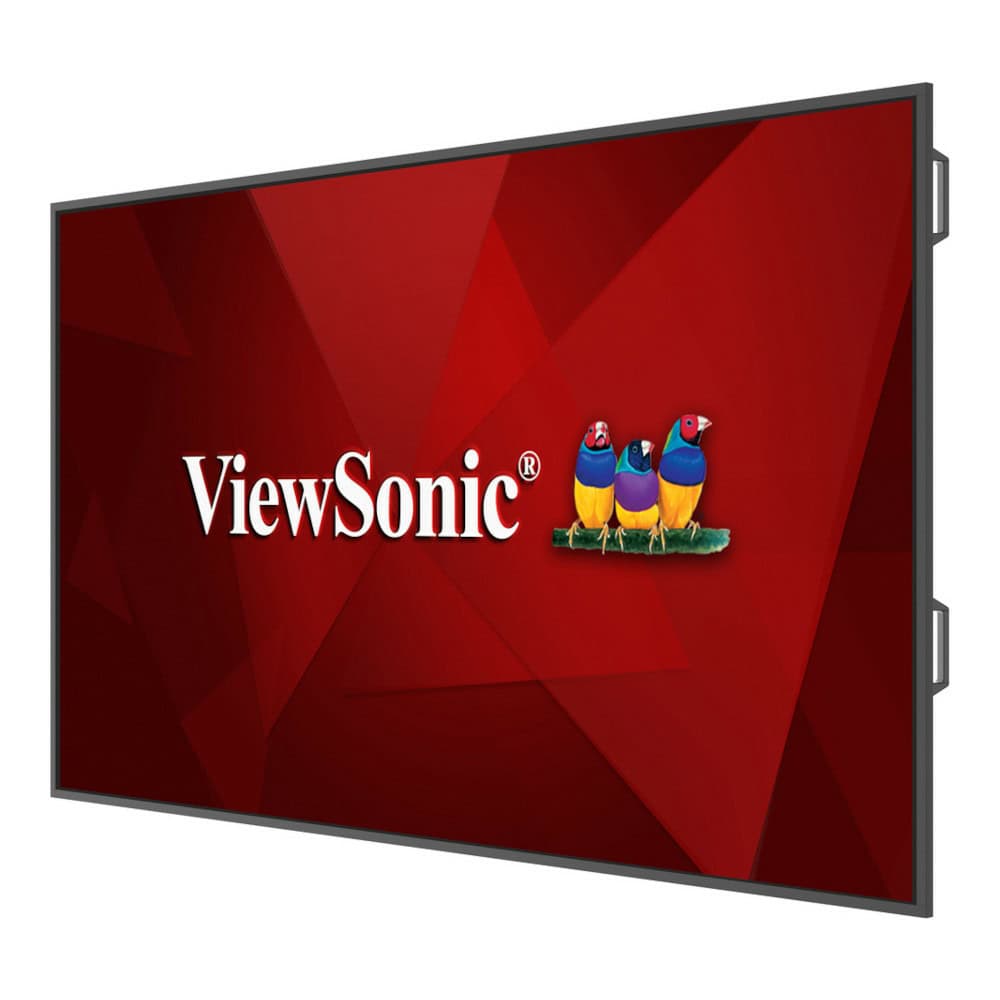

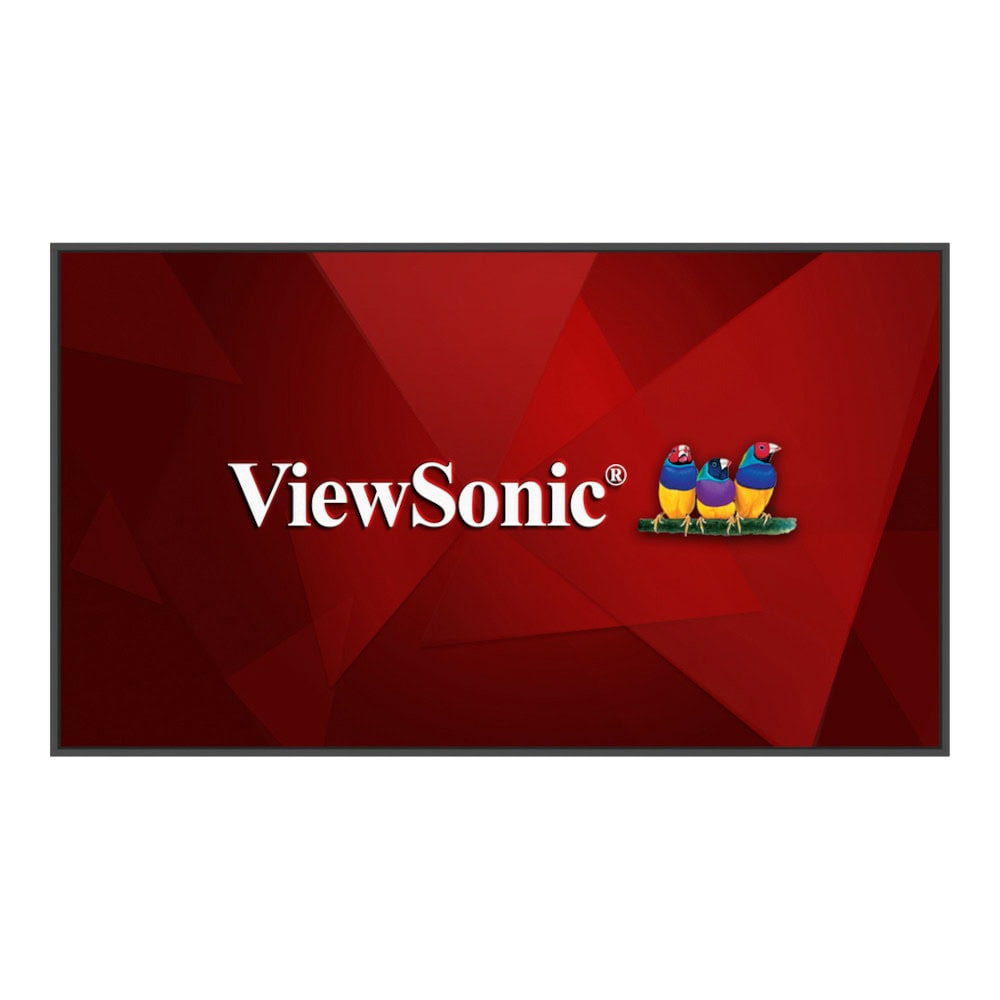

Публичен дисплей ViewSonic CDE86G3-1C, 86" (218.44 cm) 4K/UHD TFT LCD дисплей, HDMI, VGA, USB, LAN, RS232

CDE86G3-1C

The ViewSonic CDEG3 Series is an OS-free commercial display designed for secure, round-the-clock operation in mission-critical environments across corporate, government, healthcare, and higher education sectors. By eliminating pre-installed apps and background services, it reduces software attack surface while supporting fast boot times and simplified IT management. With native 4K UHD resolution in both landscape and portrait orientation, 500-nit brightness, and built-in USB media playback, this secure signage solution ensures clear visibility for announcements and digital displays in high-traffic environments. It also features extended connectivity options including USB-C, HDMI 2.1, LAN, and RS-232, making it well-suited for BYOD meetings and video conferencing. To further streamline remote device management, the commercial-grade display integrates with leading ProAV control systems. Certified EPEAT® Gold, CDEG3 Series digital displays offer a low-maintenance, sustainable solution that balances security, performance, and operational efficiency for any mission-critical space.

86“ 4K OS-Free Commercial Display

• OS-Free Architecture minimizes vulnerabilities in secure and sensitive environments.
• USB-C and HDMI 2.1 connectivity supports easy BYOD use without additional adapters.
• Fast cold boot and 24/7 operation ensures instant power-on and nonstop performance.
• Built-in USB media playback supports offline content delivery and digital signage.
• ProAV system integration enables centralized control.
• EPEAT® Gold certification supports sustainable, large-scale commercial deployments.
• 500-nit brightness and 4K UHD resolution deliver vivid visuals in any orientation.

Purpose-Built for Security-Sensitive Environments

The CDEG3 Series enhances security by adopting an OS-free architecture with no pre-installed apps, background services, or third-party systems. This design reduces software attack surface and simplifies long-term device management for corporate offices, government institutions, hospitals, and other sensitive environments.

Fast Cold Boot for Seamless Communication

With cold boot in under 8 seconds*, the CDEG3 Series eliminates delays at the start of meetings, presentations, and scheduled signage. This commercial-grade display ensures content appears exactly when it’s needed, operating 24/7 in corporate, retail, and education environments where every second counts.*Cold boot under 8 seconds supported via HDMI 2 and 3 only.

Universal Connectivity for BYOD Setups

This presentation display supports BYOD in classrooms and meeting rooms with USB-C (DP1.2, HDCP) and HDMI 2.1 ports, allowing both guest and internal users to connect personal devices and share content securely without accessing the internal network.

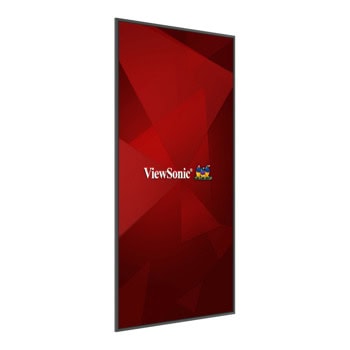

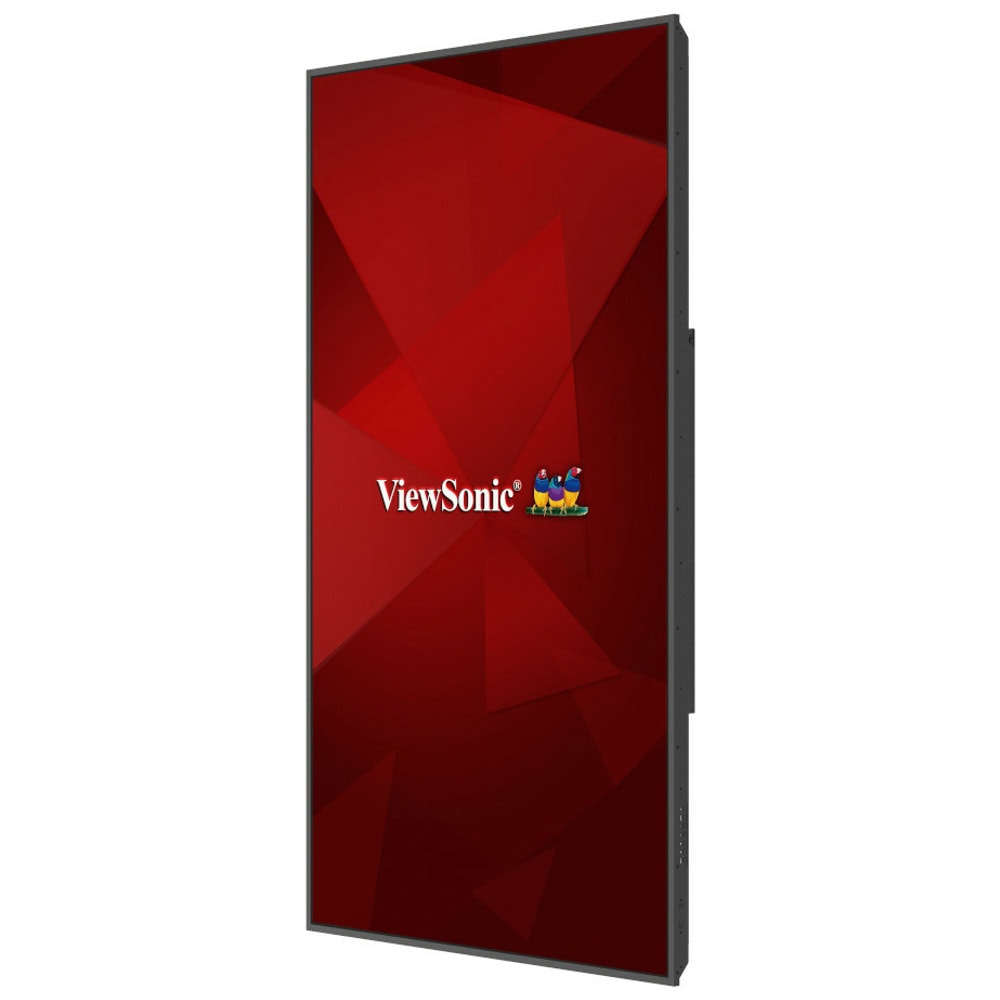

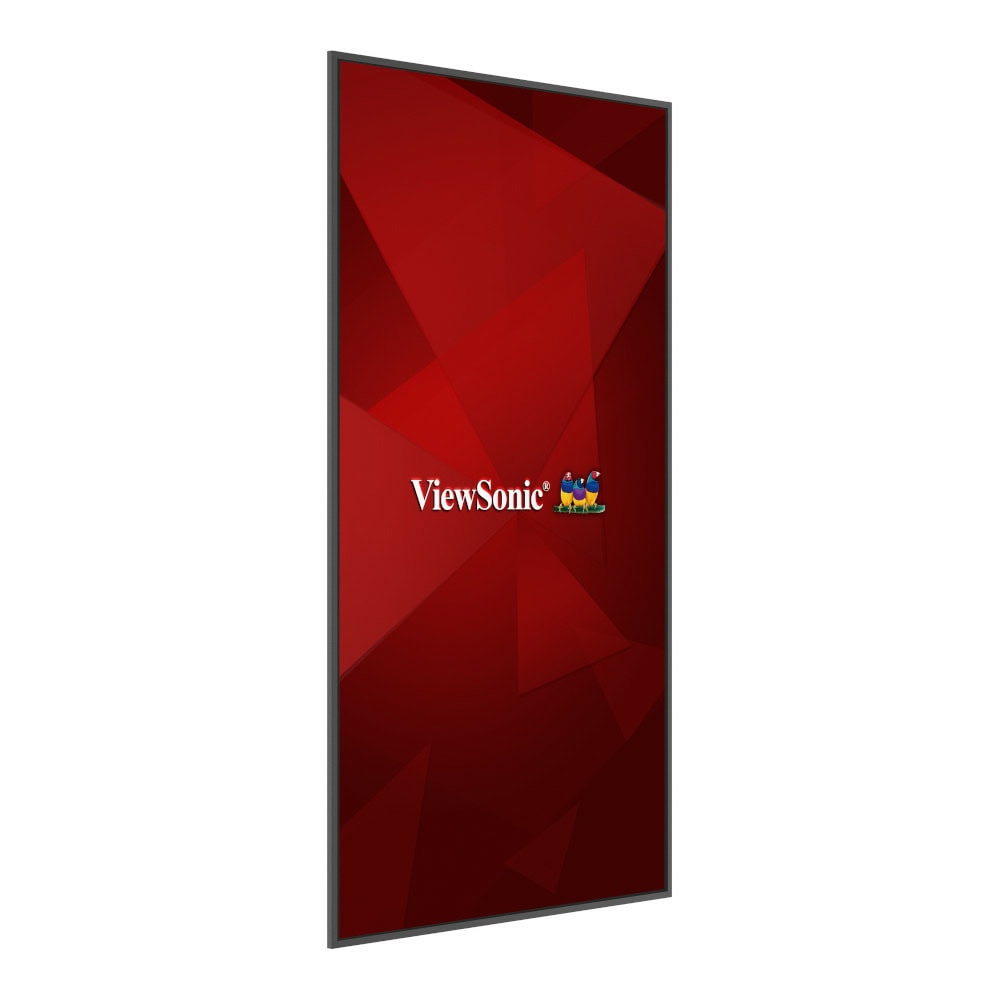

Landscape and Portrait Orientation

Supporting both landscape and portrait modes, this commercial-grade display adapts to a wide range of installation needs, from digital menu boards to meeting room signage, and school displays.

SPECIFICATIONS

• Display

  Panel Size: 86"
  Type/ Tech: TFT LCD module with DLED backlight
  Display Area (mm): 1895.04(H) x 1065.96(V) (85.6" diagonal)
  Native Resolution: 3840 x 2160
  Aspect Ratio: 16:9
  Colors: 8bit+FRC
  Brightness: 500 nits (typ.)
  Contrast Ratio: 1200:1
  Response Time: 8ms
  Viewing Angles: H = 178, V = 178 typ.
  Backlight Life: 50,000 Hours
  Surface Treatment: Hardness: 3H, Anti-glare coating, Haze 25%
  Bezel: 15.9/15.9/15.9/15.9 mm (L/R/T/B)
  Orientation: Landscape & Portrait

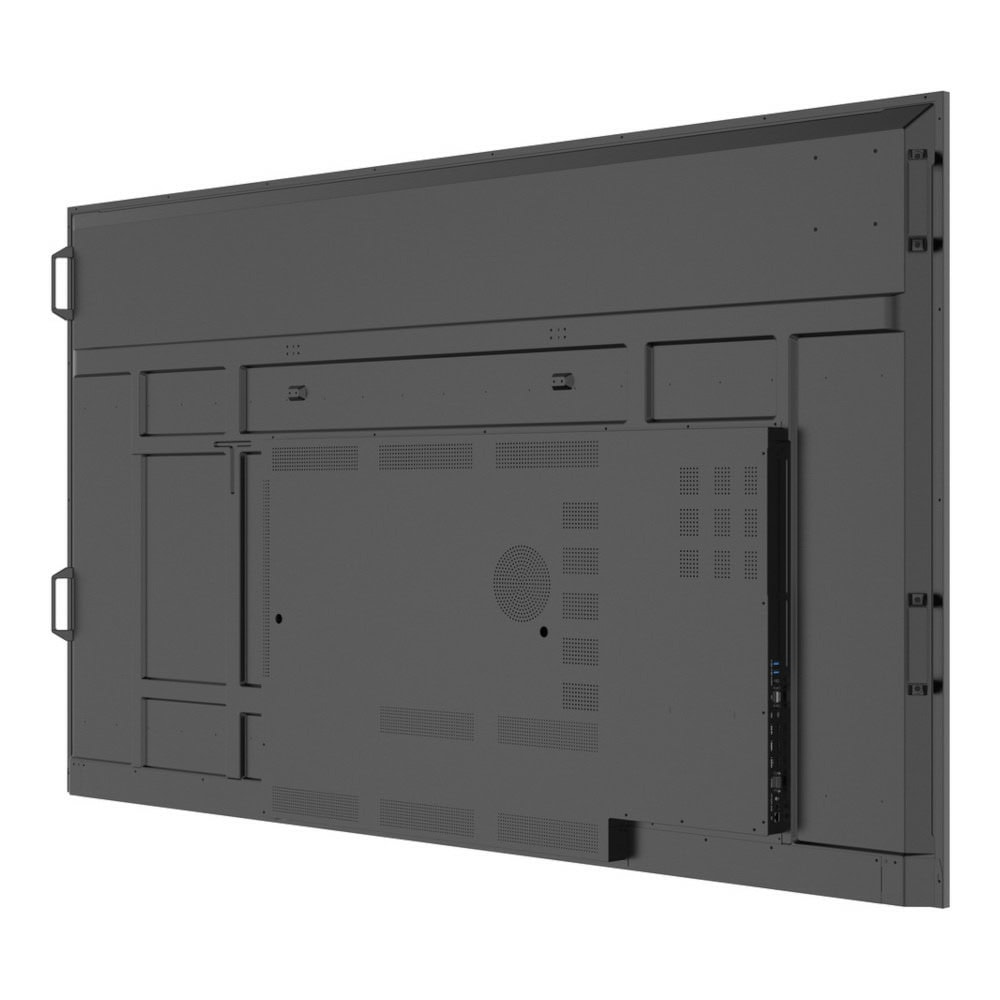

• INPUT

  HDMI: *3 (all support HDMI-CEC & HDCP1.4/2.2, HDMI 2.1 4K @ 60Hz, only HDMI 3 port support ARC)
  (Support YUV444/420)
  RGB / VGA: VGA IN *1 (1080p@60Hz)
  Audio: PC AUDIO IN *1 (3.5mm)
  RS-232: x 1


• OUTPUT

  Audio: 3.5mm x1
  SPDIF: x 1


• LAN

  RJ45: x 1 (Support WOL)


• USB

  Type A: *2 (for system update & media playback)
  Type C: *1 (with DP1.2/HDCP1.4/2.2 + Data2.0)


• SPEAKERS

  10W x 2


• POWER

  Voltage: 100-240VAC +/- 10%
  Consumption: 138.3W with Energy Star


• ERGONOMICS

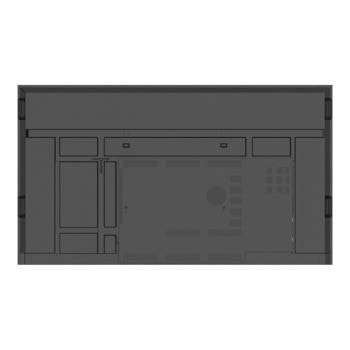

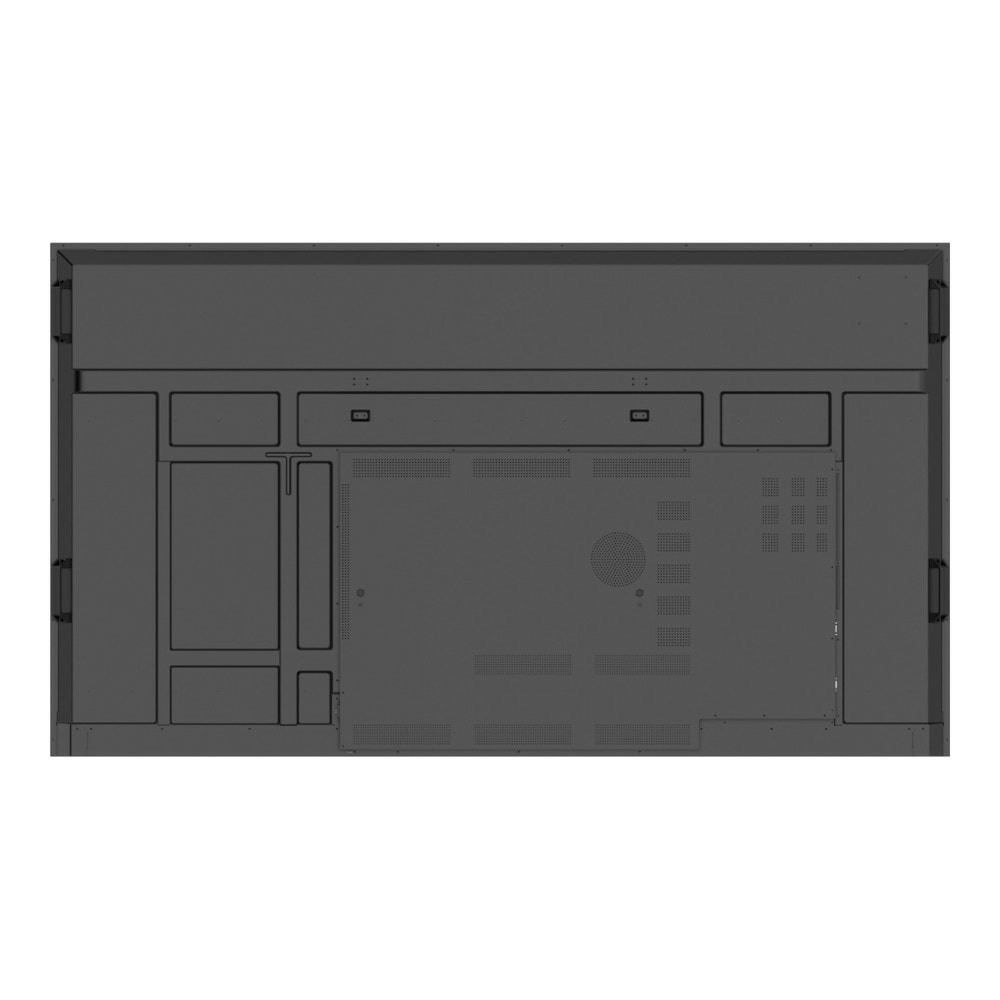

  Wall Mount (VESA® ): 600x400 mm


• OPERATING CONDITIONS

  Temperature (º C): 0 to 40℃ (with Automatic Overheat Shutdown)
  Humidity: 20% ~ 80% RH non-condensing


• Operating Hours

  24/7

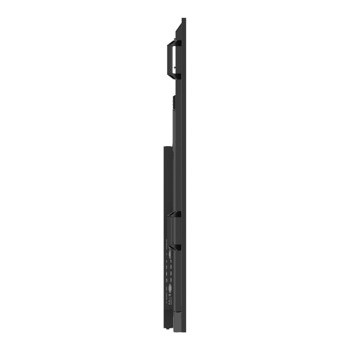

• DIMENSIONS (W x H x D)

  Physical (inch / mm): 1933.8 (W) x 1103.8 (H) x 79.7 mm(D) / 76.13 "(W) x 43.46 " (H) x 3.14 "(D)


• WEIGHT

  Net (lb / kg): 86.97 lb / 39.45 kg
  Gross (lb / kg): 118.61 ib / 53.8 kg
