Публичен дисплей ViewSonic CDE8614-2C, 86" (218.44 cm) 4K/UHD дисплей, HDMI, LAN, USB, RS-232

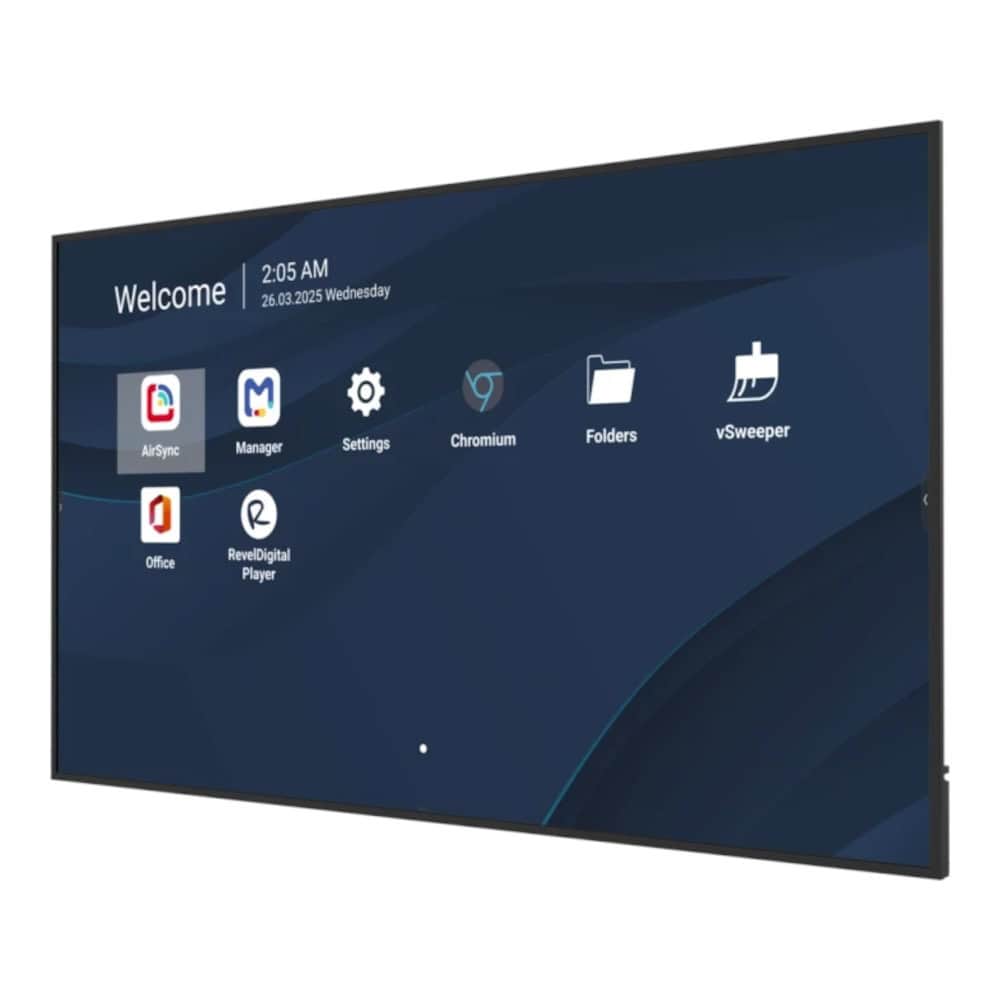

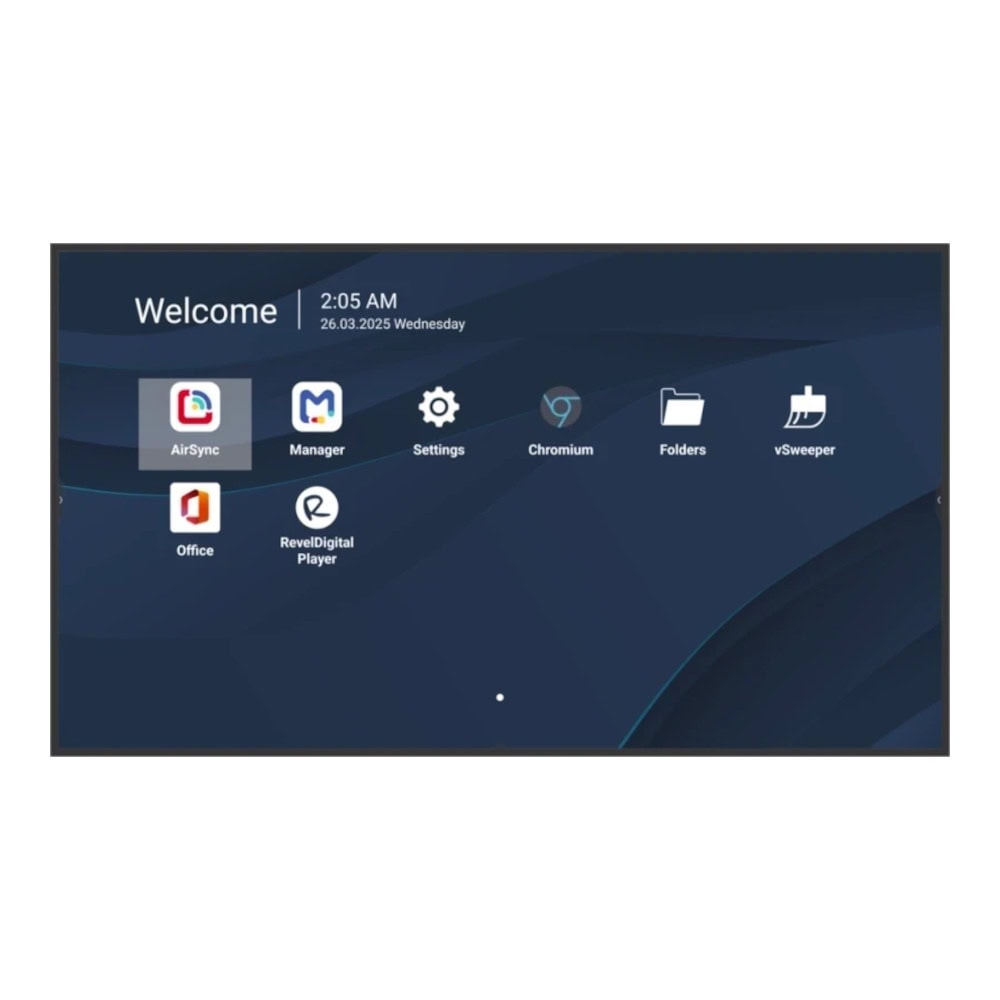

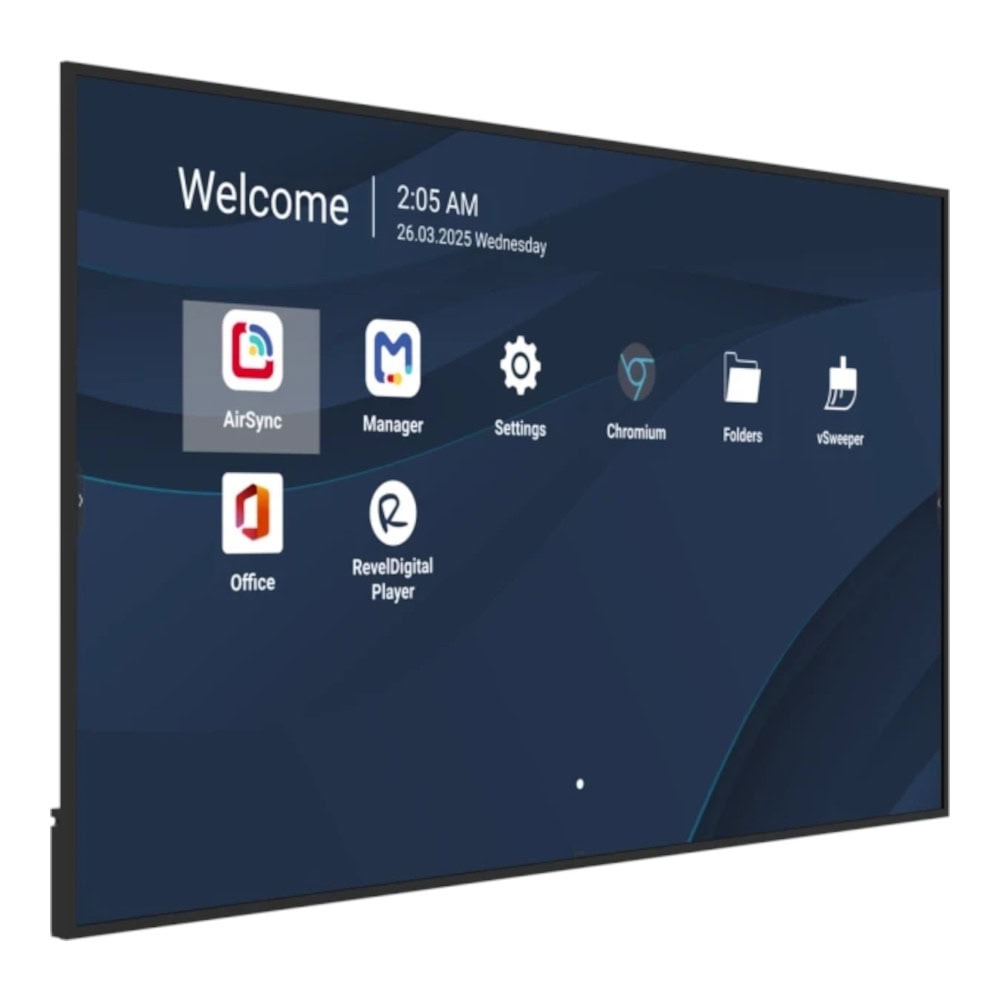

ViewSonic CDE8614-2C

86" 4K Professional Commercial Display with ProAV Integration

• Fast Warm Boot eliminates long startup delays, launching signage and content in under 7 seconds.
• Native 4K UHD in Any Orientation delivers sharp, high-resolution visuals in landscape or portrait.
• USB media playback & scheduling with automatic failover ensures uninterrupted signage
• Commercial‑Grade Brightness & 24/7 Reliability keep content clear and visible around the clock.
• Centralized control with Pro-AV integration and remote management via Web UI and ViewSonic Manager.

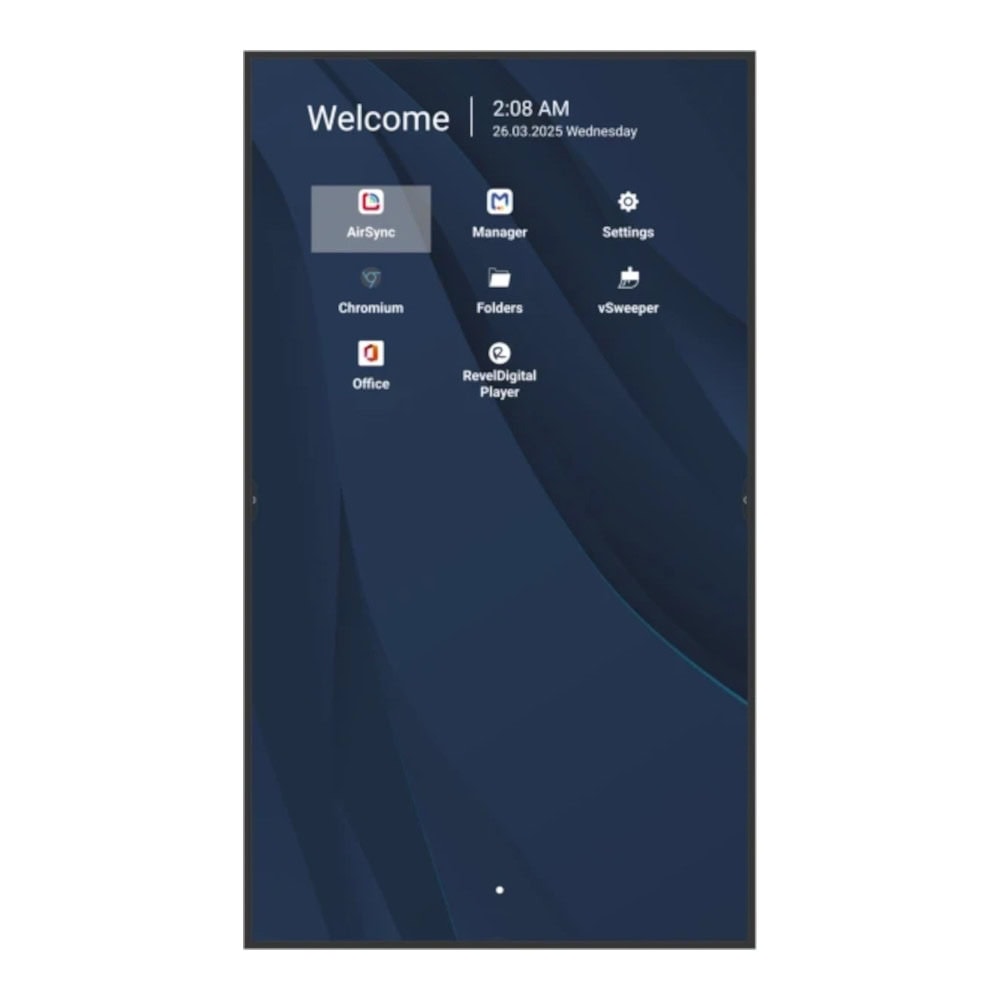

• Secure, Future-Ready Platform with Android 14, upgradeable OS, Quad-Core SoC, and 8 GB RAM.

The ViewSonic CDE31 Series is a turnkey, commercial-grade digital display that delivers impactful communication across corporate, retail, education, and healthcare environments. With native 4K Ultra HD resolution and reliable 24/7 operation, it delivers sharp, consistent visuals in both landscape and portrait orientations— ideal for digital signage and meeting spaces. Powered by Android 14 OS and a next-generation Quad-Core SoC with 8GB RAM, the CDE31 Series ensures smooth playback and responsive performance for continuous content delivery. The platform is upgradeable to Android 16, supporting ongoing security updates and long-term compatibility. For streamlined deployment and management, it offers seamless ProAV integration with leading control systems, dual 16W built-in speakers, 3.5 mm audio in/out. It also supports static IP configuration, a simplified web-based UI, and centralized remote control via ViewSonic Manager.

Built for Performance. Ready for Any Space.

ViewSonic CDE31 Series Commercial Display

Future Ready, High-Performance Platform

The CDE31 Series combines a powerful Quad-Core SoC with Android 14, 8GB RAM, and 32GB of storage to deliver smooth playback and responsive multitasking. Upgradable to Android 16, this robust platform ensures long-term compatibility, security, and performance, making it a future-ready display solution for evolving signage and collaboration needs.

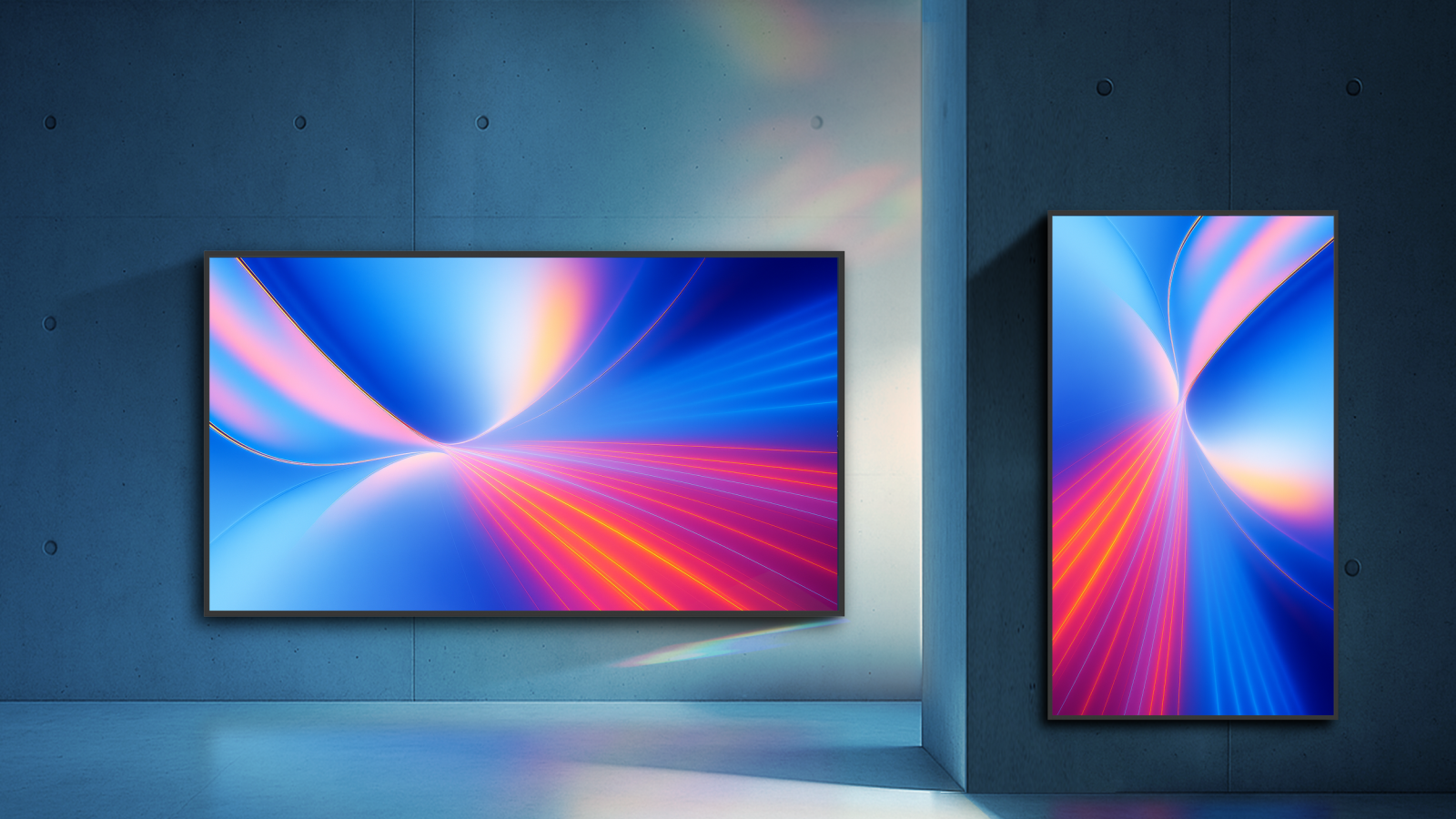

Native 4K Resolution for Uncompromised Detail

The CDE31 Series delivers true native 4K resolution in both landscape and portrait modes, offering noticeably sharper and more detailed visuals than standard upscaled 4K. This ensures exceptional clarity and precise detail reproduction, making it ideal for text-heavy presentations and visually rich digital signage.

SPECIFICATIONS

• Display

  Panel Size: 86"
  Type/ Tech: TFT LCD module with DLED backlight
  Display Area (mm): 1895.04(H) x 1065.96(V) 85.6" diagonal
  Native Resolution: 3840x2160
  Aspect Ratio: 16:9
  Colors: 8bit+FRC
  Brightness: 500 nits
  Contrast Ratio: 1200:1 (typ.) / 5000:1 (DCR enabled)
  Response Time: 8ms
  Viewing Angles: H = 178, V = 178 typ.
  Backlight Life: 50,000 Hours
  Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
  Bezel: 15.9mm/15.9mm/15.9mm/15.9mm (L/R/T/B)
  Orientation: Landscape & Portrait


• Platform

  Processor: Quad-core ARM Cortex-A73
  RAM: 8GB DDR4
  Storage: 32GB


• INPUT

  HDMI: REAR x3 (HDMI 2.1 4K@60Hz, HDMI 1 support ARC)
  Audio: 3.5mm X 1
  RS-232: x 1
  OPS Slot: OPS slot x1
  WiFi Slot: WIFI slot x1


• OUTPUT

  HDMI: x 1
  Audio: 3.5mm x1 (Line out)
  SPDIF: x 1


• LAN

  RJ45: x2 (*1 LAN-in & *1 LAN-out) 10/100M for USB TypeC, 1000M for OPS


• USB

  Type A: x2 (USB2.0 x1, USB3.2 Gen1 x1)
  Type C: x1 (PD65W/15W with OPS + DP1.2 + Data USB2.0 + 10M/100M sharing)


• SPEAKERS

  16W x 2


• COMPATIBILITY

  HDMI: 3840X2160 @60Hz


• Embedded OS

  Android 14 AOSP


• Bundled Software

  Wireless Presentation: AirSync
  Device Management: Manager


• POWER

  Voltage: 100-240 VAC +/- 10%
  Consumption: 104.21W with Energy Star


• ERGONOMICS

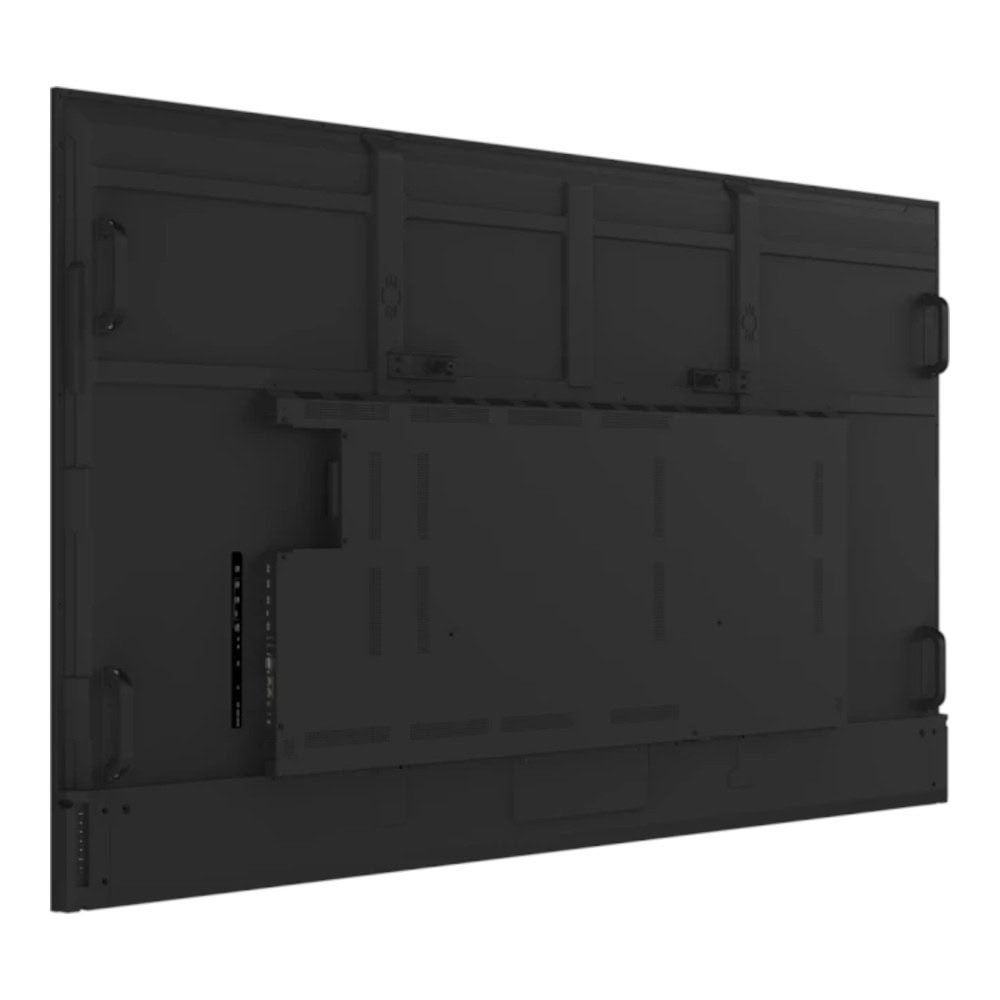

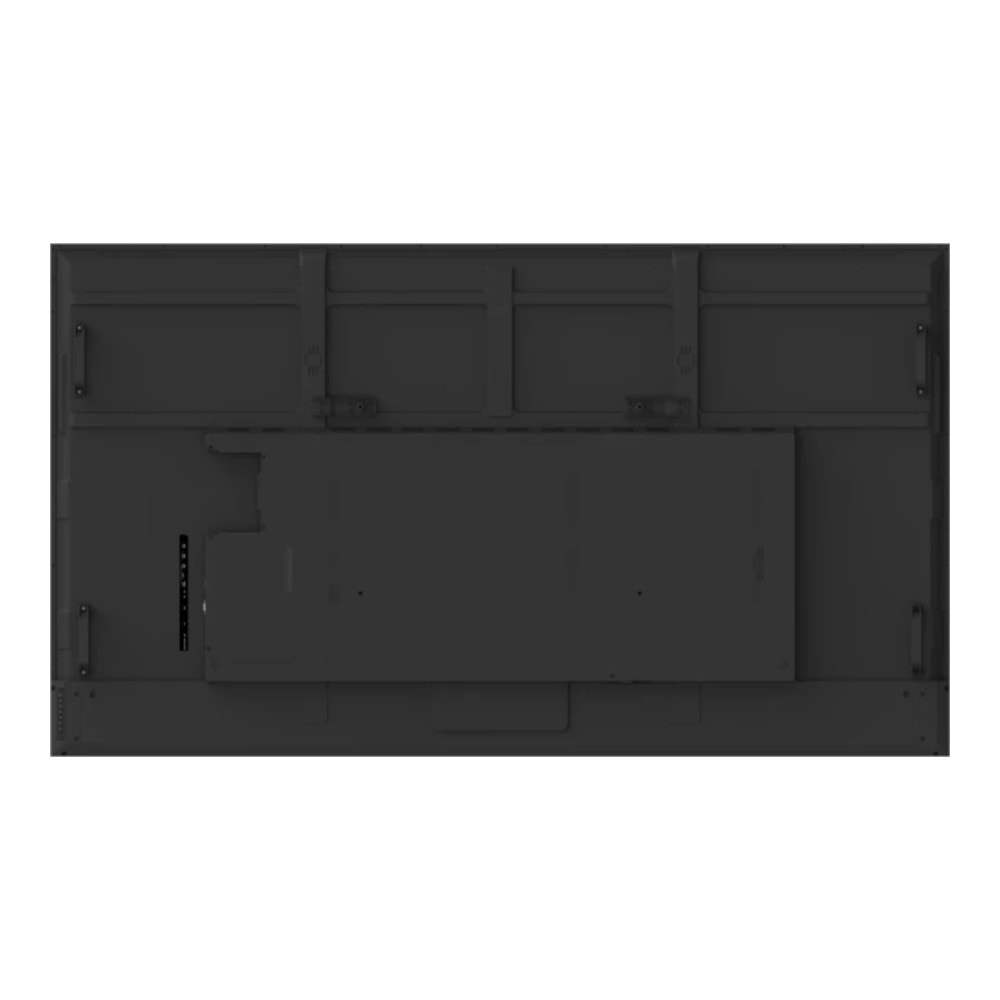

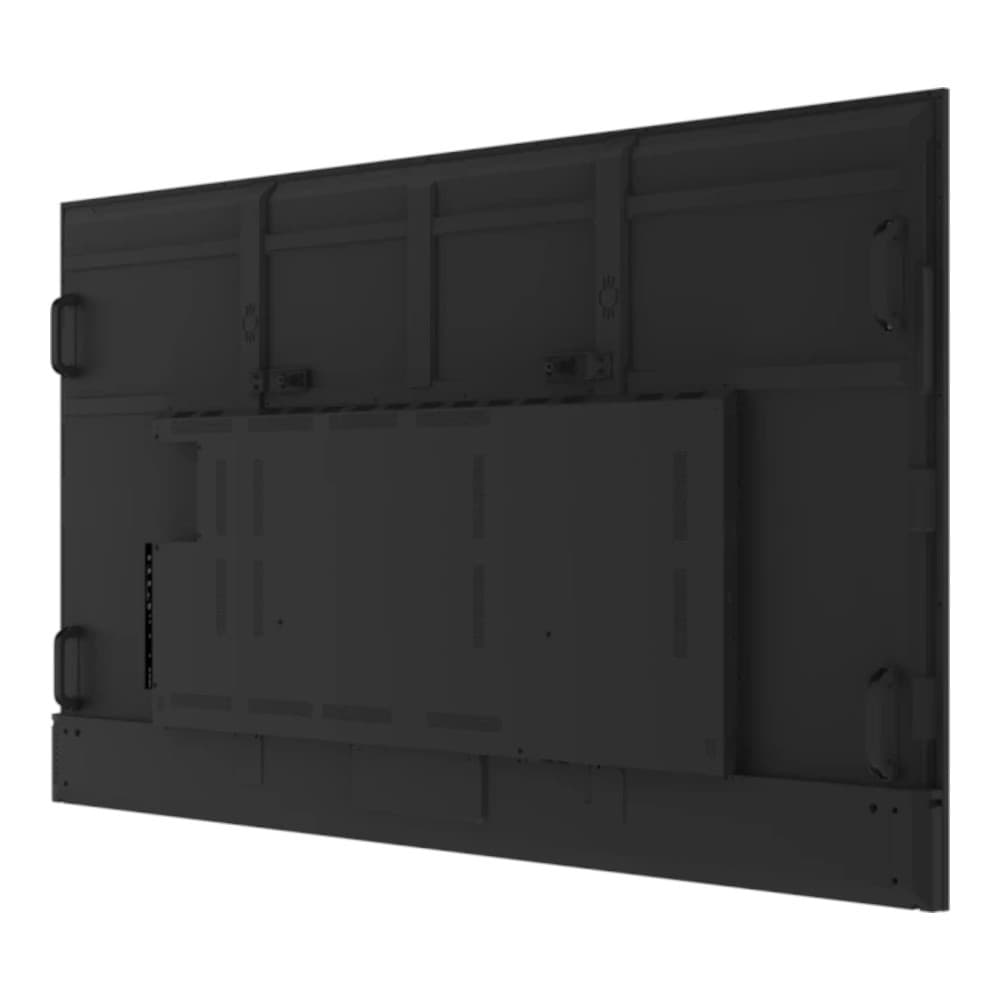

  Wall Mount (VESA® ): 600x400 mm


• OPERATING CONDITIONS

  Temperature (º C): 0 to 40℃
  Humidity: 20%-80% RH


• Operating Hours

  24/7


• DIMENSIONS (W x H x D)

  Physical (inch / mm): 76.02 x 43.37 x 2.68 in/ 1930.8 x 1101.7 x 68 mm
  Packaging (inch / mm): 83.07 x 49.09 x 8.86 in/ 2110 x 1247 x 225 mm


• WEIGHT

  Net (lb / kg): 92.59lb / 42kg
  Gross (lb / kg): 125.55lb / 56.95kg

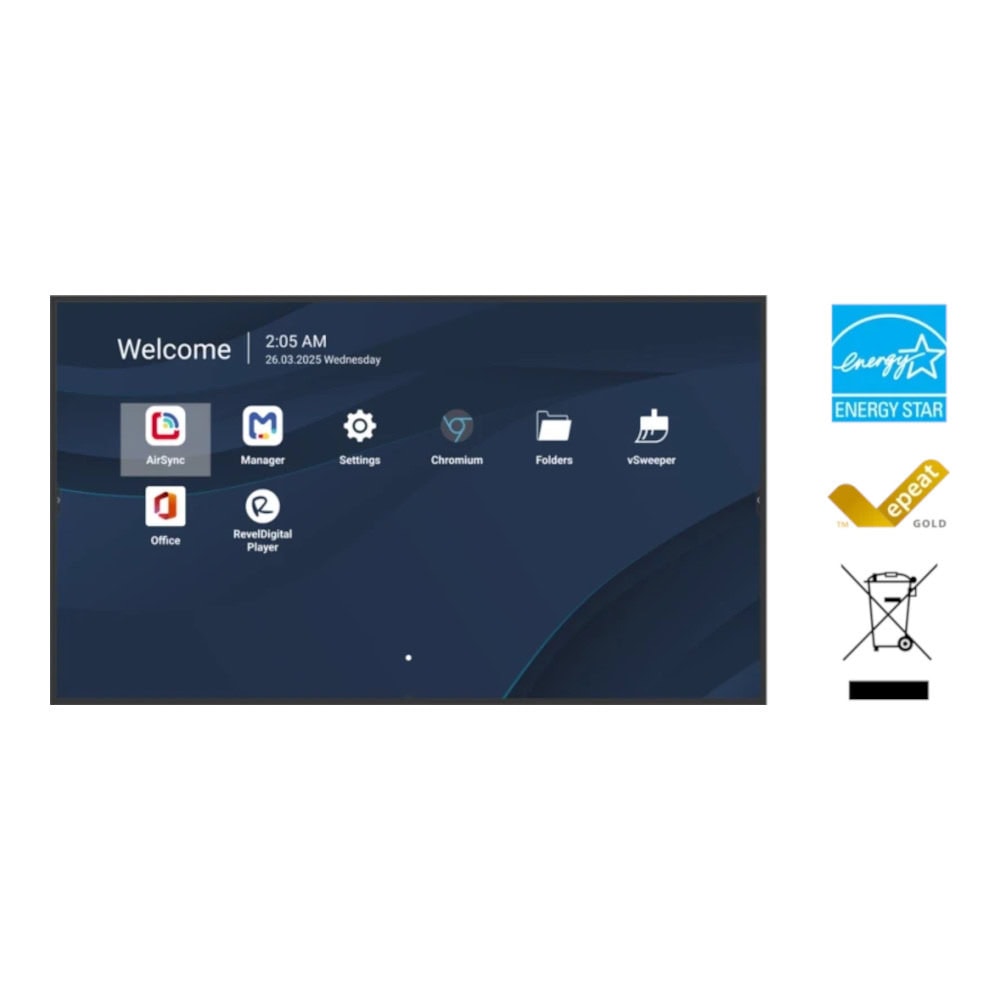

• REGULATIONS

  cTUVus, FCC/ICES003, Energy star 8, EPEAT Gold, EEI,, EMC/CE Report, CB, EAC, UkrSEPRO, RCM, Green BOM, RoHS DoC, ErP-Eco, REACH DoC, SCIP, WEEE report, Annex I, Annex II, TPCH DoC, Packing waste, CA65 DoC


• Energy Star

  ES8.0


• EEI rating

  F
