Публичен дисплей ViewSonic CDE5531-1C, 55" (139.7 cm) 4K/UHD дисплей, HDMI, USB, LAN, RS-232

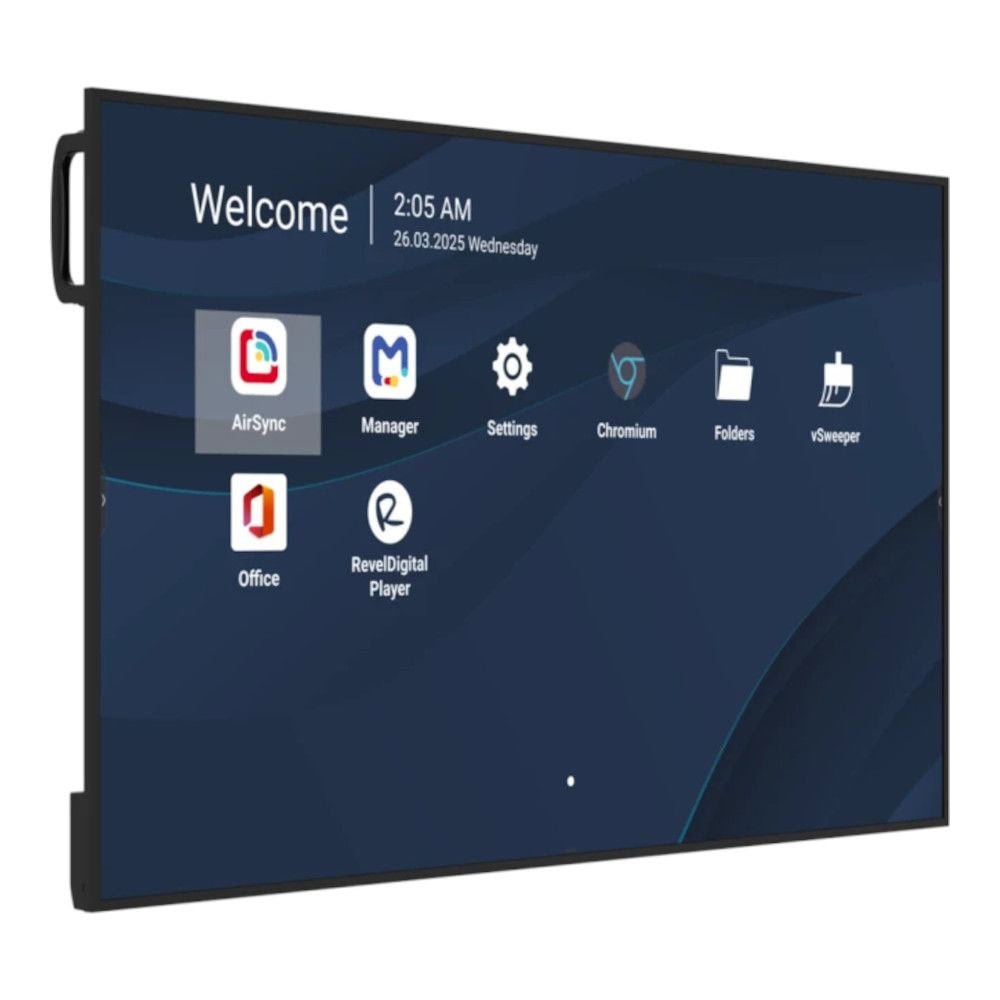

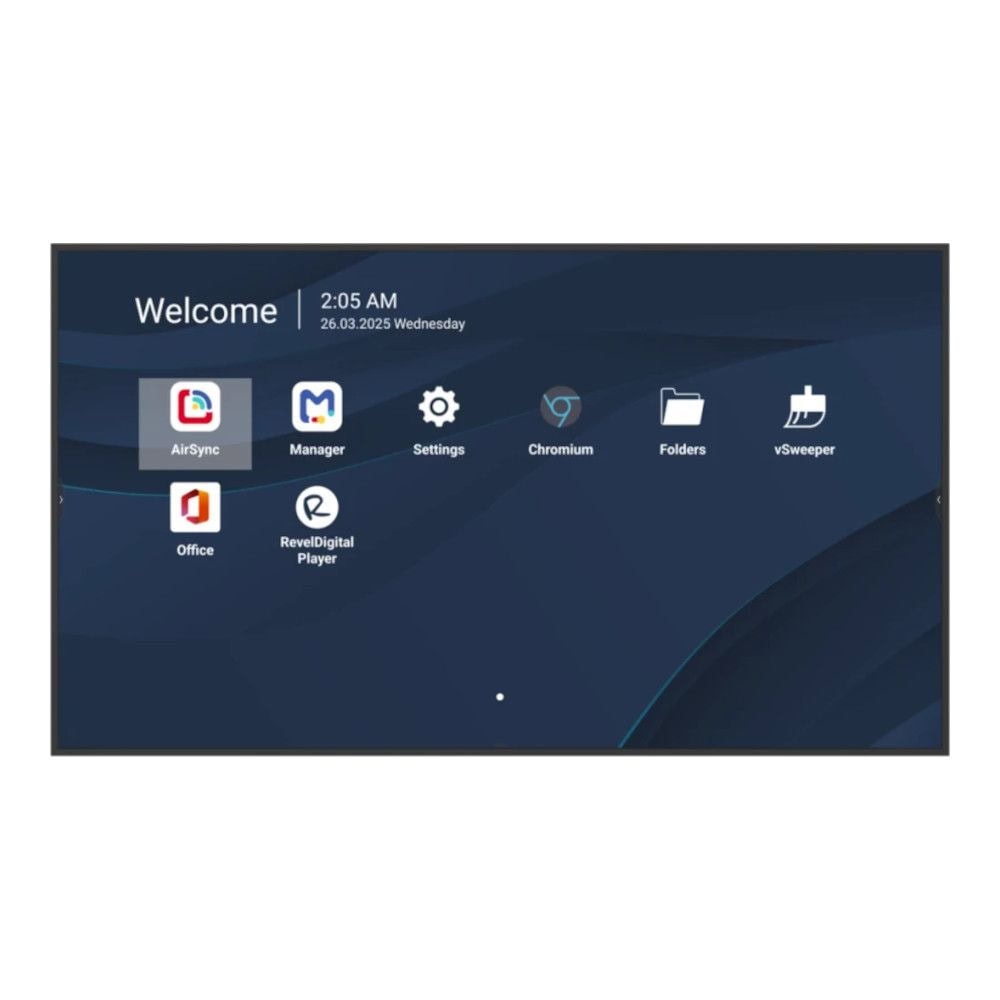

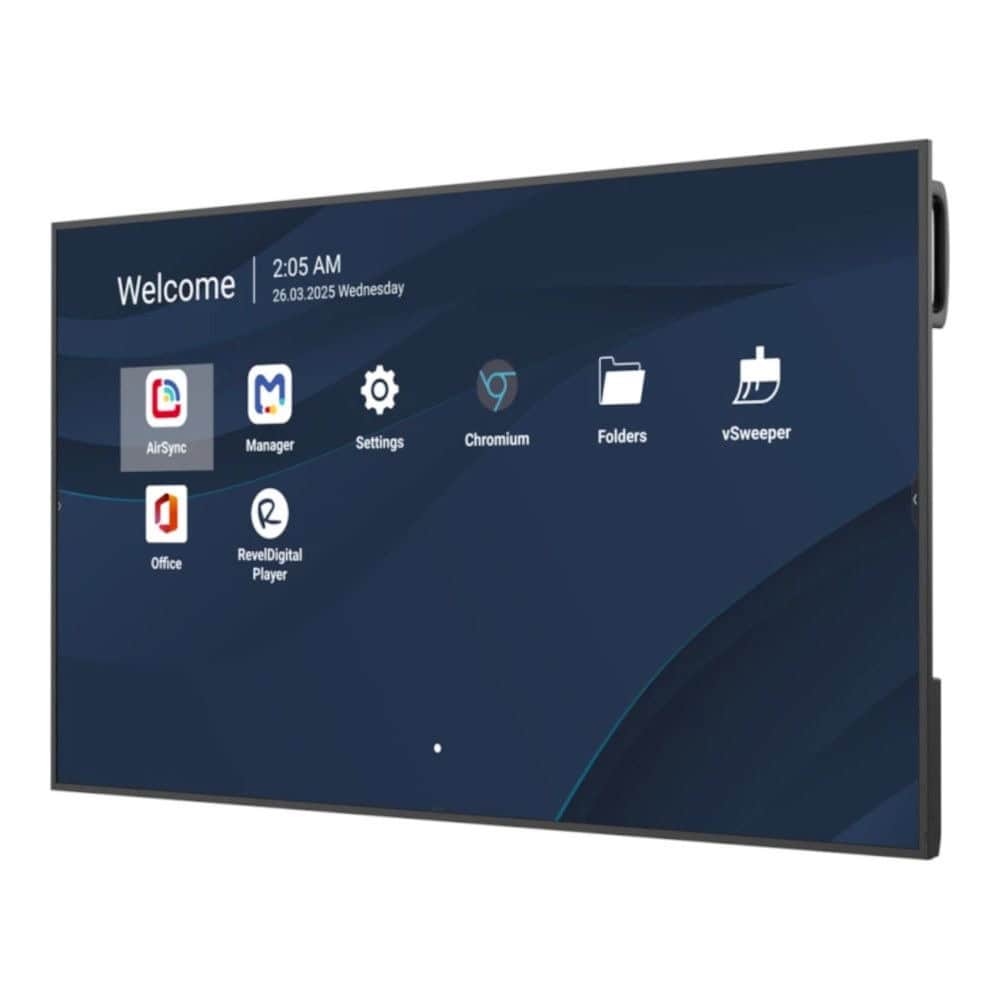

ViewSonic CDE5531-1C

55" 4K Professional Commercial Display with ProAV Integration

• Fast Warm Boot eliminates long startup delays, launching signage and content in under 7 seconds.
• Native 4K UHD in Any Orientation delivers sharp, high-resolution visuals in landscape or portrait.
• USB media playback & scheduling with automatic failover ensures uninterrupted signage
• Commercial‑Grade Brightness & 24/7 Reliability keep content clear and visible around the clock.
• Centralized control with Pro-AV integration and remote management via Web UI and ViewSonic Manager.
• Secure, Future-Ready Platform with Android 14, upgradeable OS, Quad-Core SoC, and 8 GB RAM.

The ViewSonic CDE31 Series is a turnkey, commercial-grade digital display that delivers impactful communication across corporate, retail, education, and healthcare environments. With native 4K Ultra HD resolution and reliable 24/7 operation, it delivers sharp, consistent visuals in both landscape and portrait orientations— ideal for digital signage and meeting spaces. Powered by Android 14 OS and a next-generation Quad-Core SoC with 8GB RAM, the CDE31 Series ensures smooth playback and responsive performance for continuous content delivery. The platform is upgradeable to Android 16, supporting ongoing security updates and long-term compatibility. For streamlined deployment and management, it offers seamless ProAV integration with leading control systems, dual 16W built-in speakers, 3.5 mm audio in/out. It also supports static IP configuration, a simplified web-based UI, and centralized remote control via ViewSonic Manager.

Built for Performance. Ready for Any Space.

ViewSonic CDE31 Series Commercial Display

Future Ready, High-Performance Platform

The CDE31 Series combines a powerful Quad-Core SoC with Android 14, 8GB RAM, and 32GB of storage to deliver smooth playback and responsive multitasking. Upgradable to Android 16, this robust platform ensures long-term compatibility, security, and performance, making it a future-ready display solution for evolving signage and collaboration needs.

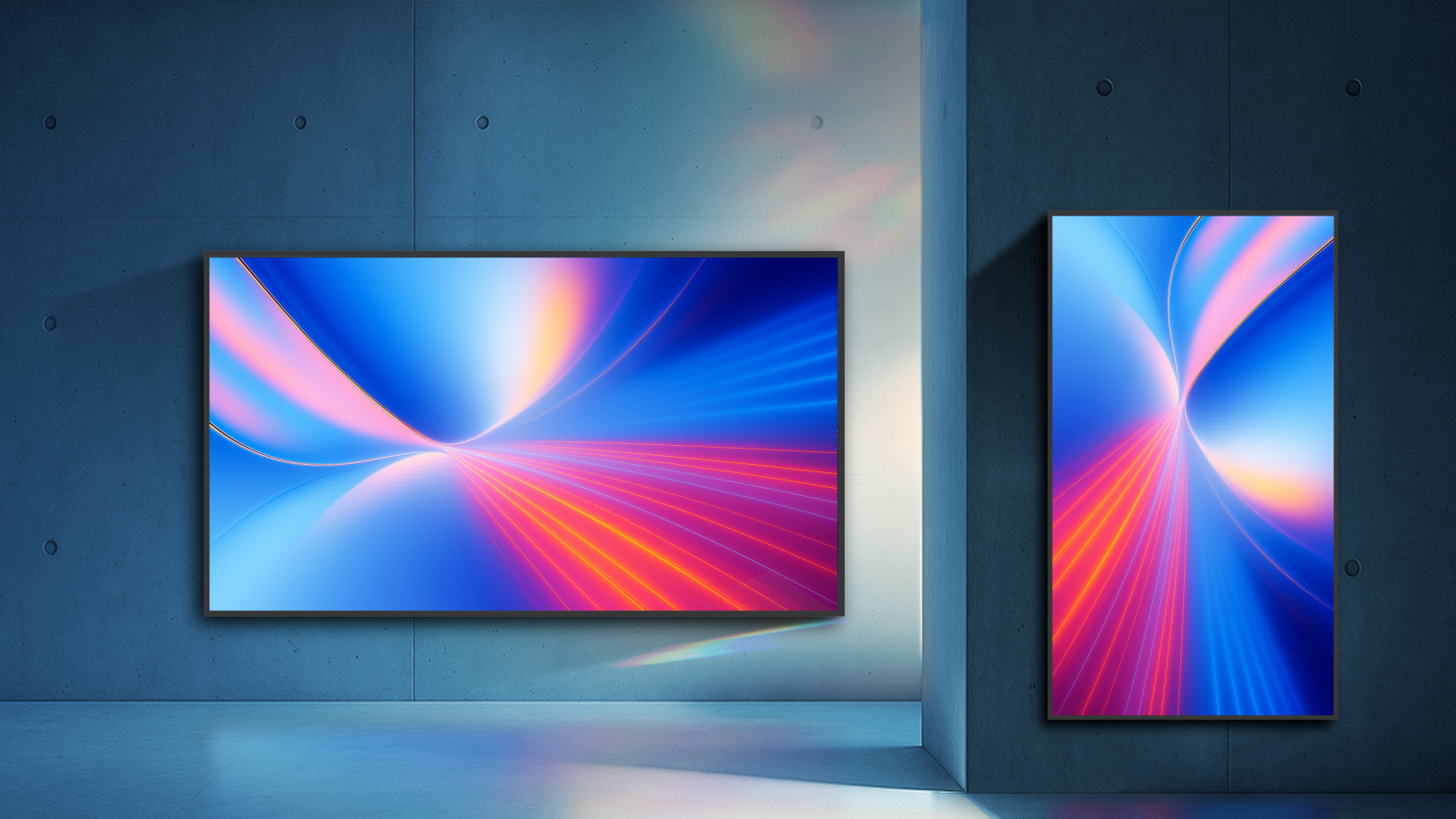

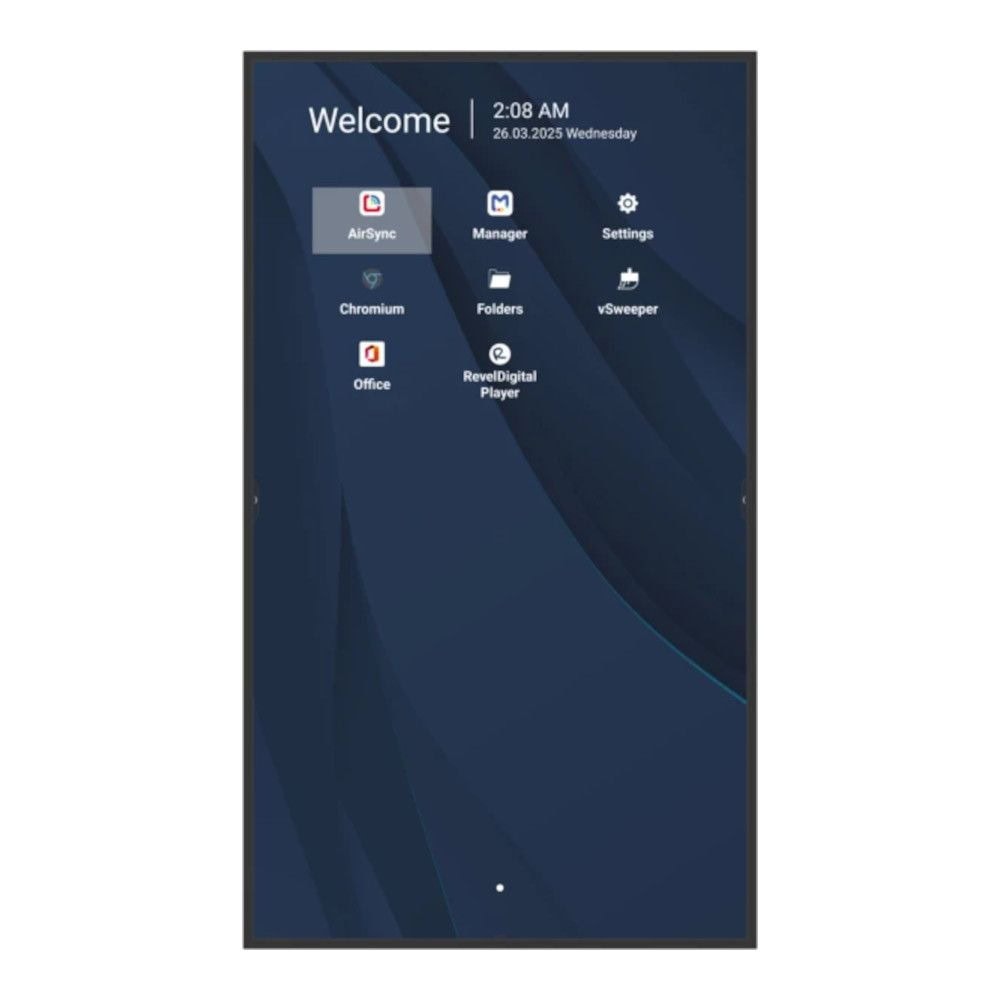

Flexible Orientation for Any Setup

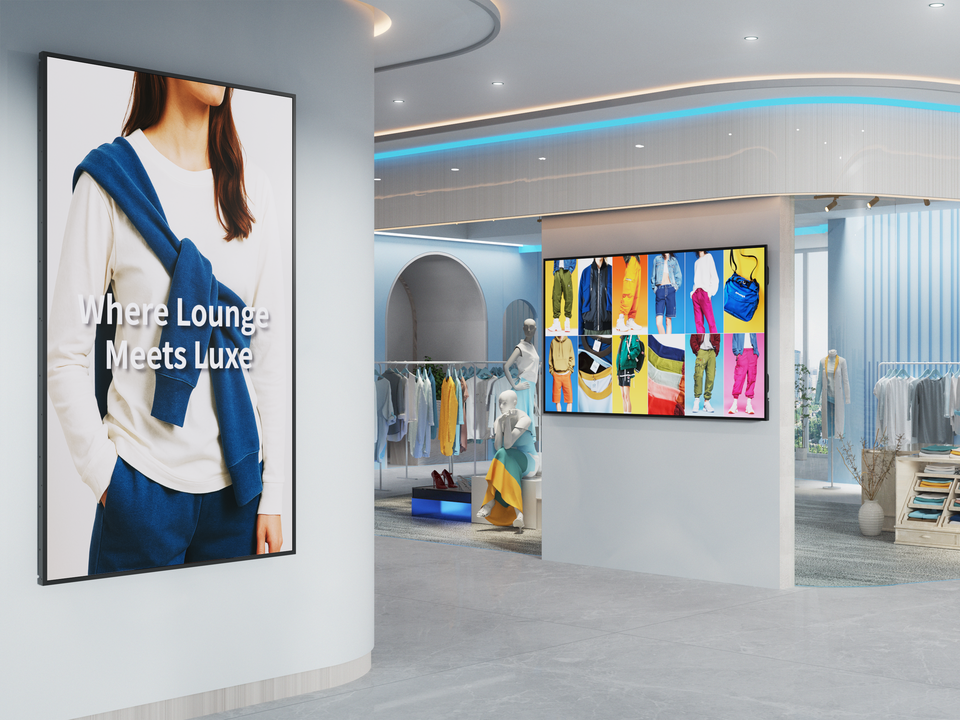

Supporting both landscape and portrait modes, this commercial-grade display adapts to a wide range of installation needs, from retail and digital menu boards to meeting room displays and campus communication.

Seamless Integration with Pro AV Control Systems

ViewSonic commercial displays are Crestron Connected® certified and compatible with the Crestron XiO Cloud® service, Extron IP Link® certified, offer a Q-SYS Verified Plugin for integration into the Q-SYS Ecosystem, and support AMX. These integrations facilitate always-on operation and full remote control of lighting, audio, displays, and other AV components, whether on-site or off-site.

SPECIFICATIONS

• Display

  Panel Size: 55"
  Type/ Tech: TFT LCD module with DLED backlight
  Display Area (mm): 1209.6H) x 680.4(V) 54.6" diagonal
  Native Resolution: 3840x2160
  Aspect Ratio: 16:9
  Colors: 8bit+2bitFRC
  Brightness: 500 nits
  Contrast Ratio: 1200:1 (typ.) / 5000:1 (DCR enabled)
  Response Time: 6.5ms
  Viewing Angles: H = 178, V = 178 typ.
  Backlight Life: 50,000 Hours
  Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
  Bezel: 9.9/9.9/9.9/9.9 mm (L/R/T/B)
  Orientation: Landscape & Portrait


• Platform

  Processor: Quad-core ARM Cortex-A73
  RAM: 8GB DDR4
  Storage: 32GB


• INPUT

  HDMI: REAR x3 (HDMI 2.1 4K@60Hz, HDMI 1 support ARC)
  Audio: 3.5mm X 1
  RS-232: x 1
  WiFi Slot: WIFI slot x1


• OUTPUT

  HDMI: x 1
  Audio: 3.5mm x1 (Line out)
  SPDIF: x 1


• LAN

  RJ45: x 2 (*1 LAN-in & *1 LAN-out) 10/100M for USB TypeC, 1000M for OPS


• USB

  Type A: x 2 (USB2.0 x1, USB3.2 Gen1 x1)
  Type C: x 1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)


• SPEAKERS

  16W x 2


• COMPATIBILITY

  HDMI: 3840X2160 @60Hz


• Embedded OS

  Android 14 AOSP


• Bundled Software

  Wireless Presentation: AirSync
  Device Management: Manager


• POWER

  Voltage: 100-240 VAC +/- 10%
  Consumption: 57.75W with Energy Star


• ERGONOMICS

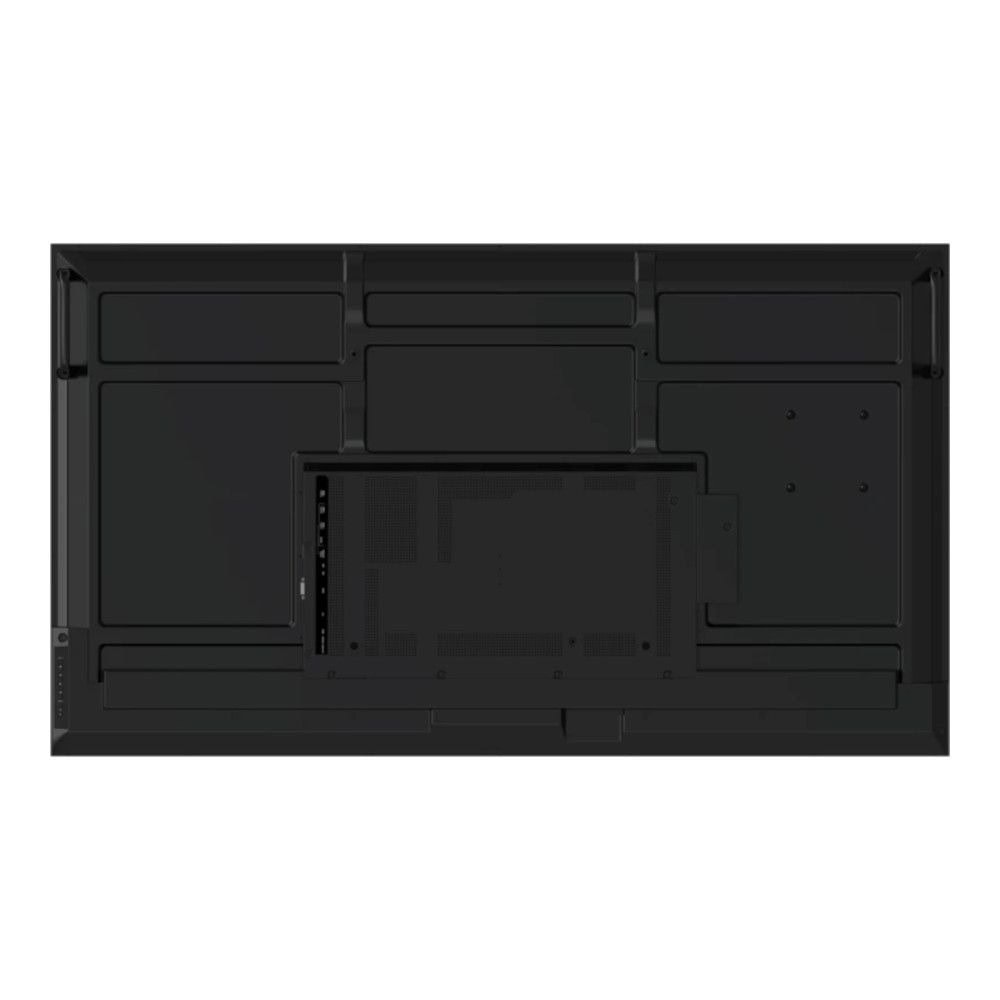

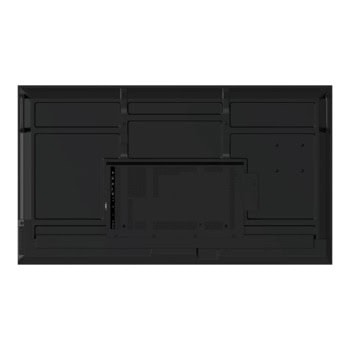

  Wall Mount (VESA® ): 400x400 mm


• OPERATING CONDITIONS

  Temperature (º C): 0 to 40℃
  Humidity: 20%-80% RH


• Operating Hours

  24/7


• DIMENSIONS (W x H x D)

  Physical (inch / mm): 48.54 x 27.7 x 2.44 in/ 1233 x 703.5 x 62 mm
  Packaging (inch / mm): 52.44 x 33.03 x 6.14 in/ 1332 x 839 x 156 mm


• WEIGHT

  Net (lb / kg): 28.55lb /
  12.95kg
  Gross (lb / kg): 39.64lb /
  17.98kg


• REGULATIONS

  cTUVus, FCC/ICES003, Energy star 8, EPEAT Gold, EEI,, EMC/CE Report, CB, EAC, UkrSEPRO, RCM, Green BOM, RoHS DoC, ErP-Eco, REACH DoC, SCIP, WEEE report, Annex I, Annex II, TPCH DoC, Packing waste, CA65 DoC


• Energy Star

  ES8.0

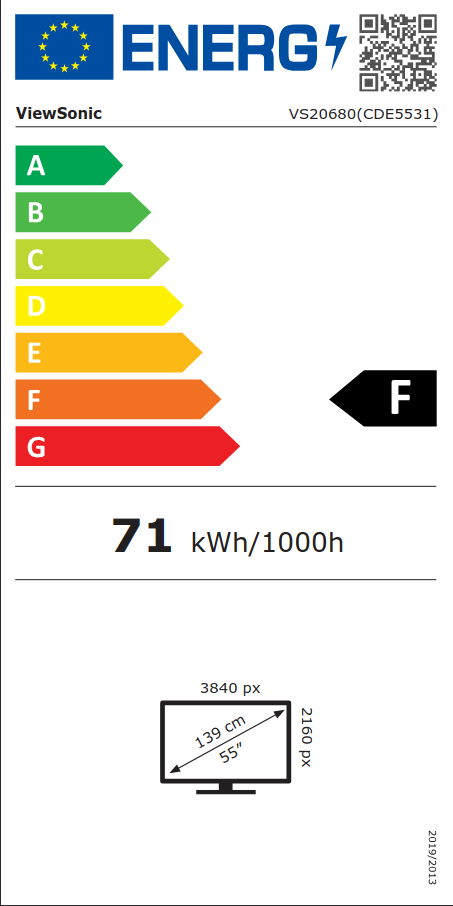

• EEI rating

  F
