Публичен дисплей ViewSonic CDE4314-2C, 43" (109.22cm) 4K/UHD TFT LCD дисплей, HDMI, USB, LAN, RS-232

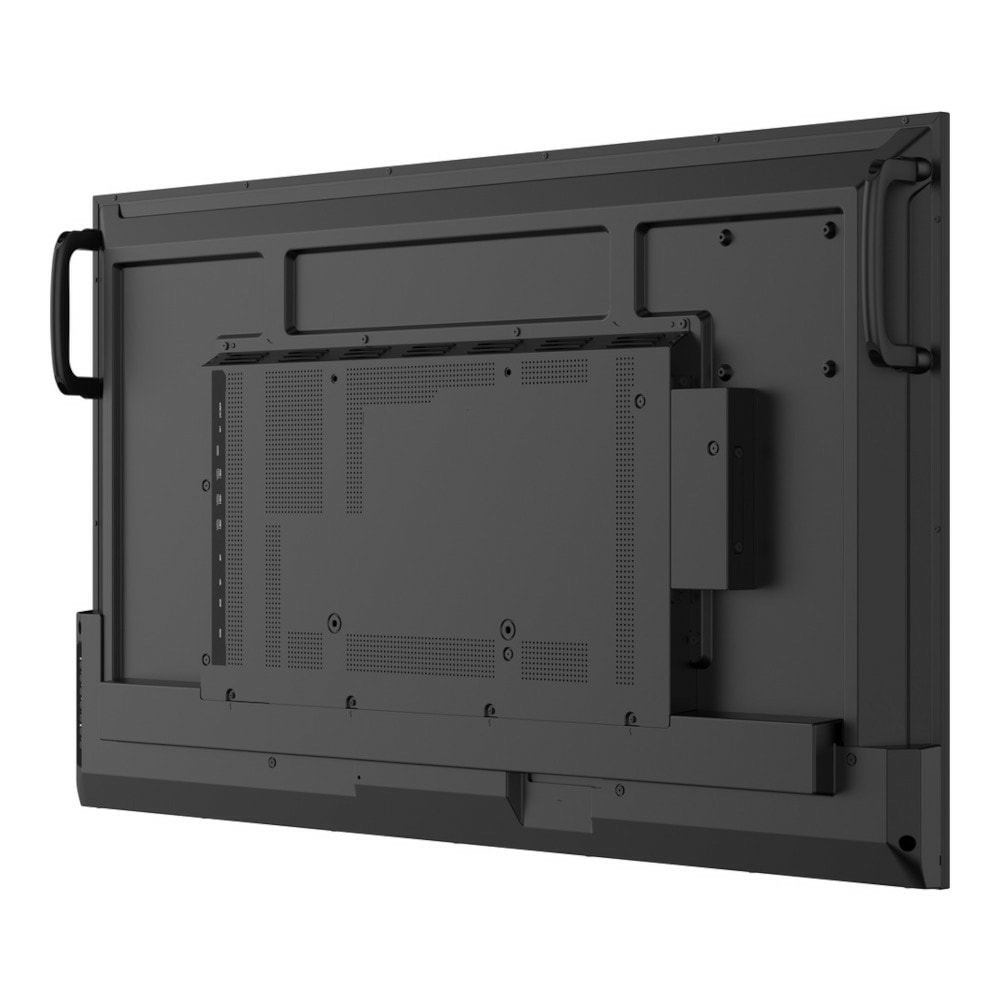

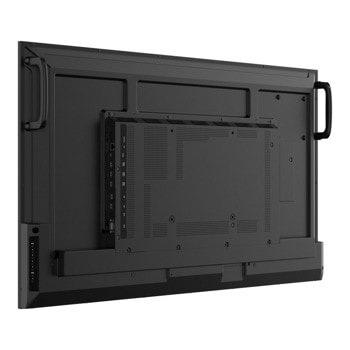

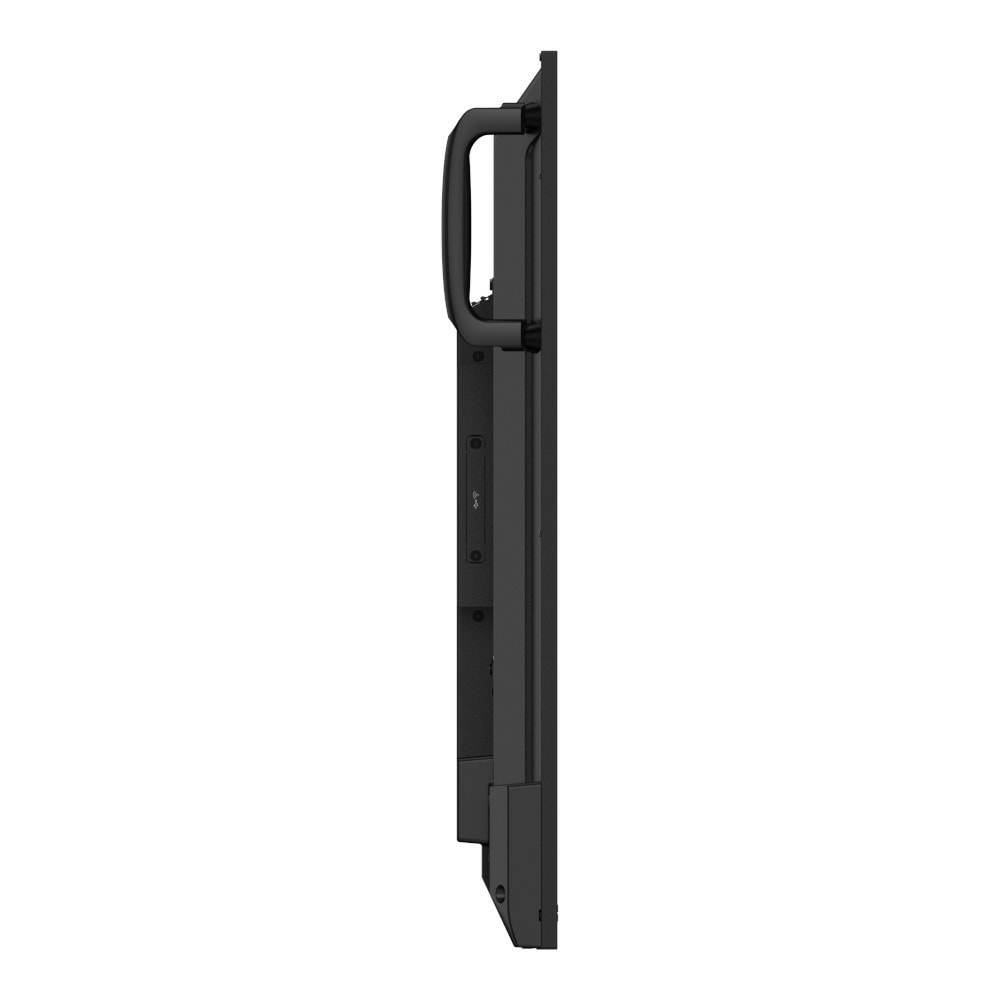

ViewSonic CDE4314-2C

The ViewSonic CDE14-2C Series is a commercial-grade 4K display built for 24/7 operation in offices, retail spaces, transit hubs, and other high-demand environments. Powered by Android 14 (upgradeable to Android 16) and a quad-core SoC with 4 GB RAM, it supports smooth multitasking and fast warm boot for immediate startup. With 500 nits of brightness and support for both landscape and portrait modes, it delivers sharp, high-impact visuals for presentations and signage alike. Continuous USB media playback with automatic signal failover ensures uninterrupted content delivery, even when the primary source is lost. Designed for IT and AV professionals, the CDE14-2C Series integrates seamlessly with leading ProAV control systems and ViewSonic Manager for streamlined deployment and remote management. Whether deployed as a standalone unit or as part of a larger installation, it provides a dependable solution for corporate and commercial environments.

43" 4K Commercial Display with ProAV Integration

• Quad-Core SoC with 4 GB RAM delivers smooth, stable performance.
• Fast warm boot launches signage and content in under seven seconds.
• USB playback with signal failover ensures continuous content delivery.

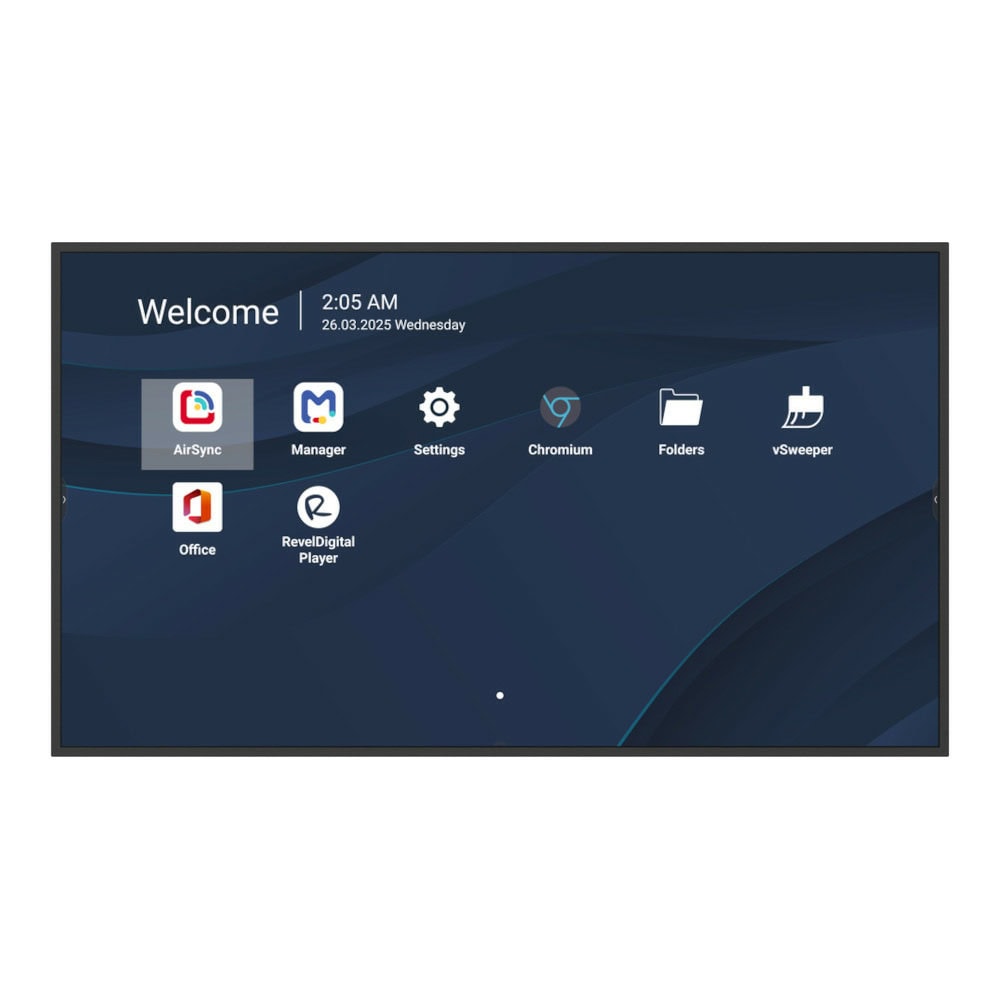

• 4K UHD in any orientation provides sharp, professional visuals.
• 500-nit brightness and 24/7 operation support reliable round-the-clock signage.
• ProAV integration and remote control via ViewSonic Manager and leading platforms.

Fast Warm Boot for Seamless Communication

With a warm boot in under 7 seconds, the CDE14-2C Series eliminates delays at the start of meetings, presentations, and scheduled signage. It ensures your content appears exactly when it’s needed—ideal for corporate, retail, and education environments where every second counts.

Reliable Performance for Multitasking and Signage

Powered by Android 14 OS (upgradeable to Android 16), this commercial display combines a quad-core processor with 4 GB RAM to deliver smooth multitasking during meetings and dependable performance for multimedia playback and digital signage.

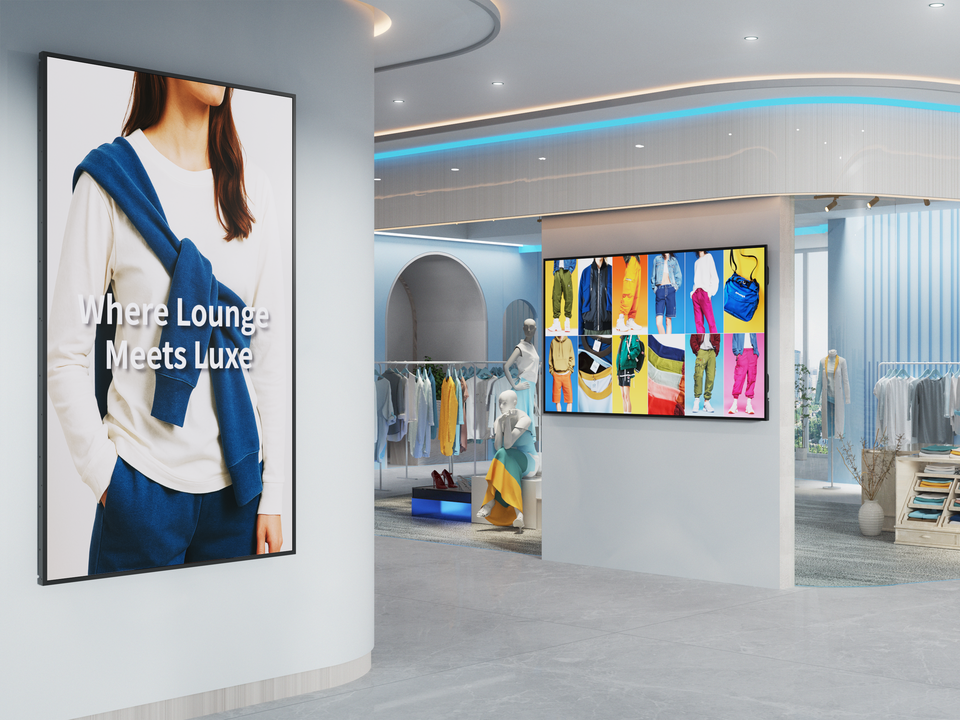

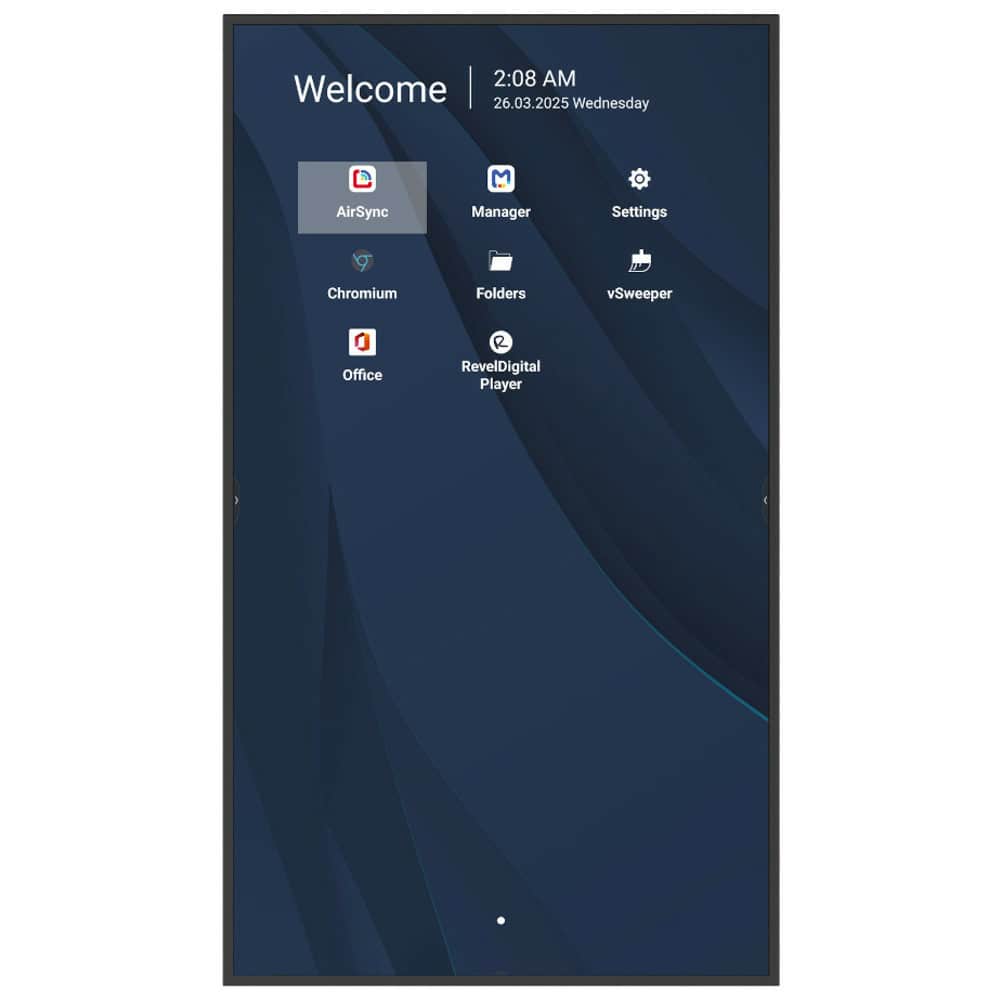

Flexible Orientation for Any Setup

Supporting both landscape and portrait modes, this commercial-grade display adapts to a wide range of installation needs, from retail and digital menu boards to meeting room displays and campus communication.

Instant, Cable-Free Presentations with ViewShare

Present instantly in Full HD with the optional ViewShare WPD-900 Wireless Screen Casting Kit*. Using USB-C or native protocols, presenters can cast from laptops or mobile devices with no Wi-Fi or software setup required. A secure point-to-point connection and one-click switching between users keep collaboration smooth and clutter-free.*WPD-900 Wireless Casting Kit sold separately.

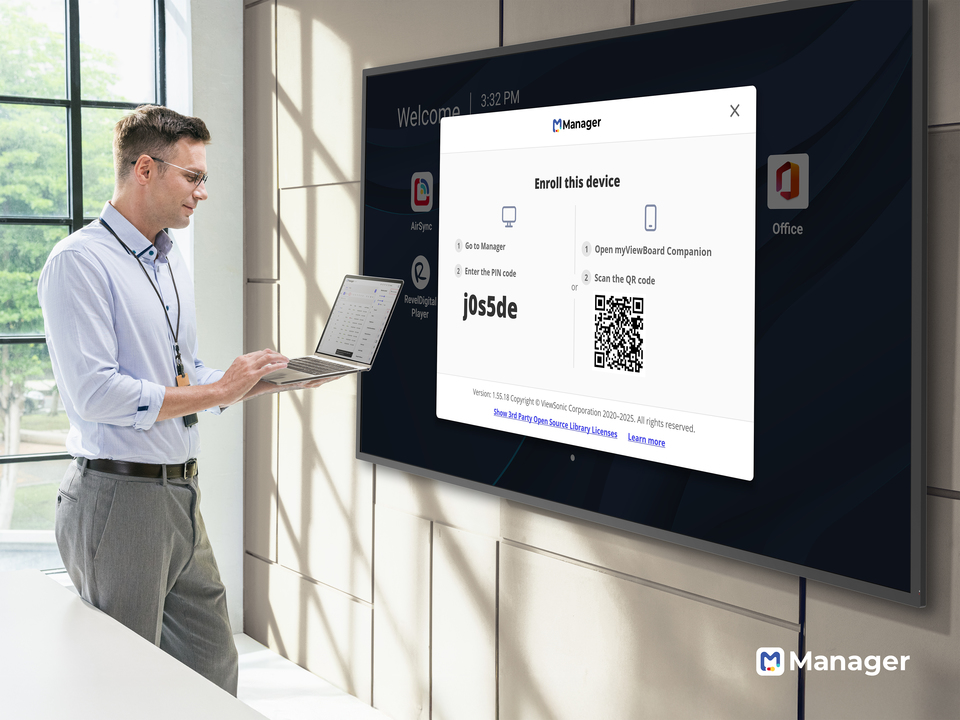

Web-Based Remote Device Management

Built for IT efficiency, ViewSonic Manager gives admins remote management tools to control inputs, monitor usage in real time, and access insight reports. The browser-based Web UI streamlines access and navigation, while Remote Desktop simplifies troubleshooting and reduces the need for on-site IT support.

SPECIFICATIONS

• Display

  Panel Size: 43"
  Type/ Tech: TFT LCD Module. DLED backlight
  Display Area (mm): 941.184(H) × 529.416(V) 42.5" diagonal
  Native Resolution: 3840 x 2160
  Aspect Ratio: 16:9
  Colors: 8bit+FRC
  Brightness: 500 nits (typ.)
  Contrast Ratio: 1200:1 (typ.) / 2000:1 (DCR enabled)
  Response Time: 8ms
  Viewing Angles: H = 178, V = 178 typ.
  Backlight Life: 50,000 Hours
  Surface Treatment: Hardness: 3H, Anti-glare coating, Haze 25%
  Bezel: 9.9/9.9/9.9/9.9 mm (L/R/T/B)
  Orientation: Landscape & Portrait


• Platform

  Processor: Quad-core ARM Cortex-A73
  RAM: 4GB DDR4
  Storage: 32GB

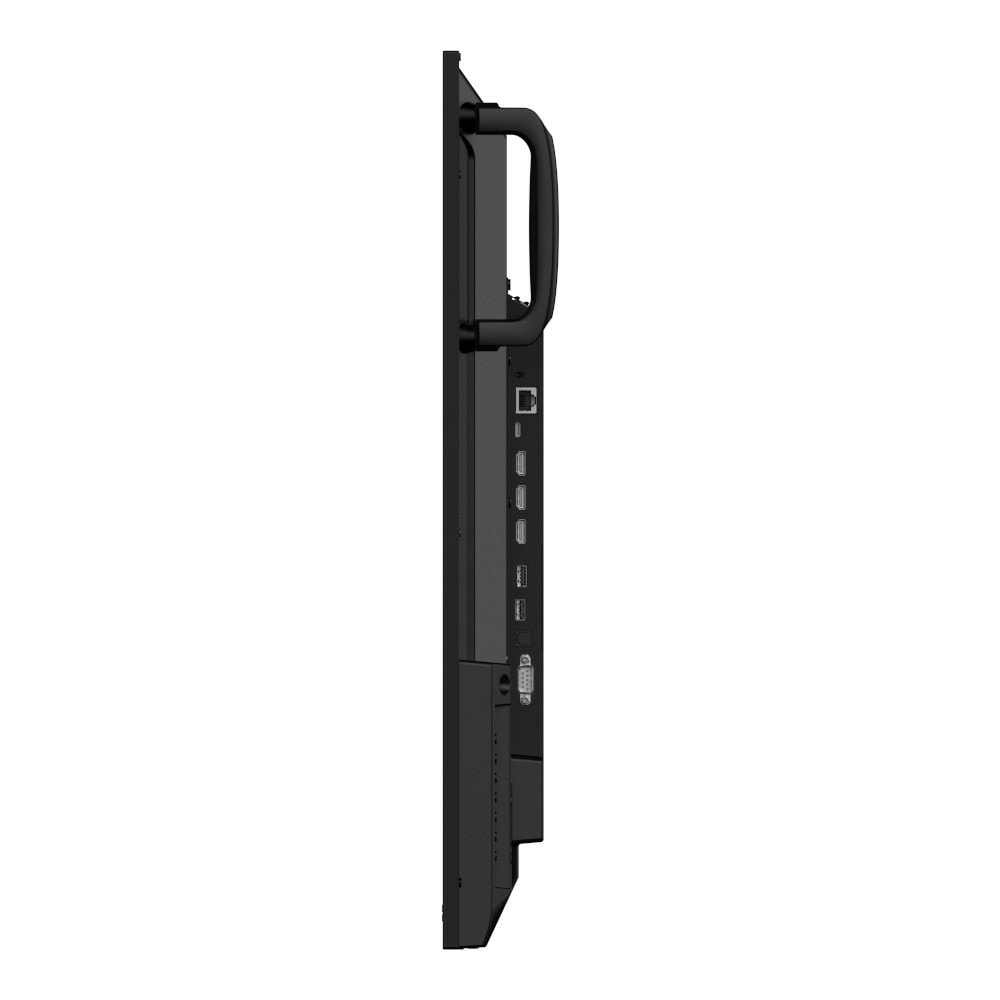

• INPUT

  HDMI: x3 (HDMI 2.1 4K@60Hz*3, HDMI 3 supports ARC)
  RS-232: x 1
  WiFi Slot: x 1


• OUTPUT

  Audio: 3.5mm x1
  SPDIF: x 1


• LAN

  RJ45: x1 (10/100M for USB Type-C)


• USB

  Type A: USB2.0 x 2
  Type C: x1 (DP 1.2, USB 2.0, 15W PD, Ethernet sharing, Smart USB)


• SPEAKERS

  10W x 2


• COMPATIBILITY

  HDMI: 3840X2160 @60Hz

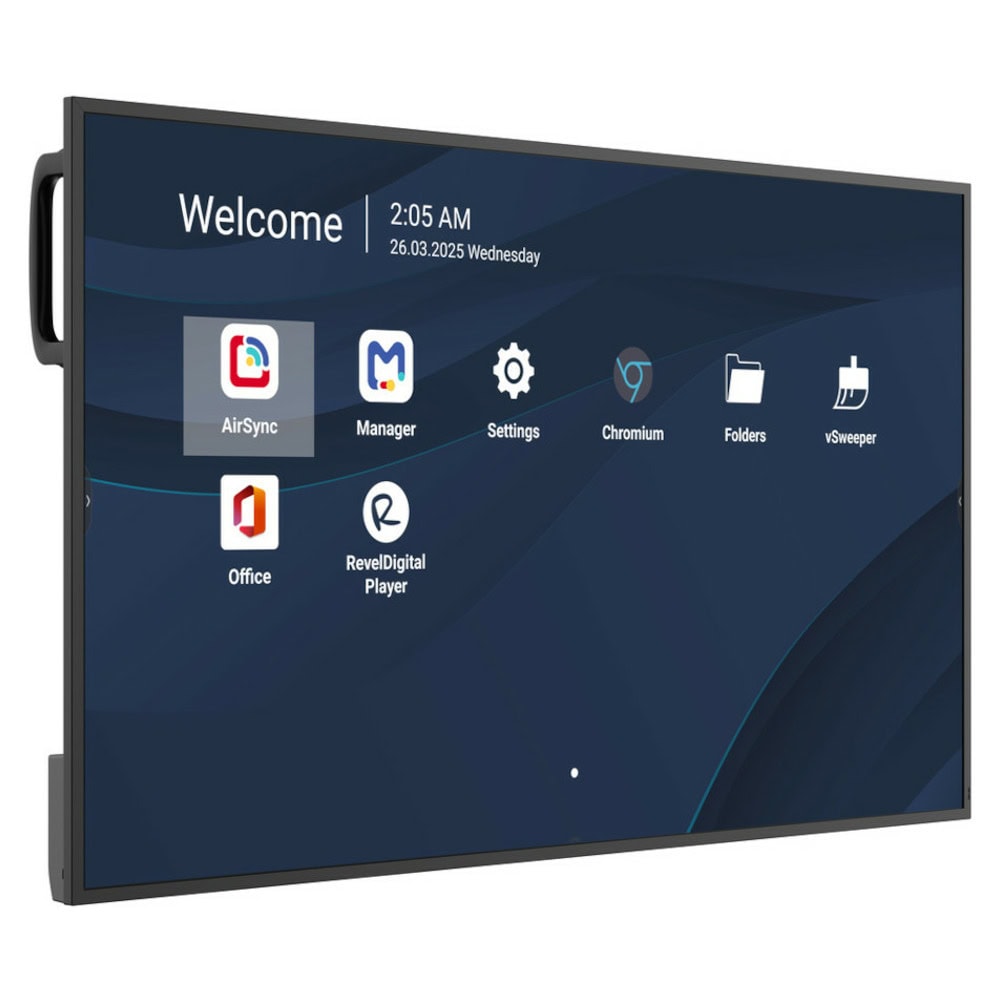

• Embedded OS

  Android 14 AOSP


• Bundled Software

  Wireless Presentation: AirSync
  Device Management: Manager


• POWER

  Voltage: 100-240 VAC +/- 10%
  Consumption: 65.18W with Energy Star


• ERGONOMICS

  Wall Mount (VESA® ): 200x200 mm


• OPERATING CONDITIONS

  Temperature (º C): 0 to 40℃
  Humidity: 20% ~ 80% RH non-condensing


• Operating Hours

  24/7


• DIMENSIONS (W x H x D)

  Physical (inch / mm): 37.98 x 21.75 x 2.44 in/ 964.6 x 552.5 x 62 mm


• WEIGHT

  Net (lb / kg): 9.1kg
  Gross (lb / kg): 13.04 kg
