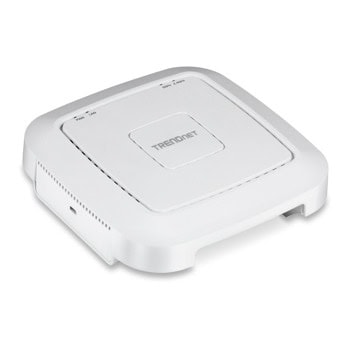

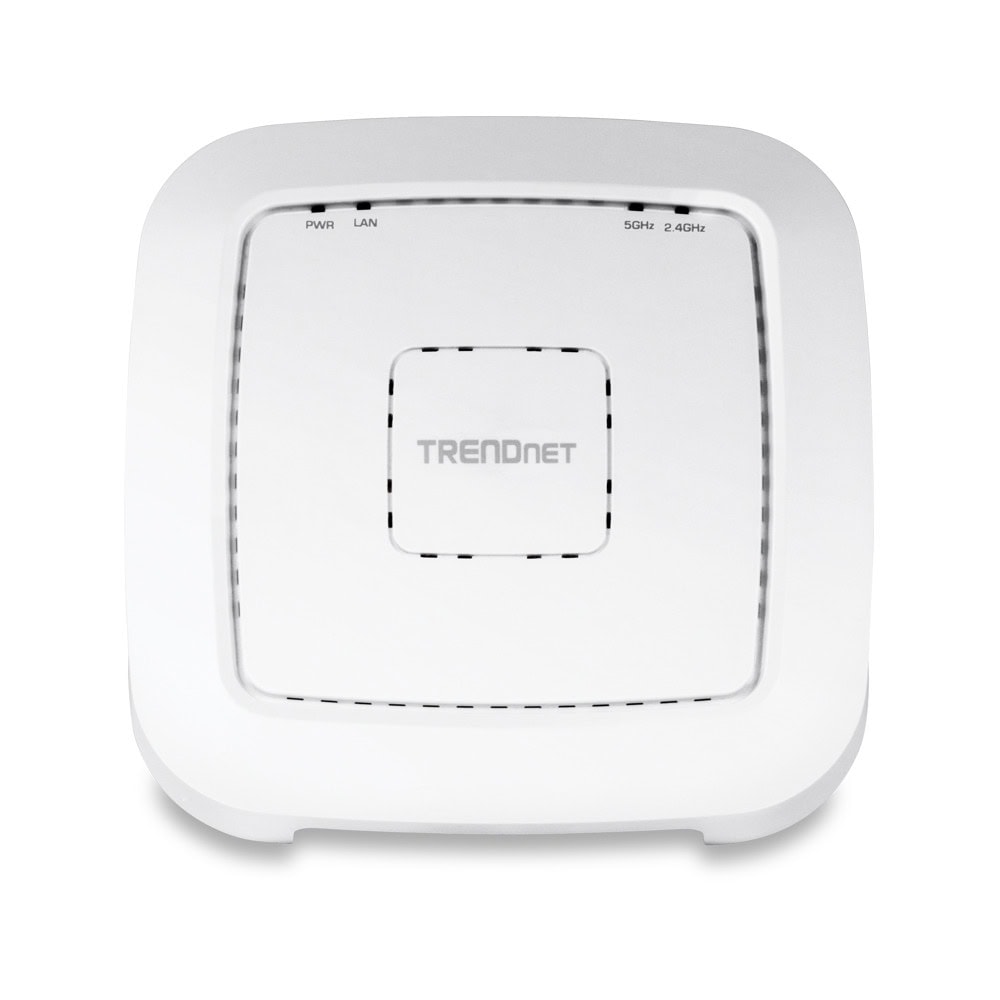

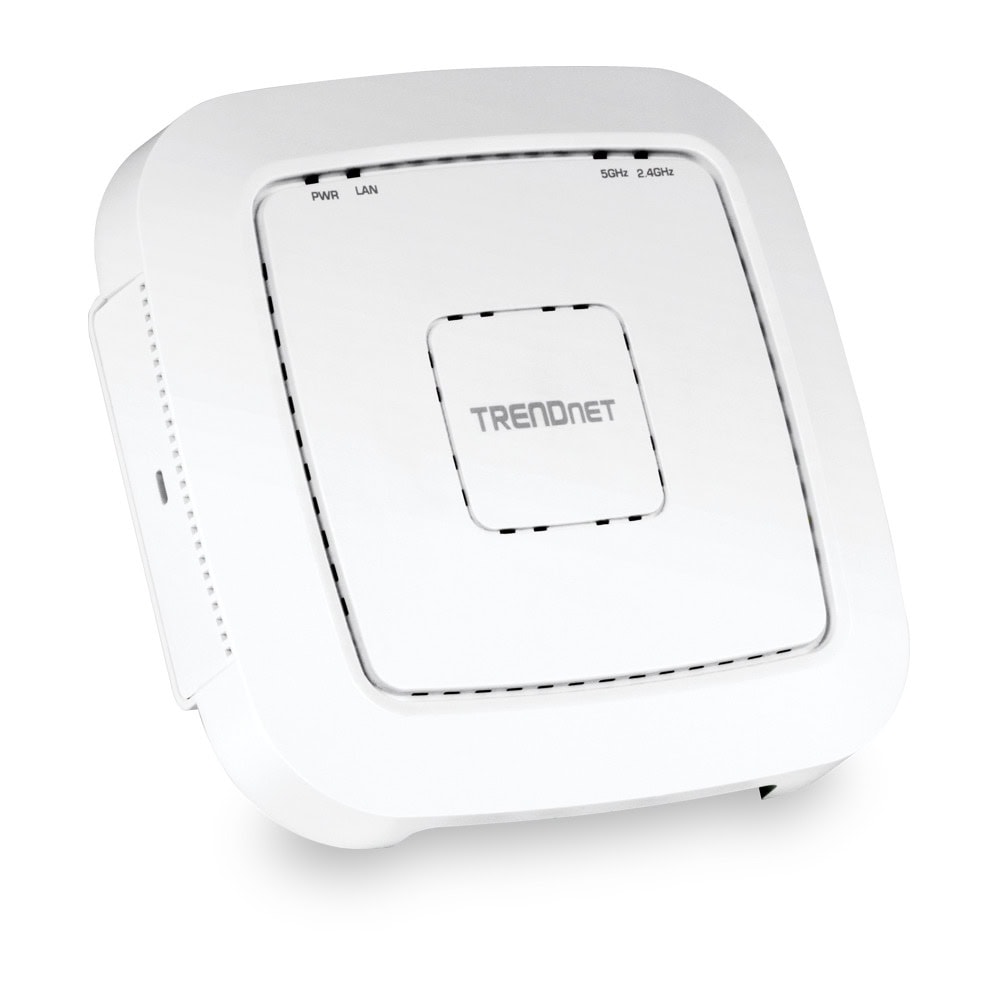

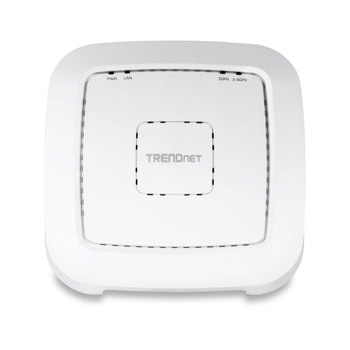

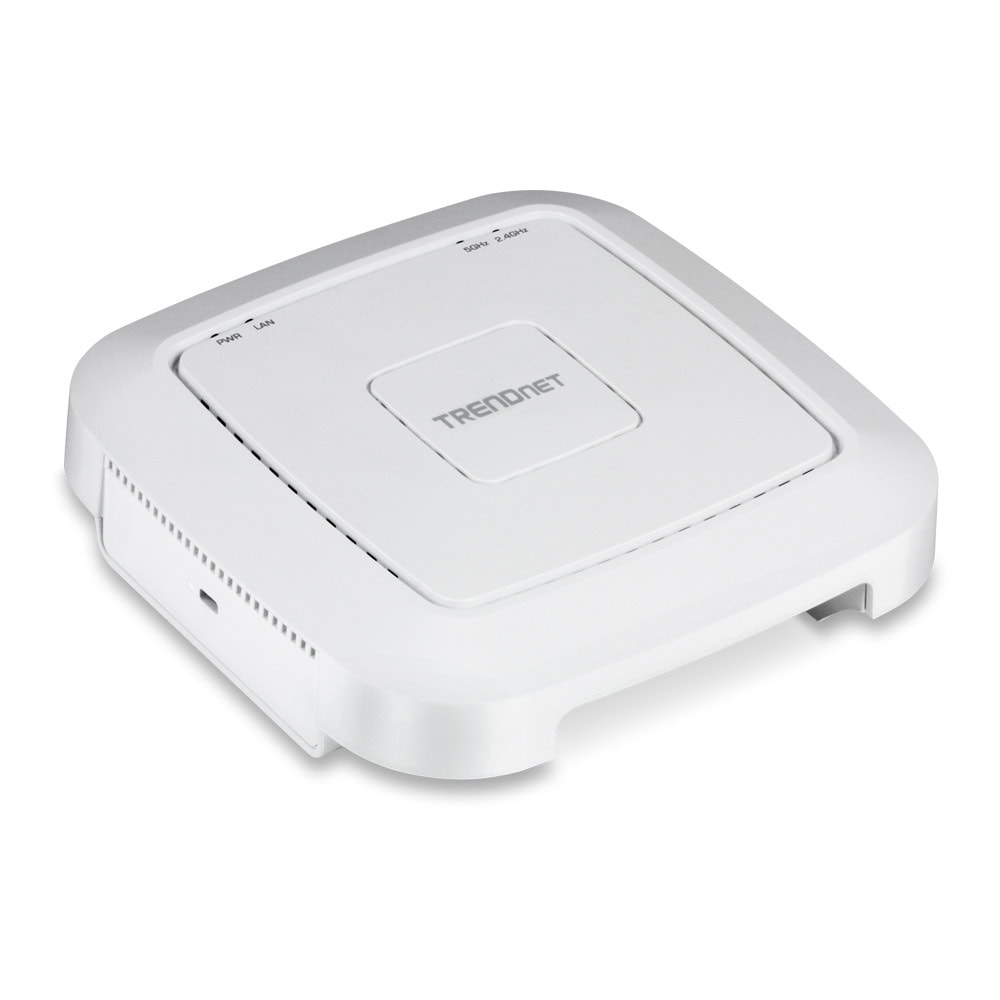

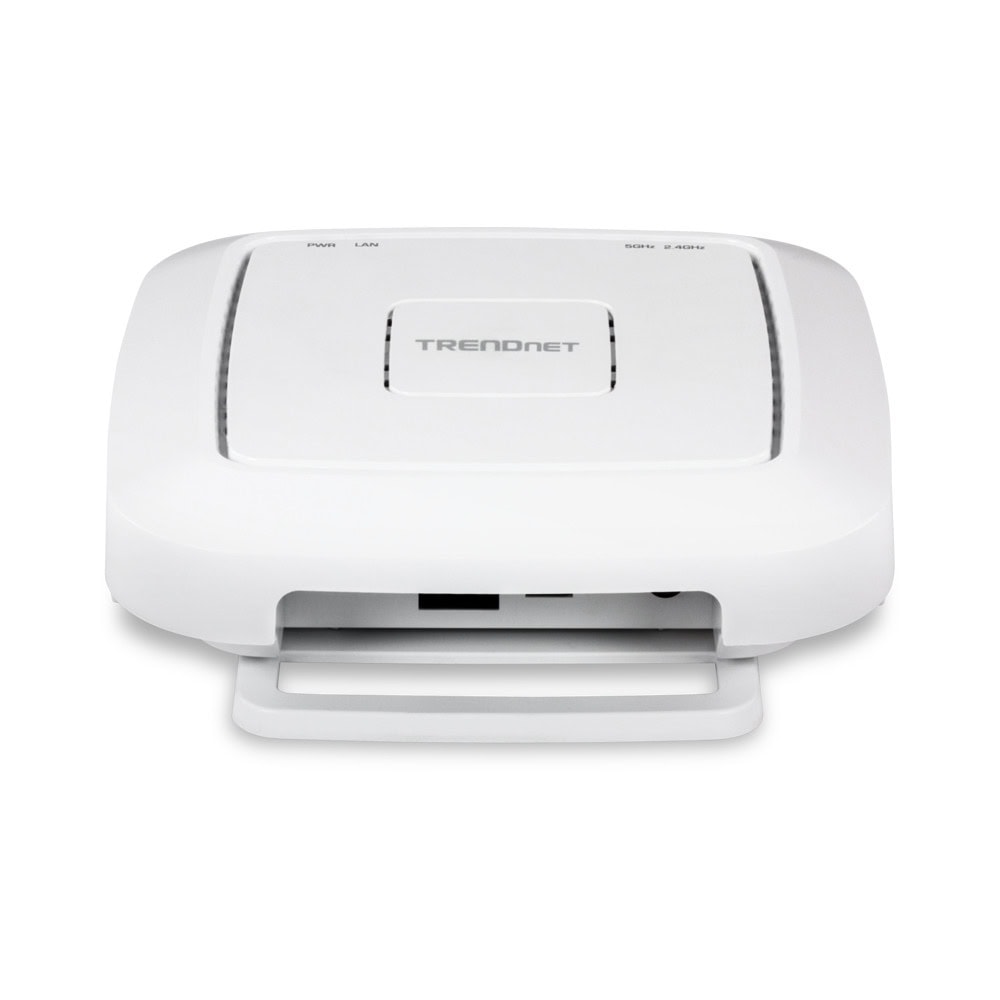

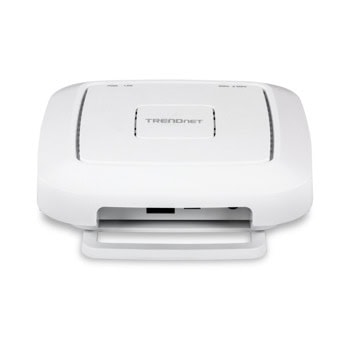

Name: Точка за достъп TRENDnet TEW-821DAP, 1200Mbps, 2.4GHz (300Mbps)/ 5GHz (867Mbps), 1x 10/100/1000Mbps LAN PoE, 4x вътрешни антени
Brand: TRENDnet
SKU: NTWBTRENDNETTEW821DAP
Price: 216.81 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

TRENDnet's high performance AC1200 Dual Band Wireless PoE Access Point, model TEW-821DAP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks. The included Windows-based software utility manages multiple TEW-821DAPs and reduces WiFi management and troubleshooting time. It features advanced access control, QoS, traffic management, band steering, and captive portal support. The low profile blends into most environments and a mounting plate eases installation.

Multi-Language

Multi-Language Interface: English, Spanish, French, German, and Russian

Power over Ethernet (PoE)

Saves remote location installation time and costs with Gigabit PoE support (Optional power port for non-PoE installations)

Multi-Mode Support

Supports Access Point (AP), Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes for each WiFi band independently

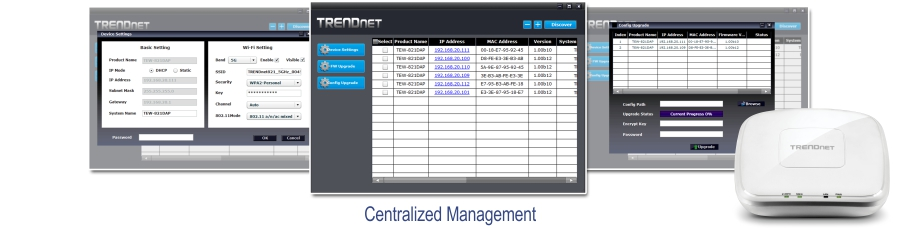

AP Utility

The included Windows-based utility reduces WiFi configuration and setup time

Encrypted Wireless

Support for wireless encryption of up to WPA2

Band Steering

Band steering alleviates network congestion by automatically directing wireless devices from the 2.4 GHz band to the 5 GHz band

Multiple SSIDs

Create up to 8 SSIDs per band (16 total)

Wireless Coverage

Extended wireless coverage with MIMO antenna technology

IPv6

IPv6 network support

Specifications

Standards	IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps) IEEE 802.11ac (up to 867 Mbps)

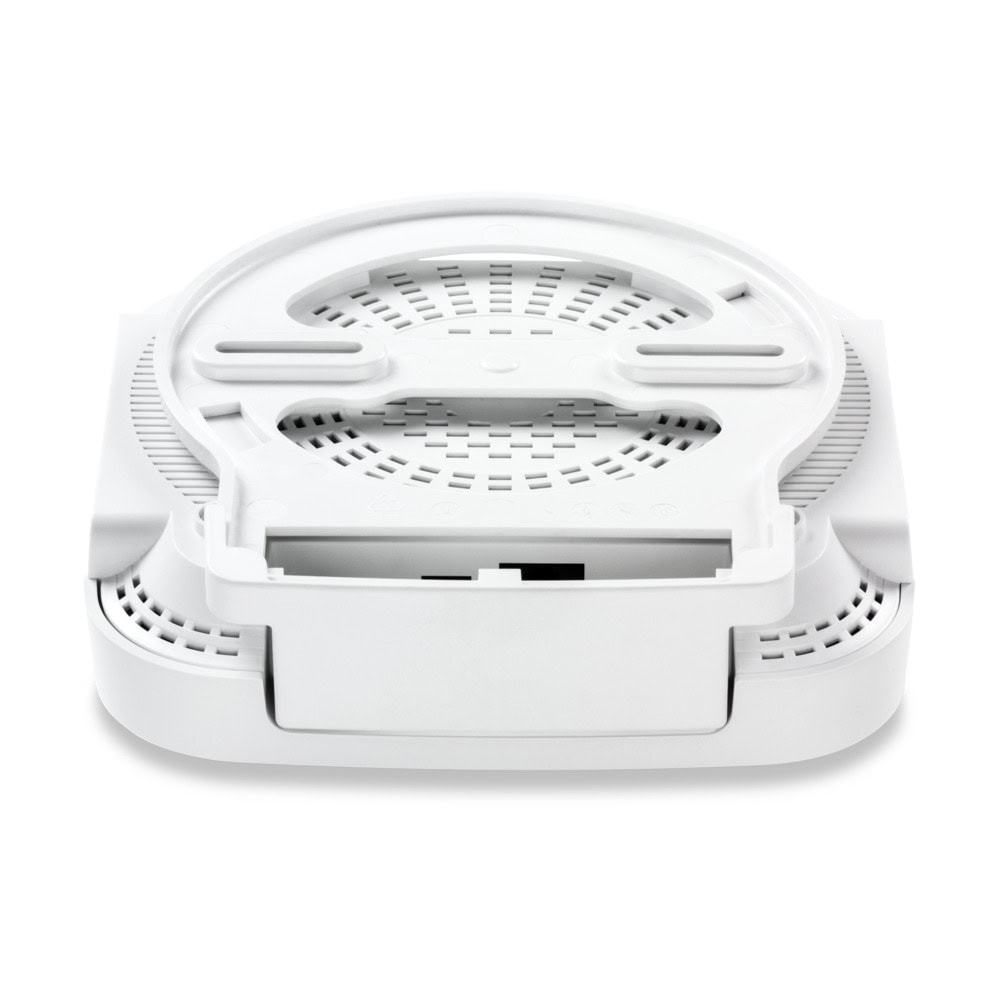

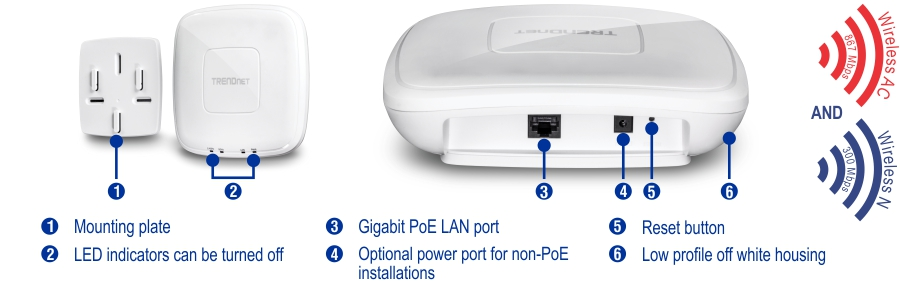

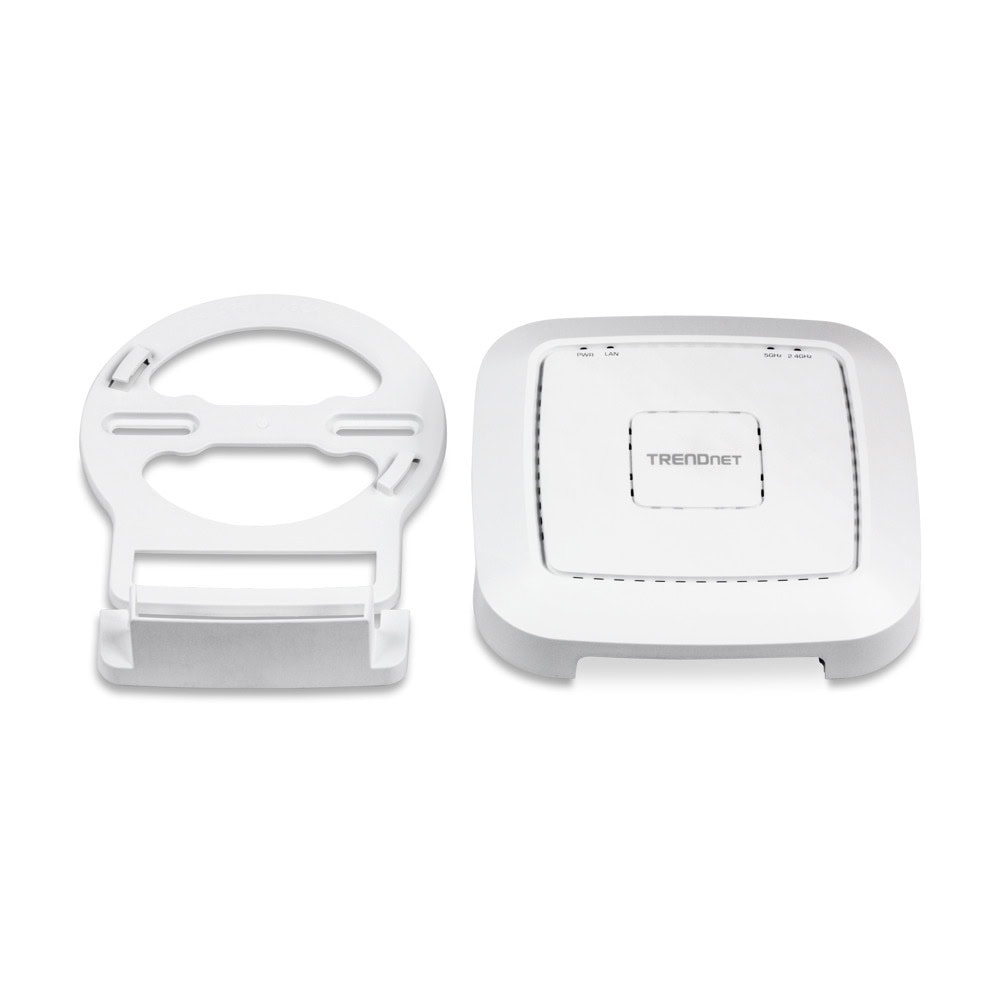

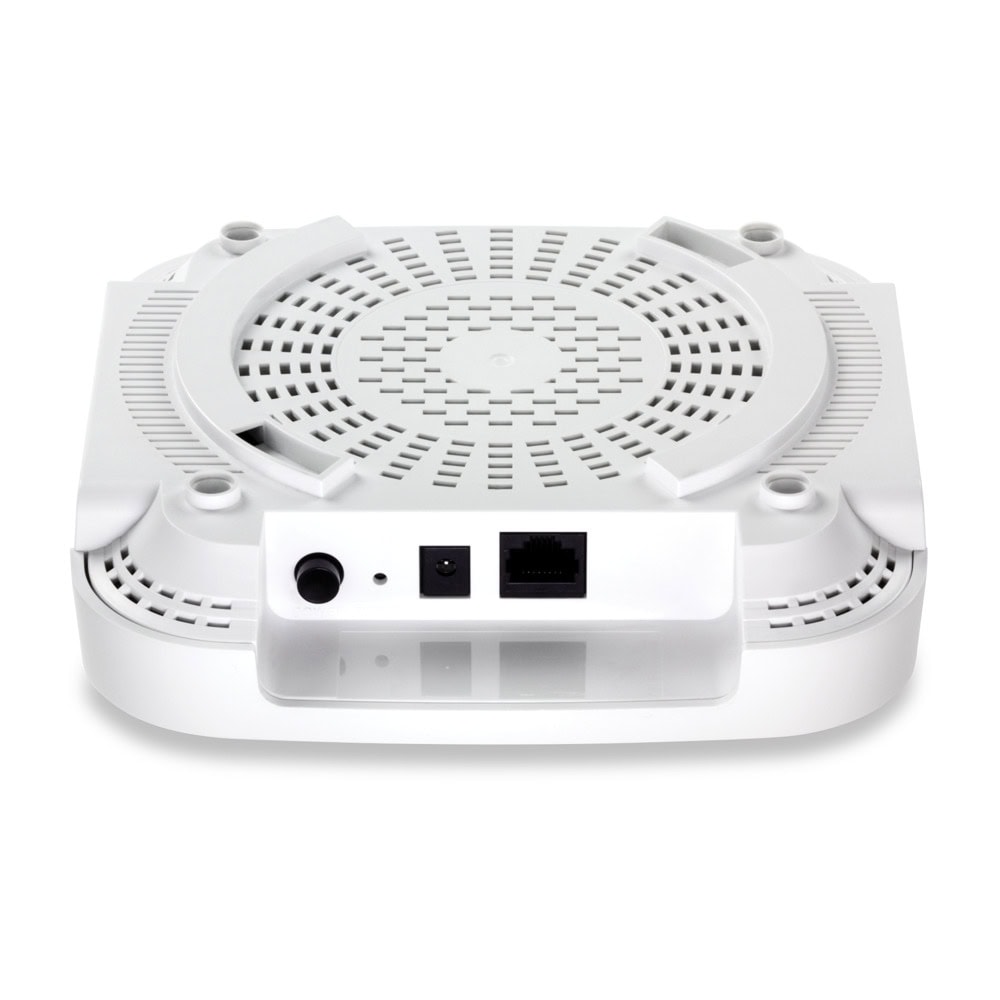

Hardware Interface	1 x PoE Gigabit LAN port Power port (optional non-PoE installation) Reset button LED indicators Mounting plate
Special Features	IP30 rated housing (with mounting plate installed) Concurrent Dual band Band Steering WiFi traffic shaping 802.1Q VLAN assignment per SSID IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6) Multi-Language interface, English, French, Spanish, German, Russian LEDs on/off Captive Portal (External Coovachilli server authentication) Internal Captive Portal (Local user account authentication and customizable portal page) 802.11k roaming assistance support RSSI Scanner (Client signal strength and tolerance) Airtime Fairness
Operation Modes	Access Point Client WDS AP WDS Bridge WDS Station Repeater
Management/Monitoring	Web based management Software utility SNMP v1/v3 STP Event logging Ping test Traceroute CLI
Utility OS Compatibility	Windows 10, 8.1, 8, 7, Vista, XP
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS MAC filter Maximum client limit
QoS	WMM Traffic shaping per SSID
SSID	Up to 8 SSIDs per wireless band (16 total)
Frequency	2.4 GHz: 2.412 – 2.472 GHz 5 GHz: 5.180 – 5.8525 GHz
Wireless Channels	2.4 GHz: FCC: 1 – 11, ETSI: 1 – 13 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
Modulation	DBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain	2.4 GHz: 2 x 4 dBi 5 GHz: 2 x 4 dBi
Wireless Output Power/Receiving Sensitivity	802.11a: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -65 dBm (typical) @ 54 Mbps 802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max), IC: 23 dBm (Max.) / -83 dBm (typical) @ 11 Mbps 802.11g: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -65 dBm (typical) @ 54 Mbps 802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -64 dBm (typical) @ 300 Mbps 2.4 GHz 802.11n: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -61 dBm (typical) @ 300 Mbps 5 GHz 802.11ac: FCC: 15 dBm (Max.), CE: 22 dBm (Max.), IC: 19 dBm (Max.) / -51 dBm (typical) @ 866 Mbps
Power	12 V / 1 A consumption: 9.6 Watts Max.
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 95 % non-condensing
Certifications	CE FCC
Dimensions	187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)
Weight	408 g (14.4 oz.)

Виж още Аксеспойнт/Репитер Безжични TRENDnet
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За външен монтаж
Безжична скорост:	1200 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 & 5 GHz
Антени:	4 Вътрешни
dBi на антена/и:	4
PoE:	In
Интерфейс:	1x 1000
Други:	Няма
