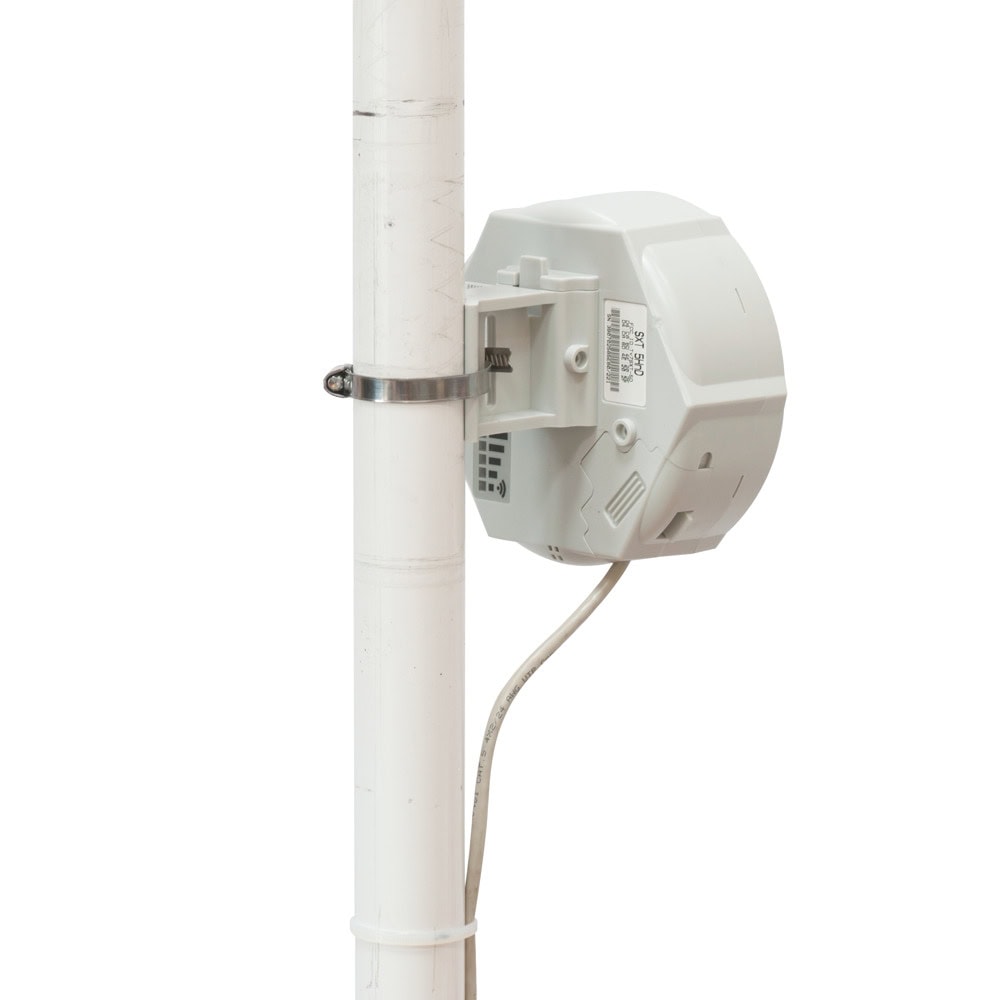

Точка за достъп MikroTik SXT SA5 ac, 5GHz, 866Mbps Wireless AC, 13dBi antenna, 1300mW, USB, 1 x 10/100/1000 Ethernet Port

The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.

The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam - width sector antenna. Also support 802.11a/n standard, Nstreme and Nv2 protocols and are compatible with all legacy RouterBOARD devices.
 Both devices come with Gigabit Ethernet.

New products are backwards compatible - for example, you can replace your 5GHz 802.11a/n legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

SXT install guide:


- RBSXTG-5HPacD-SAr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBSXTG-5HPacD-SAr2 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

• Product code RBSXTG-5HPacD-SA
• Architecture MIPSBE
• CPU QCA9557
• CPU core count 1
• CPU nominal frequency 720 MHz
• RouterOS license 4
• Operating System RouterOS
• Size of RAM 128 MB
• Storage size 128 MB
• Storage type NAND
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 1 (PoE-IN)
• Supported Voltage 15-60V
• Max power consumption 12 W
• PoE in 802.3af/at
• Cooling type Passive
• PoE in input Voltage 12-57 V

Wireless specifications

• Wireless 5 GHz Max data rate 867 Mbit/s
• Wireless 5 GHz Number of chains 2
• Wireless 5 GHz standards 802.11a/n/ac
• Antenna gain dBi for 5 GHz 14
• Wireless 5 GHz chip model QCA9892
• Wireless 5 GHz generation Wi-Fi 5

Ethernet

• 10/100/1000 Ethernet ports 1

Peripherals

• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB type A
• Max USB current (A) 1

Other

• PCB temperature monitor Yes
• Voltage Monitor Yes
• Beeper Yes

Certification & Approvals

• Certification CE, FCC, IC, EAC, ROHS
• IP IP54
