VIGI C340HPWSM

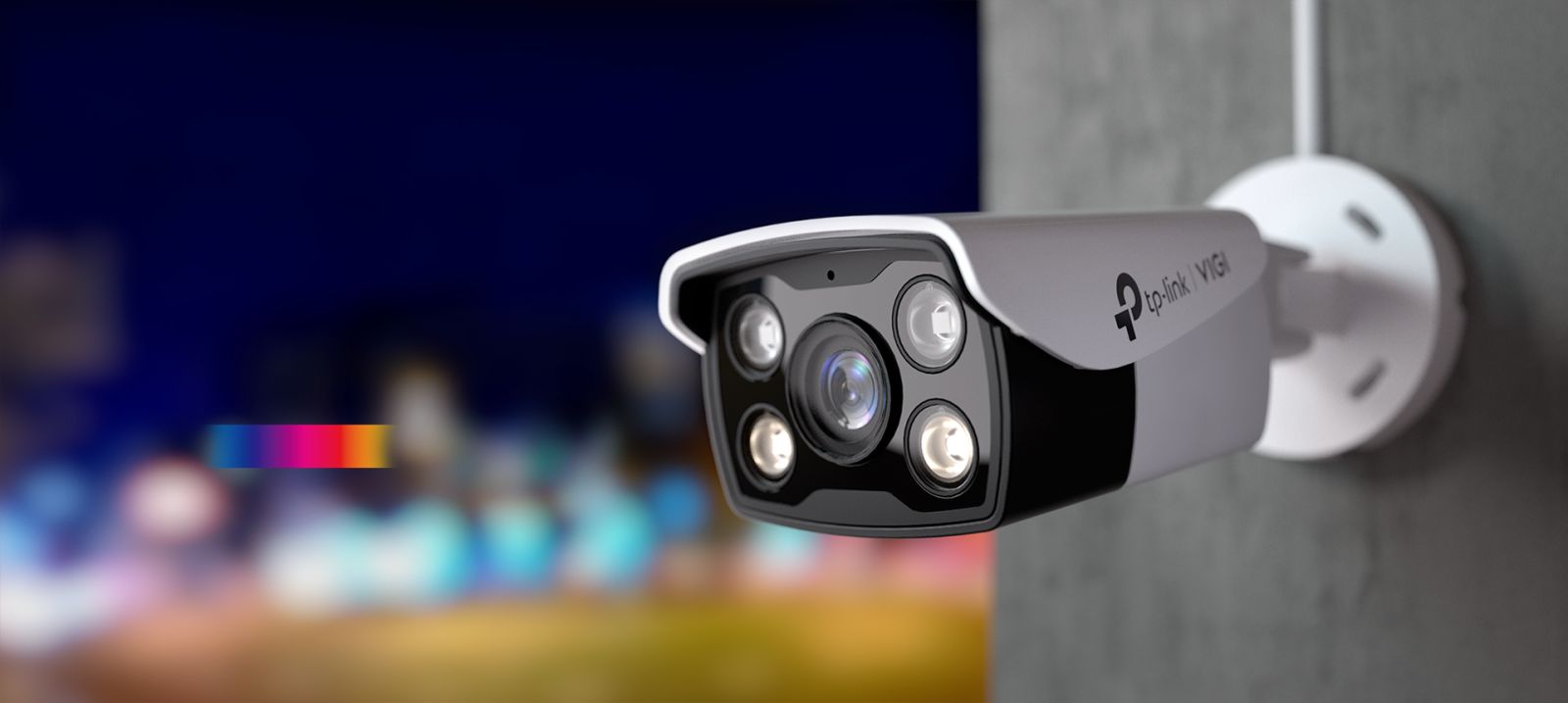

VIGI 4MP Outdoor Full-Color Bullet Network Camera

4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.

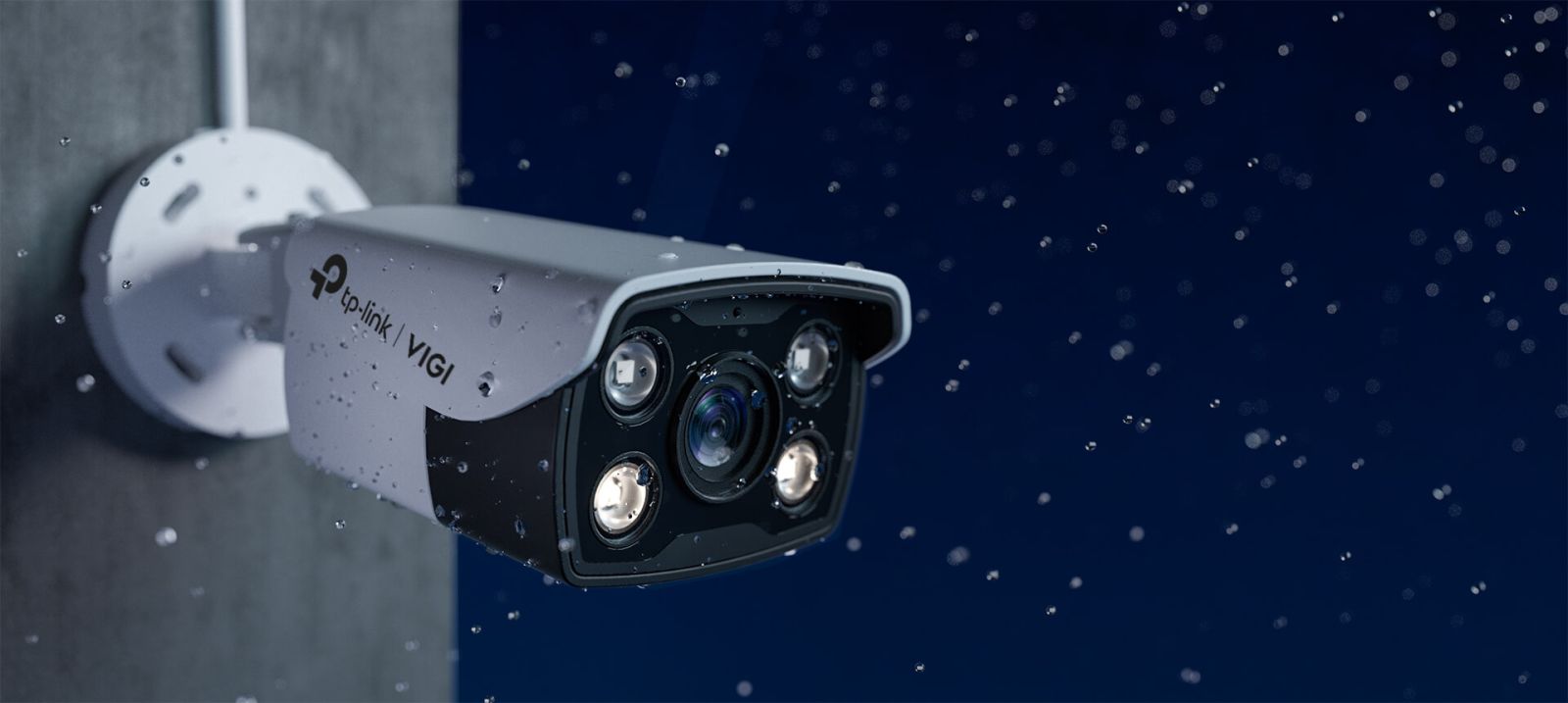

Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
VIGI App: Manage your security from the palm of your hand with the VIGI app.

Outdoor PoE Connection, Simple Wiring

Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

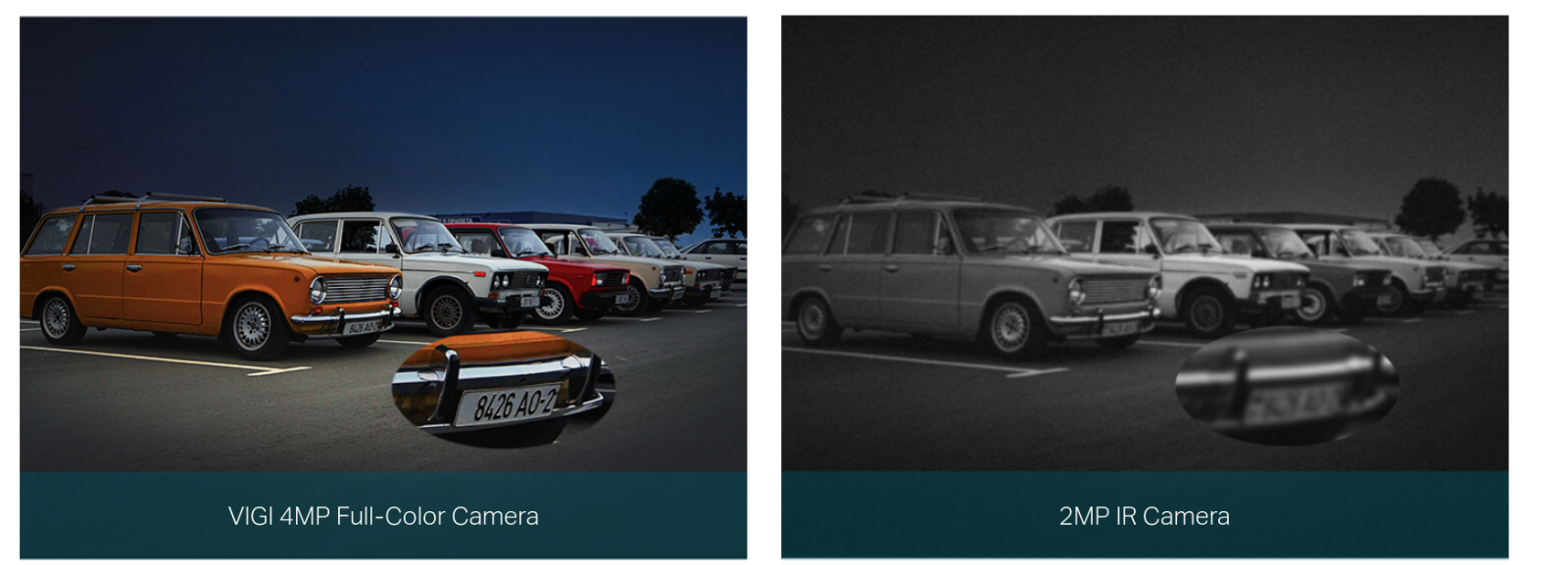

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection Get instant notifications when your camera detects motion.
Area Intrusion Set customized activity zones around key areas for more focused monitoring.
Line-Crossing Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering Receive alerts when someone obstructs the camera.

Active Defense

Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.

Every Event is Under Your Control.

VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

**Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.

Flexible Management and Storage

Take full control over your security via three management method, VIGI NVR, App, and Security Manger. Local storage is available for each methods, as well as on-board storage with SD card slot.

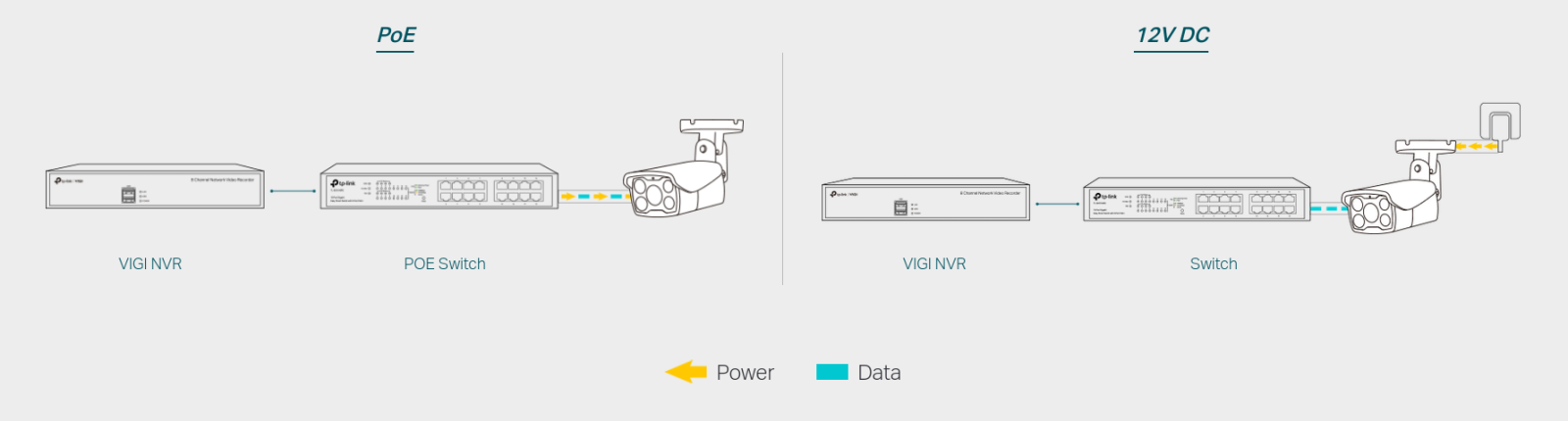

Discover the best way to power your camera.

PoE/12V DC

Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

ОБЩИ ХАРАКТЕРИСТИКИ
Съдържание на пакета	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Околна температура при работа	-30–60 °C
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Размери	78 × 70 × 174 mm
Material	Plastic
Тегло	195g
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Power Consumption	12V DC: Max 7.5W PoE: Class 0

Камера
Светлочувствителен сензор	1/3” Progressive Scan CMOS
Обектив	Fixed focal lens (4 mm)
Aperture	4 mm: F1.6
Lens Mount	M12
Зрителен ъгъл	(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Digital Zoom	Yes
Day/Night Mechanism	IR Cut Filter
IR Working Distance	30m
Illumination Distance	30 m
Minimum Illumination	0 lux with IR/white Light
Weatherproof Rating	IP66
Digital Noise Reduction	3D DNR
WDR	DWDR

ВИДЕО/СНИМКА
Видео компресия	Main stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264
Кадрова скорост и резолюции	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Видео стрийминг	Main Stream Sub-Stream
Настройки на изображението	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

ИНТЕРФЕЙСИ
Мрежов интерфейс	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Бутони	Reset Button
Slot	Micro SD card

МРЕЖА
Защита	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams

Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията

Технически характеристики

Вид:	Насочени ("bullet") камери
Външен монтаж:	Да
Безжична:	Не
IR Осветление:	Да
Мрежова:	Да
Разделителна способност, max:	4MP
Аудио:	Двупосочно (Мик+Гов)
