Name: Рутер TP-Link Omada ER706W-4G, 3000Mbps, 2.4GHz(574Mbps)/5GHz (2402Mbps), Wireless AX, 4x 10/100/1000Mbps WAN/LAN, 1x 10/100/1000Mbps WAN, 1x SFP, 5x външни антени, 128MB Flash памет, 512MB DDR4, 1x NanoSIM, VPN
Brand: TP-Link
SKU: NTWRTPLINKER706W4G
Price: 279.29 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

TP-Link Omada ER706W-4G

Omada 4G+ Cat6 AX3000 Gigabit VPN Router

Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.
AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
Centralized Management: Cloud access and the Omada app for easy management.
Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.

Parameter	Details
4G Network Type	LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz); LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz); 3G: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Aggregation	B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41; B3+B3/B5/B7/B8/B20/B28/B38/B40/B41; B5+B5/B7/B38/B40/B41; B7+B7/B8/B20/B28/B32; B8+B32/B38/B40/B41; B20+B32/B38/B40; B28+B32/B38/B40/B41; B38+B38; B40+B40; B41+B41
SIM Type	1× Nano SIM Card
Frequency	Downlink: 300 Mbps; Uplink: 50 Mbps
DPI	Application control via DPI / Updated app library
IDS/IPS	Signature-based IPS/IDS threat detection
Access Control	Source/Destination IP Based
Filtering	Web Group Filtering†, URL Filtering, Web Security†
ARP Inspection	Sending GARP Packets, ARP Scanning†, IP-MAC Binding
Attack Defense	TCP/UDP/ICMP Flood Defense; Block TCP Scan (Stealth FIN/Xmas/Null); Block Ping from WAN

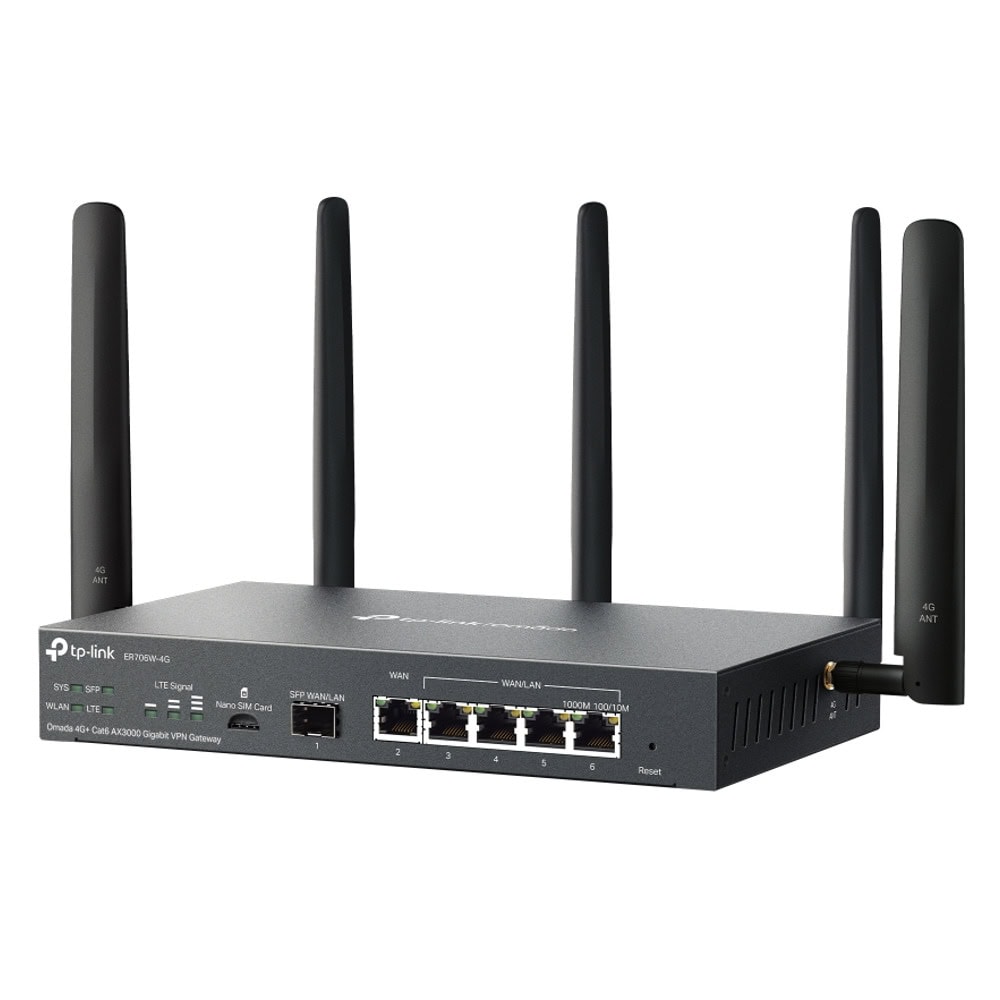

Interface	1× Gigabit SFP WAN/LAN; 1× Gigabit WAN; 4× Gigabit LAN/WAN
Network Media	10BASE-T: Cat 3/4/5 UTP; 100BASE-TX: Cat 5/5e UTP; 1000BASE-T: Cat 5/5e/6 UTP (All Max 100m)
Button	Reset
Power Supply	12VDC / 2A Adapter
Wi-Fi Frequency & Signal Rate	2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps (HE160)
Flash	128 MB NAND
DRAM	512 MB DDR4
LED Indicators	SYS, WLAN, SFP, LTE Signal, WAN (1000M/100/10M), WAN/LAN (1000M/100/10M)
Dimensions	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm); antenna excluded
Antenna	Wi-Fi: 3× 5GHz 5.5dBi & 2.4GHz 4.5dBi; LTE: 2× 4.0dBi

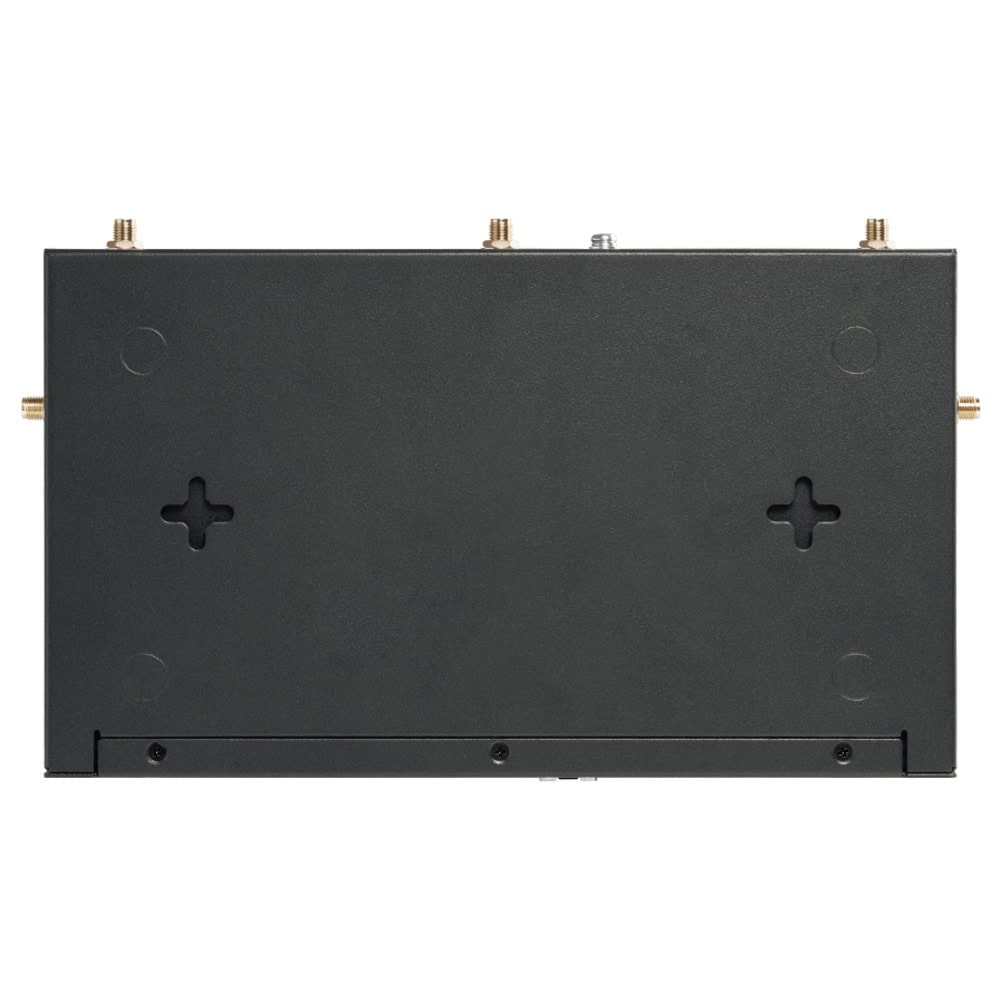

Mounting	Desktop / Wall
Max Power Consumption	EU: 17.3W
IPS Throughput	TCP: 229 Mbps; UDP: 188 Mbps
DPI Throughput	TCP: 933 Mbps; UDP: 927 Mbps
GRE Throughput	Unencrypted: 545.3 Mbps; Encrypted: 282.6 Mbps
WireGuard VPN	387.7 Mbps
Concurrent Sessions	150,000
New Sessions / Sec	5,100
NAT Throughput	Static IP: 947.1 / 940.1 Mbps; DHCP: 949.2 / 941.1 Mbps; PPPoE: 942.6 / 941.1 Mbps; L2TP: 875.4 / 892.0 Mbps; PPTP: 881.2 / 895.8 Mbps
IPsec VPN Throughput	SHA1-AES256: 652.2 Mbps; SHA256-AES256: 654.4 Mbps; SHA384-AES256: 646.5 Mbps; SHA512-AES256: 670.5 Mbps
Other VPN Throughput	OpenVPN: 115.5 Mbps; L2TP: 990.0 / 475.0 Mbps; PPTP: 1177.9 / 177.4 Mbps; SSL VPN: 122.5 Mbps
Packet Forwarding Rate	66 Byte: 1,453,489 / 1,453,488 pps; 1,518 Byte: 81,274 / 91,275 pps
Wireless Features	Seamless Roaming, Mesh (with EAP), OFDMA, Beamforming, MU-MIMO, SSID/Client Rate Limit, Airtime Fairness
Wireless Encryption	WPA/WPA2/WPA3 (Personal & Enterprise)
Multiple SSIDs	16 total (8 per radio)
Guest Network	Supported
WAN Connection Type	Static IP, Dynamic IP, PPPoE (MRU support), PPTP, L2TP
MAC Clone	Modify WAN Address
DHCP	Server, DHCPv6 PD (Standalone), DHCP Options, Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
SMS	Send / Receive
IPv6	Static IP, SLAAC, DHCPv6, PPPoE, 6to4 Tunnel, PassThrough, Non-Address mode
VLAN	802.1Q
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ACL	IP, Port, Protocol, Domain Filtering
Advanced Routing	Static, Policy Routing, RIP†, OSPF†
Bandwidth Control	IP-Based
Load Balance	Intelligent, App-Optimized Routing, Link Backup (Timing, Failover), Online Detection
NAT	One-to-One, Multi-Net, Virtual Server, Port Triggering†, NAT-DMZ, ALG (FTP/H.323/SIP/IPSec/PPTP), UPnP
Session Limit	IP-Based
VPN - GRE	Only in Standalone Mode
VPN - SSL	50 Tunnels
VPN - IPsec	100 Tunnels; Modes: LAN-to-LAN, Client-to-LAN; AES/DES/3DES; IKE v1/v2; NAT-T, DPD, PFS
VPN - PPTP	Server & Client (10), 50 Tunnels, MPPE Encryption
VPN - L2TP	Server & Client (10), 50 Tunnels, L2TP over IPsec
VPN - OpenVPN	Server & Client (5), 55 Tunnels, Certificate + Account, Full Mode
VPN - WireGuard	20 Tunnels
Web Authentication	None, Simple Password§, Hotspot (Local/Voucher§/SMS§/Radius§), External Radius/Portal§, LDAP
Omada App	Supported
Centralized Management	Omada Cloud, Hardware Controllers (OC300/OC200), Software Controller
Cloud Access	Yes
Dynamic DNS	Dyndns, No-IP, Peanuthull, Comexe, DDNS Custom
Maintenance	Web Interface, Remote Mgmt, Config Export/Import, SNMP v1/v2c/v3, Ping/Traceroute†, NTP Sync†, Port Mirroring, CLI (Standalone), Syslog
Zero-Touch Provisioning	Yes (requires Omada Cloud Controller)
Management Features	Auto Device Discovery, Network Monitoring, Event Warnings, Unified Config, Reboot Schedule, Captive Portal Setup

Виж още Рутери Безжични TP-Link
Виж всички Рутери Безжични в категорията

Документация

Технически характеристики

Безжична скорост:	3000 Mbps
Wi-Fi Стандарт:	Wi-Fi 6 (802.11ax)
Честота:	2.4 + 5 GHz
LAN портове:	4 x 1000 Mbps
WAN портове:	1 x 1000 Mbps
Антени:	5 Външни
USB портове:	Няма
3G/4G:	4G
Преносим:	Не
Други:	Слот за SIM карта
Жична скорост:	10/100/1000 Mbps
