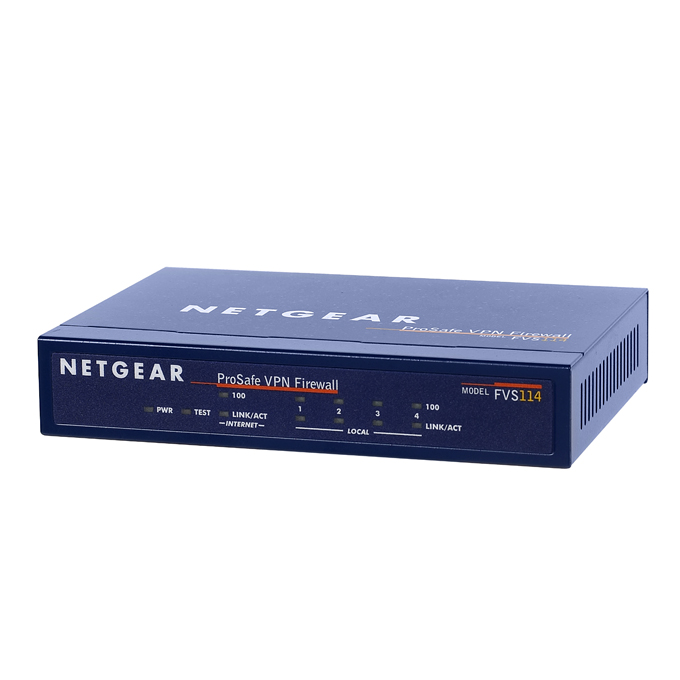

Суич NETGEAR FVS114 ProSafe VPN Firewall 8, 10/100Mbs 4Port

PROSAFE™ VPN FIREWALL 8 WITH 4 PORT 10/100 MBPS SWITCH

FVS114

Securely connects up to 8 remote office users to your office network via VPN

Ultimate security from a Stateful Packet Inspection (SPI) Firewall with Denial of Service (DoS) Protection and Intrusion Detection using Stateful Packet Inspection (SPI)

Network Address Translation (NAT) routing to share broadband connections

Specifications:

Physical Interfaces

* LAN ports: Four (4) 10/100 Mbps auto-sensing, Auto Uplink™, RJ-45 ports
* WAN port: 10/100BASE-T Ethernet RJ-45 port to connect to any broadband modem, such as DSL or cable

Security Features

* SPI Firewall: Stateful Packet Inspection (SPI) to prevent notorious Denial of Service (DoS) attacks, Intrusion Detection System (IDS) including logging, reporting and e-mail alerts, address, service and protocol, Web URL keyword filtering, prevent replay attack (reassembly attack), port/service blocking. Advanced features include block Java/URL/ActiveX based on extension, FTP/SMTP/RPC program filtering
* VPN Functionality: Eight (8) dedicated VPN tunnels, Manual key and Internet Key Exchange Security Association (IKE SA) assignment with pre-shared key and RSA/DSA signatures, key life and IKE lifetime time settings, perfect forward secrecy (Diffie-Hellman groups 1 and 2 and Oakley support), operating modes (Main, Aggressive, Quick), fully qualified domain name (FQDN) support for dynamic IP address VPN connections.
* IPSec Support: IPSec-based 56-bit (DES), 168-bit (3DES), or 256-bit (AES) encryption algorithm, MD5 or SHA-1 hashing algorithm, AH/AH-ESP support, PKI features with X.509 v.3 certificate support, remote access VPN (client-to-site), site-tosite VPN, IPSec NAT traversal (VPN pass through)
* Mode of Operation: One-to-one/many-to-one Multi-Network Address Translation (NAT), classical routing, unrestricted users per port
* IP Address Assignment: Static IP address assignment, internal DHCP server on LAN, DHCP client on WAN, PPPoE client support

Performance Features

* Throughput: Up to 11.5 Mbps WAN-to-LAN, up to 2.1 Mbps for 3DES throughput

Management Features

* Administration Interface: Web graphic user interface, Secure Sockets Layer (SSL) remote management, user name and password protected; secure remote management support authenticated through IP address or IP address range and password; configuration changes/ upgrades through web GUI.
* Configuration and Upgrades: Upload and download configuration settings, firmware upgradeable flash memory
* Logging: SYSLOG, e-mail alerts

Functions

* VPN Wizard to simplify configuration of the VPN, Smart Wizard to automatically detect ISP Address type (static, dynamic, PPPoE), Port Range Forwarding, Port Triggering, Exposed Host (DMZ), Enable/Disable WAN Ping, DNS Proxy, MAC Address cloning/spoofing, Network Time Protocol NTP support, Keyword Content Filtering, email Alerts, DHCP Server (Info and display table), PPPoE login client support, WAN DHCP Client, Diagnostic tools (ping, trace route, other), Port/service, Auto-Uplink on switch ports

Protocol Support

* Network: IP routing, TCP/IP, UDP, ICMP, PPPoE
* IP Addressing: DHCP (client and server)
* Routing: RIP v1, RIPv2 (Static Routing, Dynamic Routing)
* VPN/Security: IPSec (ESP, AH), MD5, SHA-1, DES, 3DES, IKE, PKI, AES

User Support

* LAN: Up to 253 users

Maintenance

* Save/Restore Configuration, Restore Defaults, Upgrades via Web Browser, Display Statistics, Logging, SYSLOG support.

Hardware Specifications

* Processor: 200 Mhz 32-bit RISC
* Memory: 2MB Flash, 16MB SDRAM
* Power requirements: 100-240VAC, 50-60 Hz. 12V 1.0 A MAX or @230V 0.06 A MAX
* Power adapter: 12V DC, 1.0A Plug is localized to country of sale

Physical Specifications

* Dimensions: (w x d x h) 14.06 x 9.95 x 2.66 cm (5.54 x 3.92 x 1.05 in.)
* Weight: .81 lb (.368 kg)

Environmental Specifications

* Operating temperature: 0 to 40°C (32 to 104^(o)F)
* Operating humidity: 90% maximum relative humidity, noncondensing

Warranty

* NETGEAR Lifetime Warranty†

Package Contents

* ProSafe VPN Firewall 8 (FVS114)
* Ethernet cable
* Installation guide
* Resource CD
* Warranty/Support information card
