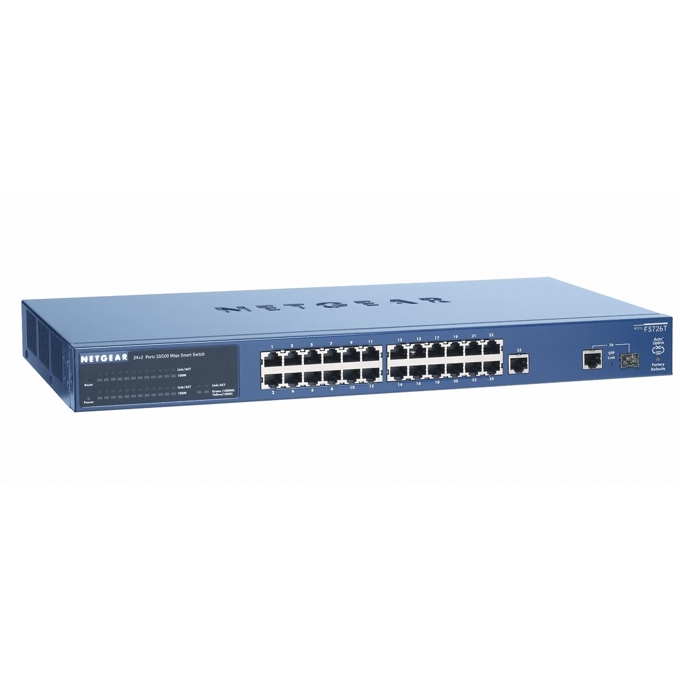

Суич NETGEAR FS726T, 24x 10/100 Smart Суич with 2x 10/100/1000 Ports

Network Protocol and Standards Compatibility:
· IEEE 802.3 10BASE-T
· IEEE 802.3u 100BASE-TX
· IEEE 802.3ab 1000BASE-T
· IEEE 802.3z 1000BASE-X
· IEEE 802.3x full-duplex flow control
Power Supply:
· Power Consumption: 13 W maximum
· 100-240VAC/50-60 Hz universal input
Physical Specifications:
· Dimensions (W x D x H): 440 x 205 x 43 mm (17.8 x 8.1 x 1.6 in.)
· Weight: 2.5 kg (5.5 lb)
Network Ports:
· 24 10/100 Mbps auto sensing Fast Ethernet
· 2 10/100/1000 Mbps auto-sensing Gigabit Ethernet switching ports (RJ-45)
· 1 SFP slot for SFP GBIC Modules
LEDs:
· Per port: (10/100 and Gigabit): Link/ Activity, Speed
· Per device: Power
Administrative Switch Management:
· IEEE 802.1Q Static VLAN (Up to 64)
· Port-based VLAN (Up to 26)
· IEEE 802.1p Class of Service (CoS)
· Port-based QoS
· IEEE802.3ad (manual) Link Aggregation
· IEEE 802.1D Spanning Tree Protocol**
· RFC 1157 SNMP v1**
· RFC 1213 MIB II**
· RFC 1643 Ethernet Interface MIB**
· RFC 1493 Bridge MIB**
· RFC 2131 DHCP client
· Private Enterprise MIB**
· Port Mirroring Support
· Web-based configuration
· Configuration Backup/Restore
· Password Access Control
· Firmware upgradeable
Performance Specifications:
· Forwarding modes: Store-and-forward
· Bandwidth: 8.8 Gbps
· Network latency: <20µs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
· Buffer memory: 256 KB embedded memory per unit
· Address database size: 8,000 media access control (MAC) addresses per system
· Addressing: 48-bit MAC address
· Mean Time Between Failure (MTBF): 300,000 hours (~34 years)
Electromagnetic Emissions:
· CE mark, commercial
· FCC Part 15 Class A
· VCCI Class A
· C-Tick

Electromagnetic Immunity:
· EN 55024

Safety:
· CE mark, commercial
· cUL IEC950/EN60950

Limited Lifetime Warranty

Package Contents :
· 24-port Smart Switch with Gigabit Ports FS726T
· Rubber footpads
· Power cord
· Rack-mount kit
· Resource CD
· Installation guide
· Warranty/Support information card
