Дънна платка за сървър SuperMicro X9SRL-F, LGA2011 (до 130W), поддържа ECC DDR3, 4x PCI-E 3.0 x8, 3x Lan1000, RAID (0,1,5,10), ATX

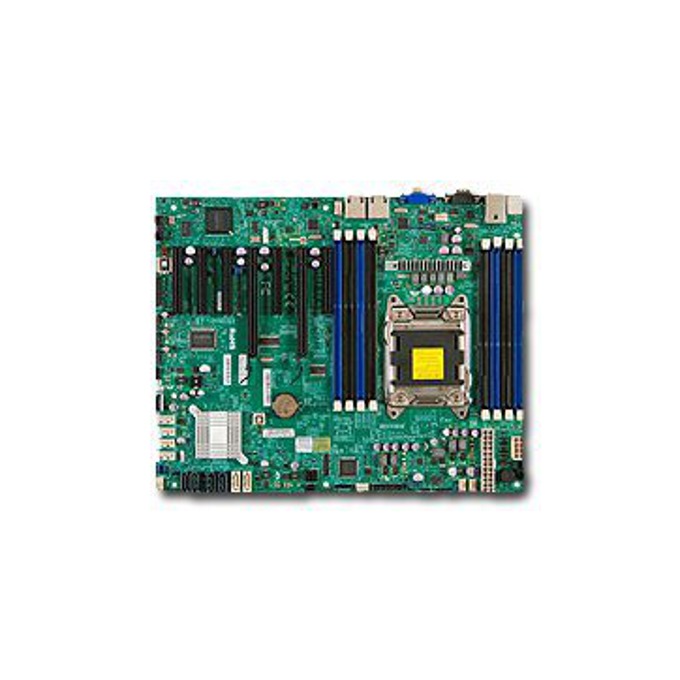

SuperMicro X9SRL-F

Physical Stats

Form Factor ATX
Dimensions 12" x 9.6", (30.5cm x 24.4cm)

Processor/Cache

CPU Single Socket R (LGA 2011), Intel Xeon processor E5-2600/1600 and E5-2600/1600 v2 family† (up to 12 cores and up to 130W)
Note BIOS version 3.0 or above is required

System Memory

Memory Capacity
8x 240-pin DDR3 DIMM sockets
Up to 512GB DDR3 ECC LRDIMM
Up to 256GB DDR3 ECC RDIMM
Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type 1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage 1.5 V, 1.35 V
Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset Intel C602 chipset

SATA

SATA3 (6Gb/s) and SATA2 (3Gb/s)
RAID 0, 1, 5, 10 support

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450RA0BX

Network Controllers

Intel® 82574L Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video Matrox G200eW 16MB DDR2 graphics
Video 1 VGA port

Input / Output

SATA 2 SATA 3.0 ports (6Gb/s), 4 SATA 2.0 ports (3Gb/s)
SCU 4 SATA ports (3Gb/s) via SCU
LAN 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port
USB 9 USB 2.0 ports total (2 rear + 6 via header + 1 Type A)

Keyboard/Mouse 2 PS/2 Keyboard/Mouse ports
Serial Port / Header 1 serial port, 1 by headers
DOM 1 DOM (Disk on Module) power connector
TPM 1 TPM 1.2 20-pin Header

Expansion Slots

PCI-Express
2x PCI-E 3.0 x8 (in x16) slots
2x PCI-E 3.0 x8 slots
2x PCI-E 3.0 x4 (in x8) slots
1x PCI-E 2.0 x4 (in x8) slot
