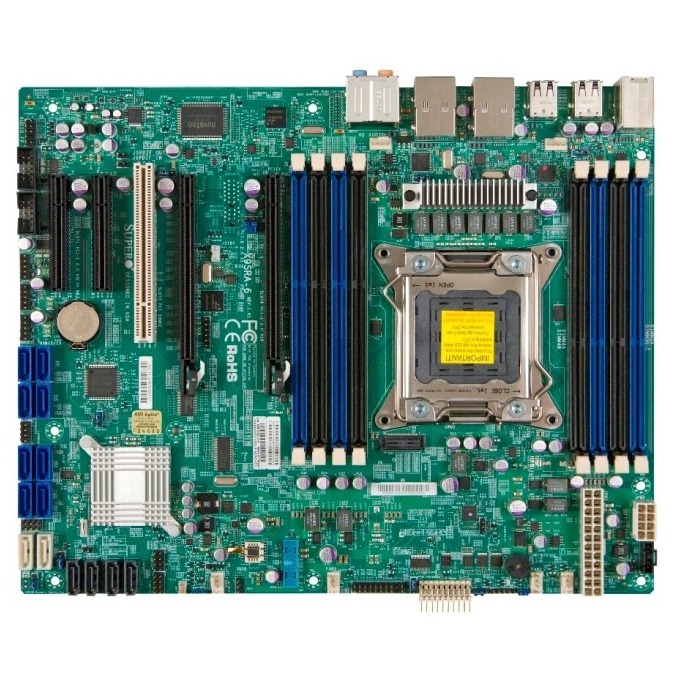

Дънна платка за сървър SuperMicro X9SRA, LGA2011, поддържа ECC DDR3, 2x PCI-E 3.0 x16, 2x LAN1000, RAID (0,1,5,10), ATX

SuperMicro X9SRA

Physical Stats

Form Factor ATX
Dimensions 12" x 9.6", (30.48cm x 24.4 cm)

Processor/Cache
CPU Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family (up to 12 cores and up to 150W) Single Socket R (LGA 2011)
Note † BIOS version 3.0 or above is required
CPU Intel® Core i7 v2/v3 Extreme / Performance LGA 2011 processors with Non-ECC UDIMM only

System Memory

Memory Capacity
8x 240-pin DDR3 DIMM sockets
Up to 512GB DDR3 ECC LRDIMM
Up to 256GB DDR3 ECC RDIMM
Up to 64GB DDR3 ECC/non-ECC UDIMM

Memory Type 1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage 1.5 V, 1.35 V
Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset Intel C602 chipset
SATA SATA3 (6Gb/s) and SATA2 (3Gb/s), RAID 0, 1, 5, 10 support (Windows), RAID 0, 1, 5, 10 support (Linux)

Network Controllers

Intel® 82579LM and 82574L, 2x Gigabit LAN ports
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O Winbond


Input / Output

SATA 2x SATA 3.0 ports (6Gb/s), 4x SATA 2.0 ports (3Gb/s)

SCU 4x SATA 2.0 ports (3Gb/s) via SCU

LAN 2x RJ45 Gigabit Ethernet LAN ports

USB 4x USB 3.0 ports (5Gbps), 14x USB 2.0 ports total (8x rear + 6x via header)

Audio Line-in / Line-out / Microphone Ports

Keyboard/Mouse PS/2 Keyboard/Mouse port

Serial Port / Header 2x headers

Expansion Slots

PCI-E / PCI
2x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x4 (in x8) slot
1x PCI-E 2.0 x4 (in x8) slot
1x PCI-32 slot
