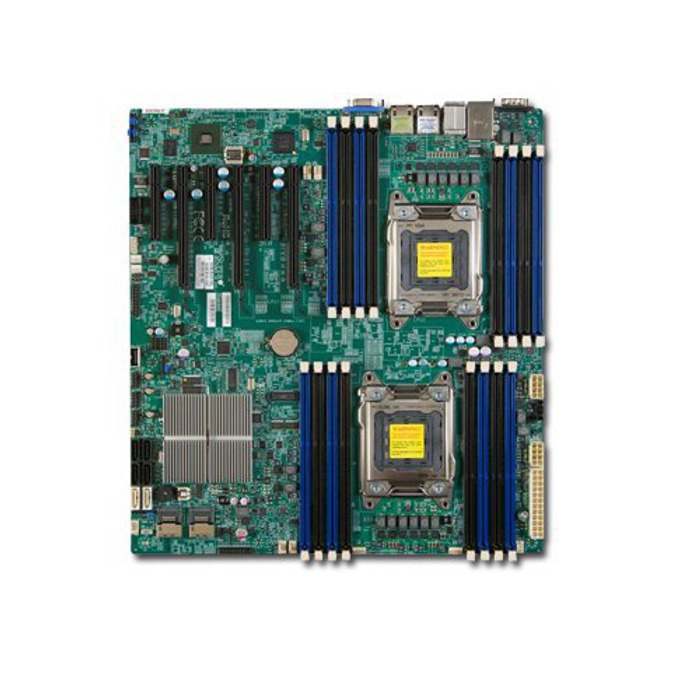

Дънна платка за сървър SuperMicro X9DBL-IF, LGA1356 (до 95W), PCI-E 3.0 x16, 2x Lan1000, 4x SATA2 RAID (0,1,5,10) & SATA3 RAID (0,1), E-ATX

SuperMicro X9DBL-IF

Physical Stats

Extended ATX
Dimensions 12" x 10" (30.48cm x 25.4cm)


Processor/Cache

CPU Intel® Xeon® processor E5-2400 and E5-2400 v2 (up to 95W TDP **), Dual Socket B2 (LGA 1356)
Cache Up to 25MB
System Bus QPI up to 8 GT/s
Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory

Memory Capacity
6x 240-pin DDR3 DIMM sockets
Up to 384GB DDR3 ECC LRDIMM
Up to 192GB DDR3 ECC Registered memory (RDIMM)
Up to 48GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type 1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs, Support ECC and non-ECC UDIMMs
Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V, 1.35 V
Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset Intel® C602 chipset
AHCI SATA SATA 2.0 3Gbps with RAID 0, 1, 5, 10, SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SCU SATA SATA 2.0 3Gbps with RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC

Network Controllers

Intel® 82574L Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201F PHY (dedicated IPMI)

Video Matrox G200eW
Video 1x VGA port

Input / Output

AHCI SATA 2x SATA 3.0 ports (6Gbps), 4x SATA 2.0 ports (3Gbps)
SCU SATA 4x SATA 2.0 ports (3Gbps)
LAN 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port
USB 7x USB 2.0 ports total (2 rear + 4 via header + 1 Type A)
Serial Port / Header 2x Fast UART 16550 ports / 1 rear and 1 header
DOM 1 DOM (Disk on Module) power connector

Expansion Slots

PCI-Express
1x PCI-E 3.0 x16
3x PCI-E 3.0 x8
1x PCI-E 3.0 x4 (in x8)
1x PCI-32
