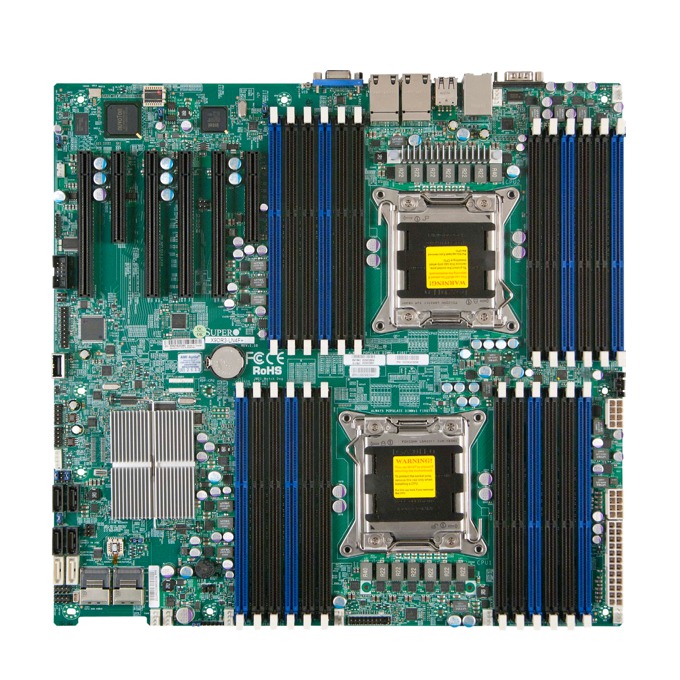

Дънна платка за сървър SuperMicro MBD-X9DRI-LN4F+, 2x LGA 2011, поддържа ECC/non-ECC UDIMM, 4x Lan1000, 2x SATA3/4x SATA2, 9x USB, Video Matrox G200eW, ATX, bulk package

Physical Stats

-Form Factor
Enhanced Extended ATX

-Dimensions
13.68" x 13" (34.7cm x 33cm)

-CPU
Dual Socket R (LGA 2011)
Intel® Xeon® processor E5-2600
and E5-2600 v2 family†
(up to 135W TDP **)

Note: BIOS version 3.0 or above is required
Note: Motherboard supports this maximum TDP. Please verify your system can thermally support.

-Cache
Up to 30MB

-System Bus
QPI up to 8 GT/s

-Memory Capacity
24x 240-pin DDR3 DIMM slots
Up to 1.5TB DDR3 ECC LRDIMM
Up to 768GB DDR3 ECC RDIMM
Up to 128GB DDR3 ECC/non-ECC UDIMM

-Memory Type
1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Support ECC and non-ECC UDIMM

-DIMM Sizes
32GB, 16GB, 8GB, 4GB, 2GB, 1GB,
64GB LRDIMM

-Chipset
Intel® C602 chipset

-AHCI SATA
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10

-SCU SATA
SATA 2.0 3Gbps with RAID 0, 1, 5, 10

-IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC

-Network Controllers
Intel® i350 Gigabit Ethernet (x4 ports)
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)

-Video
Matrox G200eW


-Input / Output
AHCI SATA
2x SATA 3.0 ports (6Gbps)
4x SATA 2.0 ports (3Gbps)

SCU SATA
4x SATA 2.0 ports (3Gbps)

-LAN
4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

-USB
9 USB 2.0 ports total
(4 rear + 4 via header + 1 Type A)

-Video
1 VGA port

-Serial Port / Header
2 Fast UART 16550 ports: 1 rear and 1 header

-DOM
1 DOM (Disk on Module) power connector

-TPM
1 TPM 1.2 20-pin Header

-BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS

-BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
