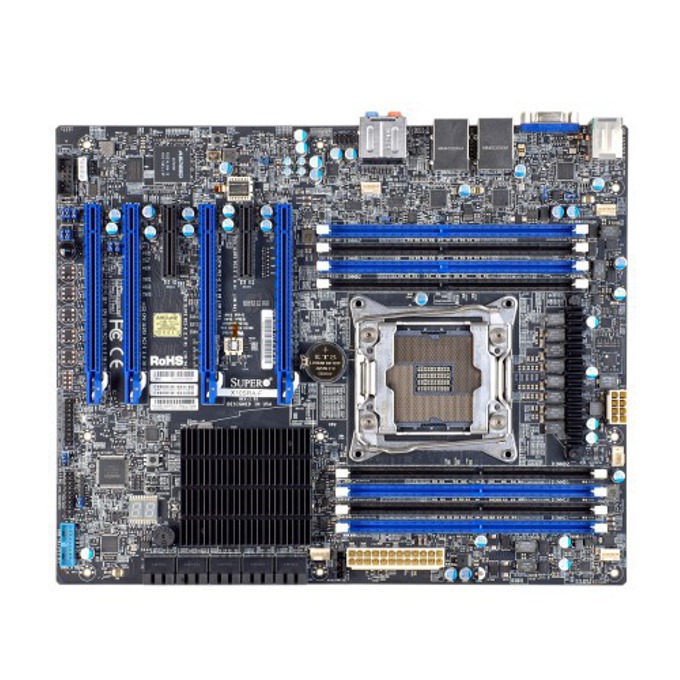

Дънна платка за сървър Supermicro X10SRA-F, LGA2011, DDR4 ECC (RDIMM/LRDIMM), 4x PCI-E 3.0, 2x Lan1000, 8x USB3.0, ATX, bulk

Supermicro X10SRA-F

CPU
Intel® Xeon® processor E5-2600/1600 v3 family or Intel® 4th gen. Core™ i7 series (up to 160W TDP **)
Single Socket R3 (LGA 2011)
Core / Cache
Up to 18 Cores / Up to 45MB Cache

Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Up to 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)

Memory Type
2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs

DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB

Memory Voltage
1.2 V

Chipset
Intel C612 Express chipset

SATA
SATA3 (6Gbps) via C612 controller
RAID 0, 1, 5, 10 support

Network Controllers
Intel® i210-AT Dual Port Gigabit Ethernet
Share with IPMI
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio
RealTek ALC1150 High Definition Audio

SATA
10x SATA3 (6Gbps) ports

LAN
2x RJ45 Gigabit Ethernet LAN ports
Shared with IPMI

USB
8x USB 3.0 ports (6 rear + 2 via header)
4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only)

Audio
7.1 HD Jacks

Keyboard/Mouse
1 PS/2 Keyboard/Mouse port

Serial Port / Header
1x header

TPM
1x TPM 1.2 20-pin Header

PCI-Express
4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
2x PCI-E 2.0 x1 (in x4) slots

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
