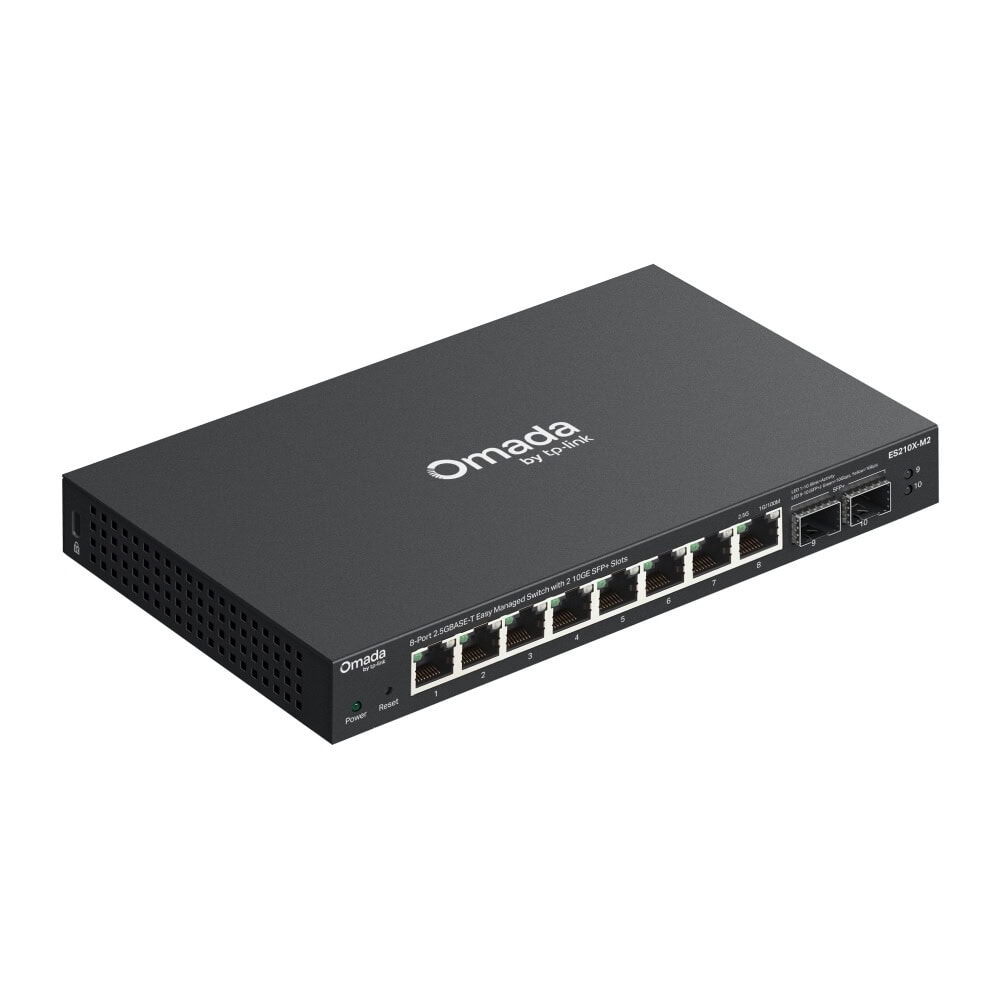

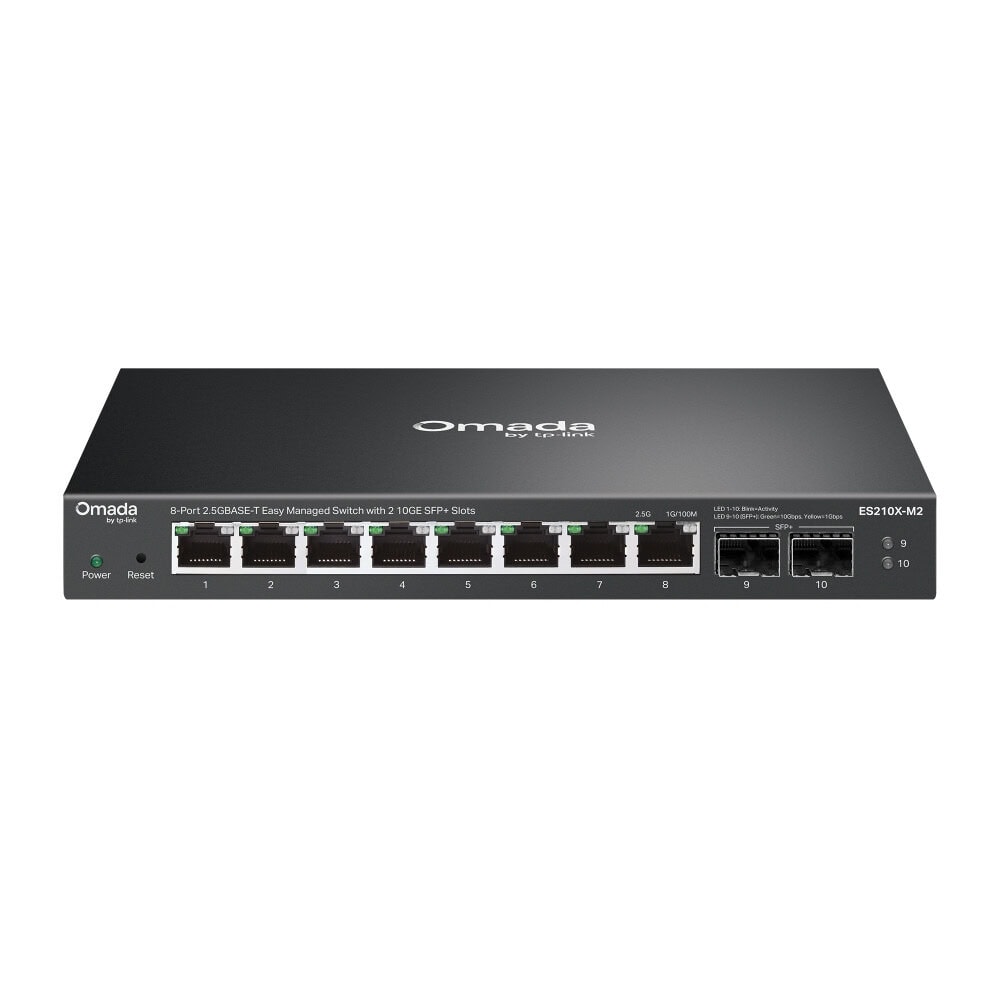

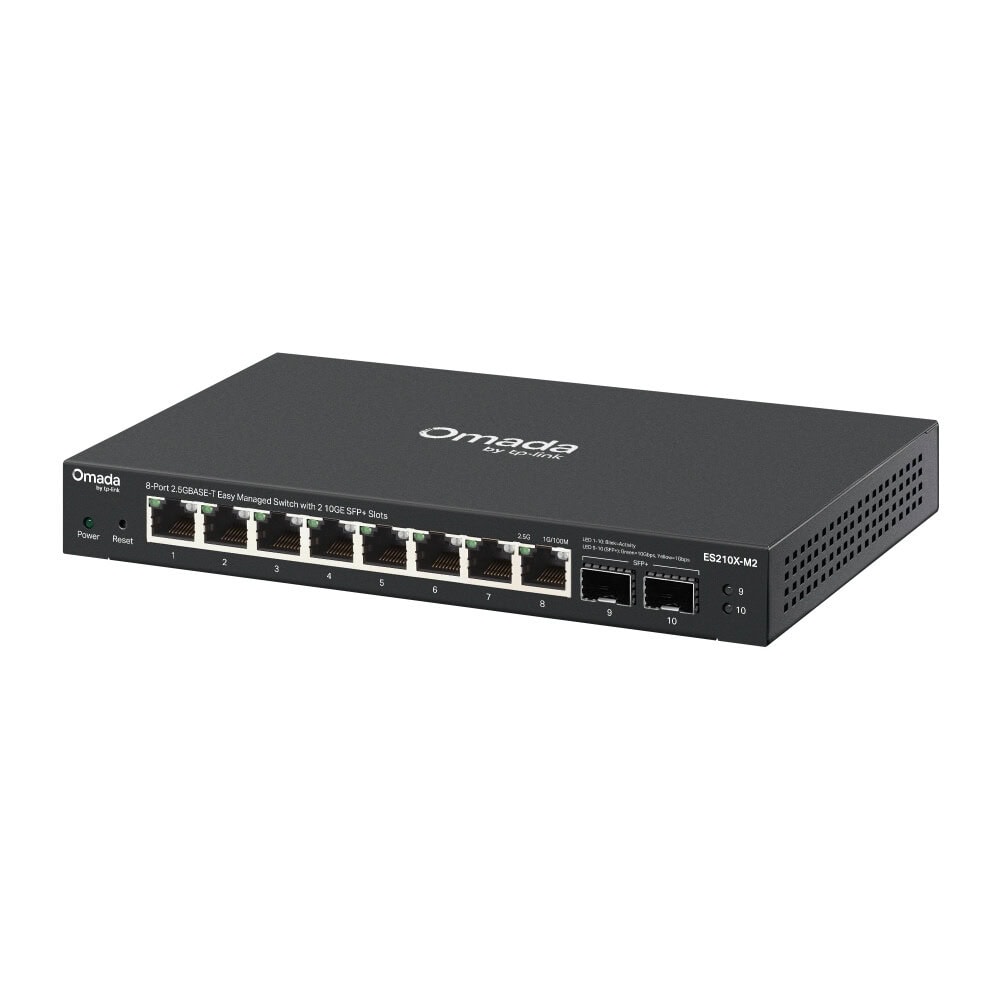

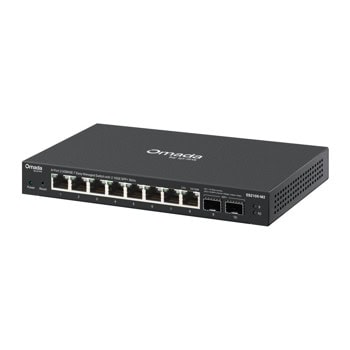

Суич TP-Link Omada ES210X-M2, 2500Mbps, 10 порта, 8x 10/100/1000/2500Mbps RJ45, 2x SFP+

Unlock the Highest Performance of 2.5G
Multi-Gig Bandwidth and Devices

Reliable Connection with 10G Uplink

2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, allowing for lightning-fast connections to servers and other switches.

Omada Central Essentials — A Free and Easy Cloud‑Based Network Management

Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Compact and Durable Metal Casing, Featuring

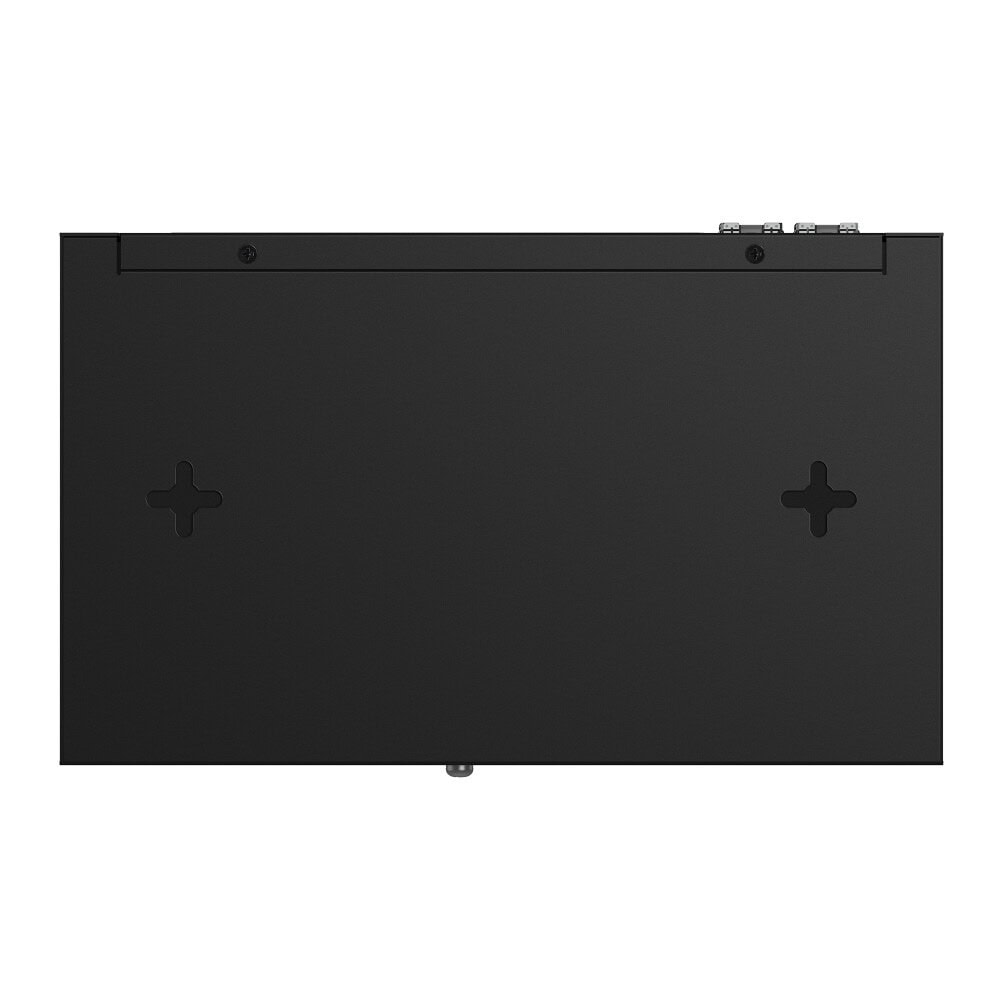

Desktop/Wall Mounting and a Fanless Design

Спецификации

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
Интерфейс
• 8× 2.5 Gbps RJ45 Ports
• 2× 10 Gbps SFP+ Slots
• Auto-Negotiation/Auto MDI/MDIX
Брой вентилатори    Fanless
Инсталация
• Desktop
• Wall Mount
Защита с физическо заключване    Да

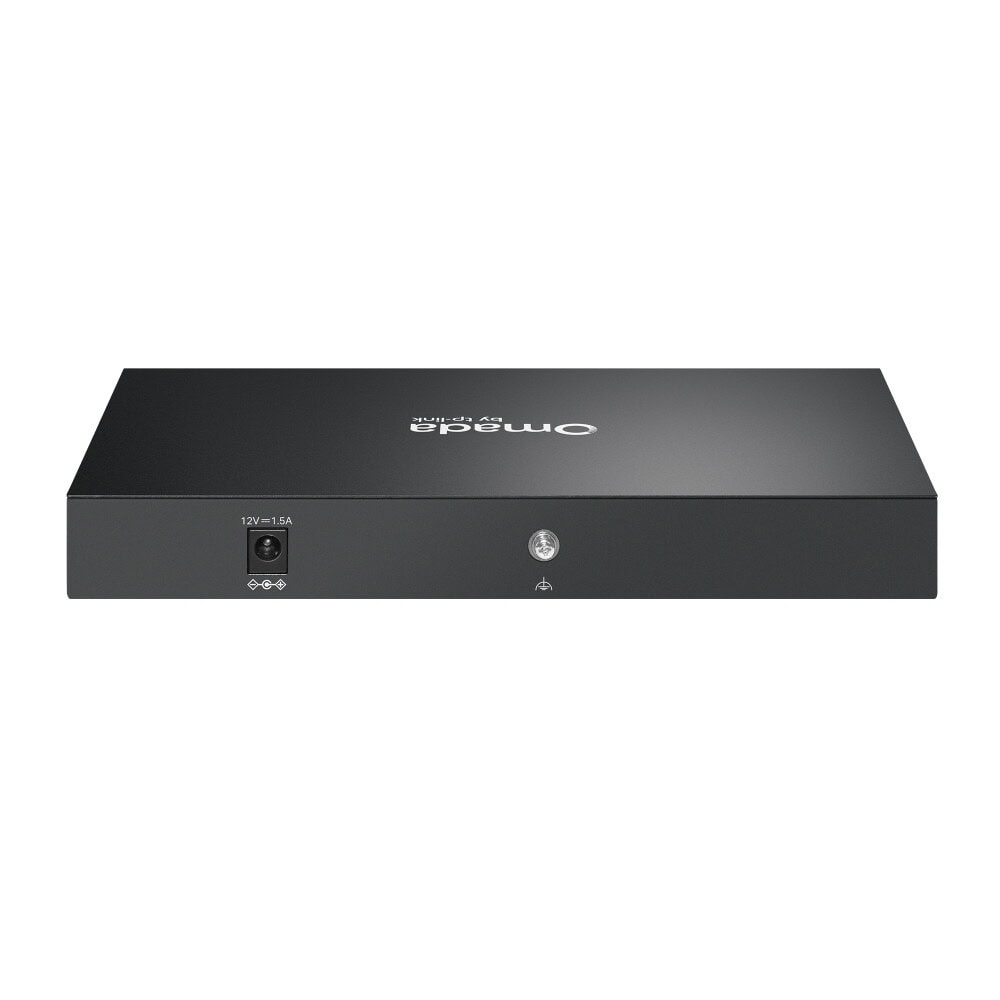

Захранване    AC/DC Adapter (Input: 100-240V AC; Output: 12V DC/1.5A)
Размери (Ш x Д x В )    8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection    ±6 kV

ПРОИЗВОДИТЕЛНОСТ
Packet Buffer Memory    640 KB
Jumbo кадър    10 KB
Комутационен капацитет    80 Gbps
Скорост на предаване на пакети данни    59.52 Mpps
Таблица на МАС адресите    16K

СОФТУЕРНИ ХАРАКТЕРИСТИКИ
Качество на услугата
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2 характеристики
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method    Store-And-Forward

Management Features
Omada App    Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access    Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning    Yes. Requires the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

ДРУГИ
Сертификати    FCC, CE
Околна среда
• Operating Temperature: -5℃~40℃ (23℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
