Комутатор Ruijie RG-ES206MG-P, 2500 Mbps, 6 порта, 5x 10/100/1000/2500Mbps RJ45 ( 4x PoE+), 1x SFP+

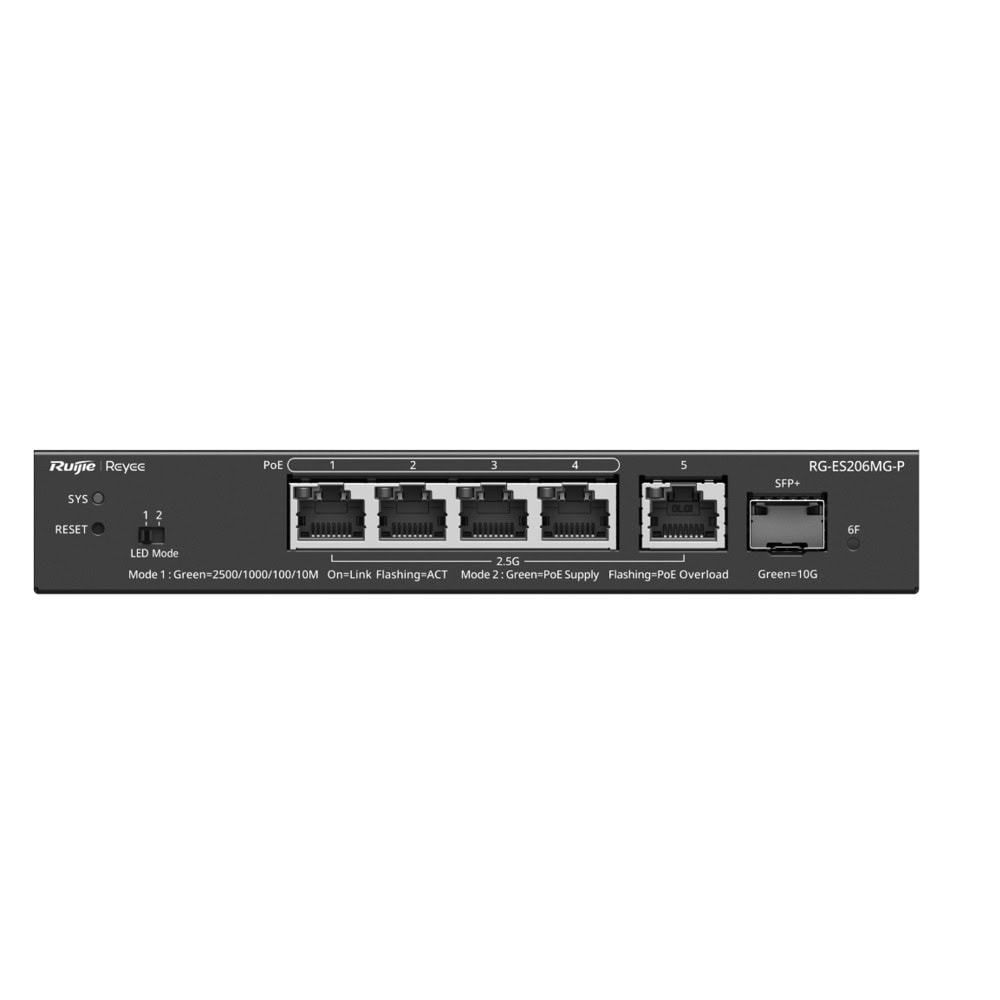

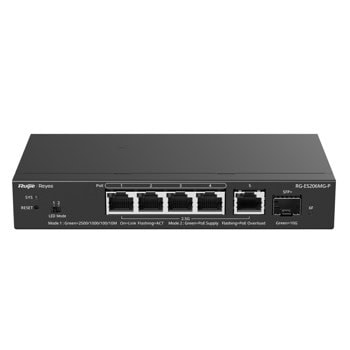

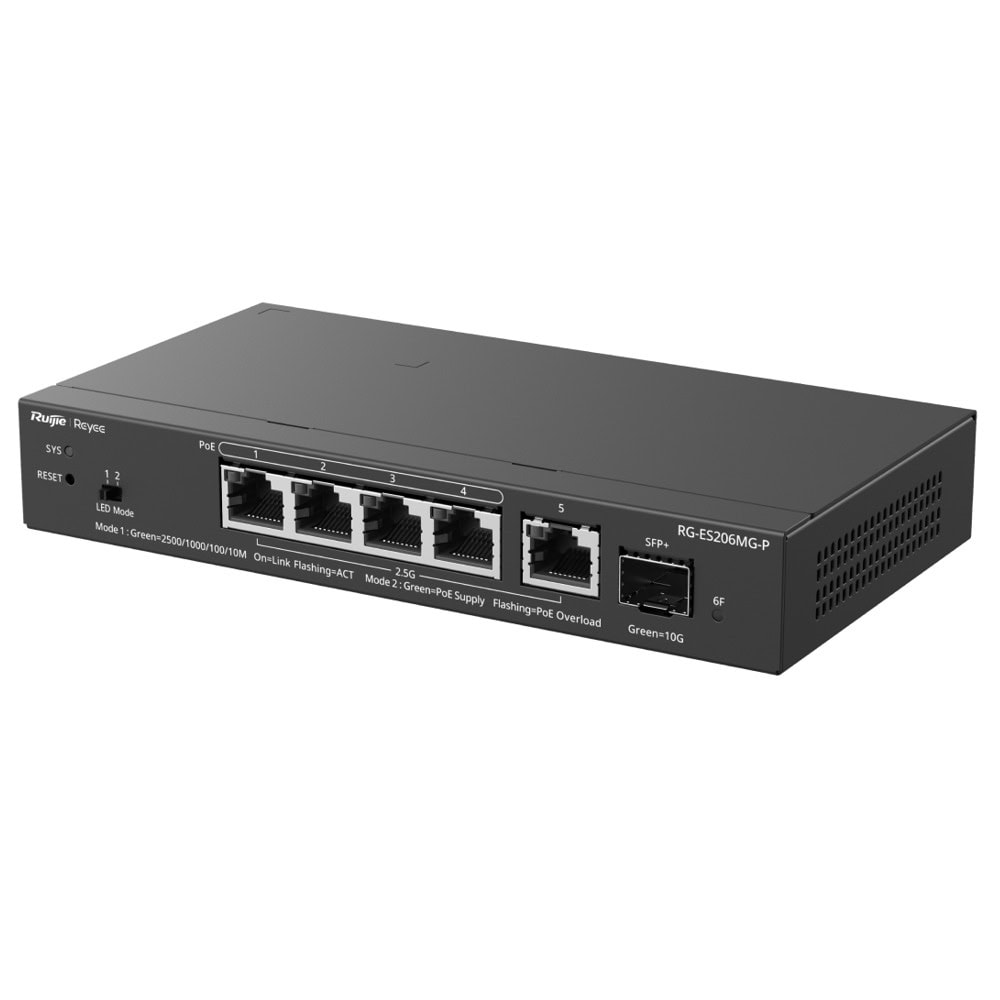

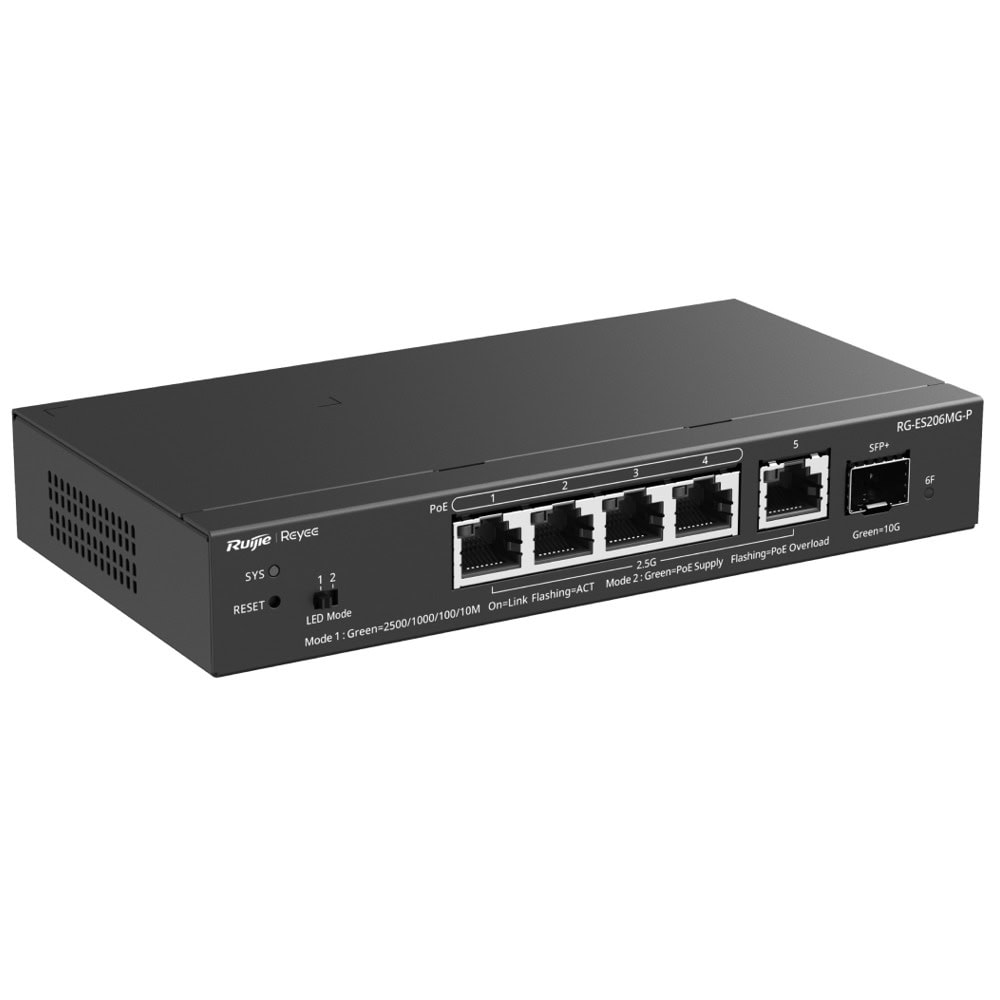

Ruijie RG-ES206MG-P

Highlight Features

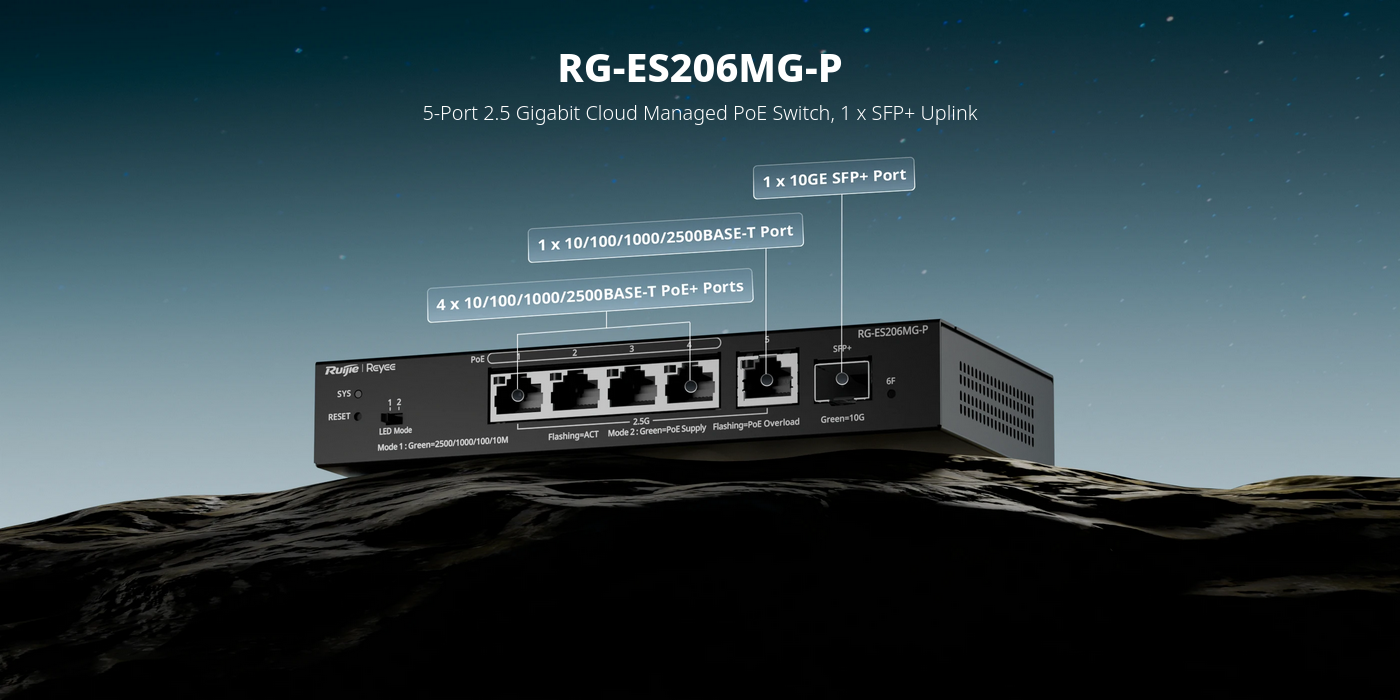

• 5 x 2.5G ports and 1 x 10GE SFP+ port for higher network performance
• 4 x PoE Out ports supporting IEEE 802.3 af/at standards, 70 W PoE budget
• Aggregation of up to 4 ports, unlocking higher network speed
• Cost-effective smart cloud managed switches
• Lifetime free cloud management on Ruijie Cloud anytime, anywhere

Port Specifications

Total number of RJ45 ports

• 5

Total number of optical ports

• 1

Number of 10GE SFP+ ports

• 1

Number of 10/100/1000/2500BASE-T ports

• 5

Power Supply and Consumption

Number of PoE Out ports

• 4

Number of PoE/PoE+ Out ports

• 4

PoE budget

• 70 W

PoE power pins

• 1–2 (+), 3–6 (-)

System Specifications

Forwarding rate

• 33.75 Mpps

Switching capacity

• 45 Gbps (bit/s)

Environment and Reliability

Operating temperature

• 0°C to 40°C (32°F to 104°F)

Software Specifications

Basic Configurations

PoE watchdog

• Yes

Security

Port isolation

• Yes
