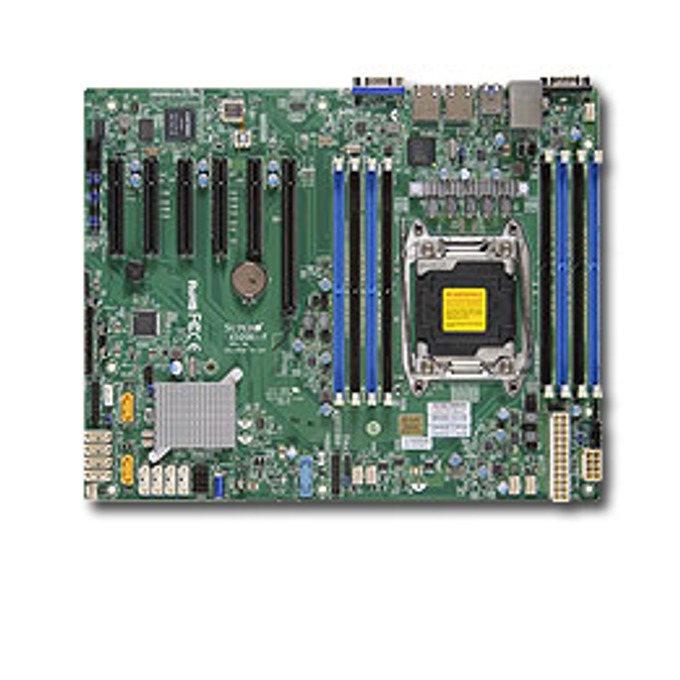

Дънна платка за сървър SM MBD-X10SRI-F, LGA2011, поддържа ECC DDR4 SDRAM, 2x Lan1000, 10x SATA 6.0Gb/s, RAID 0/1/10/5, VGA, ATX, bulk

X10SRi-F (Bulk Pack)
Form Factor
ATX
Dimensions
12" x 9.6", (30.5cm x 24.4cm)
CPU

Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **)
Single Socket R3 (LGA 2011)
Core / Cache

Up to 22 Cores† / Up to 55MB Cache

Note BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support

** E5-1600 series CPU does not support LRDIMM type memory

Memory Capacity

8x 288-pin DDR4 DIMM slots
Up to 1TB ECC 3DS LRDIMM
Up to 512GB ECC LRDIMM
Up to 256GB ECC RDIMM

Memory Type

2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs

DIMM Sizes

3DS LRDIMM: 128GB
LRDIMM: 64GB, 32GB
RDIMM: 32GB, 16GB, 8GB, 4GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chipset

Intel C612 chipset

SATA

SATA3 (6Gbps) via C612 controller
RAID 0, 1, 5, 10 support

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers

Intel® i350-AM2 Dual Port Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

ASPEED AST2400 BMC
SATA

10x SATA3 (6Gbps) ports

LAN

2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port

USB

4x USB 3.0 ports (2 rear + 1 via header + 1 Type A)
8x USB 2.0 ports (2 rear + 6 via header)

Video

1x VGA port

Serial Port / Header

1x serial port, 1x header

SuperDOM

2x SuperDOM (Disk on Module) ports with built-in power

TPM

1x TPM Header
1U Chassis:

SC815TQ-563CB
SC813MFTQ-441CB
SC813MFTQ-R400CB
SC813MFTQ-R606CB

2U Chassis:

SC213LT-600LPB
SC823TQ-653LPB
SC826TQ-R500LPB
SC825TQ-563LPB

3U Chassis:

SC833T-653B
SC836TQ-R500B

Mid/Mini Tower Chassis:

SC732i-500B

4U / Tower Chassis:

SC743T-665B
SC842TQ-865B
SC842TQ-665B
SC842i-500B

Important Chassis Notes

To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.
Model(s)

SYS-5018R-M
SYS-5018R-MR
PCI-Express

1x PCI-E 3.0 x16 slot
1x PCI-E 3.0 x4 (in x8) slot
2x PCI-E 3.0 x8 slots
1x PCI-E 2.0 x4 (in x8) slot
1x PCI-E 2.0 x2 (in x8) slot

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Software

Intel® Node Manager
IPMI 2.0 with KVM support
SuperDoctor® 5
Watch Dog
NMI
SPM
SUM

Power Configurations

ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
Voltage

Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN

Total of 6 fan headers supporting up to 6 fans
6 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED

CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID

Other Features

Chassis intrusion detection
Chassis intrusion header
Chipkill support
RoHS, Halogen Free
Operating Temperature Range

0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range

-40°C ~ 70°C (-40°F ~ 158°F)

Operating Relative Humidity Range

8% ~ 90% (non-condensing)

Non-Operating Relative Humidity Range

5% ~ 95% (non-condensing)
