Name: WiFi реле Shelly EM Mini Gen4, за контакт, функция за измерване на волтаж/ампераж/мощност, Bluetooth, бяло
Brand: Shelly
SKU: HOAUSHELLYS4EM001PXCEU16
Price: 41.82 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси

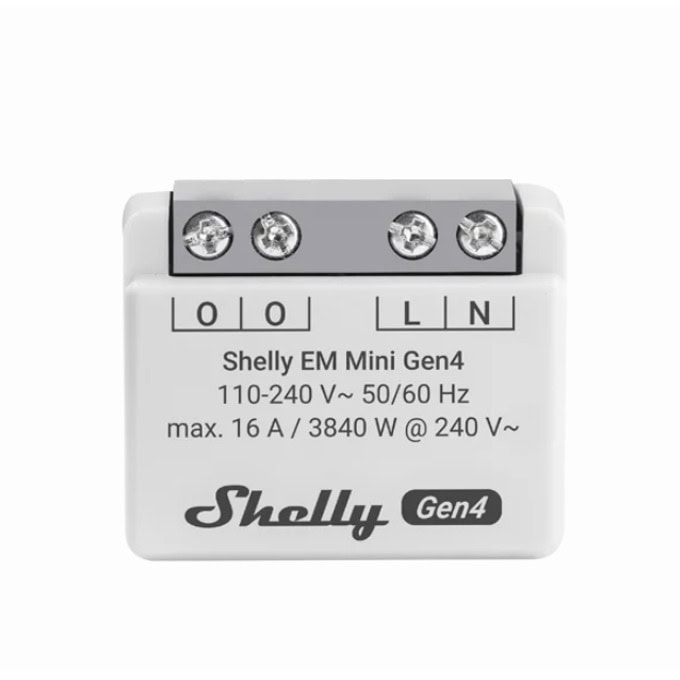

Shelly EM Mini Gen4

Power consumption analysis for cost optimization

All connected electrical appliances we don't use during the night or forgotten switched-on lights generate unnecessary energy. Shelly EM Mini Gen4's smart energy metering will help you identify and eliminate any redundant energy consumption from each connected appliance around your home or facility. Together with smart scenes, you can use Shelly EM Mini Gen4's data to trigger scenarios, such as turning off appliances during a spike to protect them or during the night to save energy. *

*This is only an energy meter. There is no relay inside.

Preventative monitoring

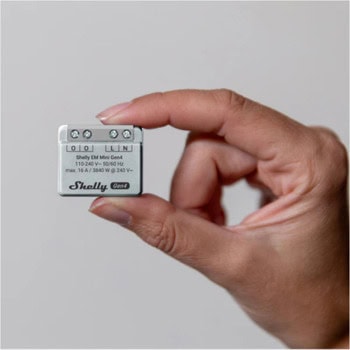

When an electrical appliance is damaged, it doesn't simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Shelly EM Mini Gen4 will fit anywhere you need it to and can immediately report the increase in energy consumption, saving you additional expenses on repairs or equipment replacement.

Multiprotocol connectivity

Highly compatible! Choose the best protocol for your smart home—Zigbee, Wi-Fi, or Bluetooth

Energy Metering

Provides precise monitoring of the energy consumption of the connected appliance or device

Smart scenes

Set custom scenes by combining Shelly EM Mini Gen4 with your other devices

Matter certified

Integrates into any Matter ecosystem

Smart schedules

Set custom schedules based on your daily agenda

Scripting

Shelly EM Mini Gen4 fully supports mjS scripting, allowing you to create custom features and functionalities

Specifications

Environmental

Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft

Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall console
Shell material:	Plastic

Electrical

Power supply:	110-240 V~
Power consumption:	< 1 W
External protection:	Tripping characteristic B or C, max. 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3

Sensors, meters

Voltmeter (AC):	110-240 V~ 50/60 Hz
Voltmeter accuracy:	±1%
Ammeter (AC):	0 - 16A
Ammeter accuracy:	±1%
Power and energy meters:	Active power Active energy
Measurement data storage:	At least 10 days of 1 min data resolution
Data export:	CSV for PQ recorded values JSON format export through RPC

Output circuits ratings

Power measurement:	Yes
Max. measurement voltage:	240 V~
Max. measurement current:	16 A
Max. measurement power:	3840 W

Radio

Wi-Fi

Protocol:	802.11 b/g/n/ax
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:	5.0
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Zigbee

Protocol:	802.15.4
RF bands:	2400 to 2483.5 MHz
Max. RF power:	< 20 dBm
Range:	Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)

Microcontroller unit
