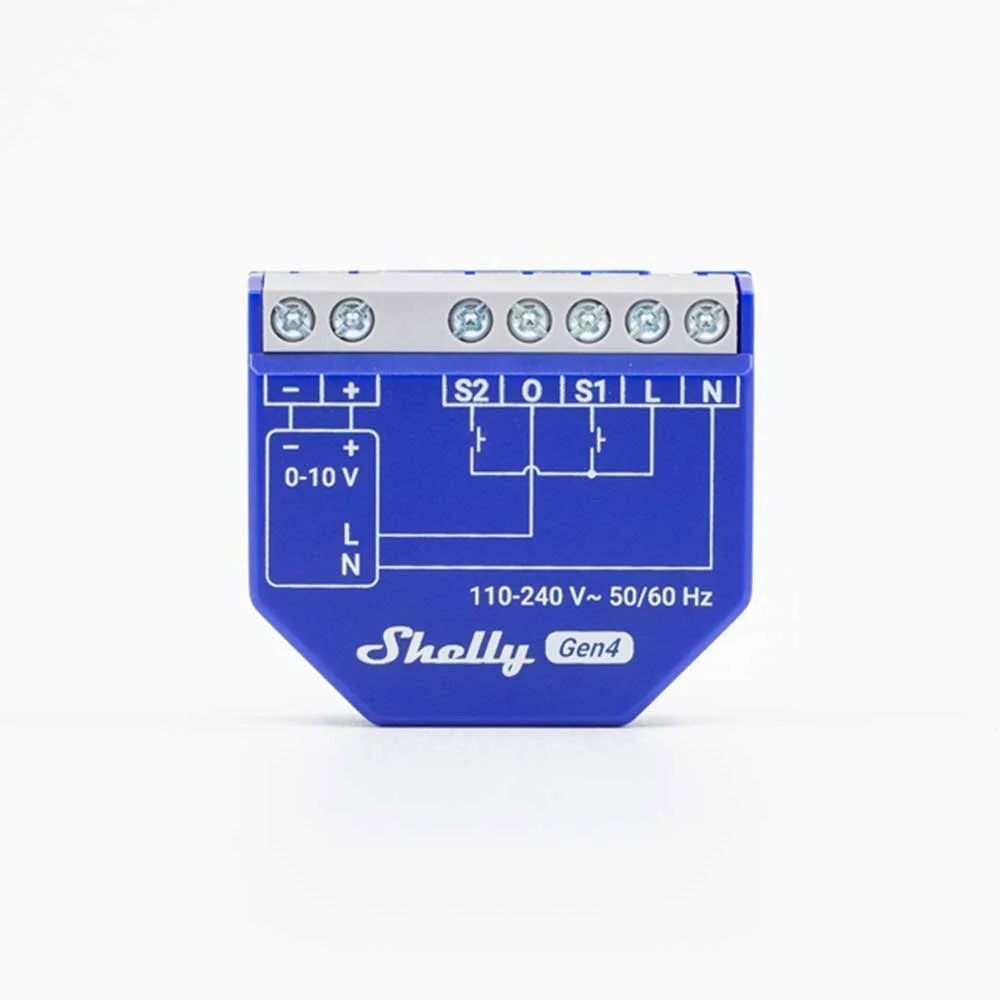

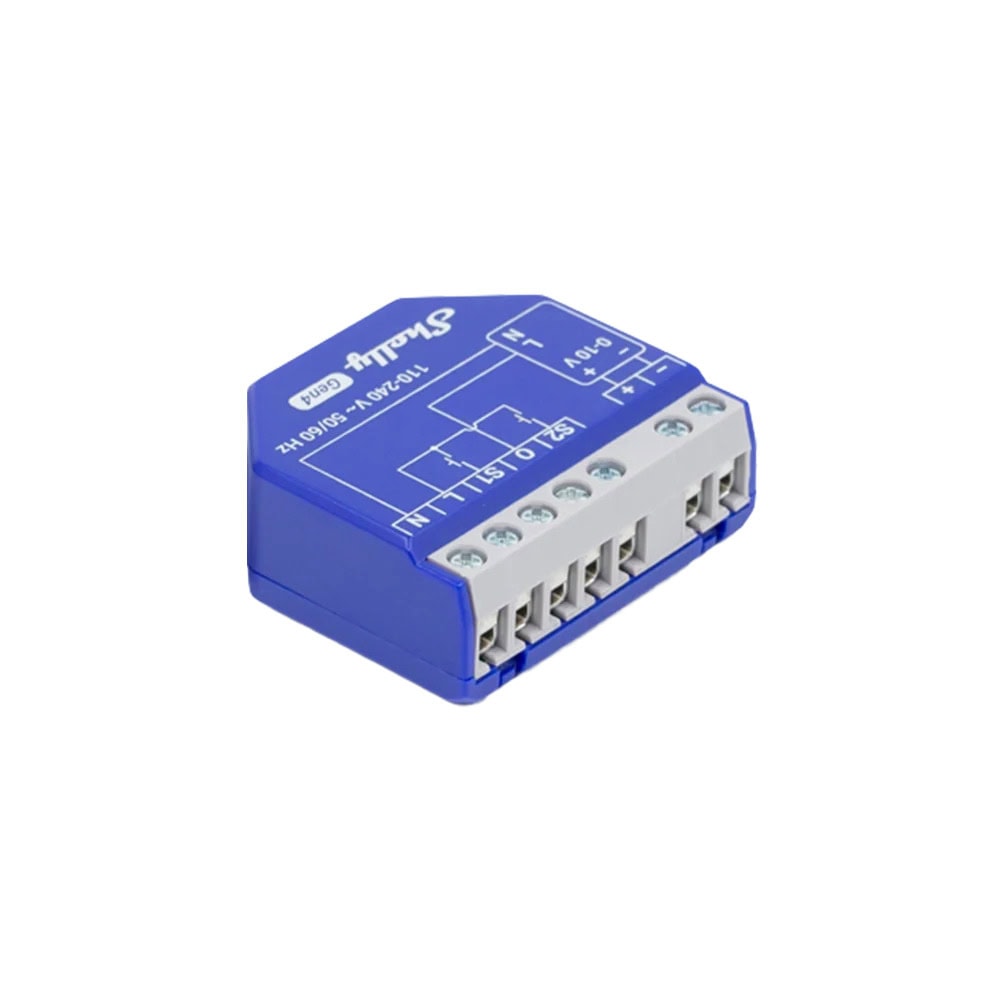

Wi-Fi реле Shelly Dimmer 0/1-10V PM Gen4, 16A, волтметър, амперметър, сензор за вътрешна температура, до 100m обхват, Bluetooth, синьо

Motion-Triggered Lighting for Safety

Pair Shelly Dimmer 0/1-10V PM Gen4 with Shelly BLU Motion to control lighting based on movement. Set lights to turn on gently when motion is detected in hallways or entrances, then dim or switch off automatically after. Brightness and behavior are easy to adjust in the Shelly Smart Control app, helping improve safety and comfort without manual control.

Night Mode for Gentle Illumination

Shelly Dimmer 0/1-10V PM Gen4 lets you control how bright your lighting is during nighttime hours. Choose preferred hours and brightness level, then activate Night mode. When lights turn on, the dimmer follows your setup and keeps illumination soft and comfortable - ideal for bedrooms, hallways, or children’s rooms without harsh glare.

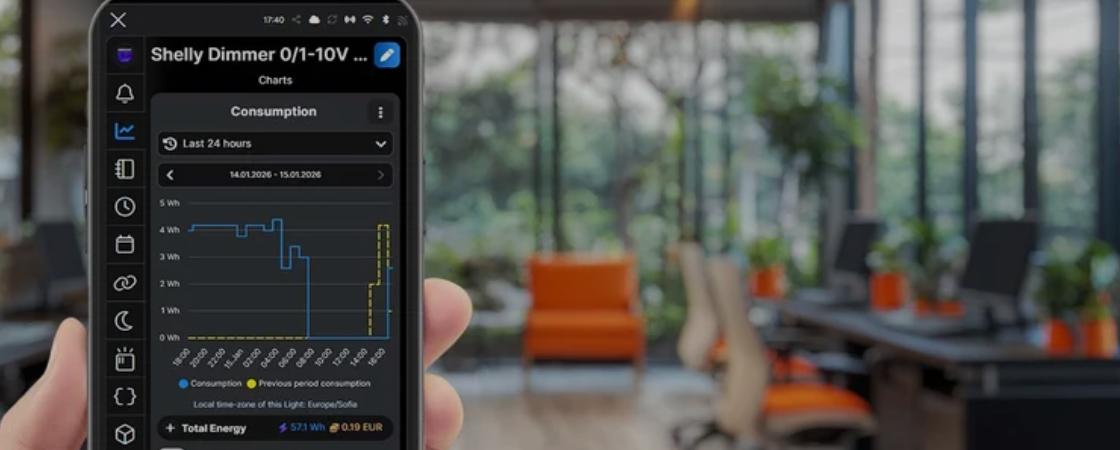

Energy-Aware Lighting Control

Shelly Dimmer 0/1-10V PM Gen4 uses its built-in power meter to measure how much energy your lighting consumes. Dim lights during quieter hours, lower brightness when natural light is available, and spot inefficient setups at a glance. Over time, these small adjustments help reduce energy waste, lower utility costs, and keep lighting comfortable without constant manual control.

Ambient Lighting for Hospitality Spaces

Set the mood in cafés, restaurants, or small venues where lighting shapes the experience. Shelly Dimmer 0/1-10V PM Gen4 allows bright, energetic light during busy daytime hours, then gradually softens the atmosphere as evening approaches. Use schedules for automatic transitions or make quick adjustments from the Shelly Smart Control app when the atmosphere needs a change. Lighting adapts smoothly, helping guests feel comfortable while staff stays focused on service.

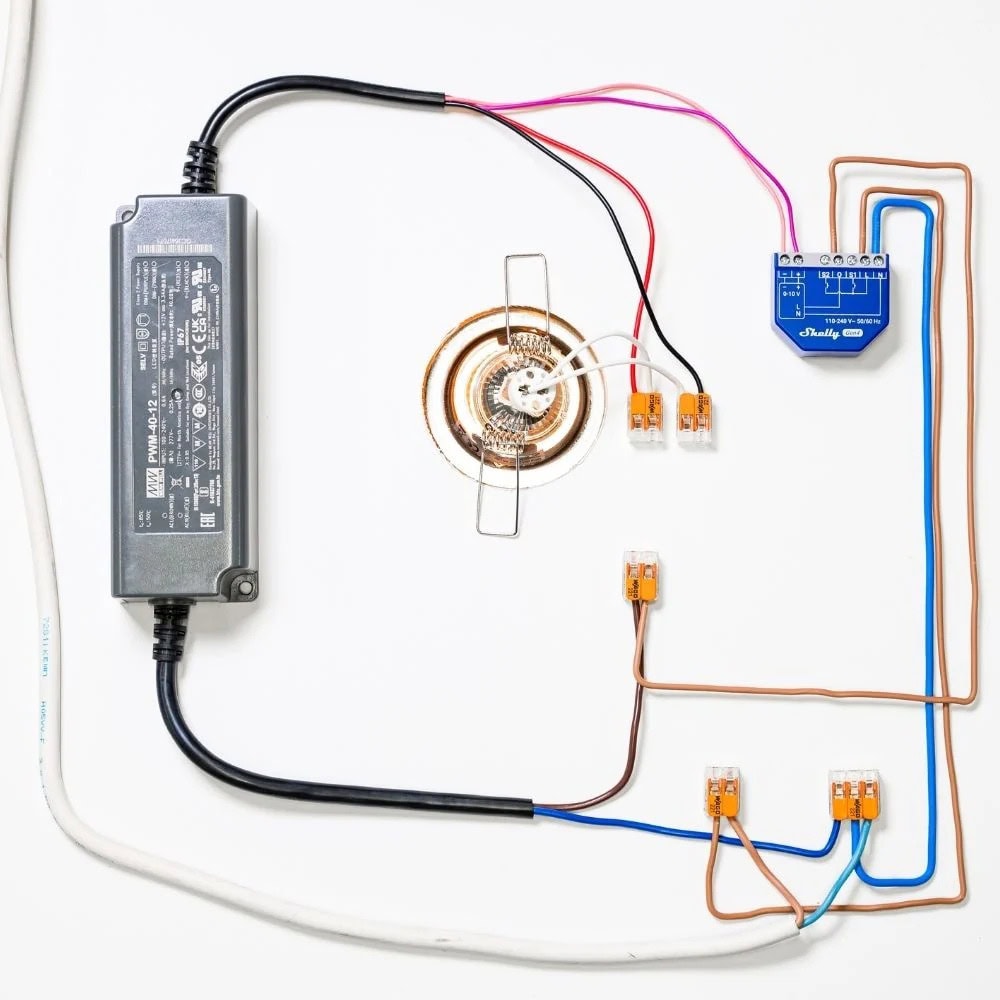

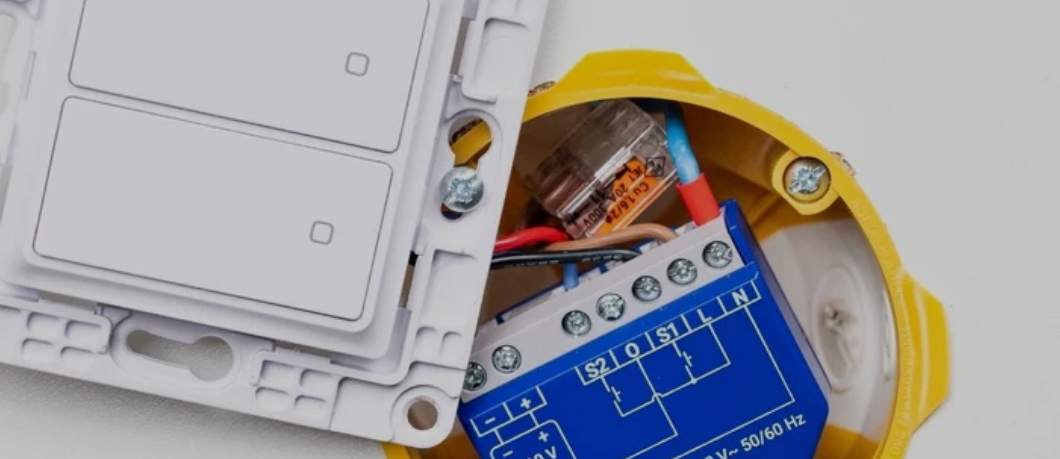

Retrofit Your Existing Lighting System

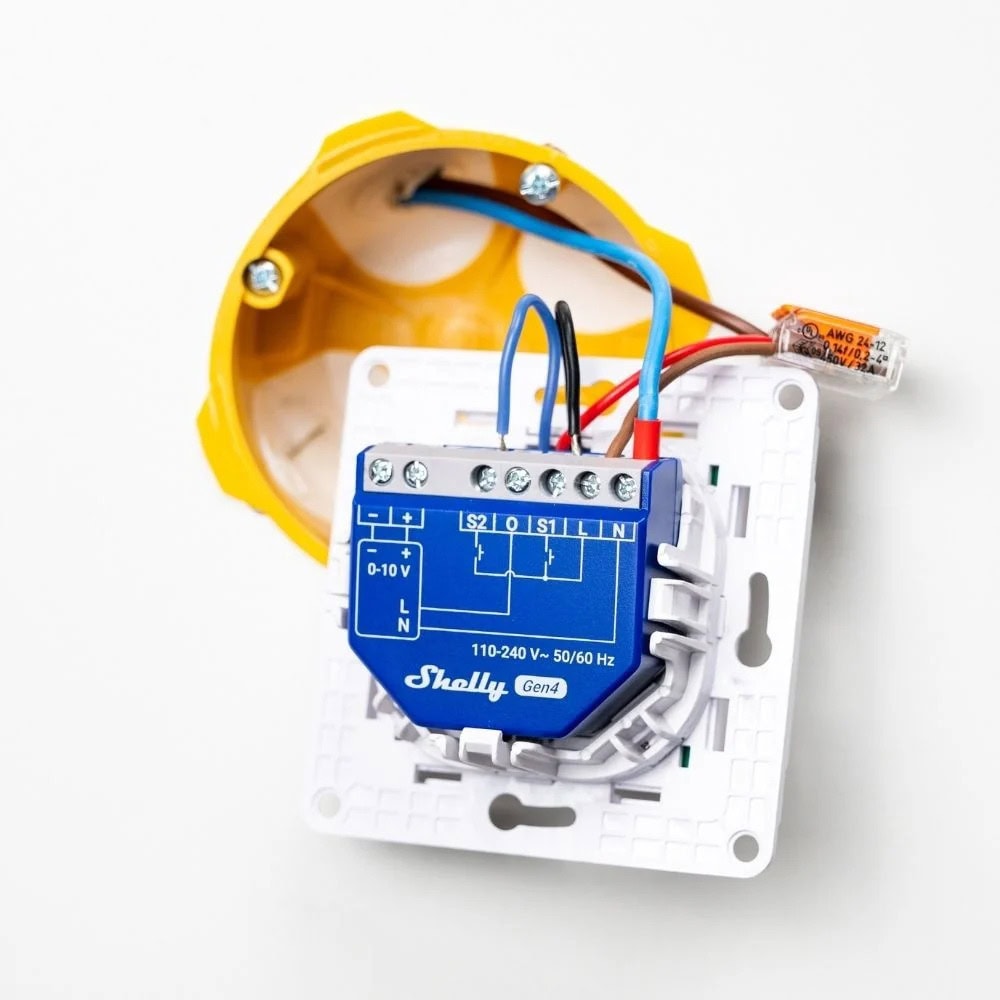

Upgrade your current lighting setup while keeping your existing switches and electrical installation intact. Shelly Dimmer 0/1-10V PM Gen4 installs behind familiar wall switches and lets you configure how button actions control brightness. This makes it possible to modernize lighting behavior while preserving the original look and feel of the space.

Control brightness with your wall switches

Dim lights smoothly using existing one- or two-button wall switches, without changing the look or layout of your space.

Automate lighting behavior

Use schedules and night mode to keep lighting consistent without manual control.

Control lights your way

Manage lighting through the Shelly Smart Control app, voice assistants, or your preferred automation platform, at home or remotely.

Set the right atmosphere with precise dimming

Adjust brightness levels for different moments, fine-tune minimum and maximum output, and control how smoothly light transitions between levels.

Monitor energy usage in real time

Track power consumption and gain better visibility into how your connected lights use energy.

Upgrade existing lighting setups

Modernize compatible lighting installations without changing switches or visible wiring.

Specifications

Physical

Size (HxWxD):

38.5x43.5x17mm / 1.52x1.71x0.67in

Weight:

28.5 g / 0.99 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Mounting:

Wall console/behind wall/ceiling construction

Shell material:

Plastic

Shell color:

Shell: Pantone 2736C (blue)

Print: White

Connector color:

Gray

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110-240 V~, 50/60 Hz

Power consumption:

< 1.5 W

0-10V/1-10V voltage control type:

Current sourcing

Current sinking

External protection:

16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3

Output circuits ratings

Max. switching voltage:

240 V~

Max. switching current:

13 A

Max. control current:

35 mA

Sensors, meters

Voltmeter (AC):

110 V - 240 V

Voltmeter accuracy:

±10 %

Ammeter (AC):

50 mA - 16 A

Ammeter accuracy:

±10 %

Measurement data storage:

No

Internal-temperature sensor:

Yes

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2401 - 2483 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:

5.0

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Protocol:

802.15.4

Zigbee repeater:

Yes

RF bands:

2405 - 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)

Microcontroller unit

CPU:

ESP32-C6

Clock frequency:

80 MHz

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

Advanced schedules:

Yes

KVS (Key-Value Store):

Yes
