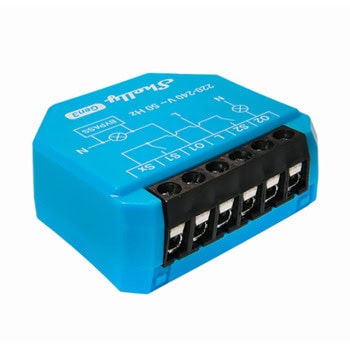

Shelly 2L Gen3
Customized lighting
Shelly 2L Gen3 is perfect for spaces where lighting needs differ, such as a living room with both ceiling and accent lights. Users can adjust each light to create the ideal ambiance and even set up automated schedules for a convenient and fully customizable experience.
Perfect to retrofit! No Neutral Wire Needed!
In many homes, where Neutral wires aren’t available, installing smart switches typically requires significant rewiring. With Shelly 2L Gen3, users can easily retrofit their current setup without additional wiring, as the device operates solely on a Live wire. This setup allows homeowners to install the device directly behind their existing light switches to control two separate lights independently.
Smart Lighting Without a Neutral Wire
Shelly 2L Gen3 is a two-cannel smart relay for lighting control that requires no neutral wire, making it compatible with all installations. Easy to install in under 10 minutes, it allows you to control your lights remotely, set schedules, and save energy. Perfect for any home or building, it ensures you never leave lights on by mistake, offering convenience and peace of mind.
Wi-Fi operated
Connect Shelly 2L Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Quick inclusion via Bluetooth or use it as a Bluetooth gateway.

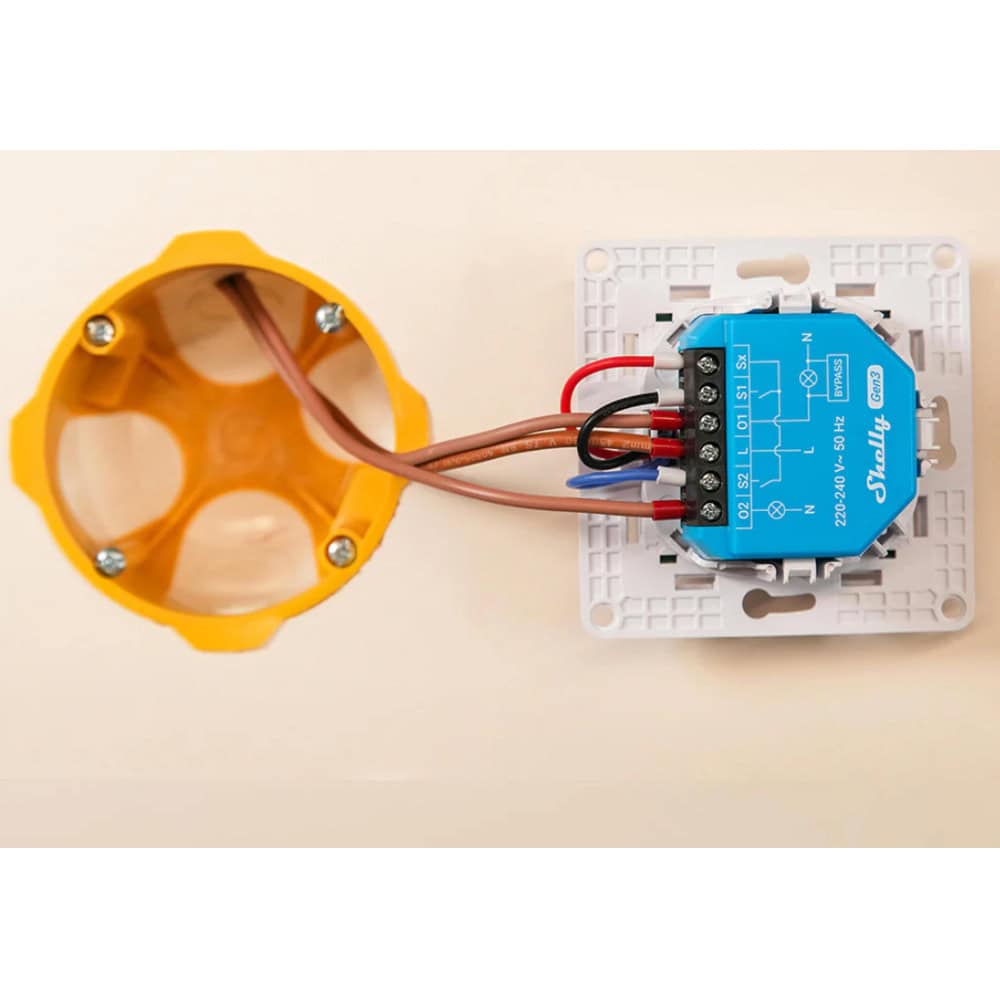

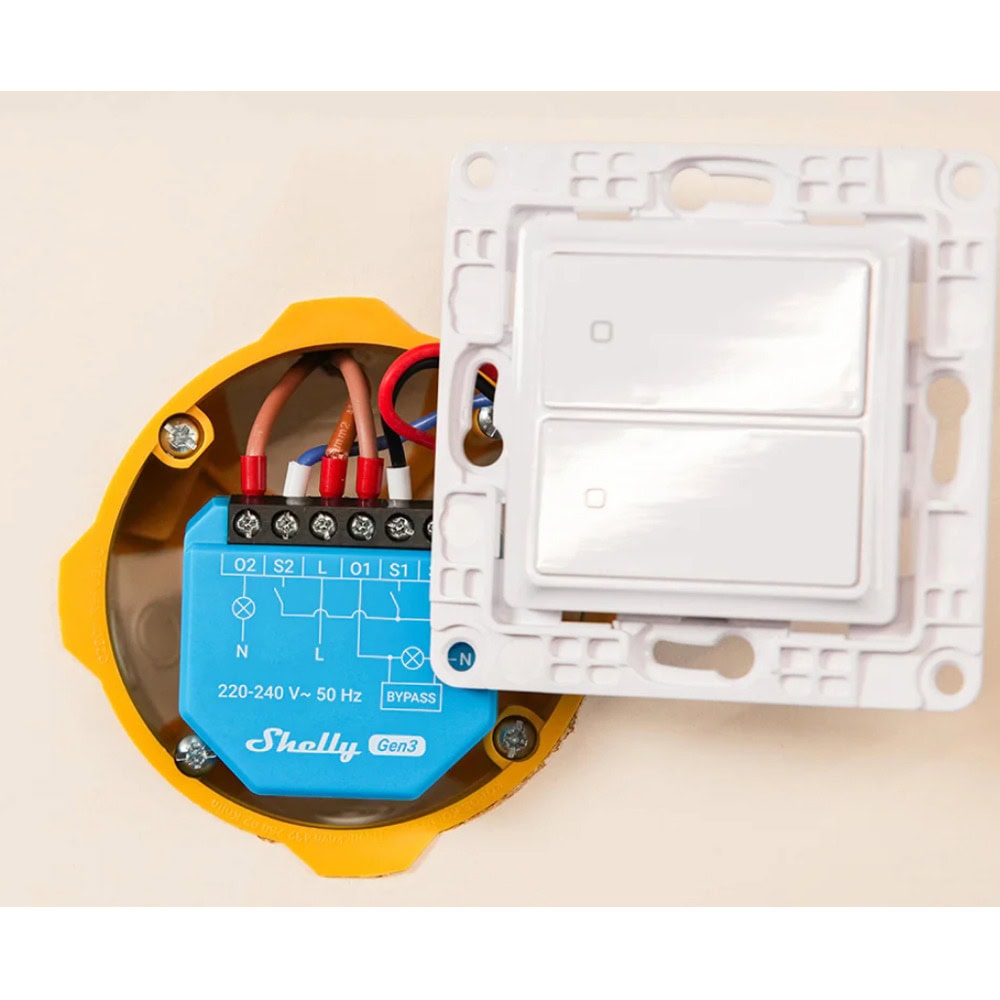

Perfect to retrofit!
Shelly 2L Gen3 is designed for installation in limited spaces, such as wall switches
No Neutral wire required!
Power and control your lights, or other connected appliances using just a Live wire, with no need to connect a Neutral wire if you don't want to.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly 2L Gen3 with your other devices.
Specifications
Environmental
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Storage temperature: | 10°C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
Electrical

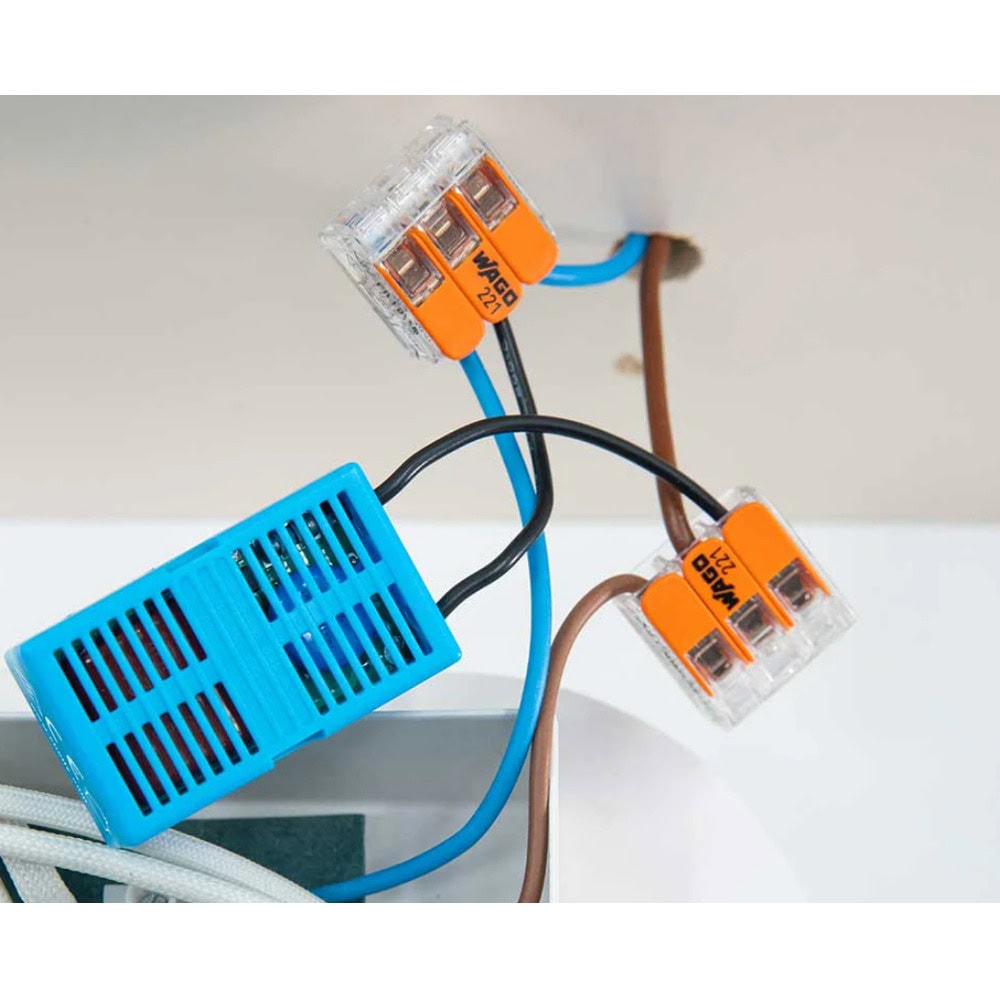

| Power supply: | 220-240 V~, 50Hz (Shelly Bypass is required for the load at O1) |
| Shelly Bypass included | Yes |
| Power consumption: | < 1.2 W |
| Neutral not needed: | Yes (Shelly Bypass is required for the load at O1) |
| Min. load without neutral and without a Bypass: | No (Shelly Bypass for 1L/2L is required for the load at O1), for all LED lights. No, Bypass is not needed for incandescent lights. |
Output circuits ratings
| Max. switching voltage: | 240 V~ |
| Max. switching power: |
|
Sensors, meters
| Internal-temperature sensor: | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n |
| RF band: | 2401 - 2495 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 4.2 |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP-Shelly-C38F |
| Clock frequency: | 160 Mhz |
| RAM: | 512 KB |
| Flash: | 8 MB |
Firmware capabilities
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
