Видео карта AMD Radeon RX 7900 GRE, 16GB, Sapphire Pulse, PCI-E 4.0, GDDR6, 256-bit, DisplayPort, HDMI

RX 7900 GRE Sapphire Pulse

	Digital Power Design SAPPHIRE NITRO+ & PULSE AMD Radeon RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency

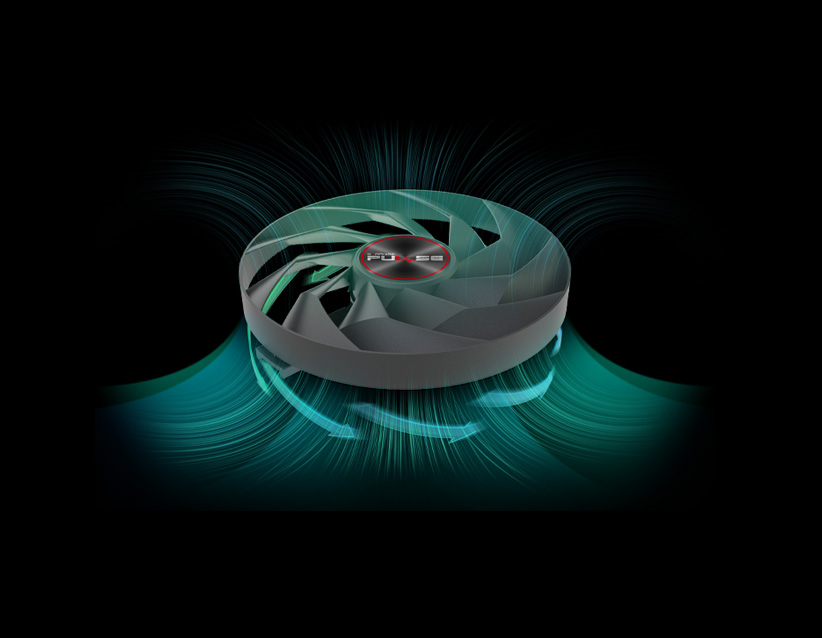

	Angular Velocity Fan Blade The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

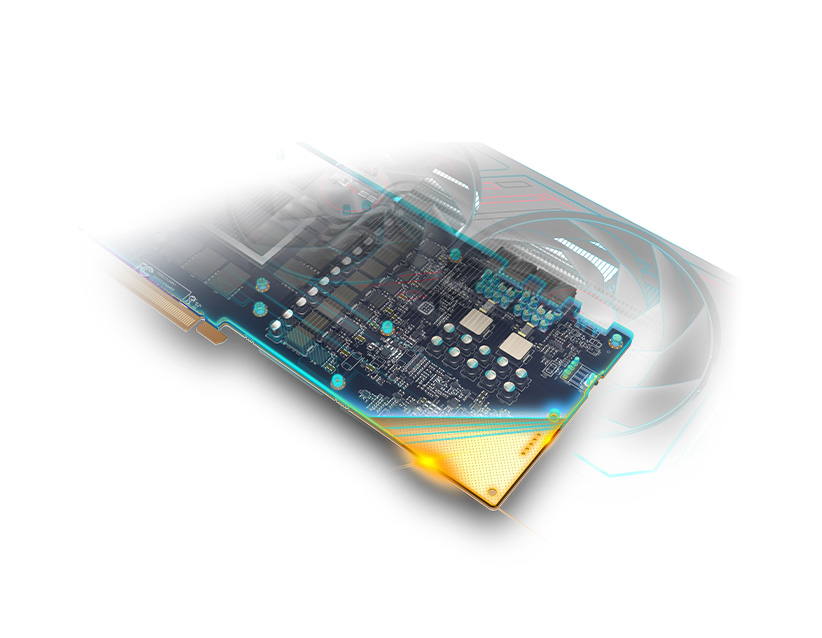

	High TG Copper PCB The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Specifications



GPU

AMD Radeon RX 7900 GRE Graphics Card
5nm GPU
AMD RDNA 3 Architecture



Engine Clock

• Boost Clock: Up to 2293 MHz
• Game Clock: Up to 1927 MHz



Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.



Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.



Stream Processors

5120



Compute Units

80 CU (with RT+AI Accelerators)



Infinity Cache

64MB



Ray Accelerators

80



Memory Size/Bus

16GB/256 bit GDDR6



Memory Clock

18 Gbps Effective



Displays

Maximum 4 Displays



Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320



Interface

PCI-Express 4.0 x16



Output

• 2x HDMI
• 2x DisplayPort



BIOS Support

• UEFI



Game Index

4K



Sapphire Features

• Digital Power Design
• Fuse Protection
• High TG Copper PCB
• Optimized Composite Heatpipes
• Tri-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• Angular Velocity Fan Blade
• Dual-Ball Bearing Fans
• TriXX Supported
• TriXX Boost



AMD Features

• AMD RDNA 3 Architecture
• 80 AMD RDNA 3 Compute Units
• 64MB AMD Infinity Cache Technology
• DirectX 12 Ultimate Support
• DisplayPort 2.1 with DSC
• AMD Radiance Display Engine
• 16GB GDDR6 on 256-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD FreeSync Technology



Cooler Type

3 Fans



Form Factor

2.5 slot, ATX
Dimension: 320(L)X 128.75(W)X 52.57 (H)mm



Power Consumption

268W Total Board Power



OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required



System Requirement

• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
