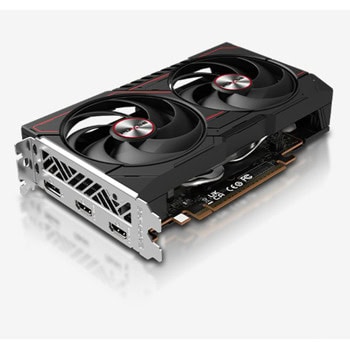

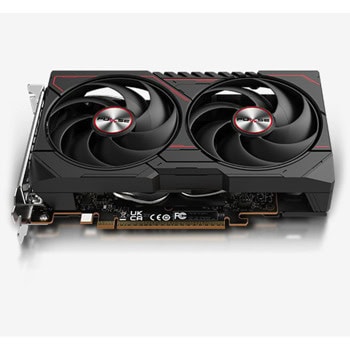

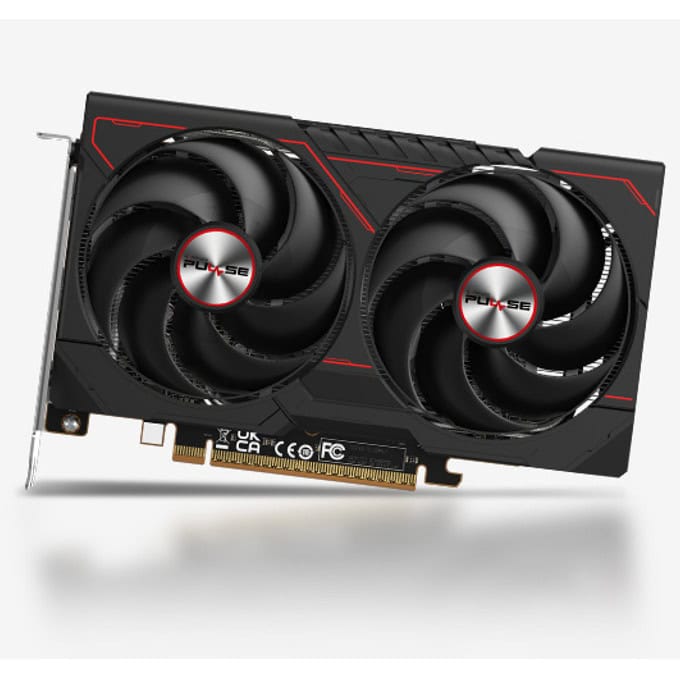

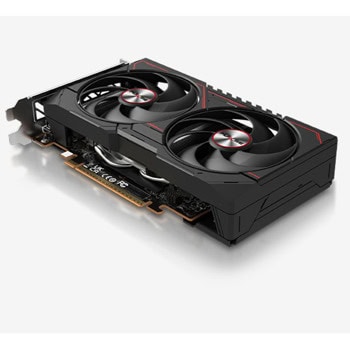

Видео карта AMD Radeon RX 9060, 8GB, Sapphire Pulse, OC, PCI-E 5.0, GDDR6, 128-bit, DisplayPort, HDMI

PULSE AMD Radeon™ RX 9060 OC 8GB GPU

• GPU: Boost Clock: Up to 3040 MHz
• GPU: Game Clock: Up to 2440 MHz
• Memory:   8GB/128 bit GDDR6. 18Gbps Effective
• Stream Processors: 1792
• AMD RDNA™ 4 Architecture
• Ray Accelerator: 28

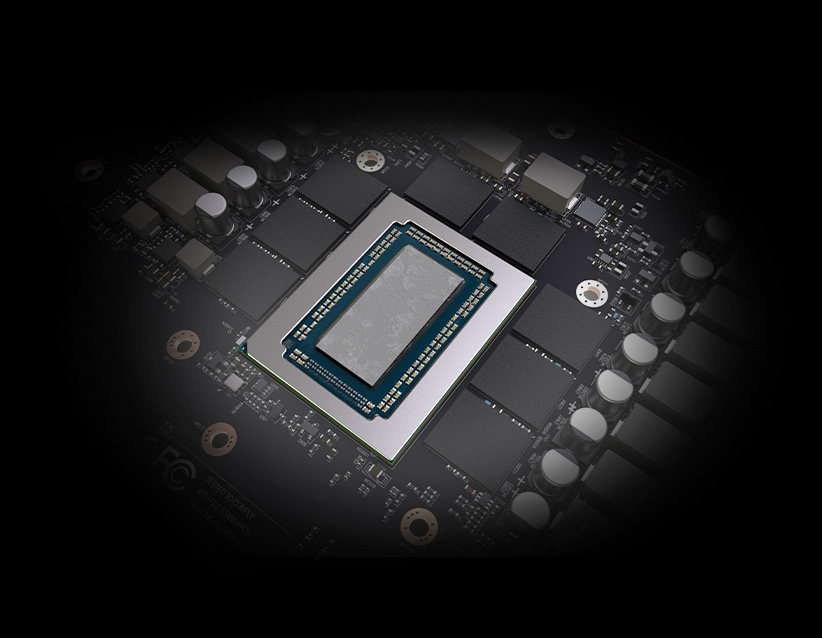

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

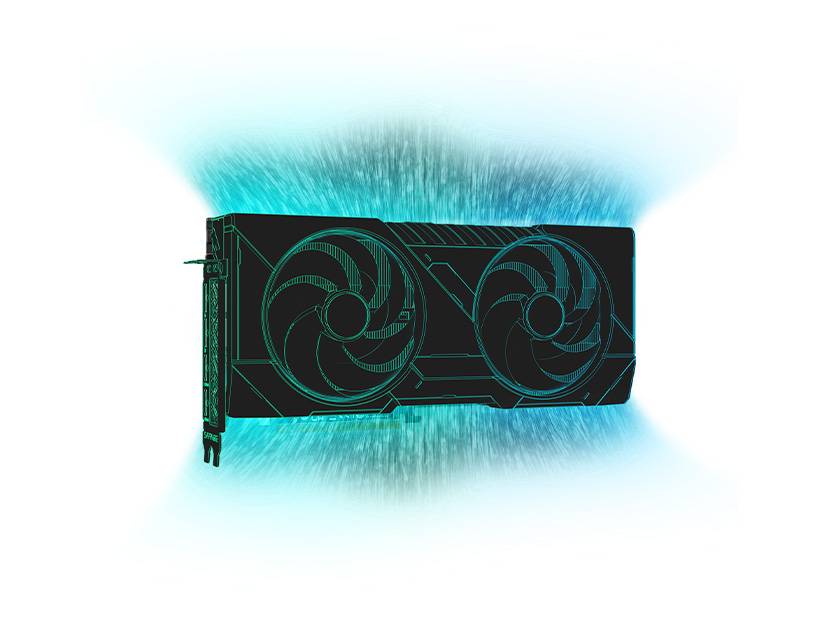

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

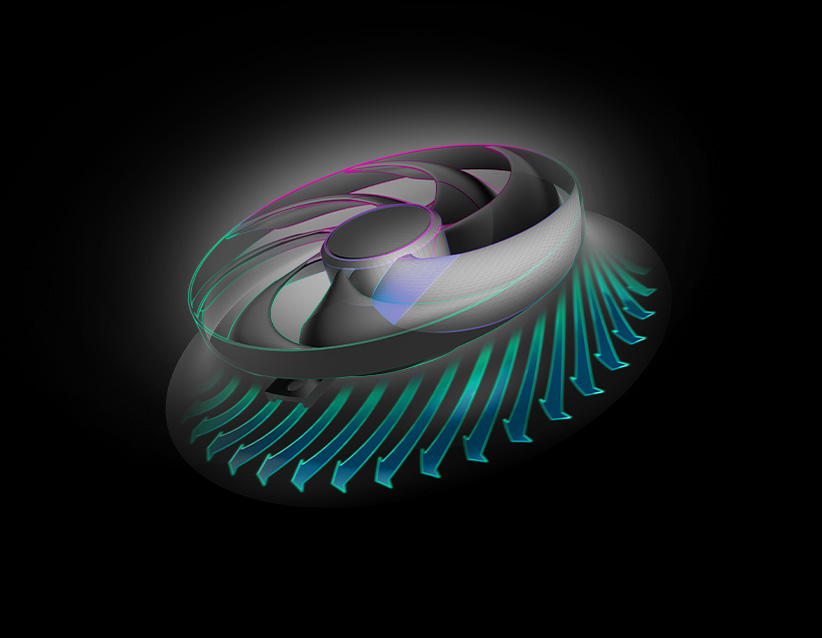

AeroCurve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

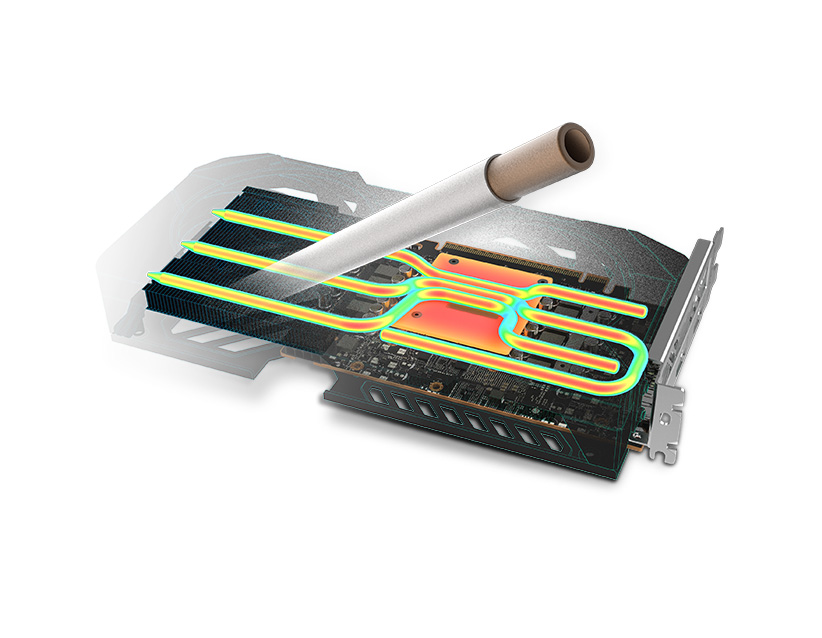

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

GPU

AMD Radeon™ RX 9060 Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock

• Boost Clock: Up to 3040 MHz
• Game Clock: Up to 2440 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

1792

Compute Units

28 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

32MB

Ray Accelerators

28

AI Accelerator

56

Memory Size/Bus

8GB/128 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 3 Displays

Resolution

• HDMI®: 7680×4320
• DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

• 2x HDMI®
• 1x DisplayPort™ 2.1a

BIOS Support

• UEFI

Game Index

1080P ULTRA

Sapphire Features

• Honeywell PTM7950 Thermal Interface Material (TIM)
• AeroCurve Fan Blade
• Free Flow
• FrameDefense
• Integrated Cooling Module
• Dual-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipes

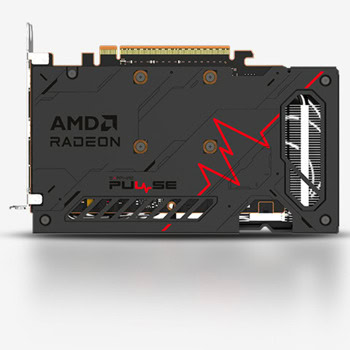

• Metal Backplate
• 9-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Supported
• TriXX Boost

AMD Features

• AMD RDNA™ 4 Architecture
• 28 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• DisplayPort™ 2.1a
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology
• AMD Radeon™ Anti-Lag 2 technology
• AMD FidelityFX™ technologies
• Microsoft® DirectX® 12 Ultimate
• AMD Noise Suppression
• AMD Freesync™ technology
• AMD Infinity Cache
• 8 GB of GDDR6 on 128-bit Memory Bus
• AMD smart technologies
• AMD Software: Adrenalin Edition™ application

Cooler Type

• Dual-X Cooling
• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Optimized Composite Heatpipes
• Sleeve Bearing

Form Factor

2 slot, ATX
Dimension: 200(L) X 109.25(W) X 40.6(H)mm

Power Consumption

136W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 450 Watt Power Supply
• 1 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
