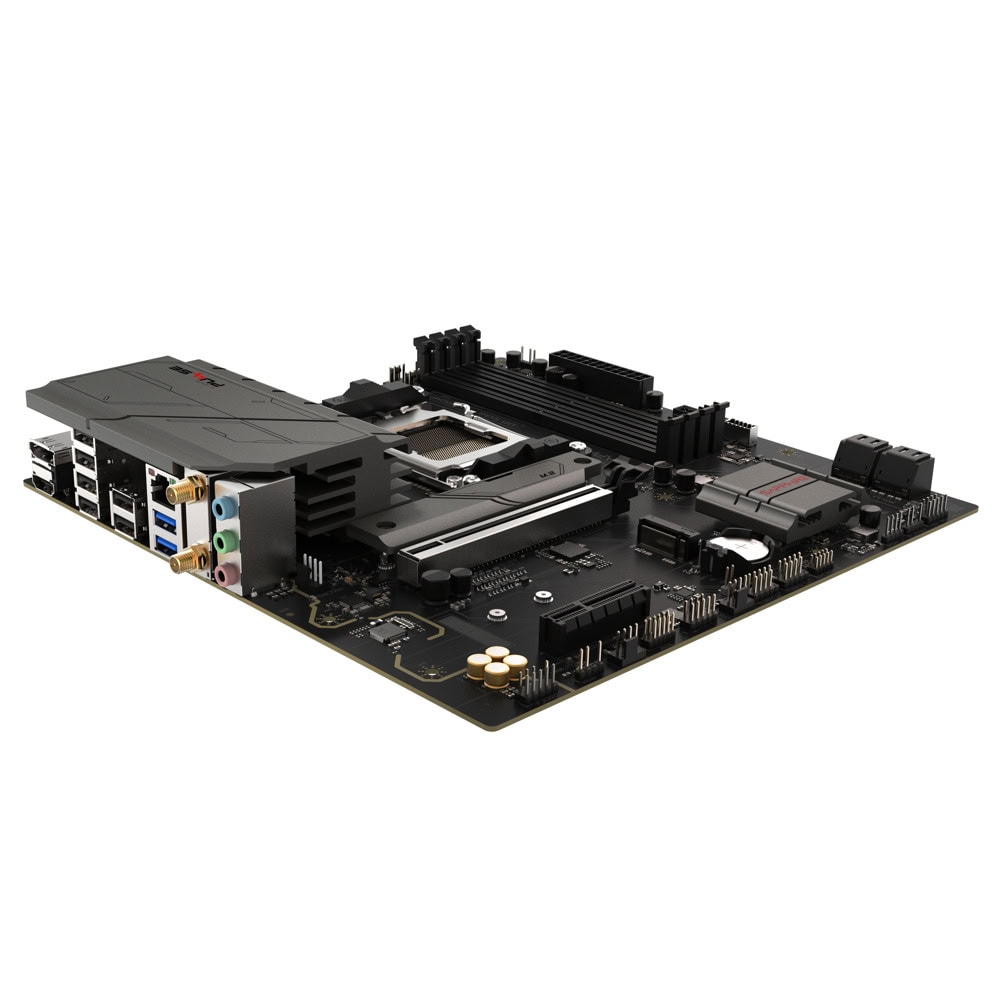

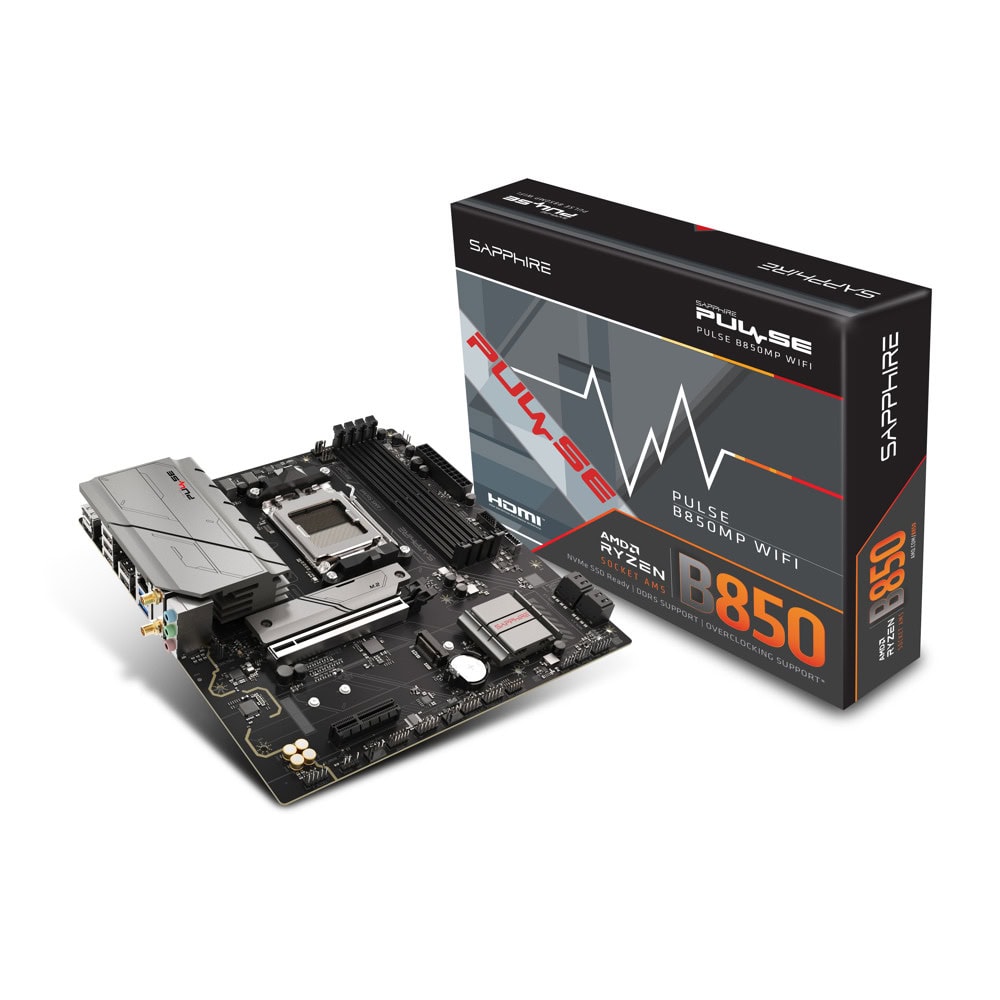

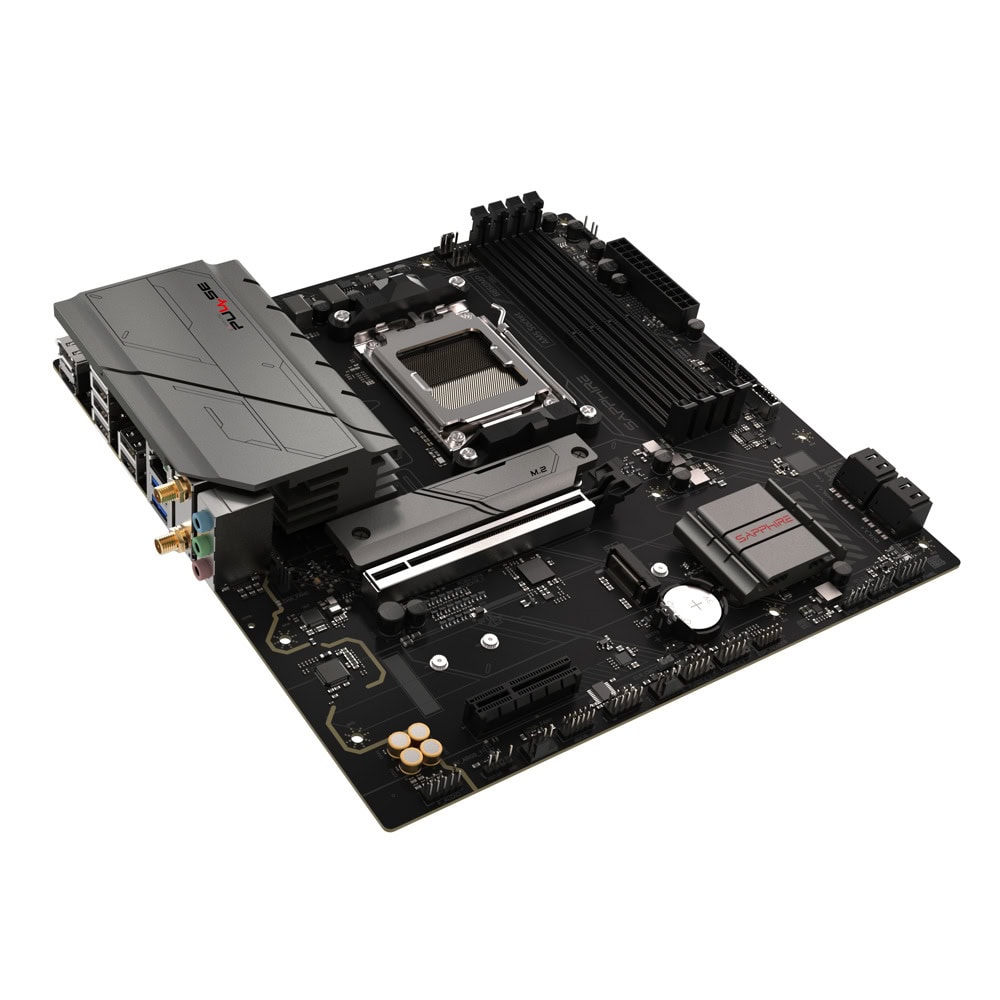

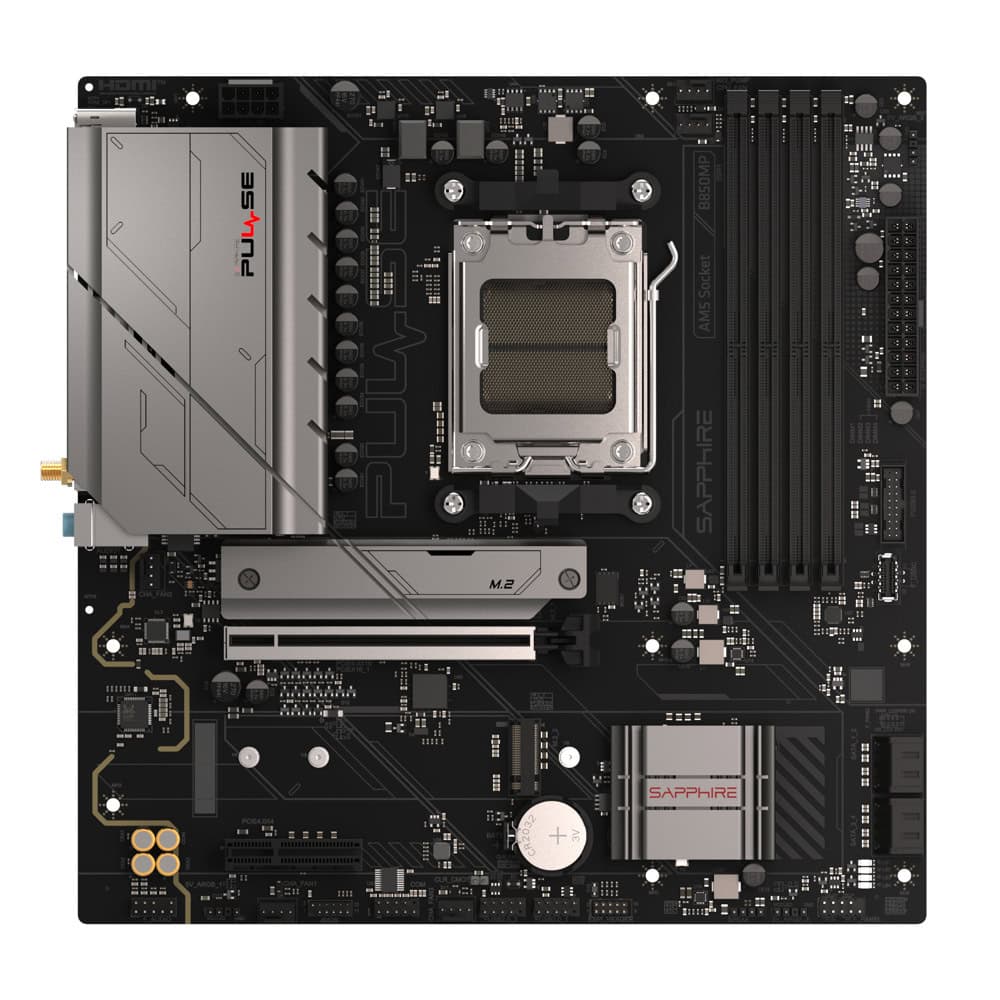

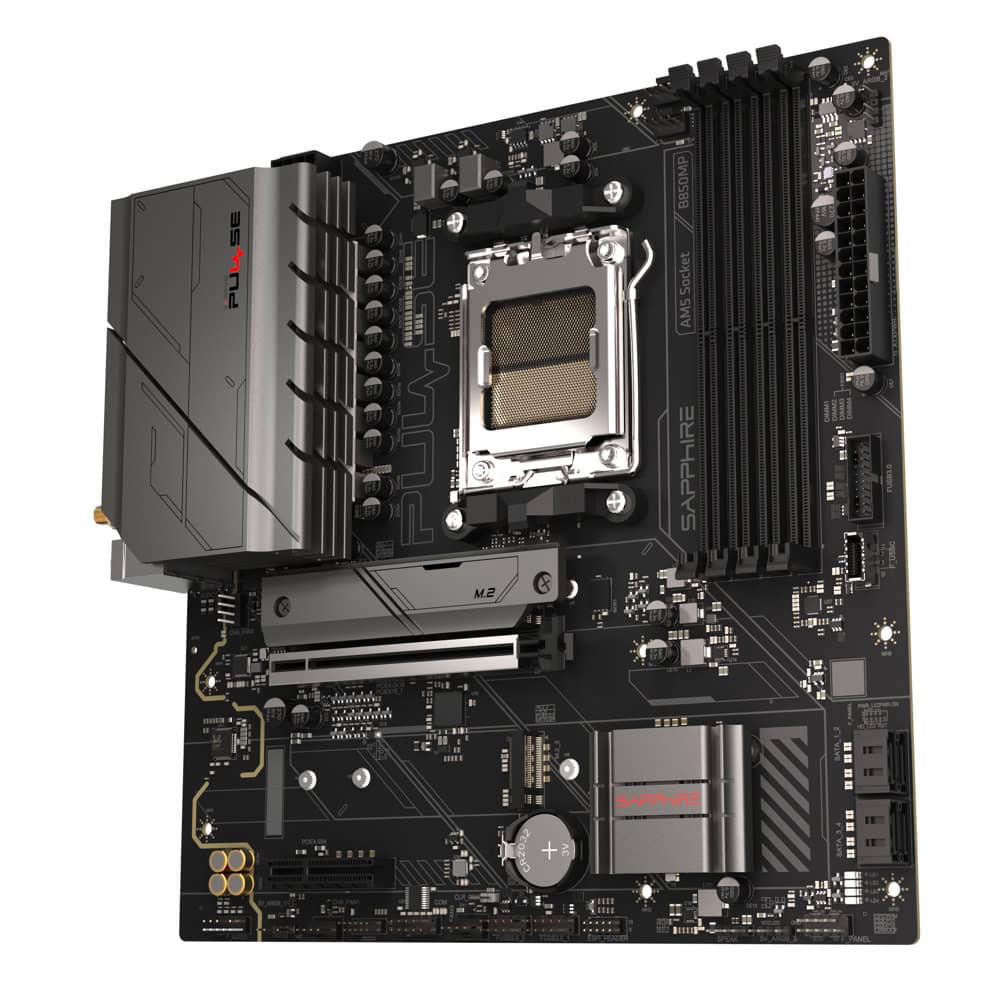

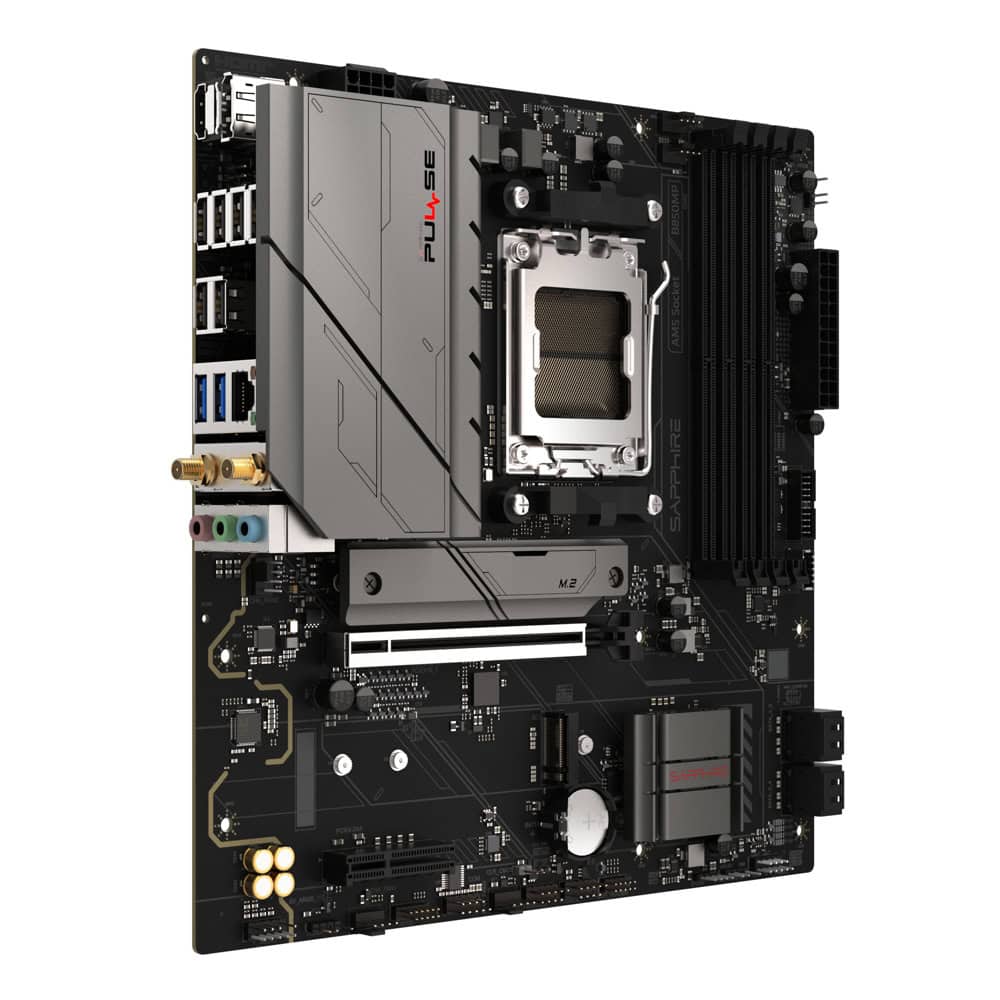

Дънна платка Sapphire Pulse B850M WiFi, B850, AM5, DDR5, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 2x M.2 slots, 2x USB 3.2 Gen 1 Type-A, 2.5GbE LAN, Wi-Fi 6, Bluetooth 5.3, Micro ATX

Sapphire Pulse B850M WiFi
52123-04-40G


Chipset
AMD B850

CPU Support
Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Memory Support
4x DIMM, Dual Channel DDR5
Maximum Memory Capacity 256GB (4x 64GB)
Up to 7600 MHz(OC)

PCI-E Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x4

Display Connector
DisplayPort x1
HDMI x1

Audio
Realtek ALC897 HD Audio
5.1 Channel

Network
Realtek RTL8125BG 2.5 Gigabit Ethernet
M.2 WiFi 6 Module
Support 802.11 a/b/g/n/ac/ax
2.4 GHz/ 5 GHz band
Bluetooth 5.3 Support

Front USB Headers
1x USB 3.2 Gen1 (1 x Type-C)
1x USB 3.2 Gen1 (2 x Type-A)
2x USB 2.0 (4 x Type-A)

Rear Ports
1x HDMI
1x DisplayPort
6x USB 2.0
2x USB 3.2 Gen1 Type-A
1x RJ45 LAN
2x Wi Fi Antennas
3x Audio Jacks

Storage
1x PCIe 5.0 M.2
1x PCIe 4.0 M.2
4x SATA

Dimensions
Micro-ATX
244x244mm

Debug LED
DRAM: Yellow
CPU: Red
GPU: White
Boot: Green
